NISSEI GTR F3S20N10-MM02TNNTNX Gearmotor: Specifications, Applications and Replacement Guide

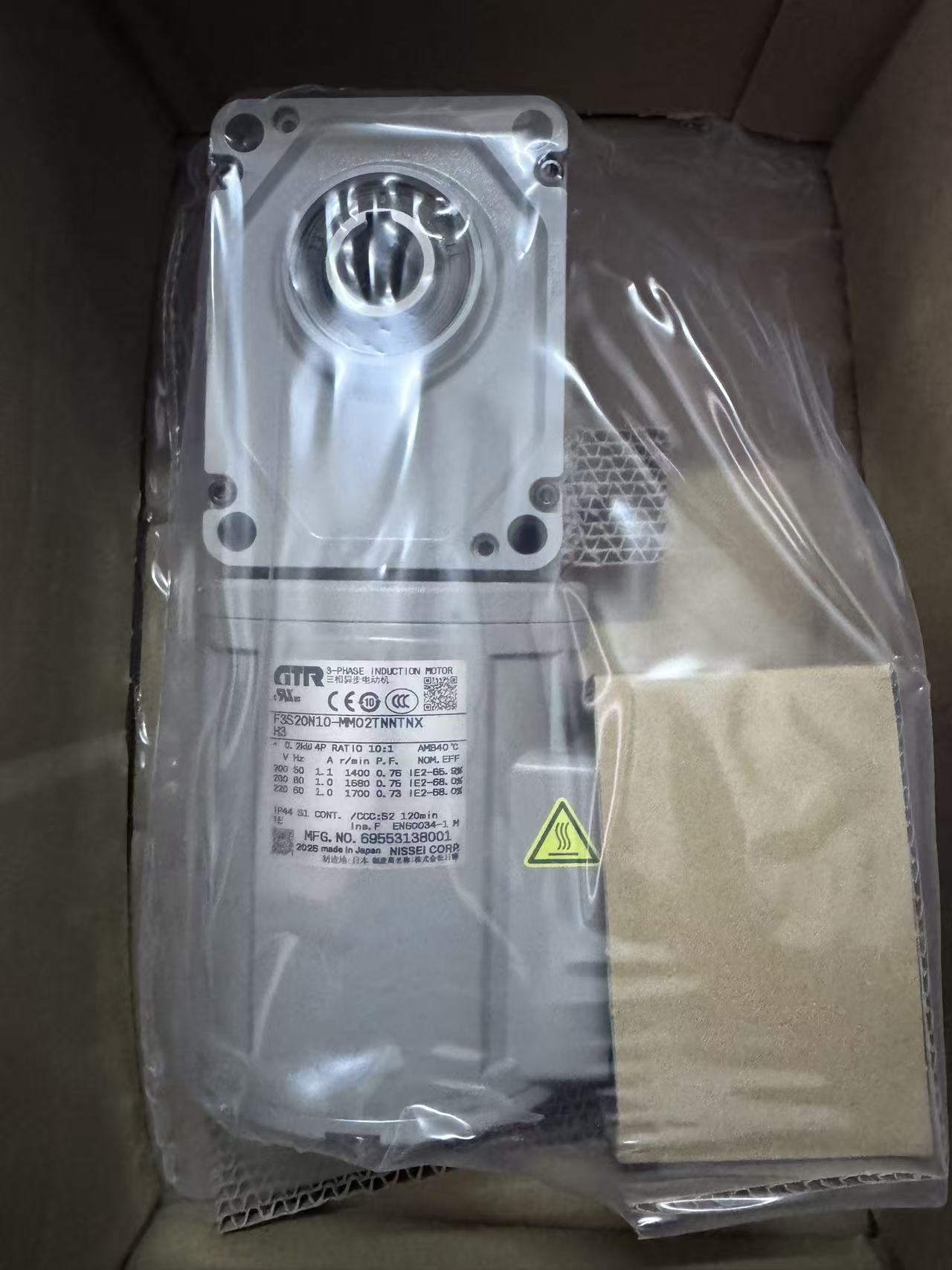

# NISSEI GTR F3S20N10-MM02TNNTNX Gearmotor: Technical Specifications, Applications and Industrial Sourcing ## 1. Introduction The **NISSEI GTR F3S20N10-MM02TNNTNX** is a Japanese-manufactured industrial gearmotor combining a three-phase induction motor with a precision gear reduction mechanism. Manufactured by **NISSEI CORPORATION, Japan**, the unit belongs to the GTR MID Series and features a rated motor power of 0.2kW (200W), a 10:1 reduction ratio and a concentric hollow-shaft configuration. FURUYA DENKI has supplied this exact model as part of its international industrial equipment and spare parts sourcing activities. The actual supplied unit was manufactured in Japan in 2026. Its original product nameplate, packaging, accompanying documentation and accessories were documented during the supply process. This article provides information for procurement engineers, maintenance departments, equipment manufacturers and industrial spare parts buyers looking for original NISSEI gearmotors or evaluating replacement options. ## 2. NISSEI Brand and GTR Gearmotor Series NISSEI is a Japanese manufacturer specializing in gearmotors, reduction equipment and industrial power transmission solutions. The GTR range includes several shaft configurations and reduction systems designed for various industrial machinery applications. These include: - Parallel-shaft gearmotors - Right-angle gearmotors - Concentric hollow-shaft gearmotors - Concentric solid-shaft gearmotors - Three-phase induction gearmotors The F3S series is associated with a concentric hollow-shaft configuration, which can simplify the connection between a geared drive and compatible machinery. The F3S20N10-MM02TNNTNX model combines this configuration with a 200W induction motor and a nominal 10:1 reduction ratio. ## 3. NISSEI F3S20N10-MM02TNNTNX Technical Specifications The following specifications are based on the actual supplied unit's nameplate. | Parameter | Specification | |---|---| | Manufacturer | NISSEI CORPORATION | | Brand | NISSEI GTR | | Product Series | GTR MID Series | | Full Model Number | F3S20N10-MM02TNNTNX | | Additional Marking | H3 | | Motor Type | Three-Phase Induction Motor | | Rated Motor Power | 0.2kW / 200W | | Number of Poles | 4 | | Reduction Ratio | 10:1 | | Output Configuration | Concentric Hollow Shaft | | Protection Rating | IP44 | | Insulation Class | F | | Rated Ambient Temperature | 40°C | | Duty Marking | S1 Continuous / CCC: S2 120min | | Manufacturing Year | 2026 | | Country of Origin | Japan | | Manufacturing Number | 69553138001 | ### Electrical Ratings | Voltage | Frequency | Current | Motor Speed | Power Factor | Nominal Efficiency | |---|---|---|---|---|---| | 200V | 50Hz | 1.1A | 1400rpm | 0.76 | 65.9% | | 200V | 60Hz | 1.0A | 1680rpm | 0.75 | 68.0% | | 220V | 60Hz | 1.0A | 1700rpm | 0.73 | 68.0% | The nameplate identifies IE2 efficiency performance at the specified rated operating points. **Important:** The speeds shown above are motor speeds rather than final gearbox output speeds. For a nominal reduction ratio of 10:1, the calculated output speeds are approximately 140rpm, 168rpm and 170rpm respectively, before considering operating variations. Actual gearbox output torque and permissible mechanical loads should be verified against the manufacturer's technical documentation. ## 4. Main Product Features ### 4.1 Japanese Manufacturing The supplied F3S20N10-MM02TNNTNX unit is marked Made in Japan and carries an individual manufacturing identification number. Product identification and traceability are particularly relevant for industrial maintenance projects where matching the original equipment configuration is essential. ### 4.2 Compact Concentric Hollow-Shaft Design The F3S concentric hollow-shaft configuration allows integration with a compatible driven shaft. This may help reduce coupling complexity and installation space compared with certain alternative transmission arrangements. The shaft dimensions, keyway, mounting geometry and load limits must be checked before installation. ### 4.3 10:1 Gear Reduction The integrated reduction mechanism provides a nominal speed reduction of 10:1. This configuration may be suitable for machinery requiring lower output speed and increased torque compared with direct motor-shaft operation. Actual torque capacity depends on gearbox efficiency, permissible loading and manufacturer ratings. ### 4.4 Three-Phase Induction Motor The gearmotor incorporates a 0.2kW three-phase induction motor designed for the electrical ratings stated on its nameplate. Correct voltage, frequency and motor protection are necessary for safe operation. ### 4.5 IP44 Protection The product is rated IP44, providing protection against specified solid objects and splashing water. Additional protection may be required in environments involving severe dust, corrosive substances, washdown processes or outdoor exposure. ## 5. Industrial Applications NISSEI GTR gearmotors are relevant to various industrial transmission and automation applications. The F3S20N10-MM02TNNTNX may be considered for the following uses when the technical requirements are compatible. ### Conveyor and Material Handling Systems Small industrial conveyors and material transfer systems may use compact gearmotors to provide reduced-speed rotational drive. ### Packaging Machinery Potential uses include packaging conveyors, feeding mechanisms and auxiliary transmission equipment. ### Industrial Automation Gearmotors are used in automated machinery where controlled mechanical power transmission is required. ### Factory Maintenance and MRO Maintenance, Repair and Operations teams may require original gearmotors to replace worn or damaged equipment and restore production operations. ### Warehouse and Logistics Equipment Compact gearmotors can be used in certain rollers, handling devices and auxiliary mechanical drive assemblies. ### Manufacturing and Processing Equipment Industrial manufacturers may use geared motors in machinery requiring compatible output speed, torque and mounting configurations. These are general application examples. The exact model must be technically verified before installation in any particular machine. ## 6. Installation and Operating Precautions ### Complete Model Verification Always identify the full model number: **F3S20N10-MM02TNNTNX** The actual supplied unit also carries the additional marking H3. Any special configuration or suffix should be checked against manufacturer documentation. ### Electrical Requirements The supplied motor nameplate specifies: - 200V / 50Hz - 200V / 60Hz - 220V / 60Hz Installation on other voltage systems requires appropriate engineering verification. This is especially important for international projects where industrial power supply standards may differ. ### Mechanical Compatibility Before installation, verify: - Hollow-shaft diameter - Keyway and shaft tolerances - Mounting flange dimensions - Installation orientation - Rated output torque - Permissible radial and axial loads - Available installation space - Mechanical retention and coupling requirements ### Environmental Protection The IP44 rating must not be interpreted as waterproof or explosion-proof certification. Operating environments with high temperatures, aggressive chemicals or significant moisture require additional assessment. ### Motor Duty and Thermal Loading The nameplate includes S1 continuous-duty information and a separate CCC-related S2 120-minute marking. Starting frequency, load conditions, operating temperature and thermal protection requirements should be evaluated before commissioning. ### Included Accessories The photographed delivery documentation lists: - F3S-20 protective hub cap: 1 piece - GTR MR instruction manual: 1 copy The original instruction manual should be consulted before installation and maintenance. ## 7. Alternative Brands and Gearmotor Replacement Options When the original NISSEI GTR model is unavailable, buyers may evaluate alternative industrial gearmotor brands. However, replacement selection requires an engineering comparison. ### SEW-EURODRIVE SEW-EURODRIVE manufactures industrial gearmotors and drive systems. Comparable products must be evaluated based on motor power, reduction ratio, output shaft configuration, mounting dimensions and output torque. ### NORD DRIVESYSTEMS NORD offers a wide range of industrial geared motors. Certain product families may be suitable for redesigned or modified transmission applications following detailed mechanical verification. ### Sumitomo Drive Technologies Sumitomo supplies industrial gear reducers and gearmotors. Engineers should compare torque capacity, output structure, gearbox service factor and installation requirements. ### Oriental Motor Oriental Motor manufactures compact electric motors and gearhead systems. Its BLM6200SHP-GFV motor combined with a GFV6G10AS gearhead may provide a 200W, 10:1 functional comparison. However, this is a different drive technology and is **not a verified direct replacement** for the NISSEI F3S20N10-MM02TNNTNX. ### Brother Gearmotors Brother provides industrial gearmotors that may be assessed as alternative drive solutions depending on mechanical and electrical compatibility. ### Replacement Selection Table | Brand | Reference Product | Compatibility | |---|---|---| | NISSEI | GTR F3S20N10 family | Original family; exact configuration verification required | | SEW-EURODRIVE | Industrial Gearmotors | Engineering comparison | | NORD | Industrial Gearmotors | Engineering comparison | | Sumitomo | Industrial Gearmotors | Engineering comparison | | Oriental Motor | BLM6200SHP-GFV / GFV6G10AS | Functional comparison only | | Brother | Industrial Gearmotors | Engineering comparison | No alternative model listed here has been established as a direct mechanical or electrical interchange for the exact NISSEI unit. ## 8. Industrial Sourcing and Procurement Through FURUYA DENKI FURUYA DENKI provides international industrial equipment and spare parts sourcing services. Our activities include sourcing original Japanese industrial components, model identification, supplier coordination and international procurement support. For NISSEI GTR gearmotor inquiries, customers should provide: 1. Full product model number 2. Nameplate photograph 3. Required quantity 4. Delivery country or location 5. Required technical documentation 6. Whether original equipment or an approved alternative is required FURUYA DENKI has actual product supply experience with the NISSEI GTR F3S20N10-MM02TNNTNX. We can assist with supplier inquiries and procurement coordination for customers in the Middle East and other international markets, subject to product availability and applicable trade requirements. Pricing, stock, lead times, warranty and delivery conditions are subject to confirmation. ## 9. Conclusion The NISSEI GTR F3S20N10-MM02TNNTNX is a Japanese-made industrial gearmotor with a 0.2kW three-phase induction motor, 10:1 gear reduction and a concentric hollow-shaft configuration. Its specifications make it relevant for evaluation in industrial automation, machinery maintenance and compact power transmission applications. For original replacements or alternative brand selection, purchasers should confirm the complete model number, electrical specifications, shaft dimensions, mechanical mounting and permissible operating loads. FURUYA DENKI supports the sourcing of original NISSEI industrial gearmotors and related engineering procurement requirements. **Manufacturer Reference:** NISSEI CORPORATION, Japan. **Disclaimer:** This article contains specifications documented from an actual supplied product and general engineering information. Application suitability and replacement compatibility must be confirmed independently. FURUYA DENKI is an independent industrial sourcing company and does not claim to be an officially authorized NISSEI distributor. Product specifications and availability are subject to manufacturer verification and formal quotation.
