Model / Part Number: Type 6213
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Valve Type | Servo-assisted 2/2-way diaphragm solenoid valve |
|---|---|
| Nominal Diameter | Up to DN 40 |
| Valve Function | 2/2-way, servo-assisted |
| Standard Application | Liquids |
| Gas / Vacuum Version | HP00 version available without differential pressure |
| Body Material | Brass, stainless steel or gunmetal |
| Diaphragm Material | NBR, FKM and other materials depending on configuration |
| Process Connection | Internal thread, depending on configuration |
| Operating Pressure | Up to 10 bar |
| Medium Temperature | -10 to +120 depending on diaphragm and configuration °C |
| Coil Voltage | Various AC/DC voltages available |
| Common Voltage Options | 24 V DC / 230 V AC |
| Energy Saving Option | Kick-and-Drop double-coil technology |
| Flow Performance | High flow rate with compact valve design |
| Noise Reduction | Damped design for low-noise operation |
| Opening Principle | Servo-assisted diaphragm with spring coupling |
| نوع الصمام | صمام لولبي غشائي 2/2 بمساعدة سيرفو |
| المقاس الاسمي | حتى DN 40 |
| وظيفة الصمام | 2/2 بمساعدة سيرفو |
| التطبيق القياسي | السوائل |
| إصدار الغاز والفراغ | يتوفر إصدار HP00 يعمل بدون فرق ضغط |
| مادة جسم الصمام | نحاس أصفر أو فولاذ مقاوم للصدأ أو برونز |
| مادة الغشاء | NBR وFKM ومواد أخرى حسب التكوين |
| وصلة العملية | قلاوظ داخلي حسب التكوين |
| ضغط التشغيل | حتى 10 bar |
| درجة حرارة الوسط | من -10 إلى +120 حسب الغشاء والتكوين °C |
| جهد الملف | تتوفر خيارات متعددة AC/DC |
| خيارات الجهد الشائعة | 24 V DC / 230 V AC |
| خيار توفير الطاقة | تقنية الملف المزدوج Kick-and-Drop |
| أداء التدفق | معدل تدفق مرتفع مع تصميم مدمج |
| خفض الضوضاء | تصميم مخمد لتشغيل منخفض الضوضاء |
| مبدأ الفتح | غشاء بمساعدة سيرفو مع اقتران نابضي |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and lead time depend on valve size, body material, diaphragm material, connection size, operating pressure and coil voltage. Please provide your complete operating requirements for current availability and delivery confirmation. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

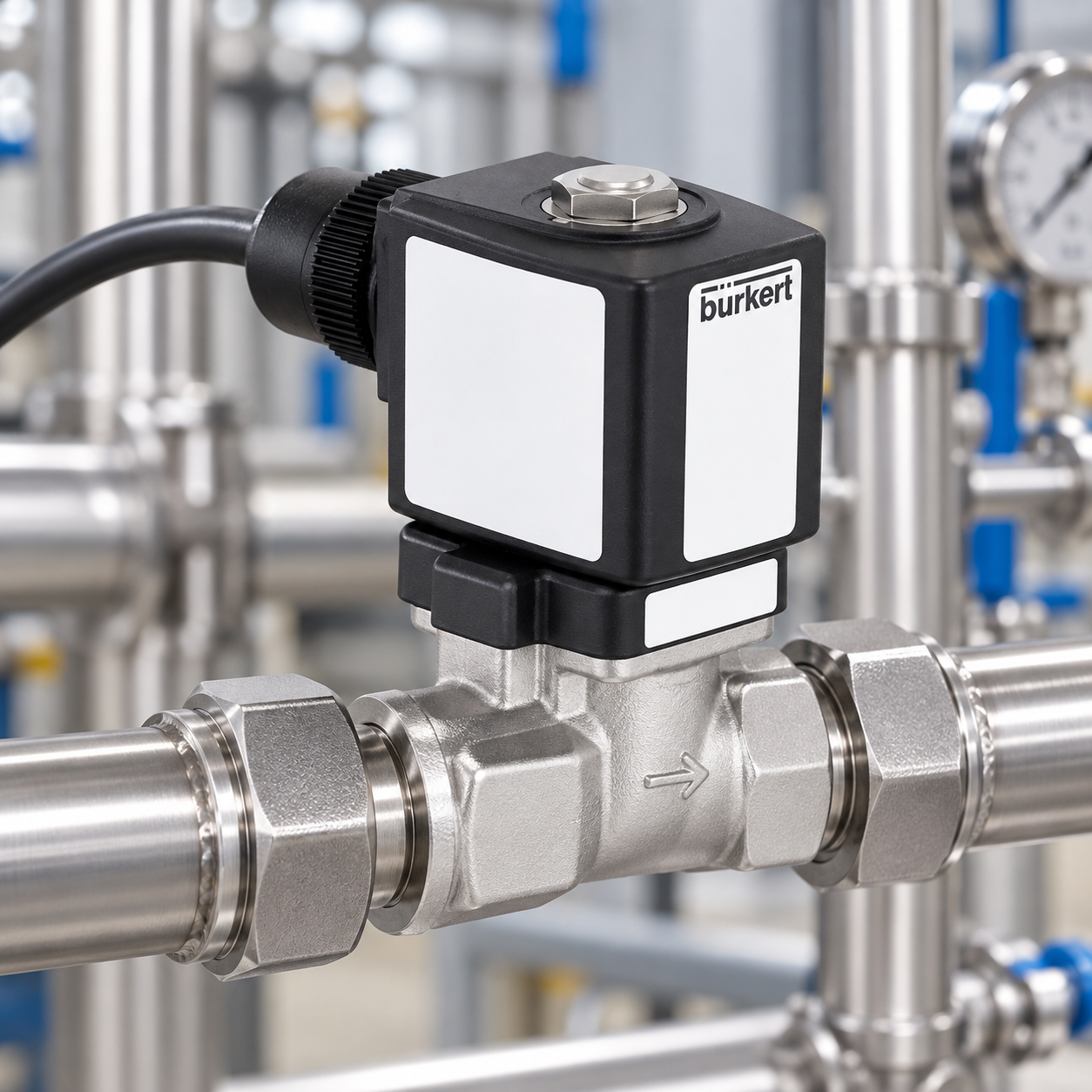

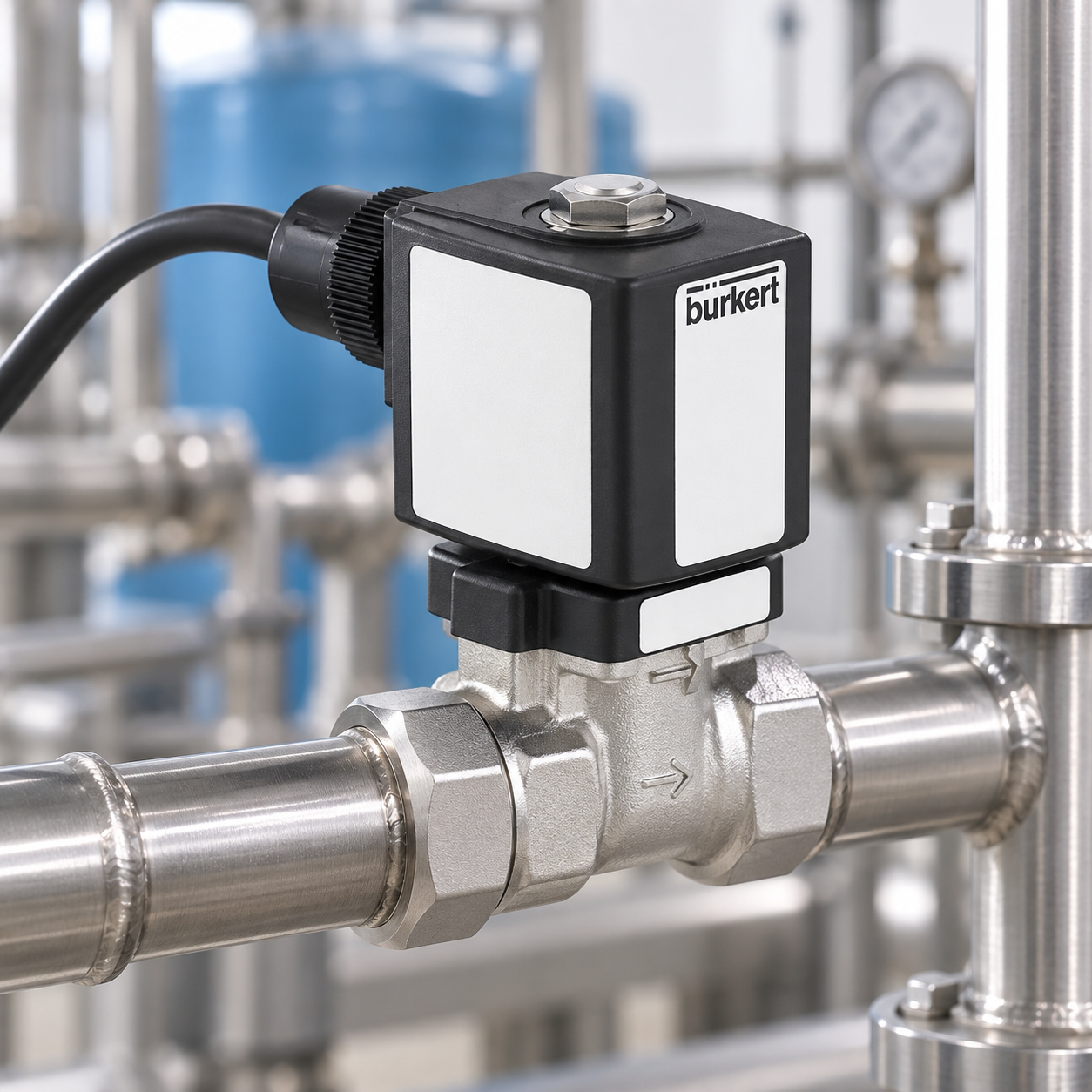

Bürkert Type 6213 EV is used for reliable control of liquids in industrial applications such as water treatment, utilities, machine building and general process automation.

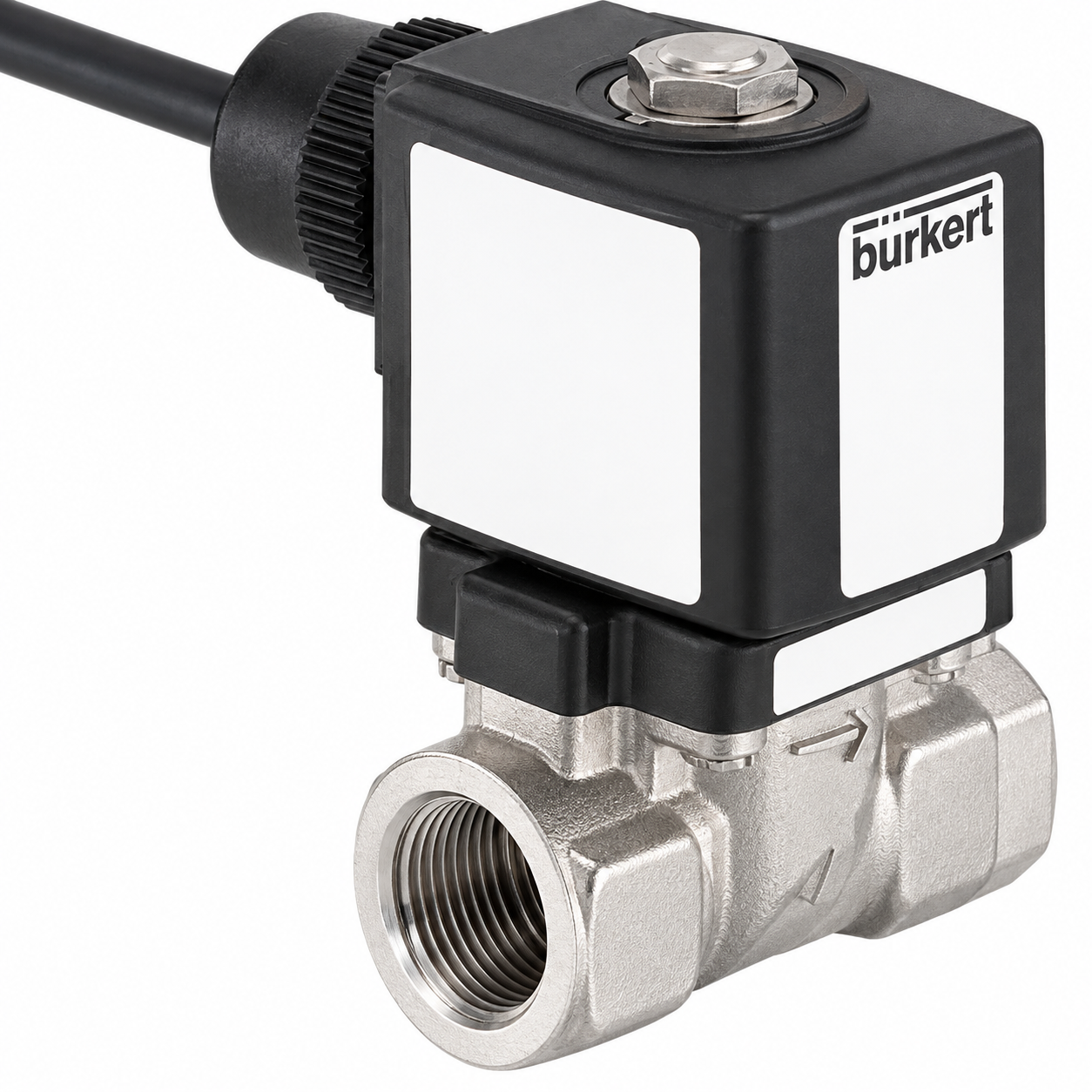

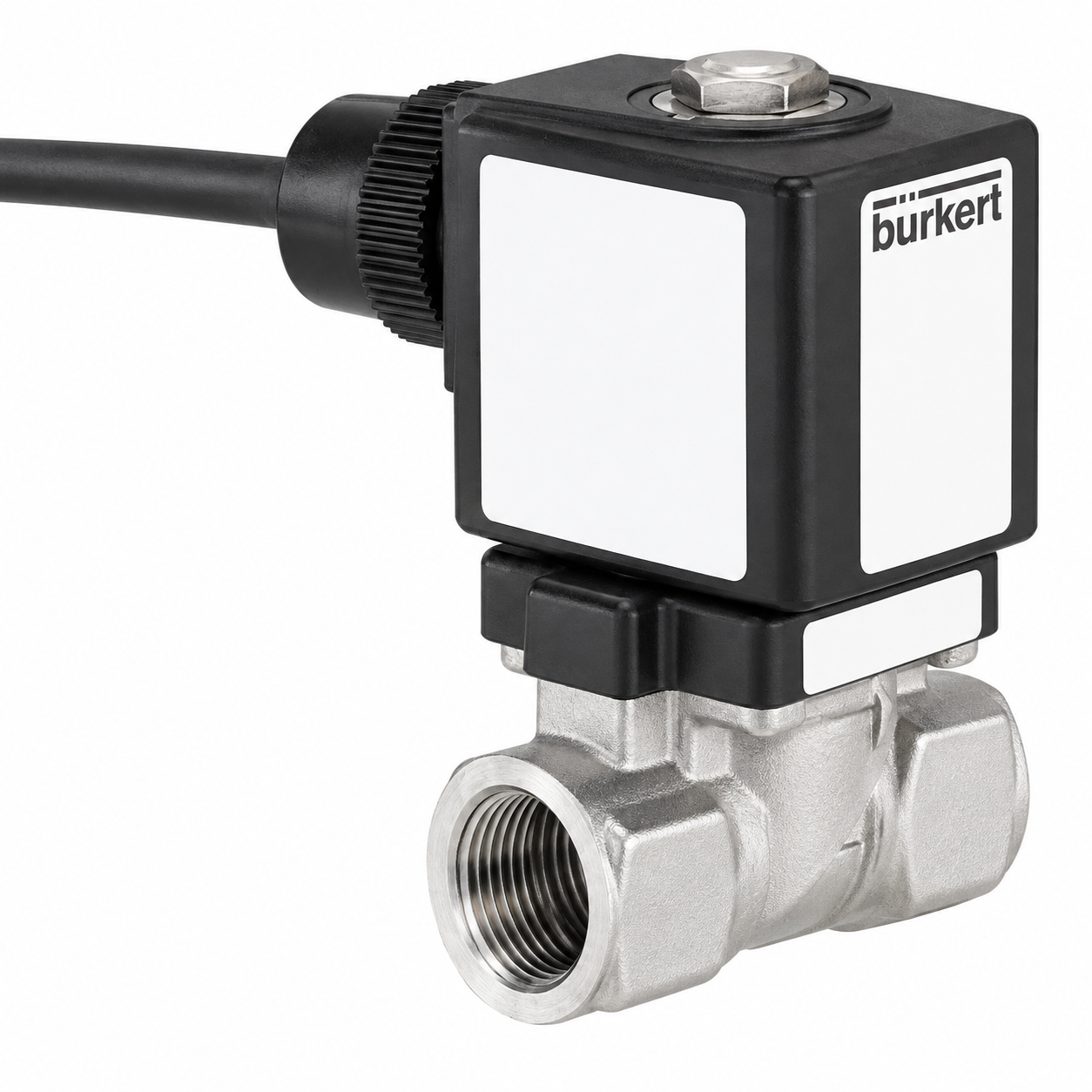

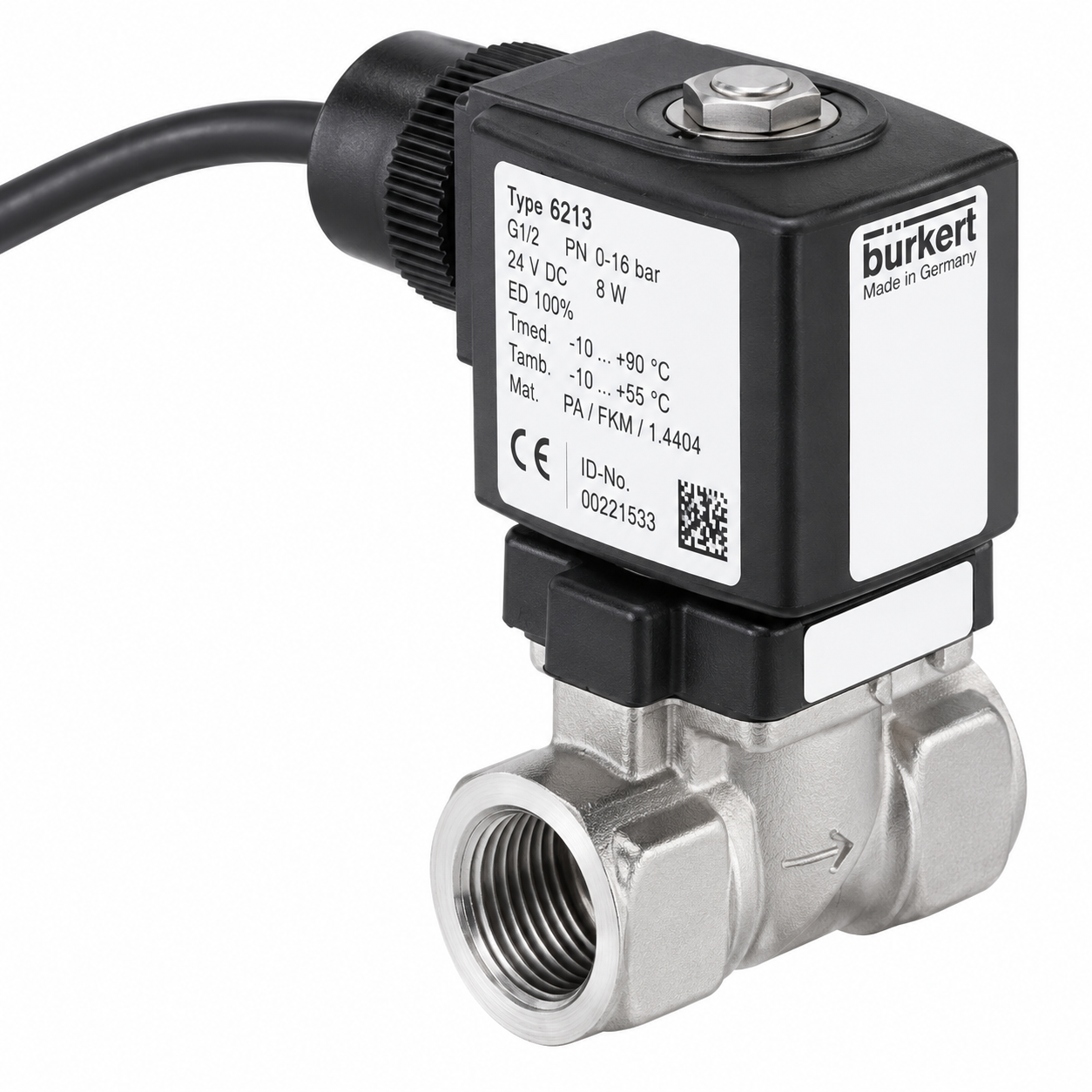

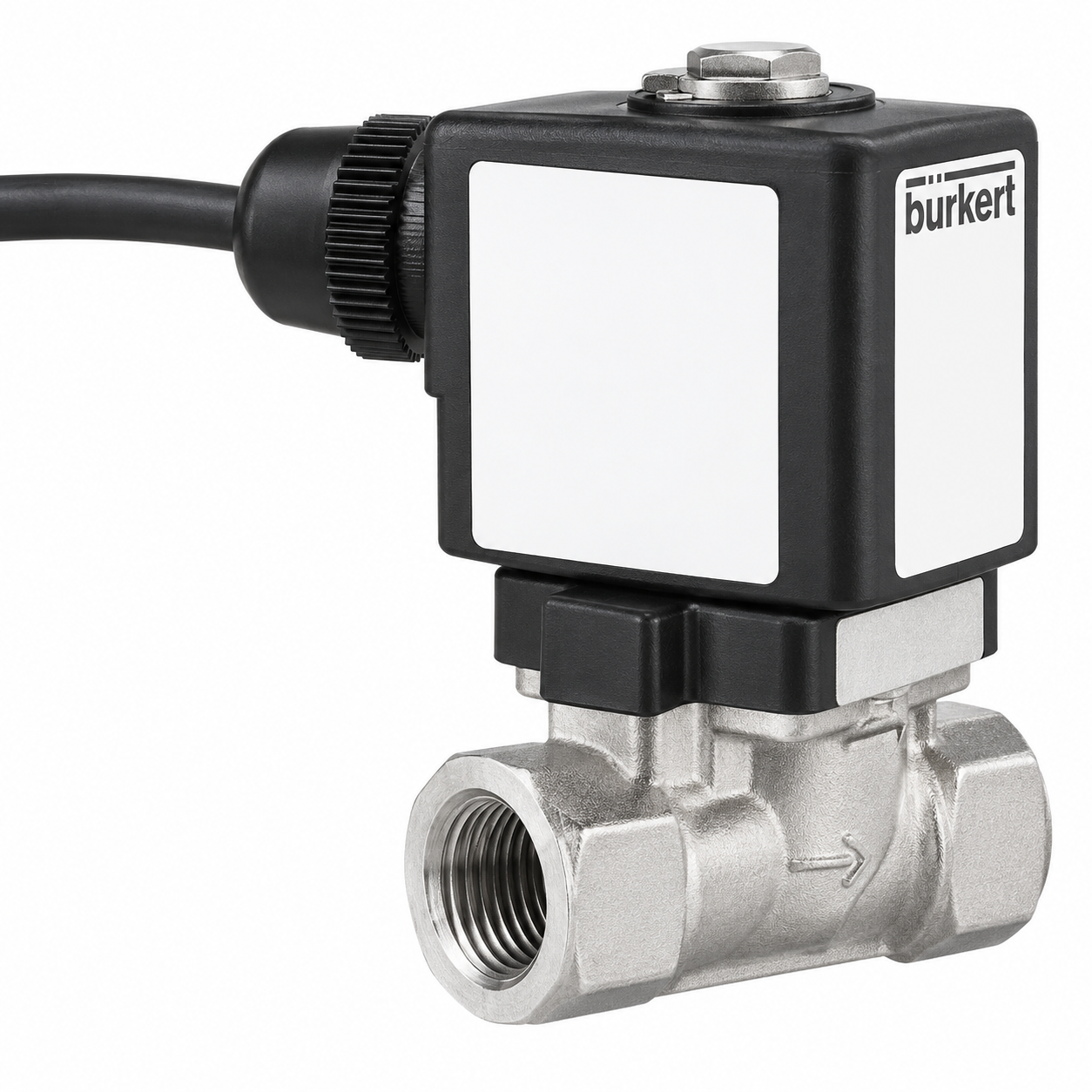

Bürkert Type 6213 EV is a servo-assisted 2/2-way diaphragm solenoid valve. It combines a diaphragm design with electromagnetic actuation to provide reliable switching and high flow capacity.
The standard Type 6213 EV is mainly designed for liquids. A special HP00 version is available for gas and vacuum applications and can operate without differential pressure.
Depending on the configuration, Type 6213 EV is available with brass, stainless steel or gunmetal valve bodies and different diaphragm materials such as NBR or FKM to suit various media and operating temperatures.
Please provide the medium, operating pressure, temperature, connection size, valve body material, diaphragm material, coil voltage and any special gas, vacuum or certification requirements so that the correct configuration can be selected.
