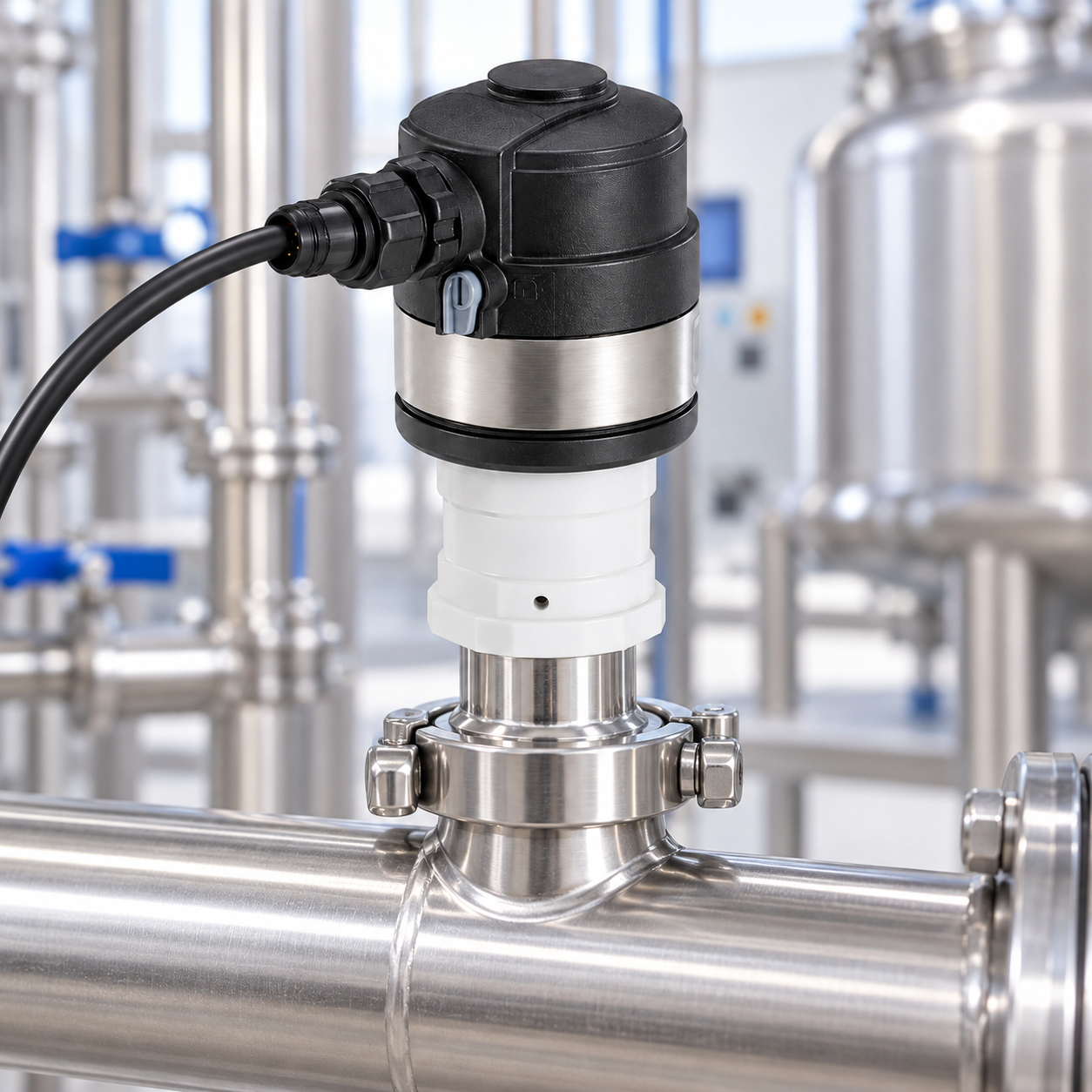

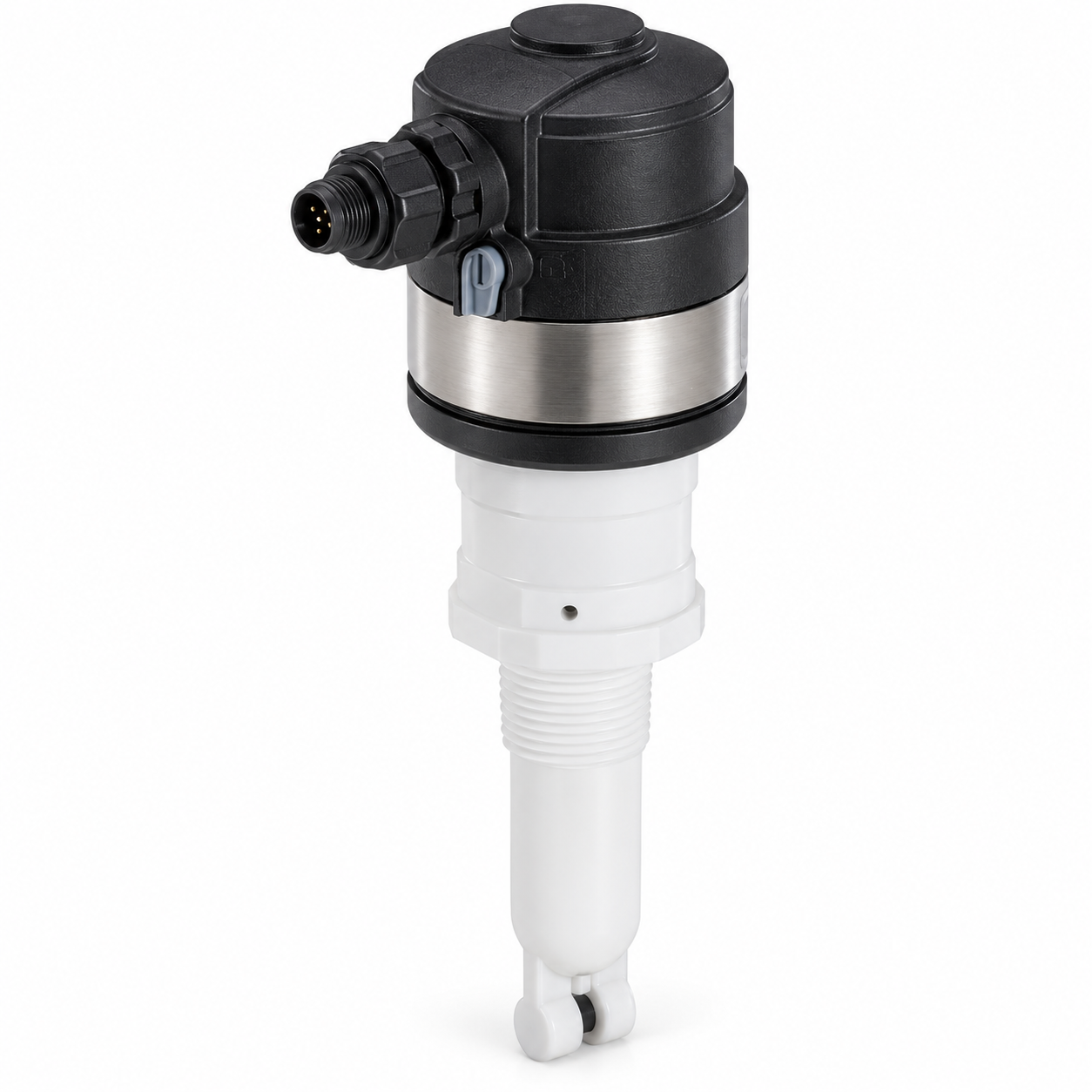

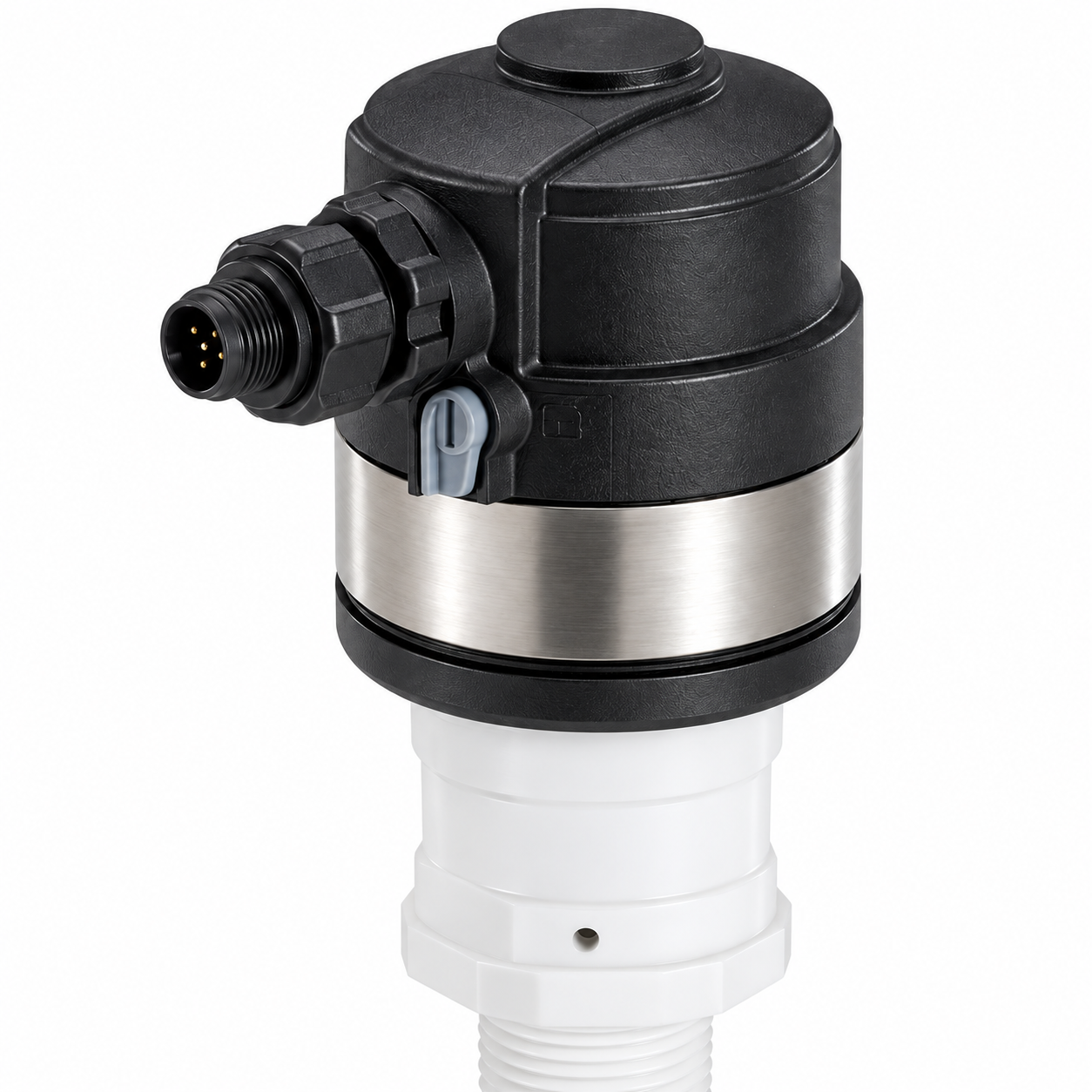

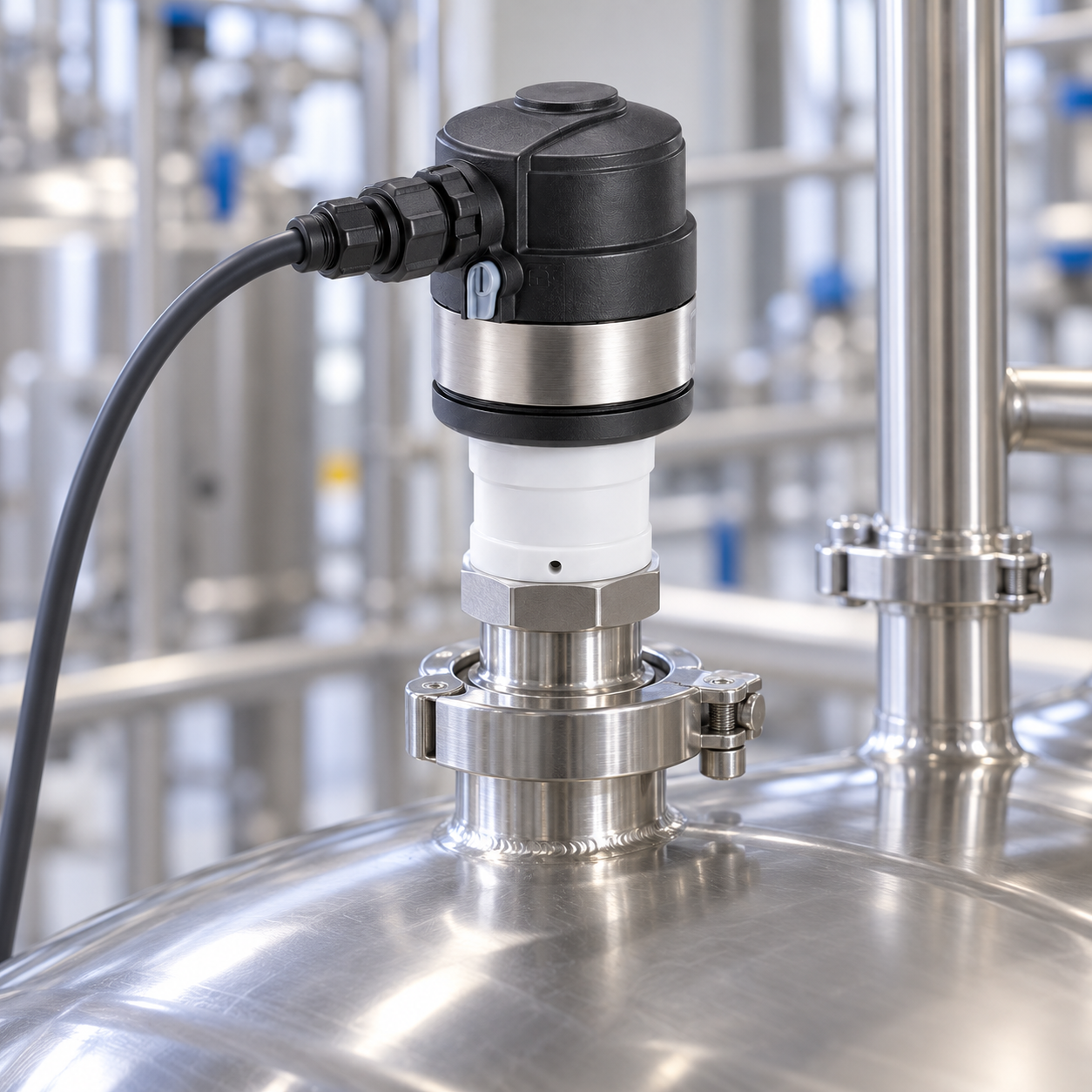

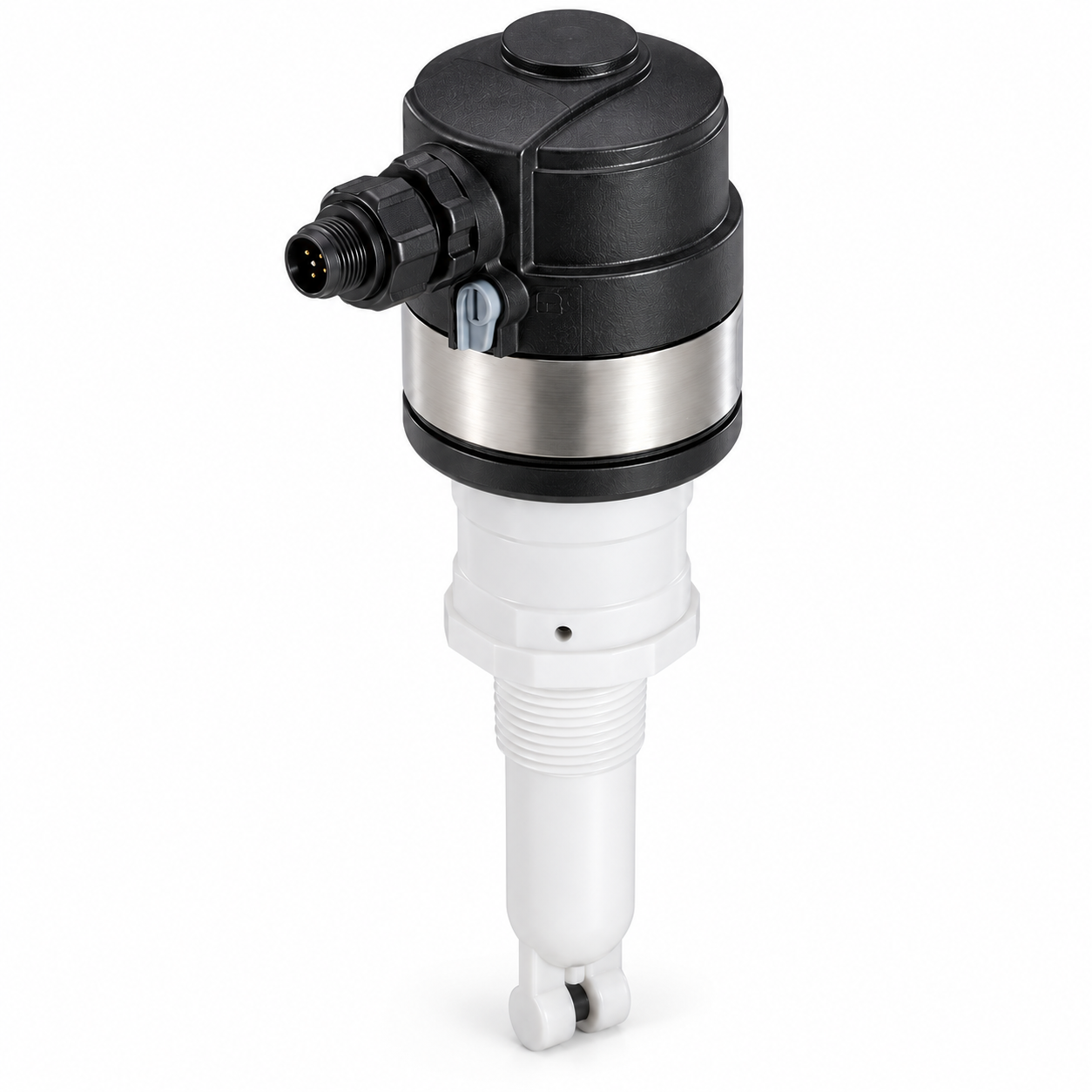

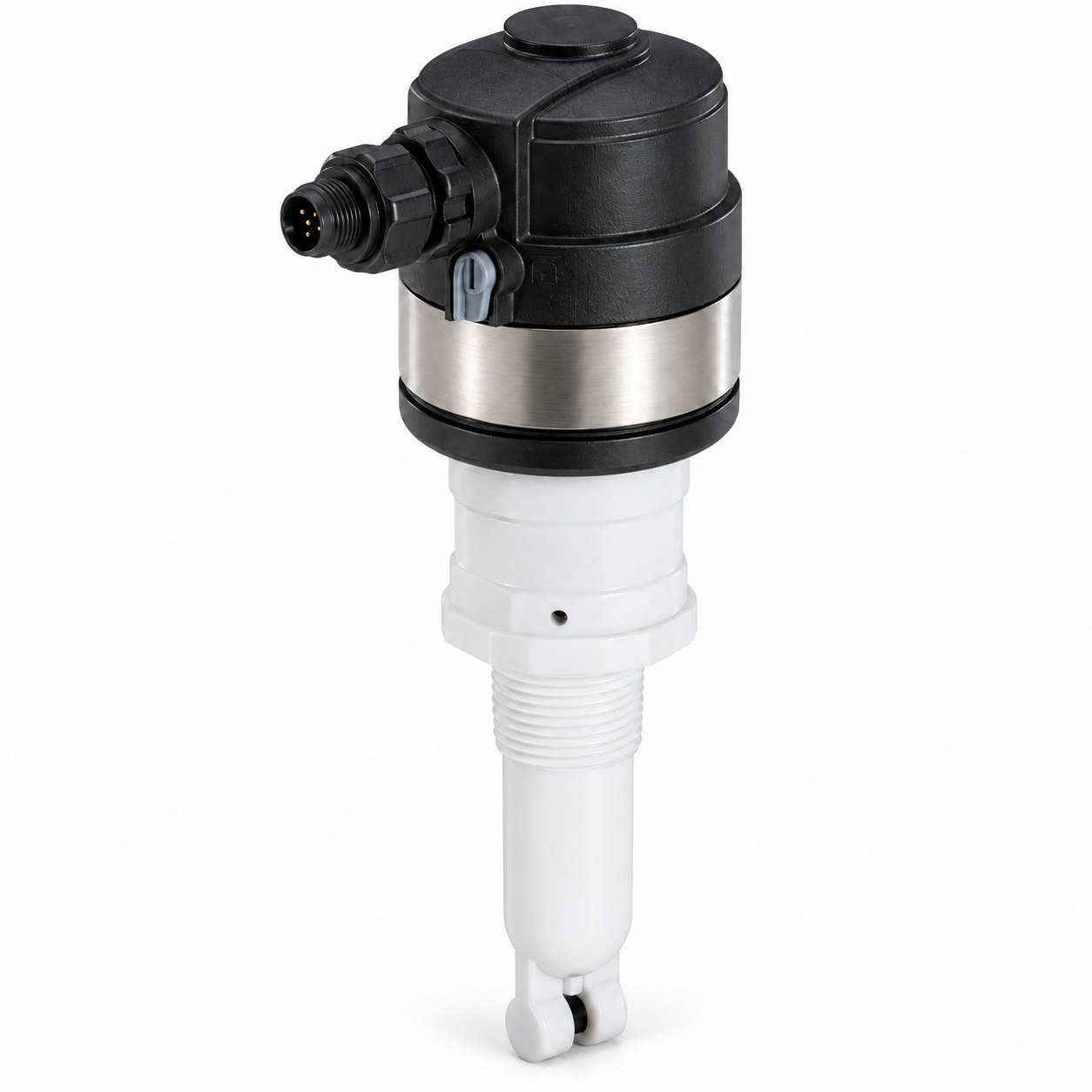

Bürkert Type 8222 ELEMENT conductivity meter for liquid analysis

Bürkert Type 8222 ELEMENT Conductivity Meter

Bürkert

Model / Part Number: Type 8222 ELEMENT

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

pcsRequest a Quote
WhatsApp InquiryResponse within 1 business day
BrandBürkert
Model / Part NumberType 8222 ELEMENT
Product TypeConductivity meter / transmitter
Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

The Bürkert Type 8222 ELEMENT is a conductivity measuring device designed for reliable conductivity monitoring of liquids in industrial and water-treatment applications.

The measuring system combines a two-electrode conductivity cell with a Pt1000 temperature sensor. Different cell constants are available to cover a wide conductivity range. Sensors with cell constants of 0.01 or 0.1 cm⁻¹ use stainless-steel electrodes, while the 1.0 cm⁻¹ version uses graphite electrodes.

Type 8222 is available in ELEMENT Standard and ELEMENT Neutrino variants. The Standard version can provide configurable analogue and transistor outputs and can be equipped with a removable display and configuration module.

The ELEMENT Neutrino version is a compact 2-wire transmitter available with a 4–20 mA output or digital communication. Depending on the version, digital communication can be provided through IO-Link or büS, Bürkert's CANopen-based system bus.

The removable display module can be used for commissioning, parameter setting, calibration, limit configuration and process-value display. Process values can also be simulated for diagnostic purposes.

Depending on the selected configuration, process connection is made via a G 1½ union nut or a G ¾ threaded connection. Different housing and sensor material options are available for standard and corrosive environments.

With its compact construction, flexible communication options and wide measuring range, Type 8222 is well suited for clean water, slightly concentrated liquids, reverse-osmosis systems, water treatment, food and beverage, pharmaceutical, chemical and semiconductor process applications.

⚙ Technical Specifications

Product TypeConductivity meter / transmitter
Measurement PrincipleTwo-electrode conductivity cell
Conductivity Measuring Range0.05 µS/cm to 10 mS/cm
Temperature Measuring Range-20 to +100 °C
Temperature SensorIntegrated Pt1000
Cell Constants0.01 / 0.1 / 1.0 cm⁻¹
Electrode MaterialStainless steel for C=0.01 and 0.1; graphite for C=1.0
Probe Holder MaterialPVDF or stainless steel 316Ti
Measurement Accuracy±3% of measured value
Conductivity Resolution1 nS/cm
Temperature Accuracy±1 °C
Analogue Output4–20 mA
Digital CommunicationIO-Link / büS / CANopen depending on version
Operating Voltage12 to 36 V DC
Process ConnectionG 1½ union nut; G ¾ thread on selected Neutrino versions
Compatible AdapterBürkert Type S022
Compatible Pipe DiameterDN 32 to DN 110; DN 6 to DN 25 under specific conditions
VariantsELEMENT Standard / ELEMENT Neutrino
DisplayRemovable display/configuration module available
Temperature CompensationLinear, NaCl or ultrapure water depending on version
Application MediaClean water and slightly concentrated liquids
نوع المنتججهاز قياس / إرسال التوصيلية
مبدأ القياسخلية توصيلية ثنائية الأقطاب
نطاق قياس التوصيلية0.05 µS/cm إلى 10 mS/cm
نطاق قياس درجة الحرارة-20 إلى +100 °C
حساس درجة الحرارةPt1000 مدمج
ثوابت الخلية0.01 / 0.1 / 1.0 cm⁻¹
مادة الأقطابفولاذ مقاوم للصدأ لـ C=0.01 و0.1؛ جرافيت لـ C=1.0
مادة حامل المسبارPVDF أو فولاذ مقاوم للصدأ 316Ti
دقة القياس±3% من القيمة المقاسة
دقة التوصيلية1 nS/cm
دقة درجة الحرارة±1 °C
الخرج التناظري4–20 mA
الاتصال الرقميIO-Link / büS / CANopen حسب الإصدار
جهد التشغيل12 إلى 36 V DC
وصلة العمليةصامولة G 1½؛ وG ¾ لبعض إصدارات Neutrino
المحول المتوافقBürkert Type S022
قطر الأنبوب المتوافقDN 32 إلى DN 110؛ وDN 6 إلى DN 25 في ظروف محددة
الإصداراتELEMENT Standard / ELEMENT Neutrino
الشاشةتتوفر وحدة عرض وإعداد قابلة للإزالة
تعويض درجة الحرارةخطي أو NaCl أو مياه فائقة النقاء حسب الإصدار
وسائط التطبيقالمياه النظيفة والسوائل منخفضة التركيز

▦ Typical Applications

  • Water Treatment
  • Reverse Osmosis
  • Food & Beverage
  • Pharmaceutical & Biotech
  • Chemical Processing

▰ Availability & Delivery

Availability & DeliveryAvailability subject to quotation and stock confirmation
Lead TimeAvailability and lead time depend on the selected cell constant, sensor material, process connection, output signal, communication interface and housing version. Please provide your required measuring range and process conditions for current availability and delivery confirmation.
Shipping OptionsAir freight, sea freight, express
PackagingSecure export packaging
