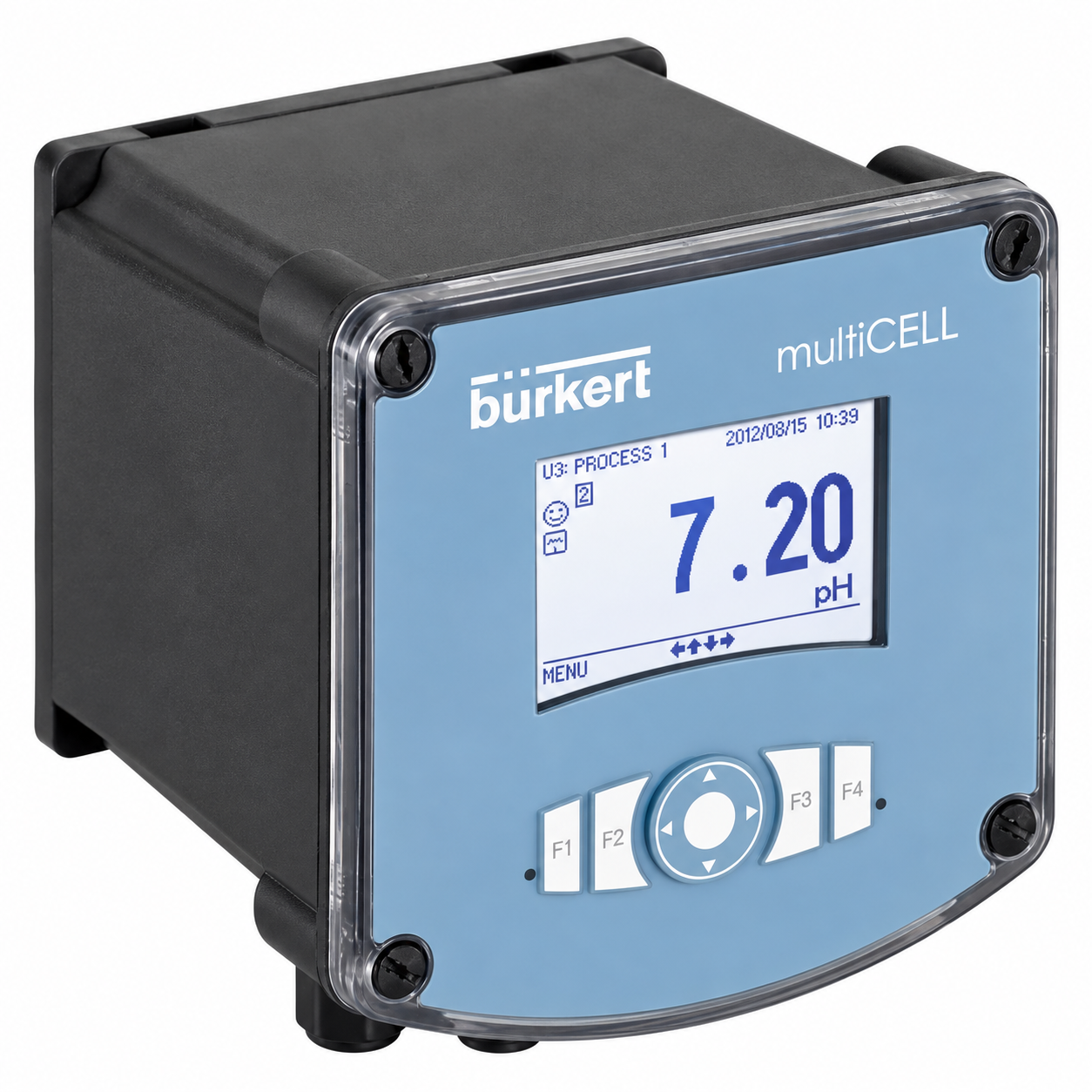

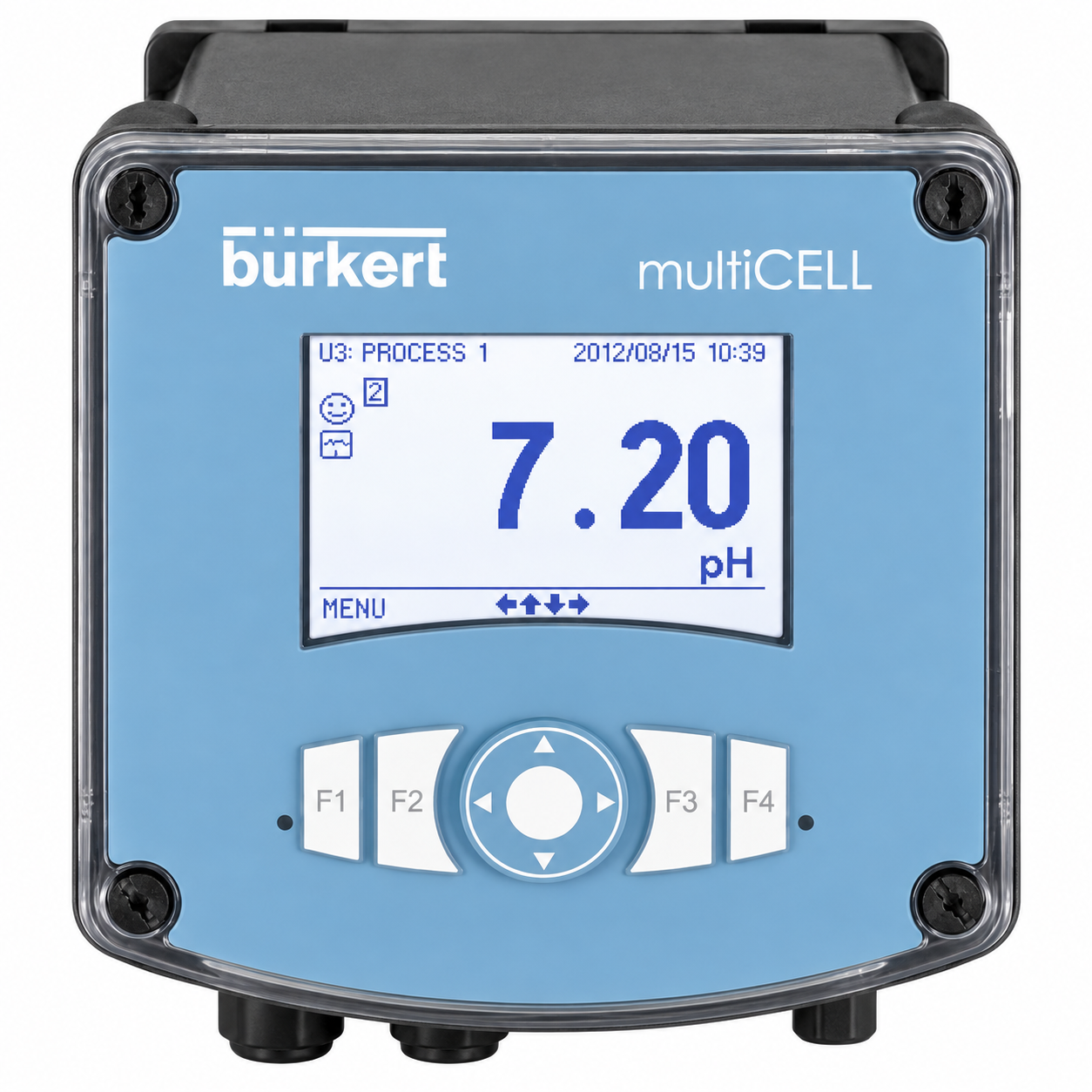

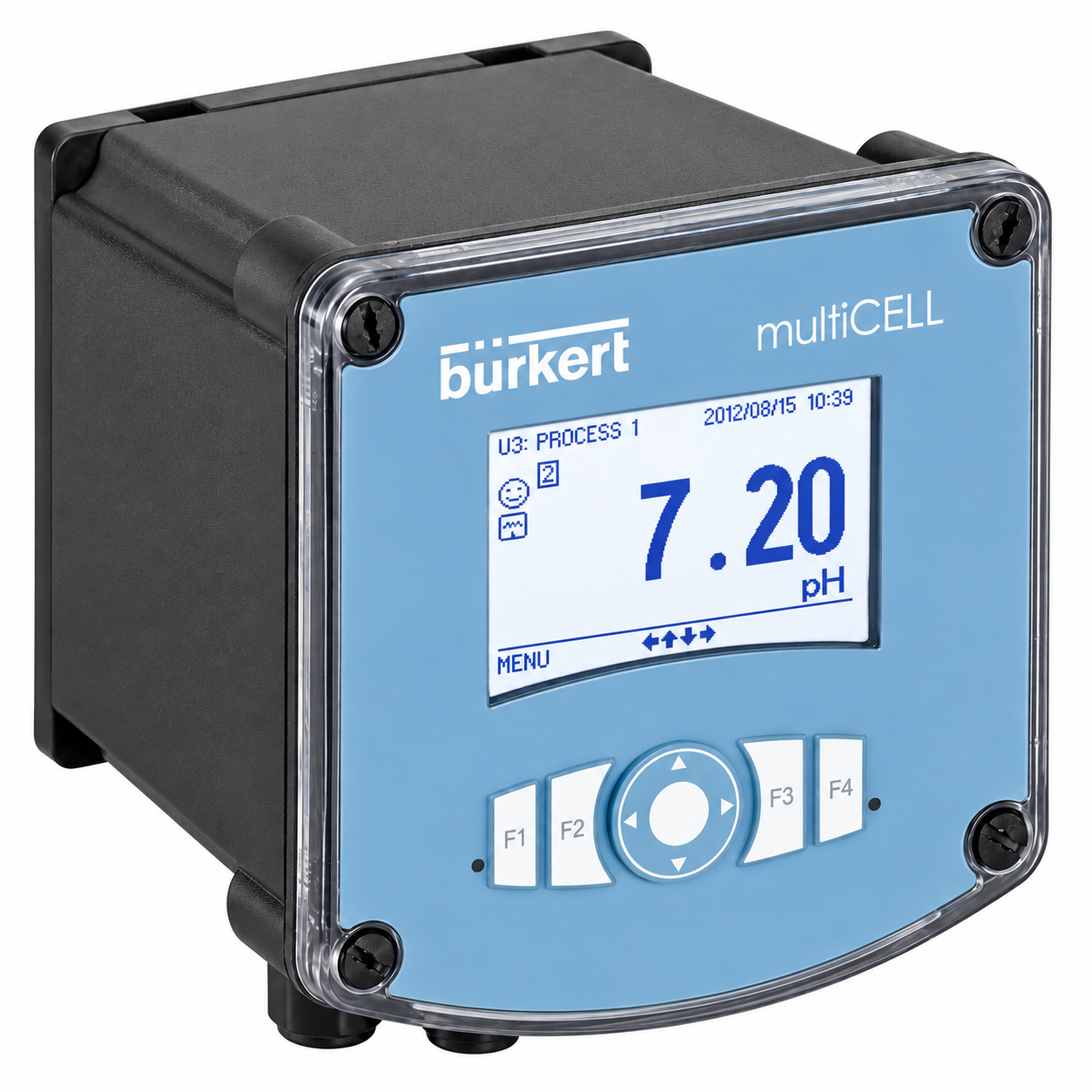

Model / Part Number: Type 8619 multiCELL
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Product Type | Multi-channel / multi-function transmitter and controller |
|---|---|

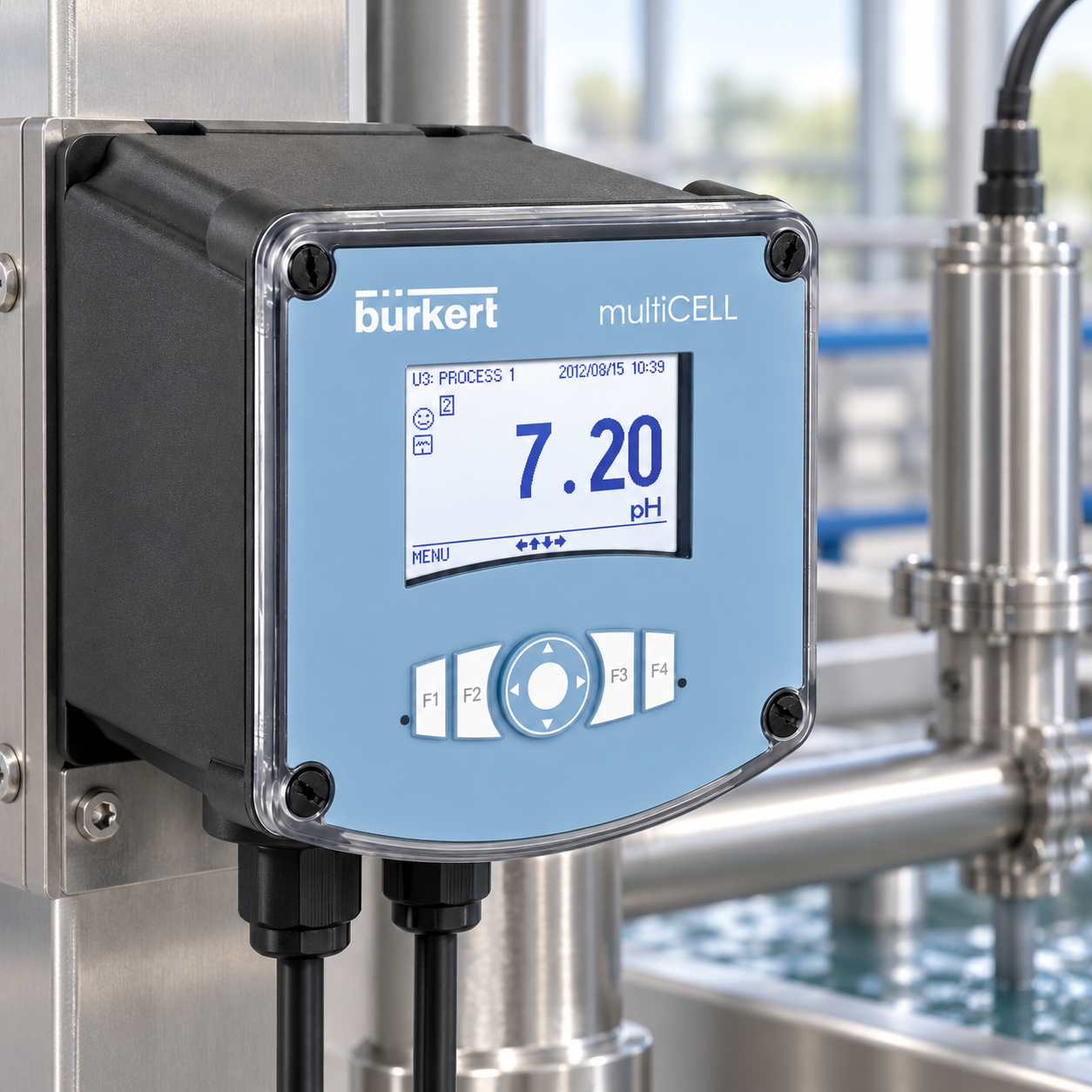

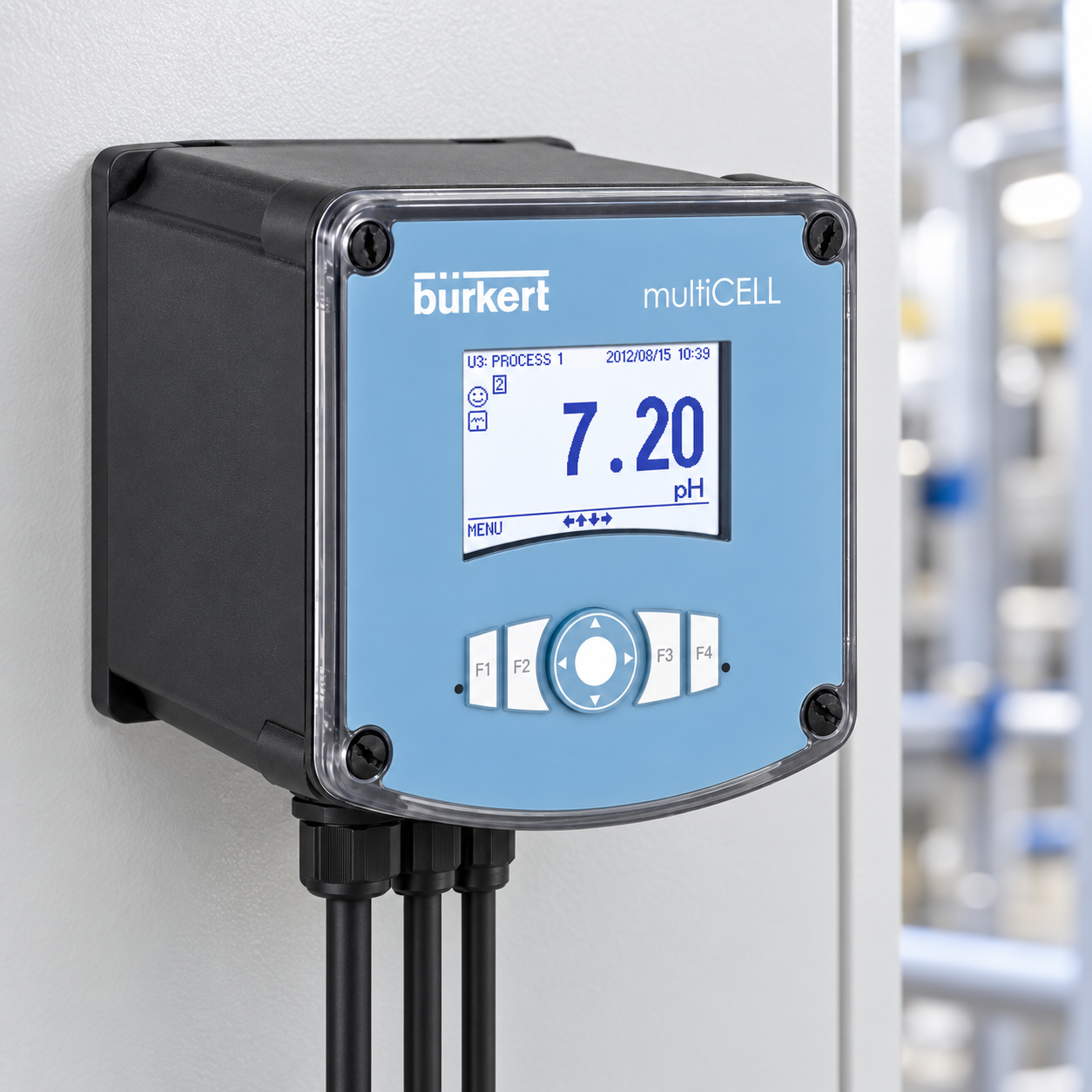

| Housing Versions | Panel-mounted or wall-mounted |
| Power Supply | 12 to 36 V DC; 110 to 240 V AC on selected wall-mounted versions |
| Supported Measurements | pH, ORP, conductivity, flow, pressure, level, chlorine and other analogue signals |
| Analogue Input | 0–20 mA / 4–20 mA / 0–2 V / 0–5 V / 0–10 V |
| Digital Input | Static or frequency / pulse input |
| Input Frequency Range | 0.5 to 2500 Hz |
| Analogue Input Accuracy | ±0.25 % of measured value |
| Input Module | 2 analogue inputs + 2 digital inputs |
| Output Module | 2 transistor outputs + 2 analogue 4–20 mA outputs |
| pH / ORP Module | pH / ORP and Pt100 / Pt1000 sensor input |
| Conductivity Module | Conductivity and Pt100 / Pt1000 sensor input |
| Expansion Capacity | Up to 6 free module slots |
| Display | Large adjustable backlit graphic display |
| User Views | Up to 4 user-defined display views |
| Industrial Ethernet | Modbus TCP / PROFINET / EtherNet/IP |
| Ethernet Speed | 10 / 100 Mbit/s |
| Ethernet Connection | 2 × RJ45 |
| Control Functions | Measurement, monitoring, dosing and process control |
| Typical Applications | Water treatment, boilers, cooling towers, reverse osmosis, food and pharmaceutical processes |
| نوع المنتج | جهاز إرسال وتحكم متعدد القنوات والوظائف |
| إصدارات الهيكل | تركيب على اللوحة أو على الحائط |
| مصدر الطاقة | 12 إلى 36 V DC؛ و110 إلى 240 V AC لبعض الإصدارات الجدارية |
| القياسات المدعومة | pH وORP والموصلية والتدفق والضغط والمستوى والكلور وإشارات تناظرية أخرى |
| المدخل التناظري | 0–20 mA / 4–20 mA / 0–2 V / 0–5 V / 0–10 V |
| المدخل الرقمي | مدخل ثابت أو تردد / نبض |
| نطاق تردد الإدخال | 0.5 إلى 2500 Hz |
| دقة الإدخال التناظري | ±0.25 % من القيمة المقاسة |
| وحدة الإدخال | مدخلان تناظريان + مدخلان رقميان |
| وحدة الإخراج | مخرجان ترانزستور + مخرجان تناظريان 4–20 mA |
| وحدة pH / ORP | مدخل pH / ORP وحساس Pt100 / Pt1000 |
| وحدة الموصلية | مدخل موصلية وحساس Pt100 / Pt1000 |
| سعة التوسعة | حتى 6 فتحات وحدات إضافية |
| الشاشة | شاشة رسومية كبيرة قابلة للضبط بإضاءة خلفية |
| شاشات المستخدم | حتى 4 شاشات مخصصة للمستخدم |
| Ethernet الصناعي | Modbus TCP / PROFINET / EtherNet/IP |
| سرعة Ethernet | 10 / 100 Mbit/s |
| اتصال Ethernet | 2 × RJ45 |
| وظائف التحكم | القياس والمراقبة والجرعات والتحكم في العمليات |
| التطبيقات النموذجية | معالجة المياه والغلايات وأبراج التبريد والتناضح العكسي والصناعات الغذائية والدوائية |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and lead time depend on housing version, input modules, output modules, communication interface and software options. Please provide the required measurement channels and system configuration for current availability and delivery confirmation. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
Bürkert Type 8619 multiCELL is used for multi-channel measurement, monitoring, dosing and process control. It can process signals from pH, ORP, conductivity, flow, pressure, level, chlorine and other compatible sensors.
Type 8619 can be connected to common pH, ORP, conductivity and flow sensors, as well as analogue sensors for pressure, level, chlorine and other process variables.
Yes. Depending on the selected configuration, Type 8619 supports Industrial Ethernet communication including Modbus TCP, PROFINET and EtherNet/IP for integration into automation systems.
Yes. Type 8619 has a modular hardware and software architecture and can be expanded with additional input and output modules, with configurations offering up to six free extension slots.
Please provide the required measurement parameters, sensor types, number of channels, housing version, power supply, input and output requirements, control functions and communication protocol so that the correct configuration can be selected.
