Model / Part Number: Type 8652 AirLINE
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Product Type | Modular valve island for process automation |
|---|---|
| Valve Slots | Up to 24 |
| Maximum Valve Functions | Up to 48 |
| Station Width | 11 mm |
| Operating Medium | Oil-free or lubricated dry compressed air and neutral gases |
| Compressed Air Quality | ISO 8573-1:2010 Class 7.4.4 |
| Pressure Range | Vacuum to 10 bar |
| External Pilot Air | 3 to 10 bar |
| Nominal Flow Rate | Approx. 310 l/min |
| Operating Voltage | 24 V DC ±10% |
| Power Consumption per Valve | 0.7 W, reduced to 0.175 W after power reduction |
| Nominal Current per Valve | 29 mA, reduced to 10 mA after power reduction |
| Digital Inputs | Up to 48 |
| Working Port | D6 or D1/4 |
| Air Supply Connection | D10 or D3/8 |
| Communication Module | ME43 |
| Communication Interfaces | PROFIBUS DP, PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic, CANopen, büS |
| PROFINET Redundancy | PROFINET S2 available |
| Ambient Temperature | -10 to +55 °C |
| Storage Temperature | -20 to +60 °C |
| Degree of Protection | IP20; IP65 in closed control cabinets |
| Installation Position | Any |
| Explosion Protection | ATEX / IECEx variants available |
| Duty Cycle | 100% continuous operation |
| نوع المنتج | جزيرة صمامات معيارية لأتمتة العمليات |
| عدد فتحات الصمامات | حتى 24 |
| الحد الأقصى لوظائف الصمامات | حتى 48 |
| عرض المحطة | 11 mm |
| وسط التشغيل | هواء مضغوط جاف خالٍ من الزيت أو مزيت وغازات محايدة |
| جودة الهواء المضغوط | ISO 8573-1:2010 Class 7.4.4 |
| نطاق الضغط | من الفراغ حتى 10 bar |
| هواء التحكم الخارجي | 3 إلى 10 bar |
| معدل التدفق الاسمي | حوالي 310 l/min |
| جهد التشغيل | 24 V DC ±10% |
| استهلاك الطاقة لكل صمام | 0.7 W وينخفض إلى 0.175 W بعد خفض الطاقة |
| التيار الاسمي لكل صمام | 29 mA وينخفض إلى 10 mA بعد خفض الطاقة |
| المداخل الرقمية | حتى 48 |
| وصلة العمل | D6 أو D1/4 |
| وصلة تزويد الهواء | D10 أو D3/8 |
| وحدة الاتصال | ME43 |
| واجهات الاتصال | PROFIBUS DP, PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic, CANopen, büS |
| تكرار PROFINET | يتوفر PROFINET S2 |
| درجة حرارة التشغيل المحيطة | -10 إلى +55 °C |
| درجة حرارة التخزين | -20 إلى +60 °C |
| درجة الحماية | IP20؛ وIP65 داخل خزائن التحكم المغلقة |
| وضع التركيب | أي وضع |
| الحماية من الانفجار | تتوفر إصدارات ATEX / IECEx |
| دورة التشغيل | تشغيل مستمر 100% |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and lead time depend on the number of valve stations, pneumatic connections, communication interface, manifold configuration and certification requirements. Please provide the required system configuration for current availability and delivery confirmation. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

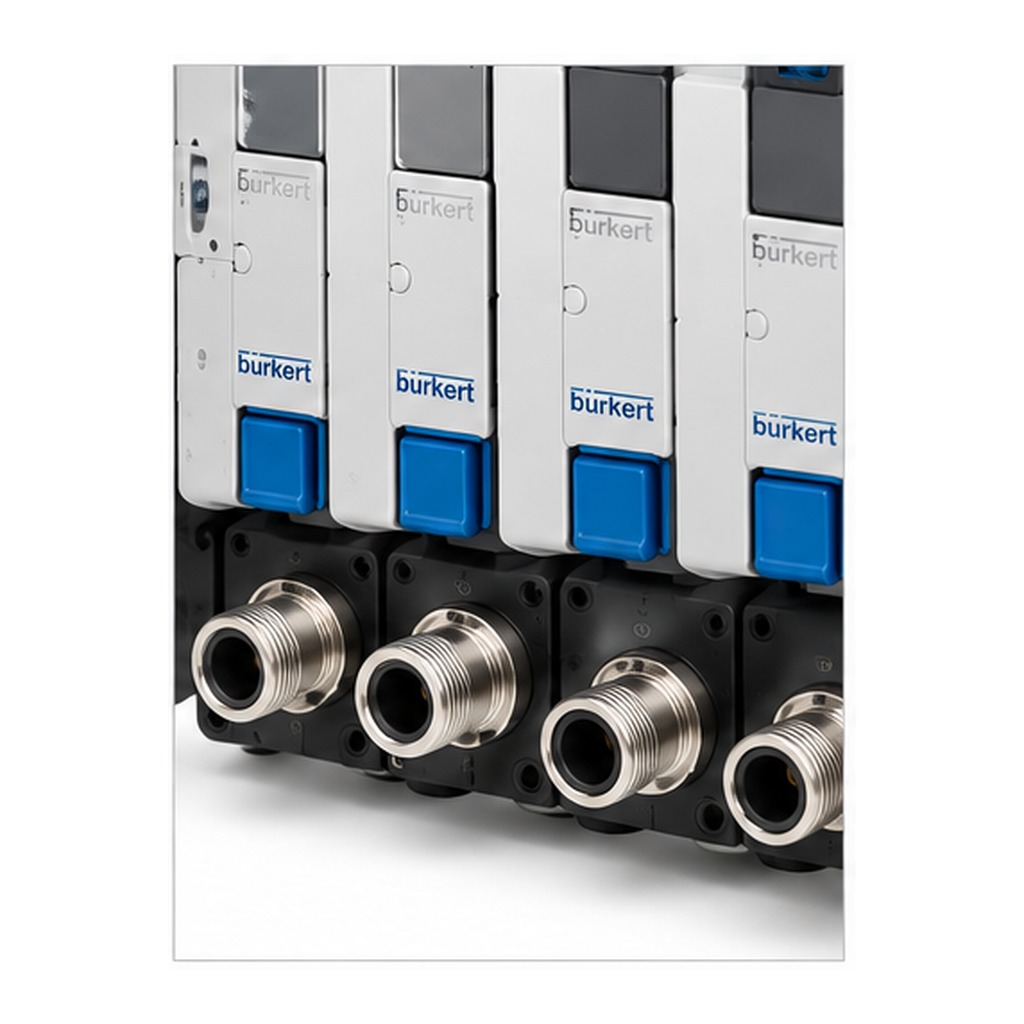

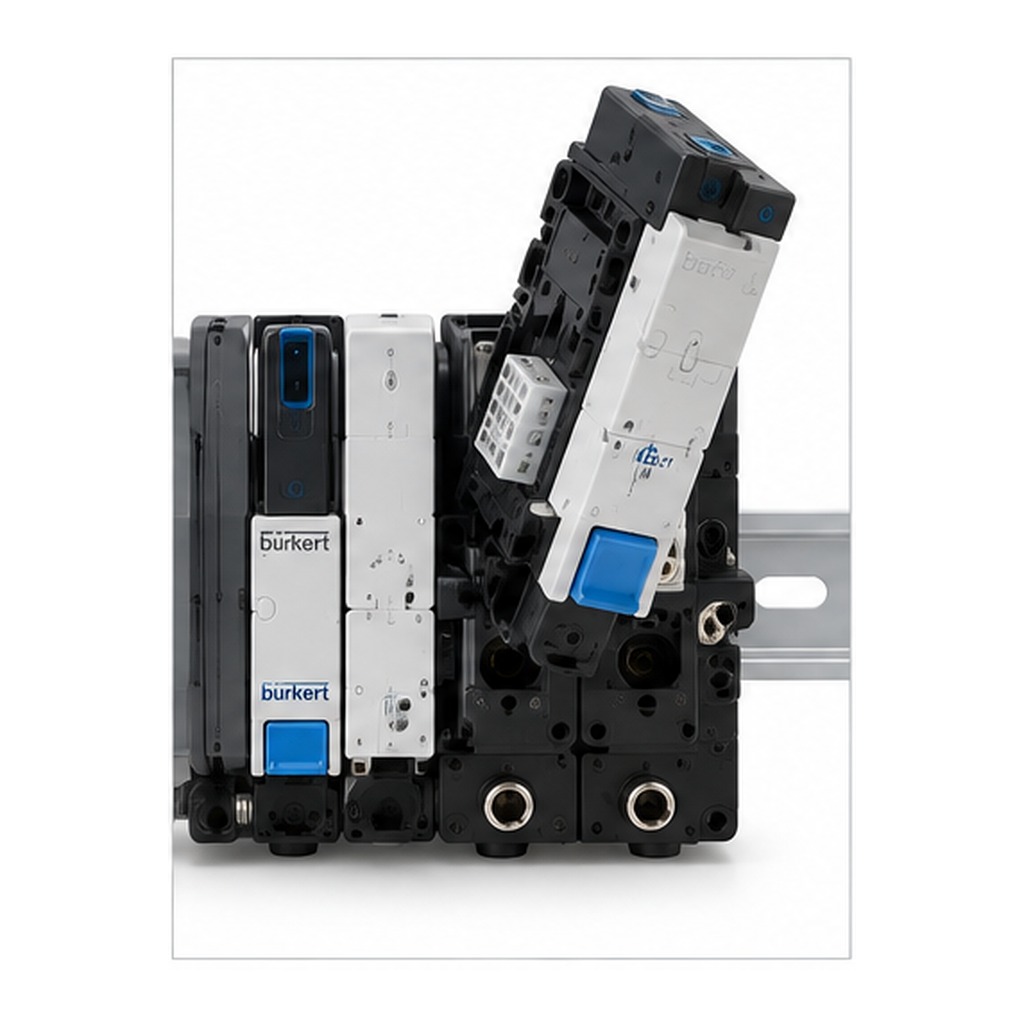

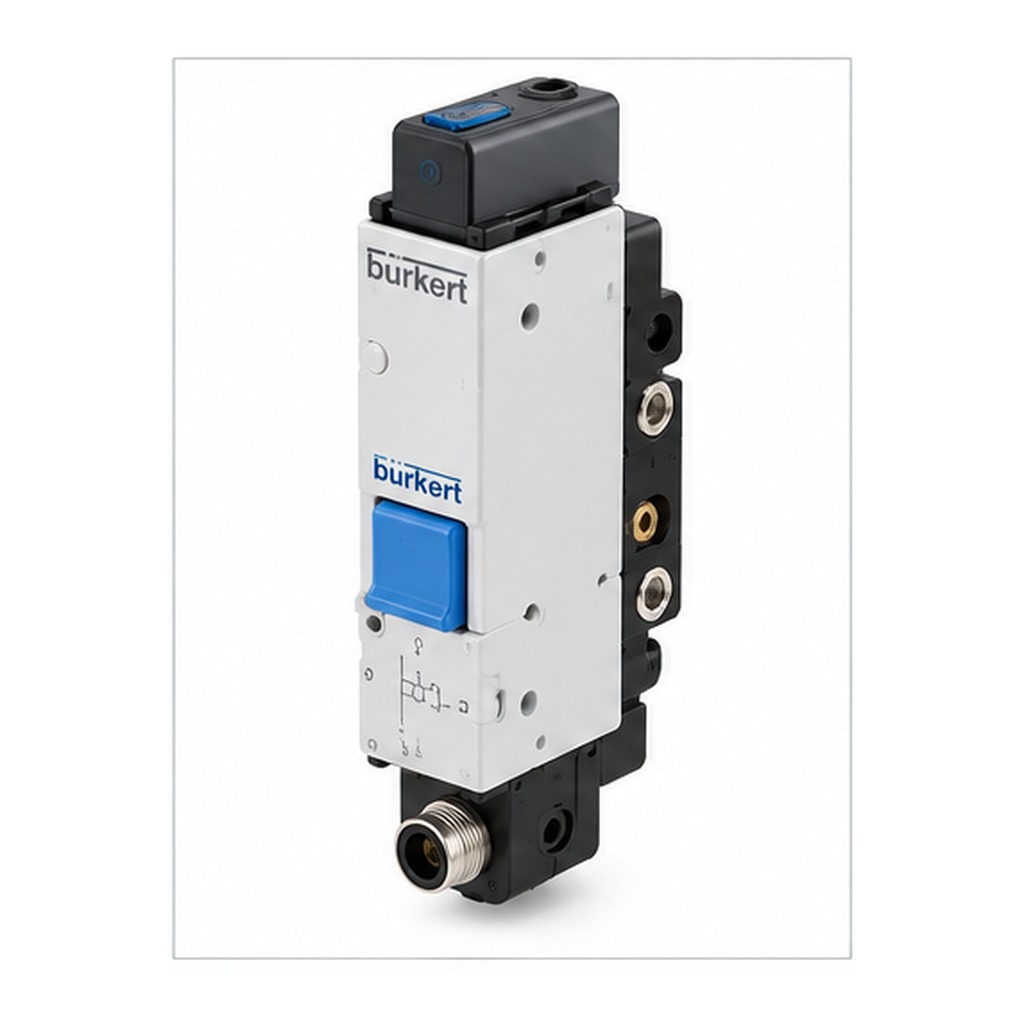

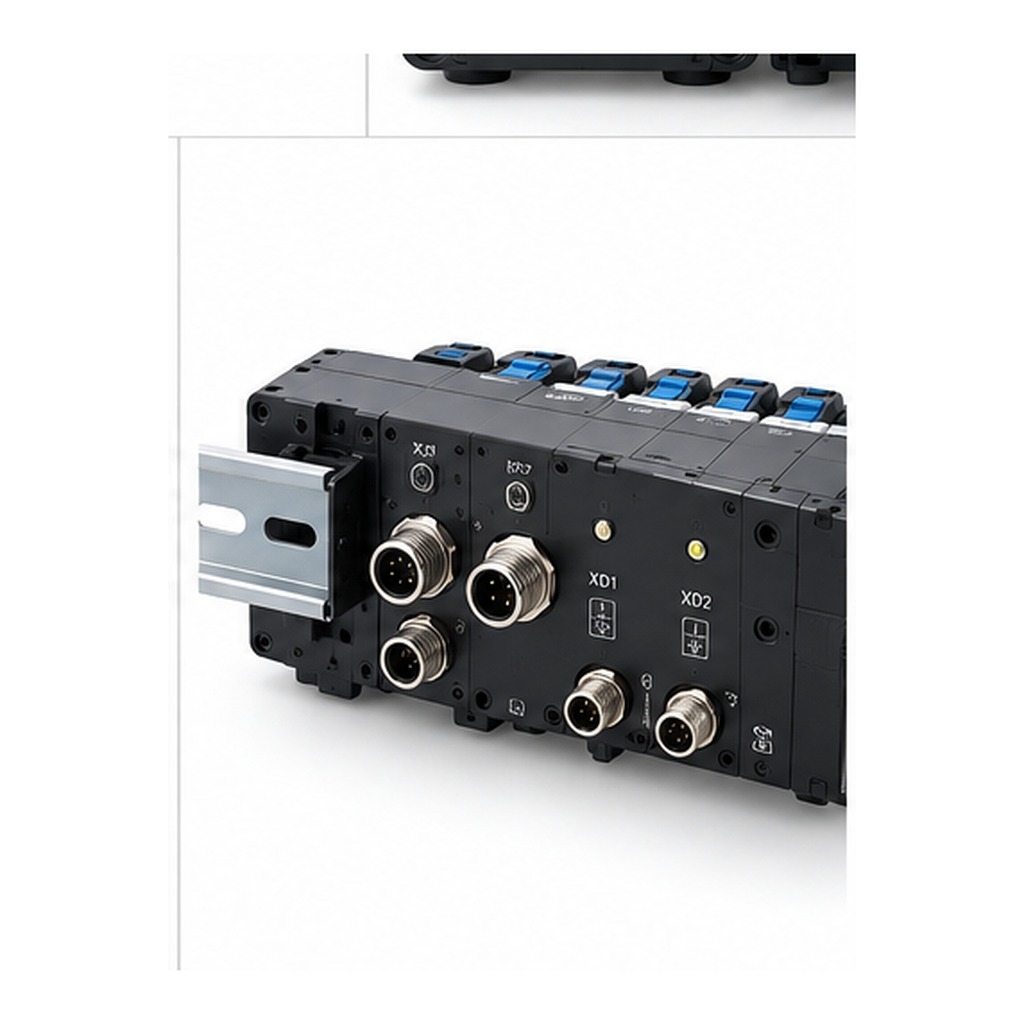

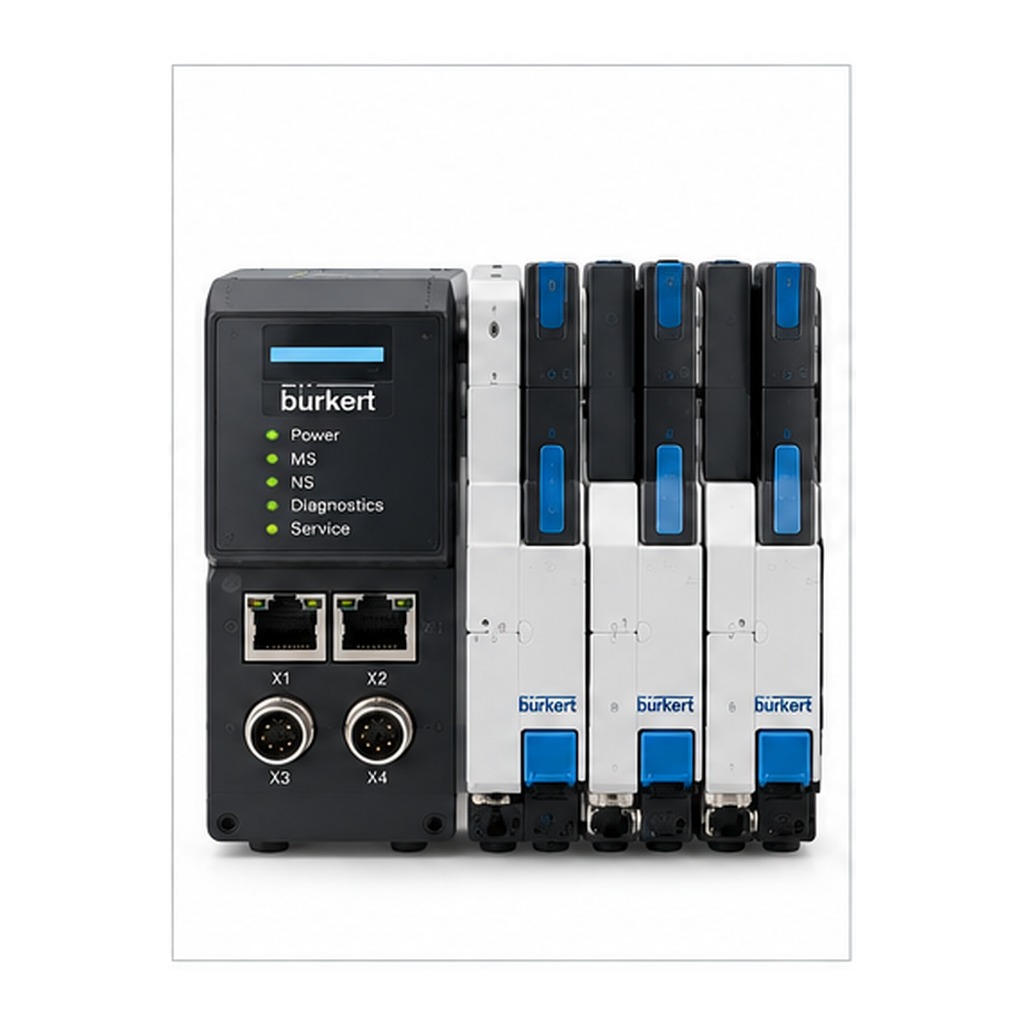

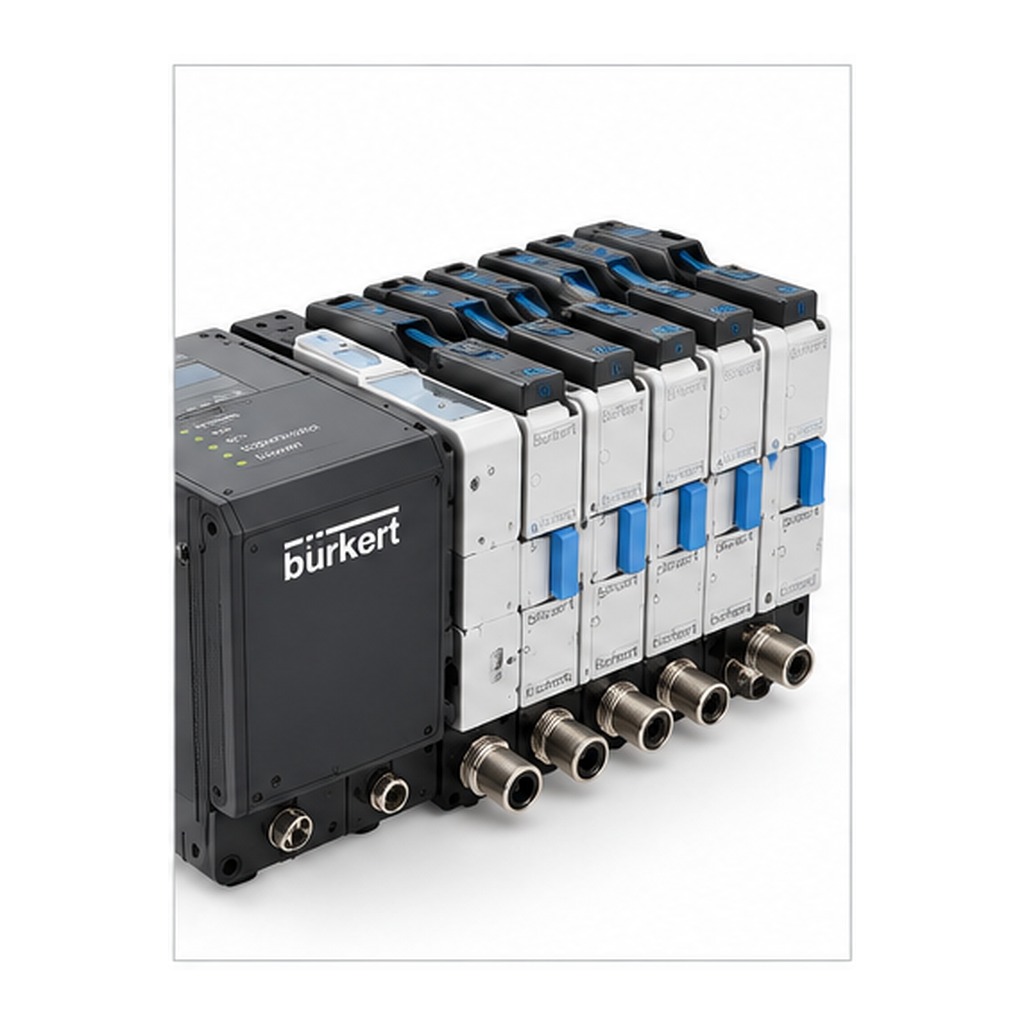

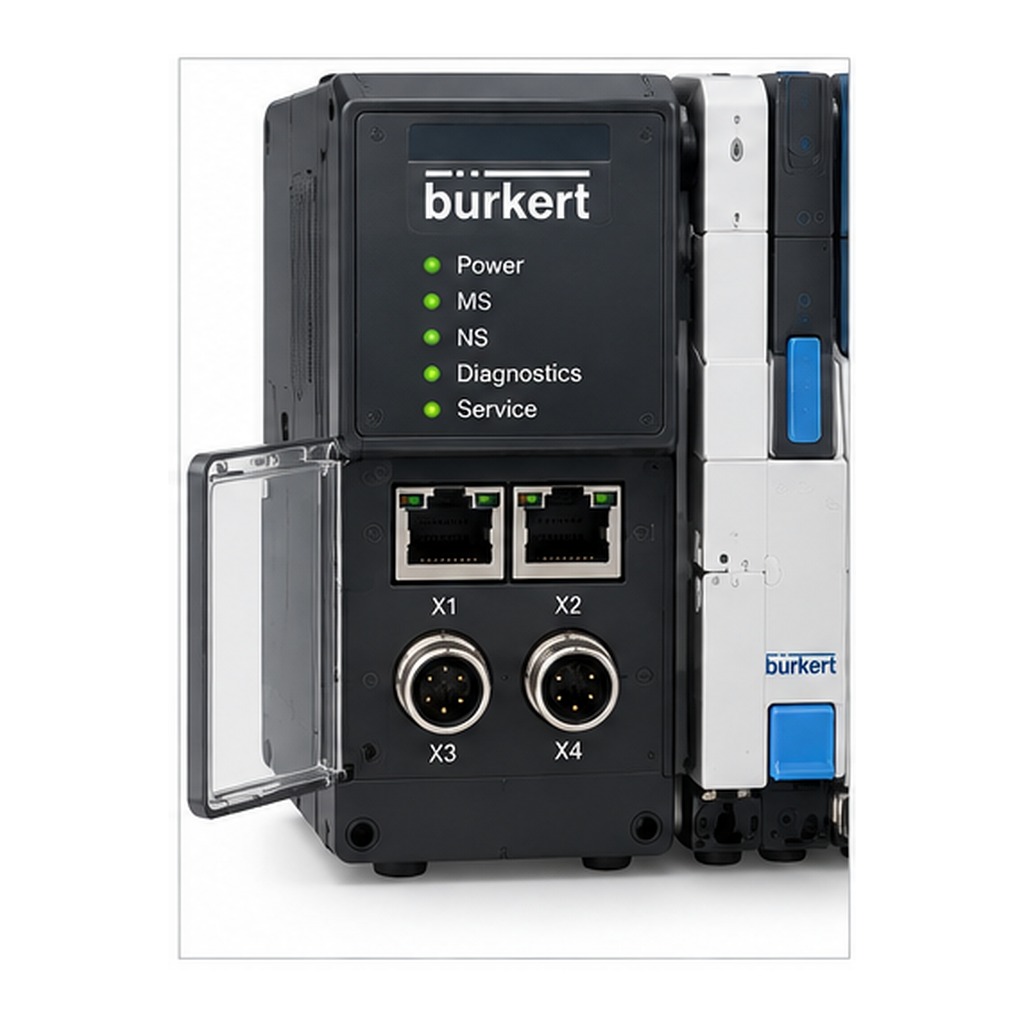

Bürkert Type 8652 AirLINE is a modular valve island designed for process automation. It combines pneumatic valve control, diagnostics and industrial communication for reliable automation of actuators and process valves.
Depending on the selected configuration, Bürkert Type 8652 AirLINE can support multiple valve stations, with configurations available for up to 24 valve slots and up to 48 valve functions.
Depending on the configuration, Type 8652 supports industrial communication options such as PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CANopen, büS and other supported interfaces.
Yes. Type 8652 includes integrated diagnostic functions with status information that can be displayed locally and transmitted to the controller, helping simplify commissioning, troubleshooting and maintenance.
Please provide the required number of valve stations, valve functions, operating pressure, pneumatic connections, communication protocol, electrical requirements and any certification or hazardous-area requirements so that the correct configuration can be selected.
