Bürkert Type 8741 Mass Flow Controller (MFC) / Mass Flow Meter (MFM) for Gases

Bürkert

Model / Part Number: Type 8741

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandBürkert

Model / Part NumberType 8741

Product TypeMass Flow Controller (MFC) / Mass Flow Meter (MFM)

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

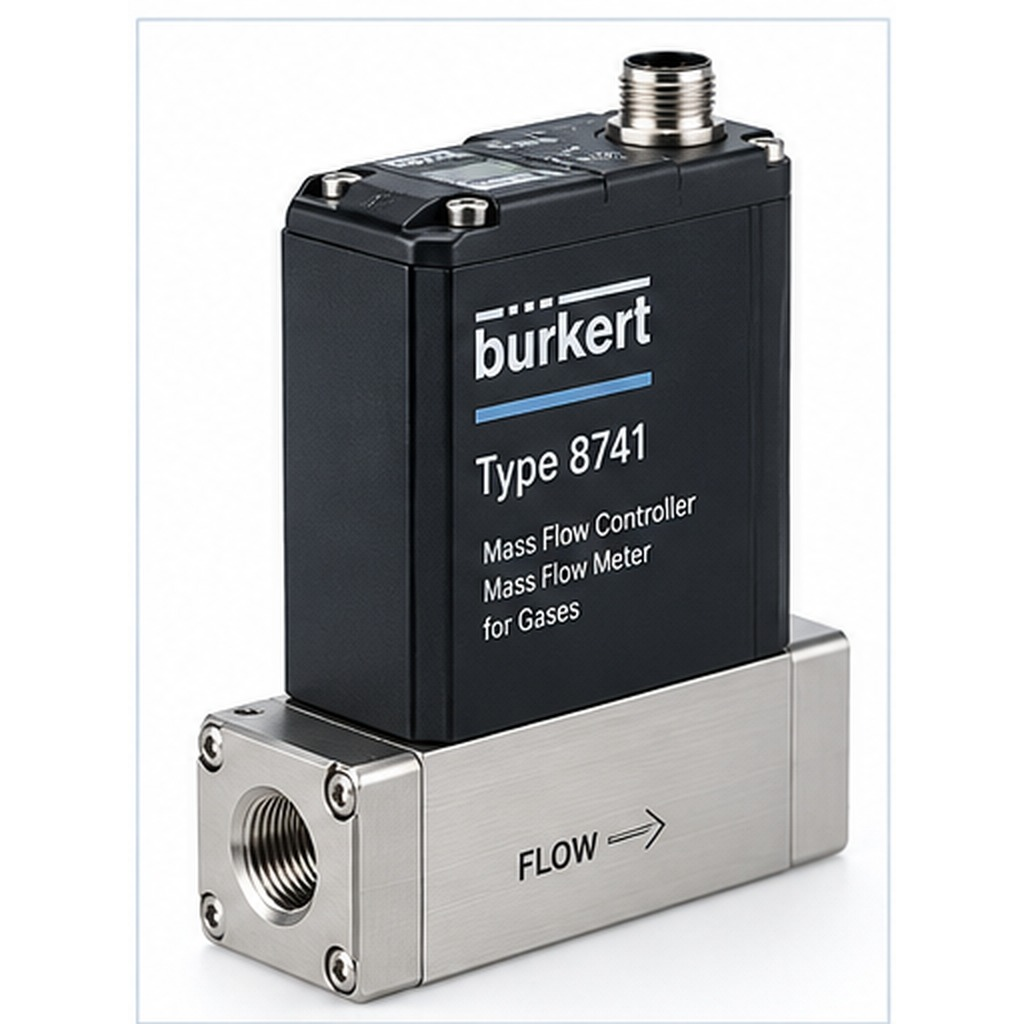

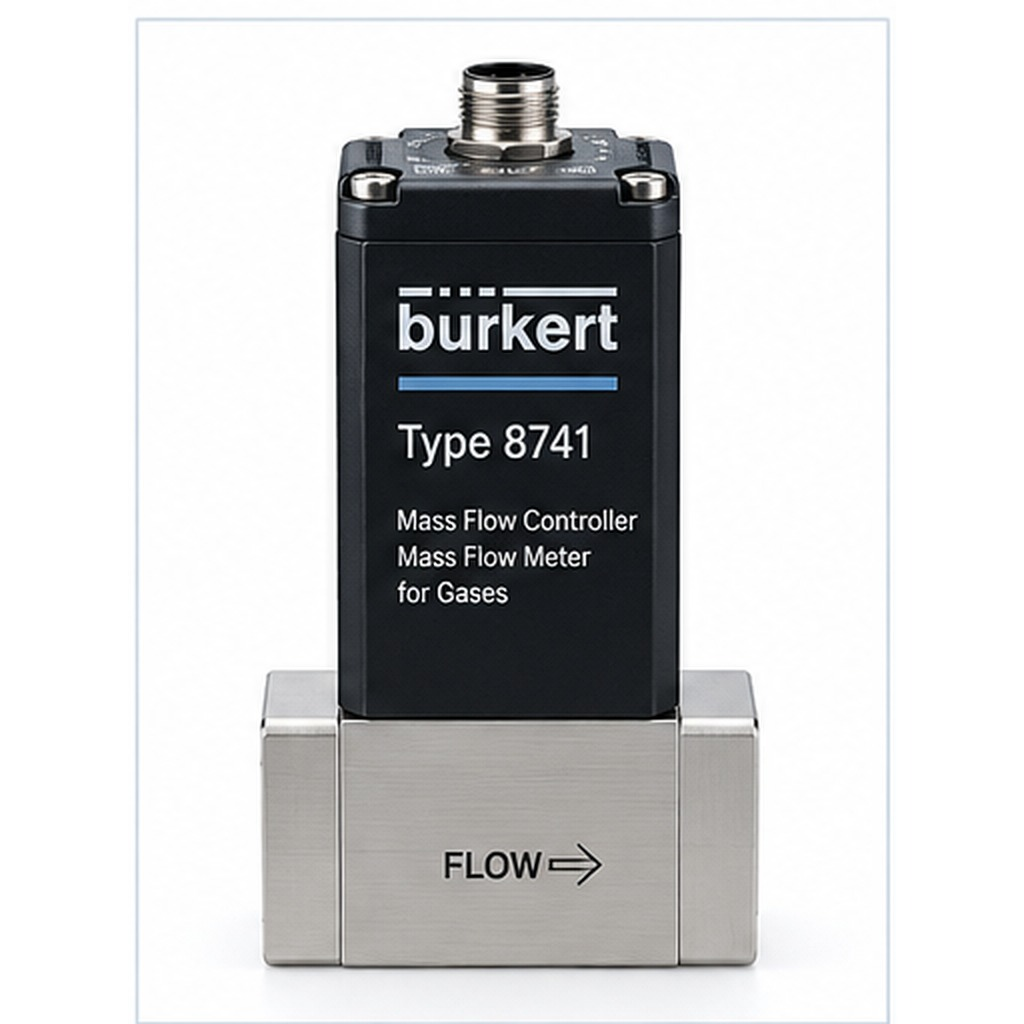

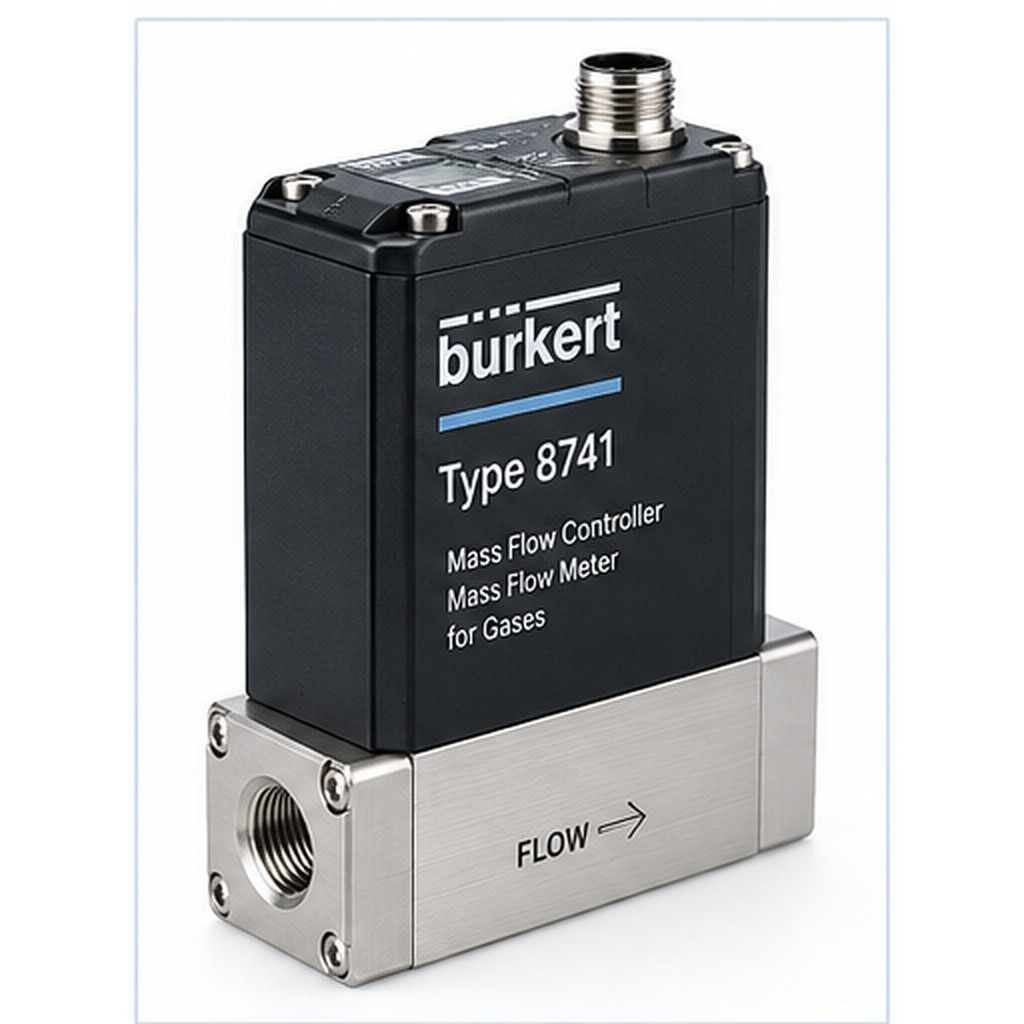

The Bürkert Type 8741 is a compact mass flow controller (MFC) and mass flow meter (MFM) developed for precise measurement and control of gas flow in industrial and laboratory applications.

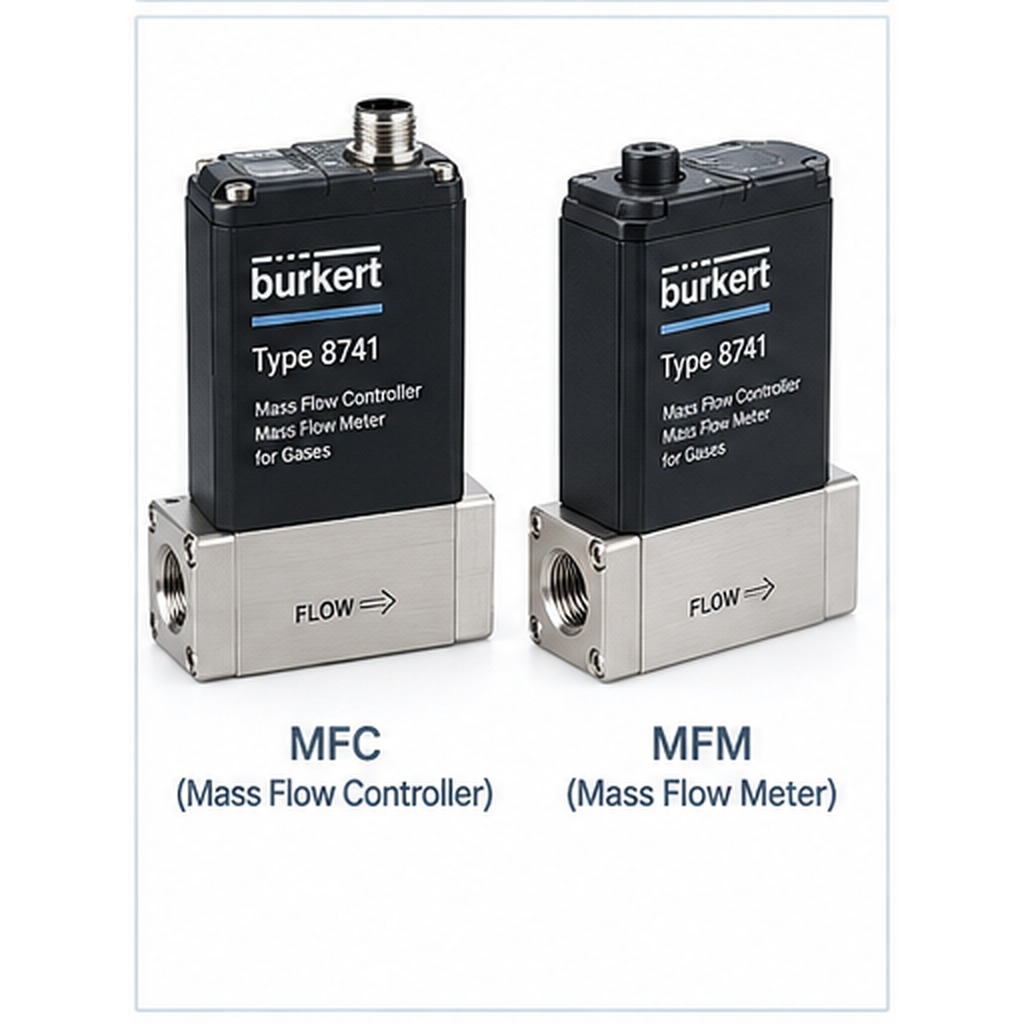

The device uses a thermal MEMS sensor positioned directly in the gas stream, providing very fast response and accurate flow measurement. Depending on the configuration, Type 8741 can operate either as a mass flow meter or as a mass flow controller equipped with a direct-acting proportional valve.

A wide range of communication options is available, including büS/CANopen, Modbus RTU, analogue signals and Industrial Ethernet protocols such as PROFINET, EtherNet/IP, EtherCAT and Modbus TCP. This makes Type 8741 suitable for integration into modern automation and process control systems.

The nominal flow range extends from 10 mlN/min up to 160 lN/min for nitrogen, with high measurement accuracy, excellent repeatability and response times below 300 ms. Configuration memory also simplifies device replacement and system maintenance.

Multiple process connections, materials and optional approvals are available depending on the selected version. Customers should confirm gas type, flow range, operating pressure, communication interface and process connection before ordering.

⚙ Technical Specifications

Product Type	Mass Flow Controller (MFC) / Mass Flow Meter (MFM)
Medium	Neutral and pure gases
Nominal Flow Range	10 mlN/min – 160 lN/min (N₂)
Operating Pressure	Up to 25 bar
Measuring Accuracy	±0.8% MV ±0.3% FS
Repeatability	±0.1% FS
Turndown Ratio	1:50, optional 1:100
Operating Voltage	24 V DC
Communication	büS/CANopen, Modbus RTU, Industrial Ethernet, Analogue

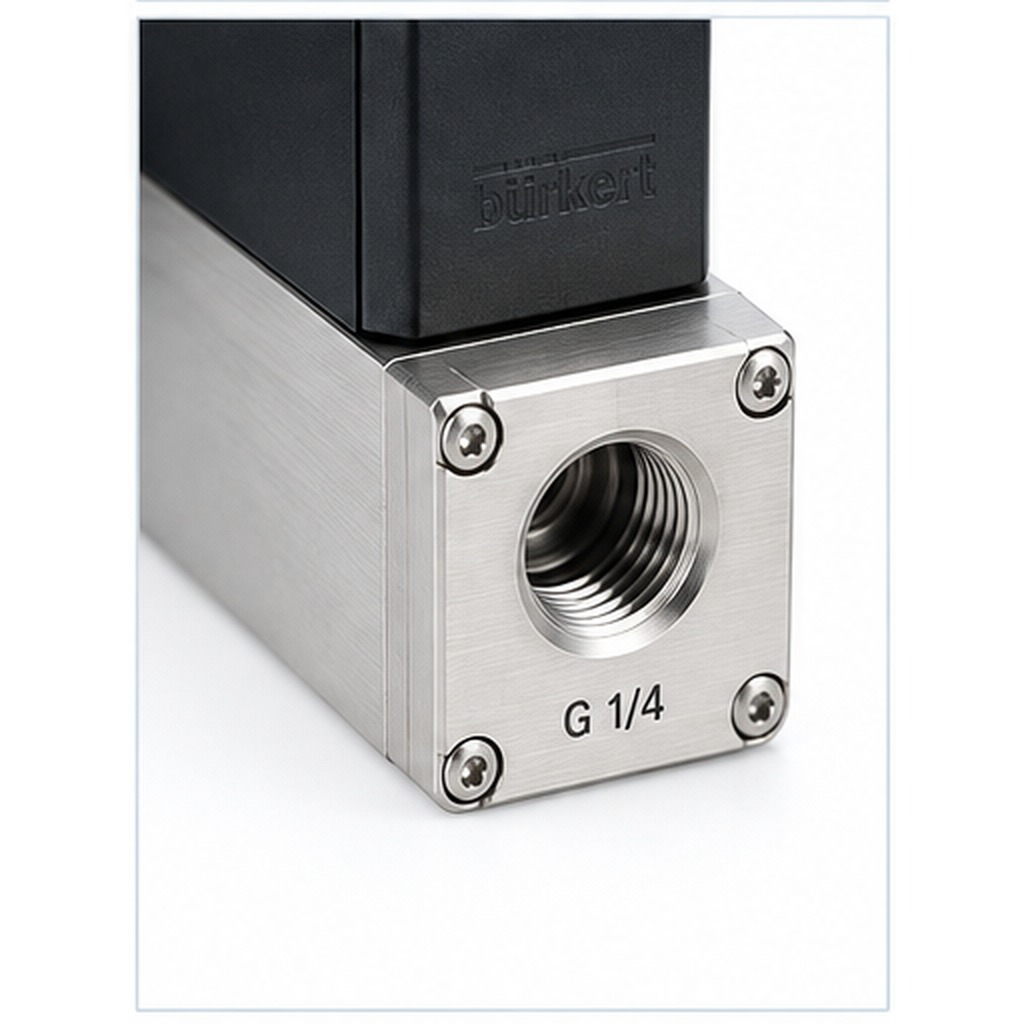

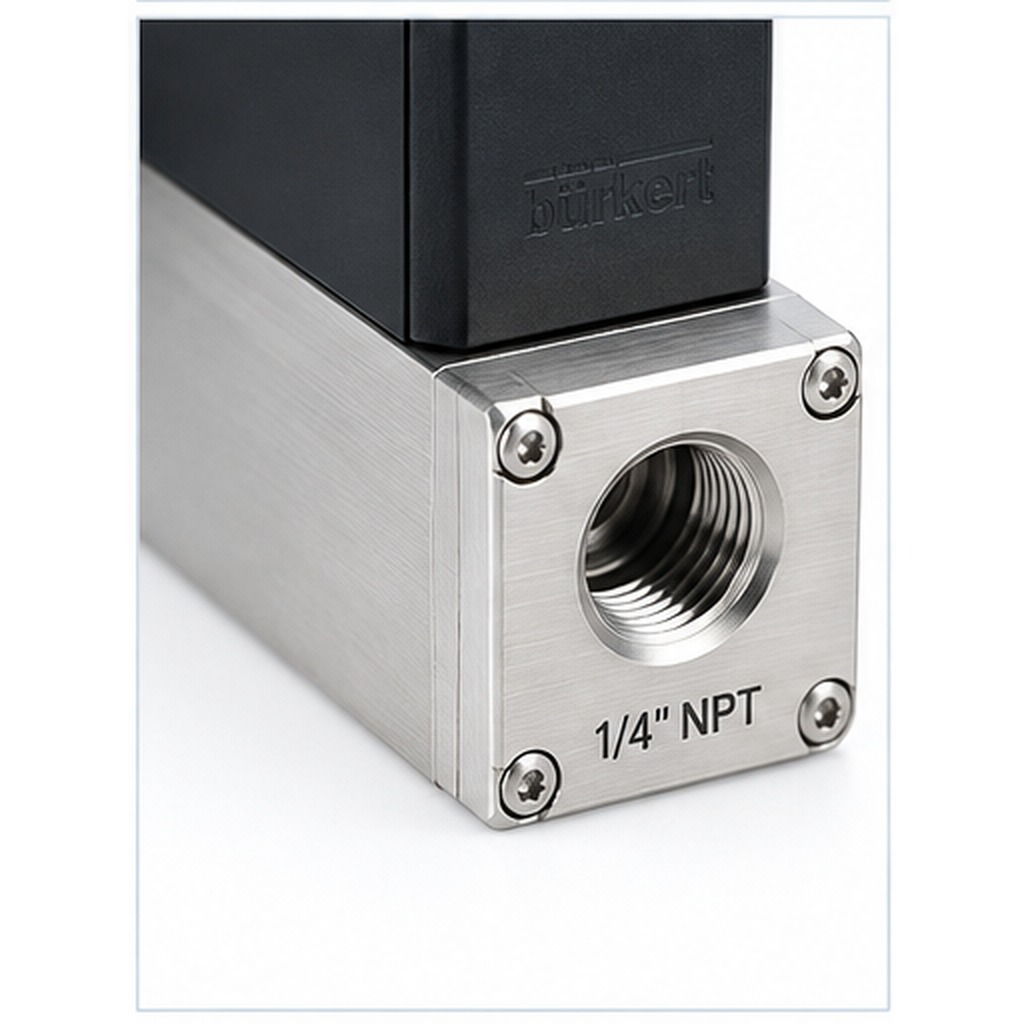

Process Connections	G / NPT and other options depending on configuration
Base Block Material	Aluminium or Stainless Steel 316L
Housing Material	Polycarbonate (PC)

▦ Typical Applications

Process Automation
Gas Flow Control
Laboratory & Analytical Equipment
Gas Mixing & Dosing
Industrial Automation

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and lead time depend on the required flow range, gas type, pressure, process connection, communication interface and approvals. Please contact us with your complete technical requirements for confirmation.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What is Bürkert Type 8741 used for?

Bürkert Type 8741 is used for precise measurement and control of gas mass flow in industrial automation, process control, gas dosing, mixing and analytical systems.

Which communication interfaces are available for Type 8741?

Depending on the configuration, Type 8741 is available with büS/CANopen, Modbus RTU, analogue interfaces and Industrial Ethernet protocols including PROFINET, EtherNet/IP, EtherCAT and Modbus TCP.

What information is required when ordering Bürkert Type 8741?

Please provide the gas type, required flow range, inlet and outlet pressure, process connection, communication interface and any required approvals so that the correct configuration can be selected.
