Model / Part Number: VB-100 DN100
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

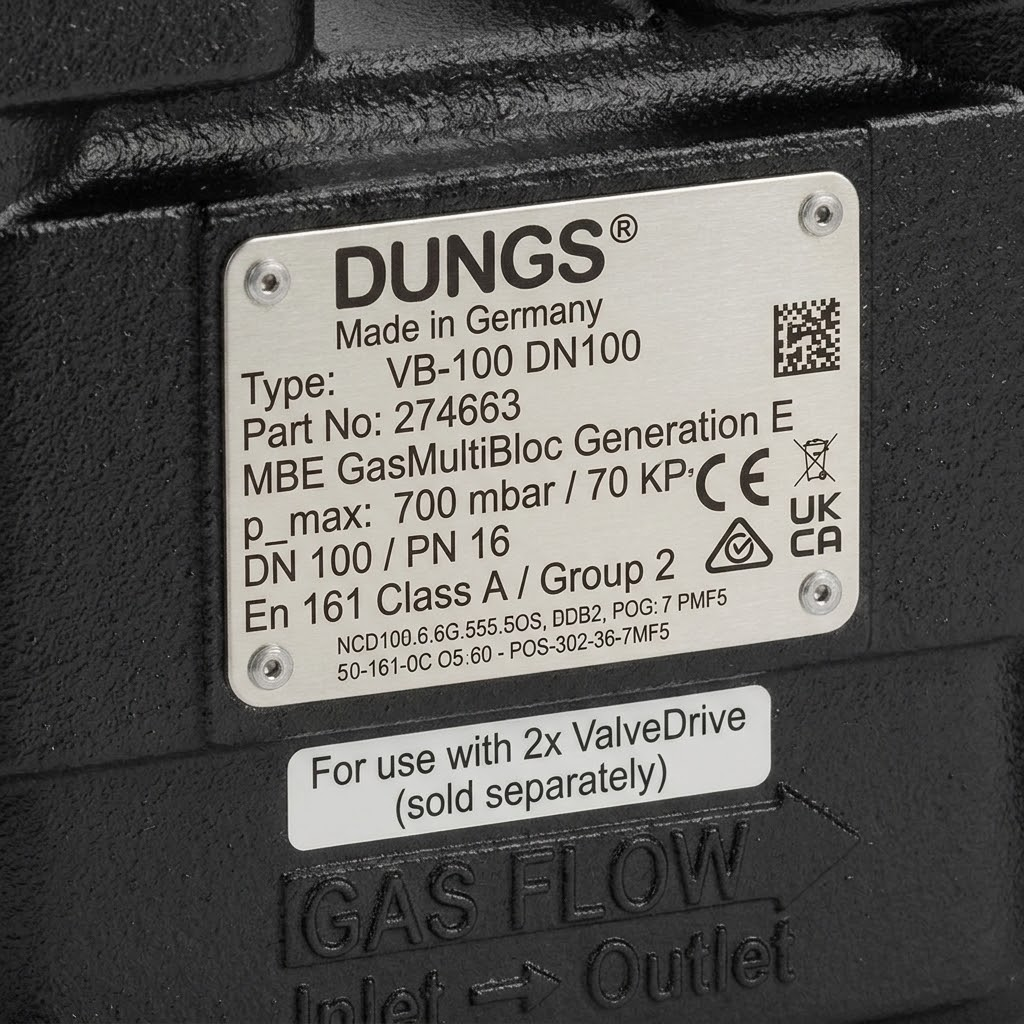

The DUNGS VB-100, item 274663, is a DN100 flanged ValveBody for the MBE Generation E GasMultiBloc system. It combines two spring-loaded safety shutoff valves in one housing and requires two separately selected DUNGS ValveDrive actuators for operation.

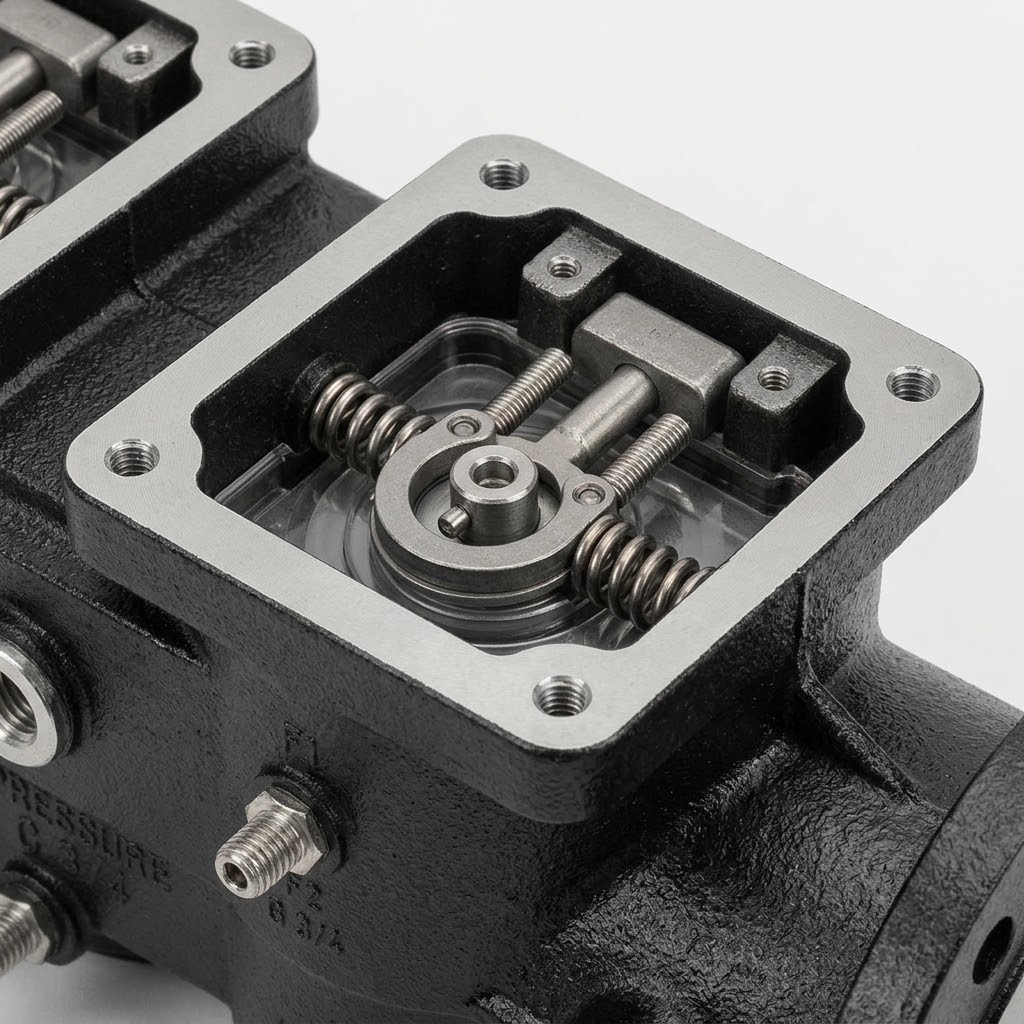

The DUNGS 274663 VB-100 is the DN100 ValveBody component of the modular MBE Generation E GasMultiBloc system. It combines two spring-loaded safety shutoff valves in one aluminium housing. The valves remain closed when their compatible ValveDrive actuators are de-energised.

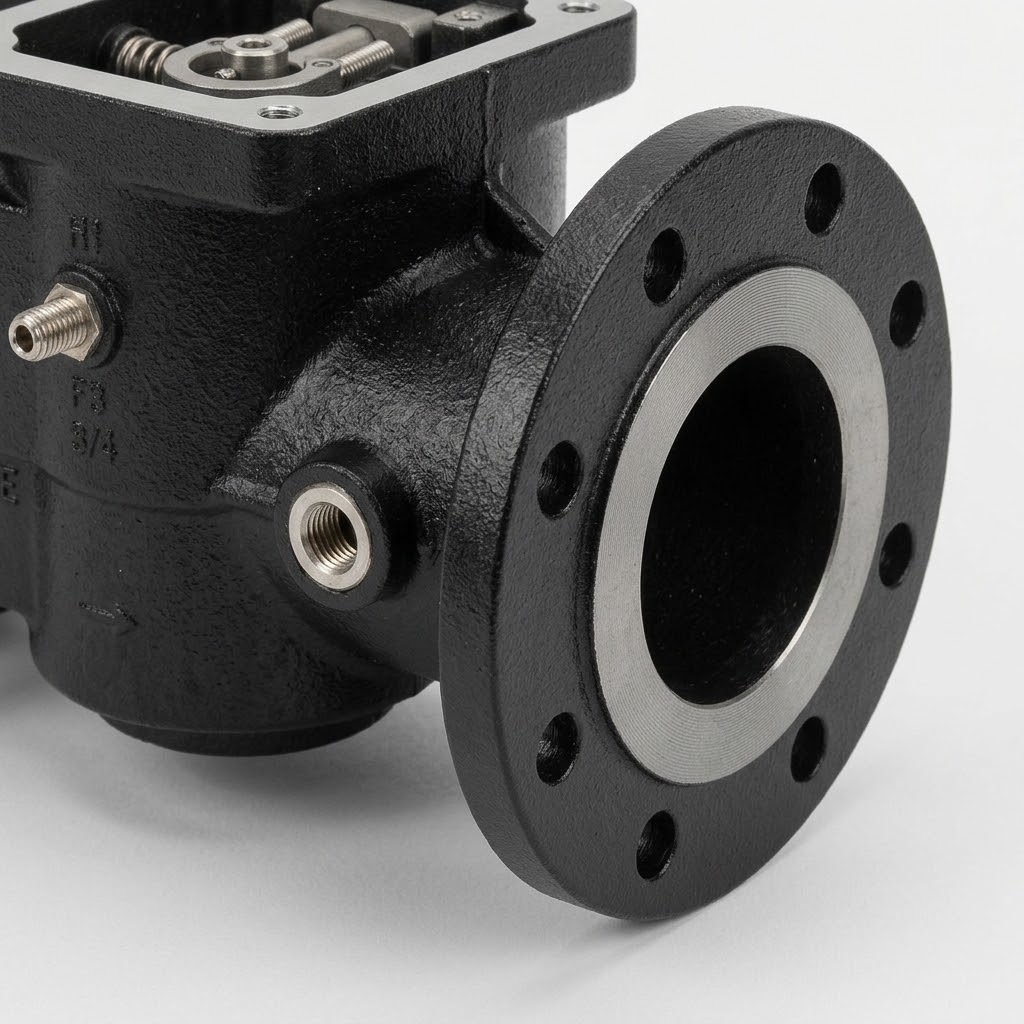

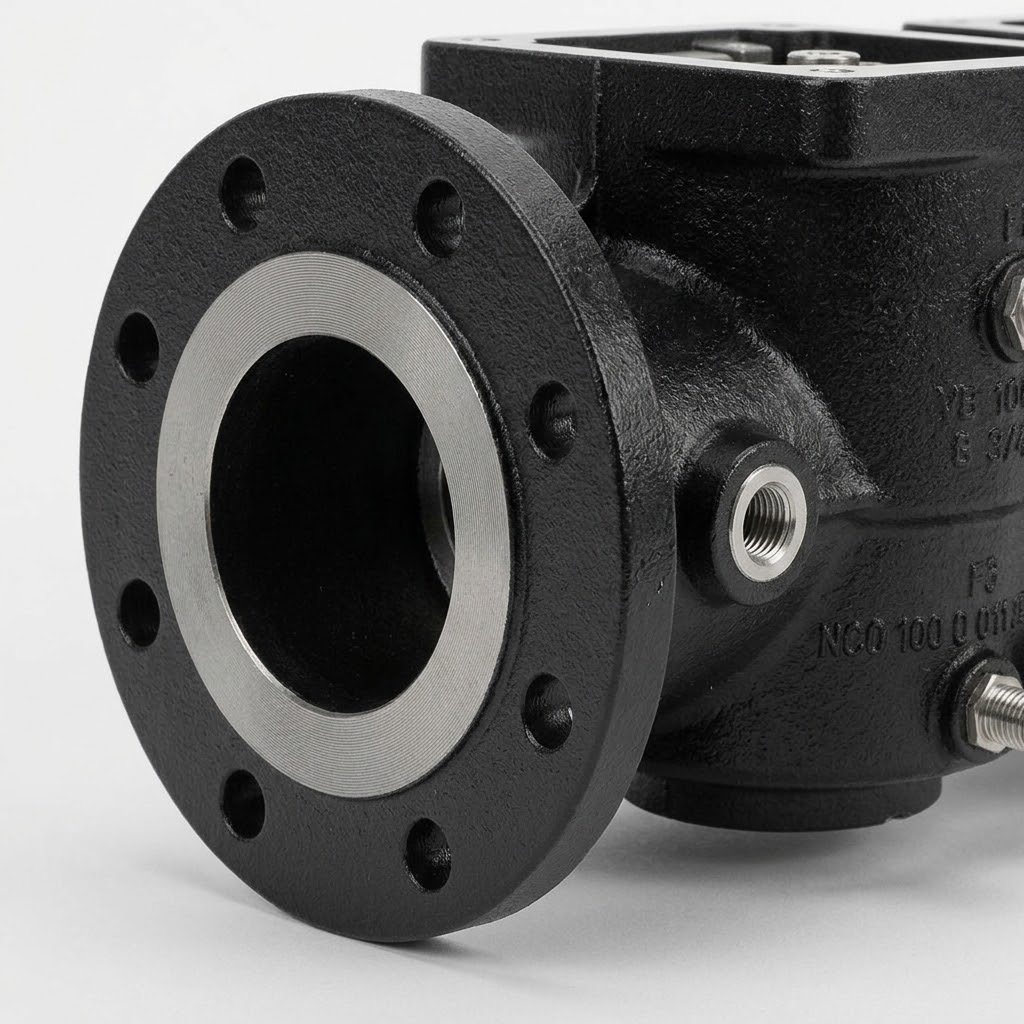

The VB-100 has DN100 raised-face flanged connections according to EN 1092-1 PN16 and a maximum inlet pressure of 70 kPa or 700 mbar. It is classified as Class A according to EN 161 and Group 2 according to EN 13611. The permitted ambient temperature is -20 °C to +60 °C. Gas-conveying seals for the VB-100 are VMQ based.
It is suitable for gas families 1, 2 and 3, dry 100% hydrogen, biogas and digester gas containing up to 1.0 vol.% dry H2S. A suitable gas filter must be installed upstream.
Item 274663 identifies the ValveBody only. Each ValveBody requires two compatible ValveDrive units. VD-V drives provide safety shutoff operation, while a regulating configuration requires a suitable VD-R drive, PressureSensor and related accessories. Drive voltage, regulation function, proof-of-closure option and pressure range must be selected separately.
| Brand | DUNGS |
|---|---|
| Product family | MBE GasMultiBloc Generation E |
| Supplied item | ValveBody only |
| ValveBody designation | VB-100 |
| DUNGS item number | 274663 |
| Nominal diameter | DN 100 |
| Flange connection | EN 1092-1 PN16 raised face |
| Valve configuration | Two spring-loaded safety shutoff valves |
| Fail-safe action | Valves close when compatible ValveDrives are de-energised |
| Maximum inlet pressure | 700 mbar (70 kPa / 10 psi) |
| Shut-off classification | Class A according to EN 161 |
| Equipment group | Group 2 according to EN 13611 |
| Ambient temperature | -20 to +60 °C |
| Valve body material | Aluminium |
| Gas-conveying seal material | VMQ based |
| Approved gas families | Gas families 1, 2 and 3 |
| Hydrogen suitability | Up to 100% hydrogen, dry |
| H2S limit for biogas/digester gas | 1 vol.% maximum, dry |
| Installation orientation | Vertically upright to lying horizontally |
| Required actuators | Two compatible DUNGS ValveDrive units, sold separately |
| ValveBody electrical supply | None; selected ValveDrives determine electrical supply |
| Compatible ValveDrive supply options | 100-240 VAC 50/60 Hz or 24 VDC, subject to selected ValveDrive |
| Upstream filtration | Suitable gas filter required |
| System accessory connection | G 3/4 |
| Valve proving compatibility | DUNGS VPS 504 compatible up to VB-100 |
| ValveDrives included | No |
| PressureSensor included | No |
