Model / Part Number: DMV-D 507/11
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayIndependent supplier; model, suffix, condition and availability require confirmation.

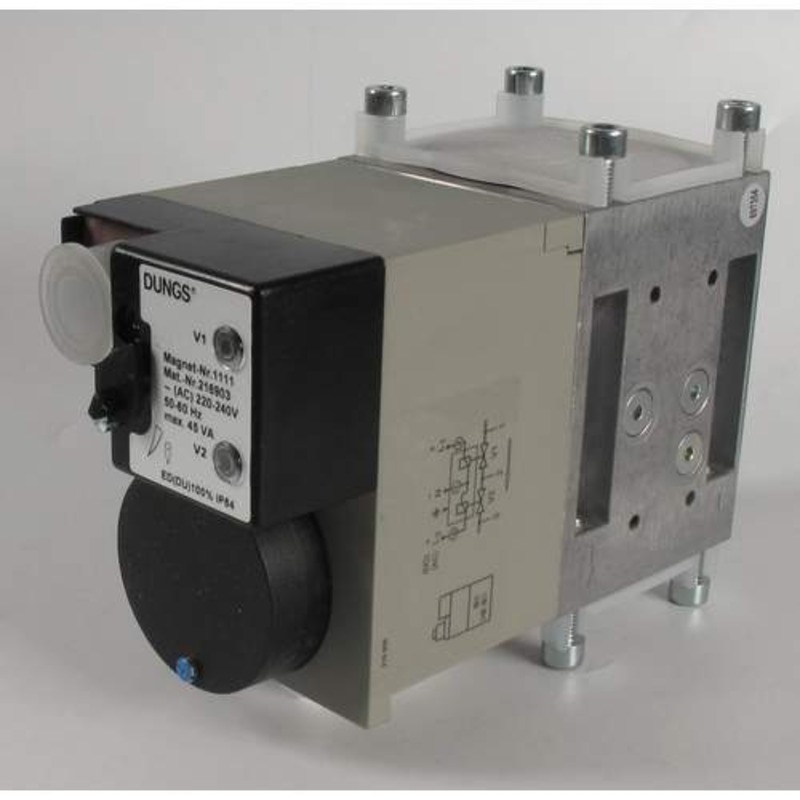

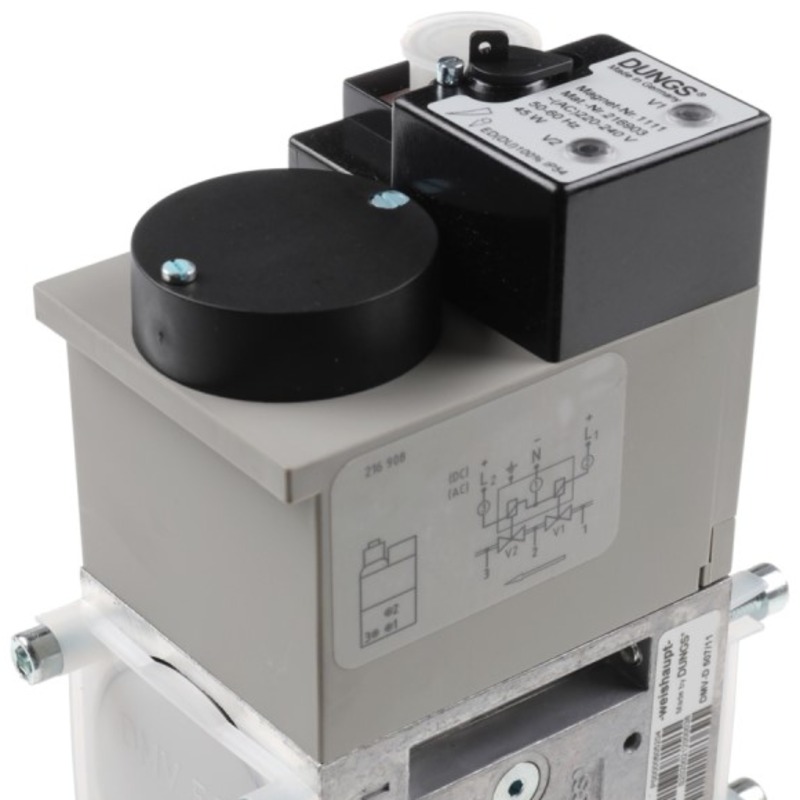

The DUNGS DMV-D 507/11 is a fast-opening double solenoid safety shut-off valve that combines two normally closed EN 161 Class A Group 2 valves in one compact housing. It is designed for gas trains in burners, boilers, furnaces and industrial combustion systems, with a maximum operating pressure of 500 mbar.
The DUNGS DMV-D 507/11 is a compact double solenoid safety shut-off valve containing two normally closed, single-stage automatic shut-off valves in one housing. Both valves comply with EN 161 Class A Group 2 and provide fast opening and fast closing in less than one second.
The valve is designed for gases of families 1, 2 and 3 and other neutral gaseous media. It has a maximum operating pressure of 500 mbar, an adjustable main gas volume at valve V1, IP54 protection and 100% continuous-duty capability. An upstream gas filter is recommended to protect the complete gas train.
Depending on the selected flanges, DMV-D 507/11 can be configured with Rp 1/2, Rp 3/4 or Rp 1 connections. Standard electrical supply is 220–240 VAC, 50–60 Hz, while 110–120 VAC and 24–28 VDC versions are also available. Threaded flanges, electrical plugs and system accessories are ordered separately. Confirm the flange sizes, coil voltage, frequency, electrical plug and exact DUNGS order number from the nameplate before quotation.
| Specification 1 | DUNGS |
|---|---|
| Specification 2 | DMV-D 507/11 |
| Specification 3 | Fast-opening double solenoid safety shut-off valve |
| Specification 4 | Two normally closed single-stage automatic shut-off valves in one housing |
| Specification 5 | EN 161 Class A Group 2 for both V1 and V2 |
| Specification 6 | 500 mbar |
| Specification 7 | 50 kPa |
| Specification 8 | <1 s |
| Specification 9 | <1 s |
| Specification 10 | Adjustable at valve V1 |
| Specification 11 | Rp 1/2, Rp 3/4 or Rp 1 depending on flange configuration |
| Specification 12 | 220–240 VAC, 50–60 Hz, -15%/+10% |
| Specification 13 | 110–120 VAC, 50–60 Hz or 24–28 VDC |
| Specification 14 | 45 VA at 230 VAC and +20 °C |
| Specification 15 | IP54 |
| Specification 16 | 100% |
| Specification 17 | Plug connection according to DIN EN 175301-803 |
| Specification 18 | -15 to +60 °C |
| Specification 19 | Solenoid vertically upright through horizontal |
| Specification 20 | G 1/8 upstream of V1, between V1 and V2, and downstream of V2 |
| Specification 21 | G 1/2 flange between V1 and V2 |
| Specification 22 | Gas families 1, 2 and 3 and other neutral gaseous media |
| Specification 23 | Dry gas containing up to 0.1 vol.% H2S |
| Specification 24 | NBR-based material |
| Specification 25 | Integrated sieve; upstream gas filter recommended |
| Specification 26 | 1000 cycles/hour |
| Specification 27 | 2.1 kg |
| Specification 28 | Threaded flanges, electrical plugs and system accessories ordered separately |
| Specification 29 | Flange sizes, coil voltage, frequency and order number must be verified from nameplate |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | RFQ confirmation required |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
