Model / Part Number: MB-DLE 407 B01 S20
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayIndependent supplier; model, suffix, condition and availability require confirmation.

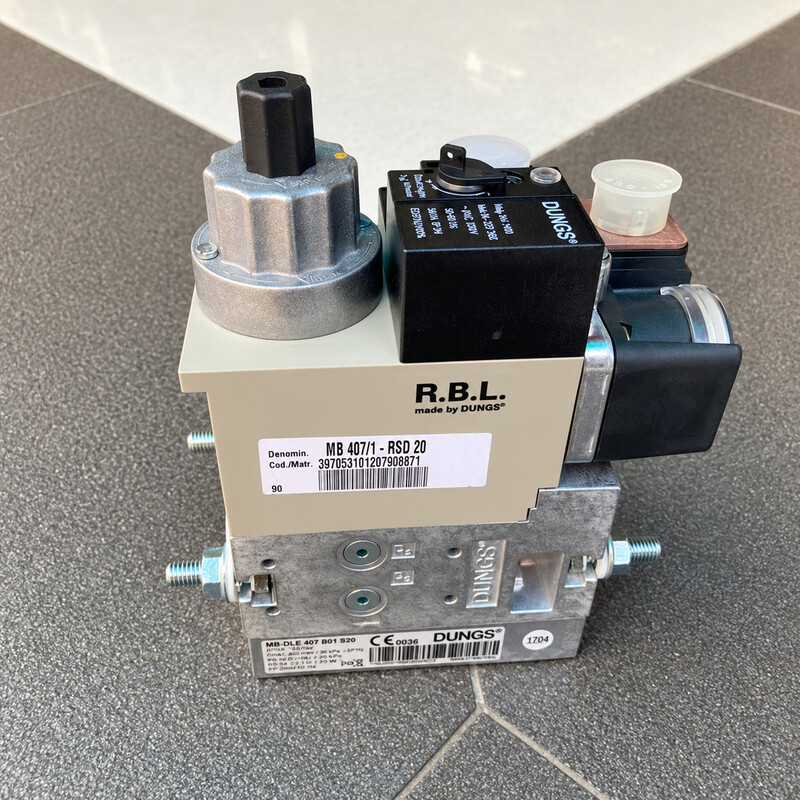

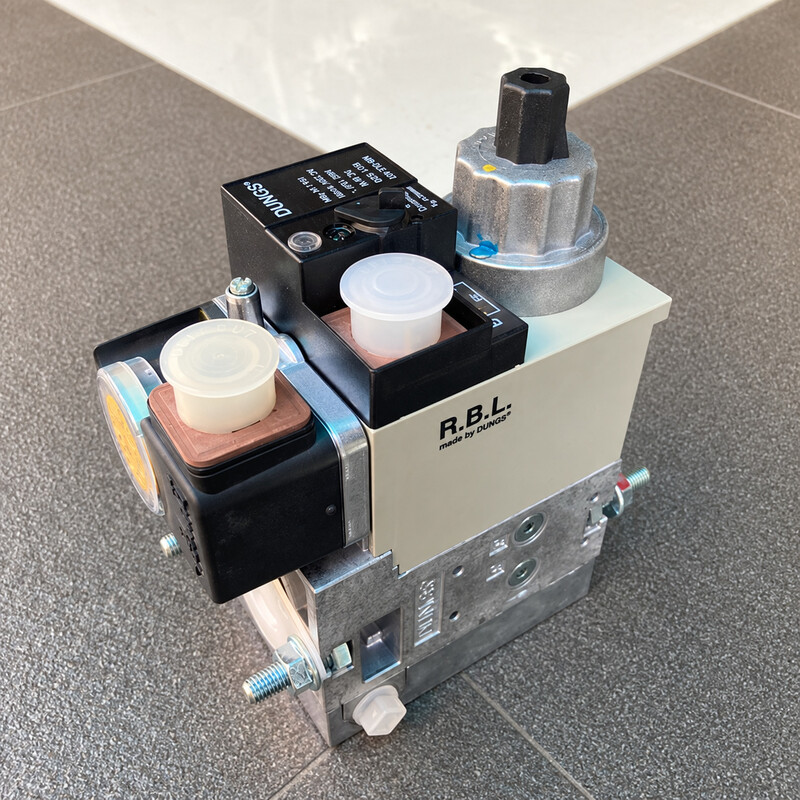

The DUNGS MB-DLE 407 B01 S20 is a single-stage GasMultiBloc multifunctional gas control integrating a fine-mesh filter, pressure regulator and two safety shut-off valves in one compact assembly. It provides a 4–20 mbar regulated outlet-pressure range with a maximum inlet pressure of 360 mbar.
The DUNGS MB-DLE 407 B01 S20 GasMultiBloc combines a fine-mesh gas filter, proportional pressure regulator and two automatic safety shut-off valves in one compact single-stage assembly. Compatible gas pressure switches and a valve-proving system can be added according to the required gas-train configuration.
Both safety valves comply with EN 161 Class A Group 2. Valve V1 is fast opening and fast closing, while valve V2 is slow opening with an adjustable hydraulic opening characteristic and fast closing. The main gas-volume restrictor is adjustable at V2. The pressure regulator complies with EN 88 Class A Group 2.
The S20 version has an adjustable outlet-pressure range of 4–20 mbar and a maximum inlet pressure of 360 mbar. Size 407 corresponds to DN 20 and can use Rp 1/2 or Rp 3/4 threaded flange combinations. Standard electrical supply is 220–230 VAC, 50–60 Hz, with IP54 protection and 100% duty cycle.
The exact flange sizes, supply voltage, pressure-switch configuration, electrical connections, accessories and DUNGS order number must be confirmed from the nameplate before quotation or replacement.
| Specification 1 | DUNGS |
|---|---|
| Specification 2 | MB-DLE 407 B01 S20 |
| Specification 3 | GasMultiBloc multifunctional gas control |
| Specification 4 | Single-stage |
| Specification 5 | Fine-mesh filter, pressure regulator and two safety shut-off valves |
| Specification 6 | DN 20 |
| Specification 7 | Rp 1/2 or Rp 3/4 and their combinations |
| Specification 8 | 360 mbar |
| Specification 9 | 36 kPa |
| Specification 10 | 4–20 mbar |
| Specification 11 | 0.4–2 kPa |
| Specification 12 | EN 161 Class A Group 2; fast opening and fast closing |
| Specification 13 | EN 161 Class A Group 2; slow opening and fast closing |
| Specification 14 | <20 s |
| Specification 15 | Hydraulically delayed and adjustable |
| Specification 16 | Adjustable at valve V2 |
| Specification 17 | EN 88 Class A Group 2, residual-pressure compensated |
| Specification 18 | Integrated fine-mesh sieve |
| Specification 19 | Gas families 1, 2 and 3 and other neutral gaseous media |
| Specification 20 | -15 to +70 °C |
| Specification 21 | 220–230 VAC, 50–60 Hz, -15%/+10% |
| Specification 22 | 32 VA at 230 VAC and +20 °C |
| Specification 23 | 100% |
| Specification 24 | IP54 |
| Specification 25 | Plug connection according to DIN EN 175301-803 |
| Specification 26 | G 1/8 pressure taps and measuring nipple |
| Specification 27 | Solenoid vertically upright, horizontal or intermediate positions |
| Specification 28 | Die-cast aluminium |
| Specification 29 | NBR-based material and silicone rubber |
| Specification 30 | 2.6 kg |
| Specification 31 | GW A5, GW A2, NB A2 or ÜB A2 pressure switches and VPS 504 valve-proving system |
| Specification 32 | Confirm voltage, inlet/outlet flanges, pressure-switch equipment and exact order number from nameplate |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | RFQ confirmation required |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
