Model / Part Number: HOG10 DN 1024 I LR 16H7 KLK
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayIndependent supplier; model, suffix, condition and availability require confirmation.
Baumer HOG10 DN 1024 I LR 16H7 KLK is a heavy-duty incremental encoder featuring a 16 mm blind hollow shaft, 1024 pulses per revolution, HTL-P output and 9–30 VDC power supply. Designed for reliable operation in demanding industrial environments.

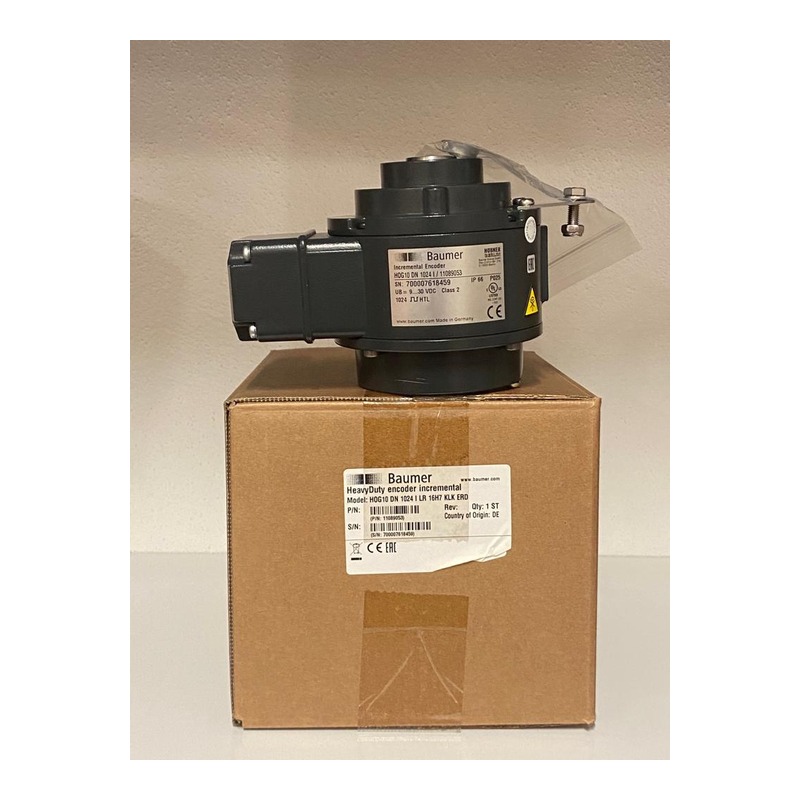

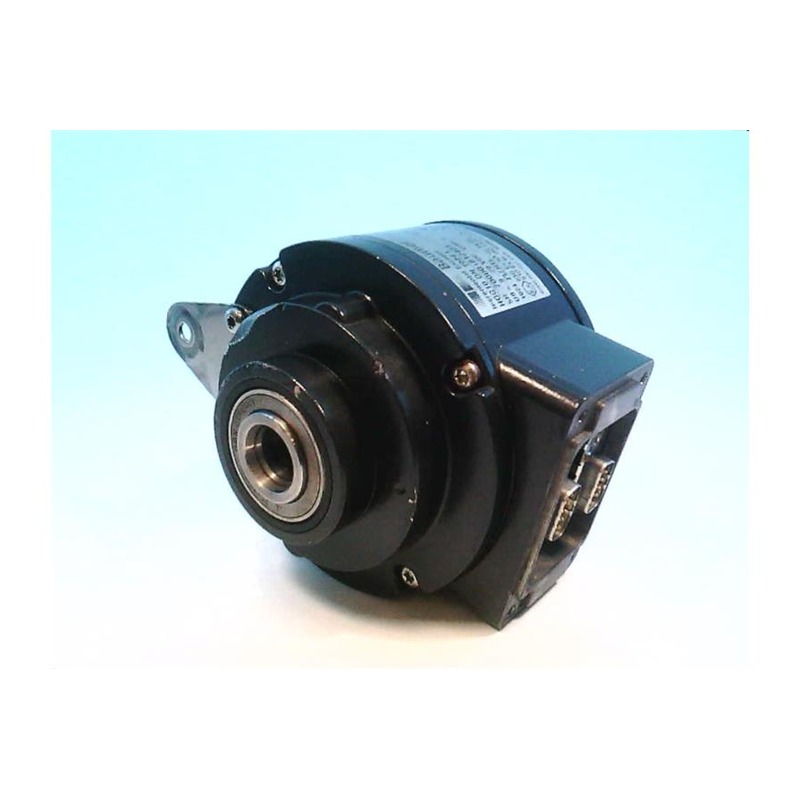

The Baumer HOG10 DN 1024 I LR 16H7 KLK, article number 11070325, is a heavy-duty optical incremental encoder designed for reliable speed and position feedback in demanding industrial applications.
It features a 16 mm blind hollow shaft, 1024 pulses per revolution and an HTL-P power line driver. The encoder operates with a 9–30 VDC supply and provides K1, K2 and K0 output signals with inverted channels. Its maximum output frequency is 120 kHz, with a transmission distance of up to 350 m at 100 kHz.
The encoder has a 105 mm flange, IP66 protection, a mechanical operating speed of up to 6000 rpm and an operating temperature range from -40°C to +100°C. The robust aluminium housing and stainless-steel shaft provide high resistance to shock, vibration and harsh industrial conditions. Connection is provided through a radial terminal box.
Before ordering, please confirm the shaft diameter, pulse count, supply voltage, output type and terminal box orientation.
| Specification 1 | Baumer |
|---|---|
| Specification 2 | HOG10 DN 1024 I LR 16H7 KLK |
| Specification 3 | 11070325 |
| Specification 4 | Optical incremental encoder / مشفر تزايدي بصري |
| Specification 5 | 1024 PPR |
| Specification 6 | 9...30 VDC |
| Specification 7 | ≤100 mA |
| Specification 8 | HTL-P power line driver |
| Specification 9 | K1, K2, K0 + inverted |
| Specification 10 | ≤120 kHz |
| Specification 11 | ≤350 m at 100 kHz |
| Specification 12 | Zero pulse, width 90° |
| Specification 13 | Ø105 mm |
| Specification 14 | Ø16 mm blind hollow shaft / عمود مجوف أعمى بقطر 16 مم |
| Specification 15 | IP66 |
| Specification 16 | ≤6000 rpm |
| Specification 17 | ≤450 N axial; ≤600 N radial |
| Specification 18 | -40...+100 °C |
| Specification 19 | 20 g, 10...2000 Hz |
| Specification 20 | 300 g, 6 ms |
| Specification 21 | Radial terminal box / صندوق أطراف شعاعي |
| Specification 22 | Aluminium die-cast housing; stainless-steel shaft |
| Specification 23 | Approx. 1.6 kg |
| Specification 24 | CE; UL E217823 |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | RFQ confirmation required |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
