Model / Part Number: 013010MD
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Brand | Thermo Scientific Orion - |
| Catalog Number | 013010MD - |
| Product Type | 4-Cell Conductivity Electrode - |
| Probe Series | Orion DuraProbe - |
| Sensor Type | 4-Electrode Graphite Cell - |
| Body Material | Epoxy - |
| Electrode Material | Graphite - |
| Measurement Parameters | Conductivity / Resistivity / TDS / Salinity / Temperature - |
| Conductivity Range | 1 µS/cm to 200 mS/cm |
| Nominal Cell Constant | 0.475 cm⁻¹ |
| Temperature Sensor | Built-In ATC - |
| Temperature Range | 0 to 90 °C |
| Body Diameter | 15 mm |
| Body Length | 120 mm |
| Minimum Immersion Depth | 35 mm |
| Cable Length | 3 m |

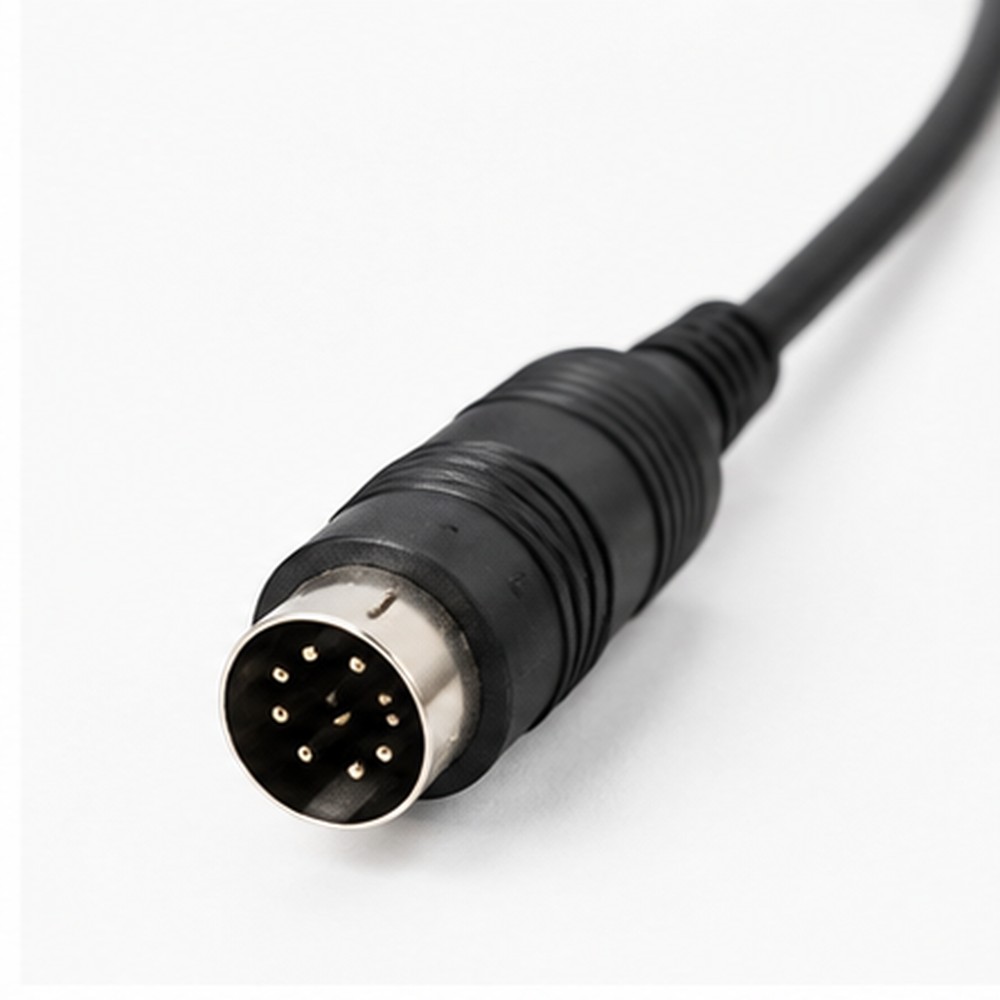

| Connector Type | 8-pin Mini-DIN - |
| Application | Field / Laboratory - |
| Recommended Samples | Drinking Water / Wastewater / Runoff / Rivers / Lakes / Estuaries / Mud / Industrial Water - |
| Compatible Meters | Orion Star / Lab Star / Pro Star / Versa Star Pro - |
| Storage Between Measurements | Distilled or Deionized Water - |
| Long-Term Storage | Rinse Thoroughly and Store Dry - |
| Warranty | 24 Months |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | 013010MD - |
| نوع المنتج | قطب توصيلية رباعي الخلايا - |
| سلسلة المجس | Orion DuraProbe - |
| نوع الحساس | خلية جرافيت رباعية الأقطاب - |
| مادة الجسم | إيبوكسي - |
| مادة الأقطاب | جرافيت - |
| معلمات القياس | التوصيلية / المقاومة / TDS / الملوحة / درجة الحرارة - |
| نطاق التوصيلية | 1 µS/cm إلى 200 mS/cm |
| ثابت الخلية الاسمي | 0.475 cm⁻¹ |
| حساس درجة الحرارة | ATC مدمج - |
| نطاق درجة الحرارة | 0 إلى 90 °C |
| قطر الجسم | 15 mm |
| طول الجسم | 120 mm |
| الحد الأدنى لعمق الغمر | 35 mm |
| طول الكابل | 3 m |
| نوع الموصل | Mini-DIN ذو 8 سنون - |
| مجال الاستخدام | ميداني / مختبري - |
| العينات الموصى بها | مياه الشرب / مياه الصرف / مياه الجريان / الأنهار / البحيرات / المصبات / الطين / المياه الصناعية - |
| الأجهزة المتوافقة | Orion Star / Lab Star / Pro Star / Versa Star Pro - |
| التخزين بين القياسات | ماء مقطر أو منزوع الأيونات - |
| التخزين طويل الأجل | يشطف جيدًا ويحفظ جافًا - |
| الضمان | 24 شهر |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status and lead time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
The Orion 013010MD is used for conductivity, TDS, salinity, resistivity and temperature measurement in water quality, laboratory, environmental, wastewater and field applications.
The 013010MD provides a conductivity measurement range of 1 µS/cm to 200 mS/cm with a nominal cell constant of 0.475 cm⁻¹.
Yes. The 013010MD includes a built-in ATC temperature sensor for temperature measurement and automatic temperature compensation with compatible Orion meters.

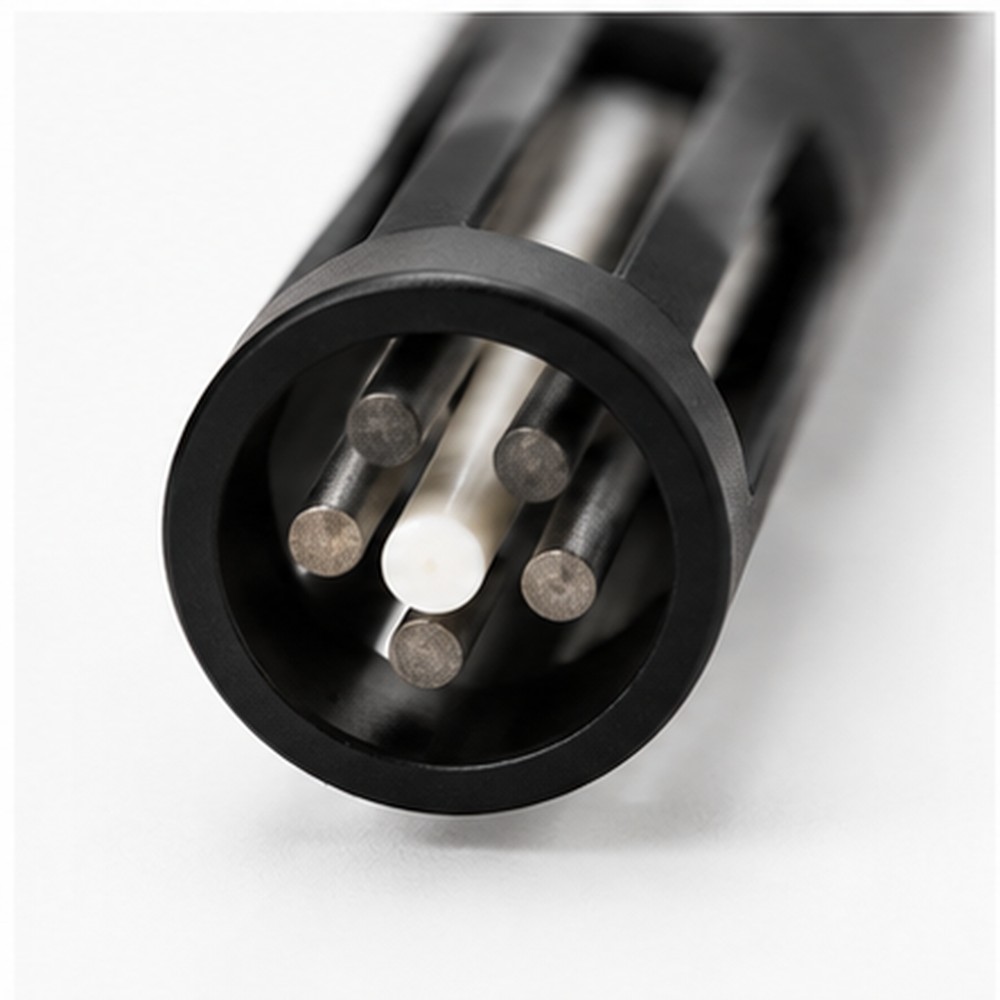

The 4-electrode graphite design helps reduce the effects of polarization, cable resistance and electrode fouling, providing more stable measurements in challenging samples such as wastewater and mud.
Please confirm catalog number 013010MD, compatible meter, required conductivity range, cable length, sample type and operating conditions before ordering.
