Model / Part Number: 8107BNUMD
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Brand | Thermo Scientific Orion - |
| Catalog Number | 8107BNUMD - |
| Product Type | pH/ATC Combination Electrode - |
| Electrode Type | 3-in-1 pH / Automatic Temperature Compensation Electrode - |
| Body Material | Rugged Epoxy - |
| Filling System | Low-Maintenance Gel - |
| Refillable | No - |
| Internal Reference | ROSS - |
| Junction | Glass Capillary - |
| pH Range | 0 to 14 pH |
| pH Precision | 0.01 pH |
| pH Relative Accuracy | 0.03 pH for Buffers with ATC - |
| Operating Temperature | 0 to 80 °C |
| Temperature Accuracy | ±1.0 °C |
| Isopotential Point | 7 pH |
| Diameter | 12 mm |
| Length | 120 mm |
| Cable Length | 1 m |

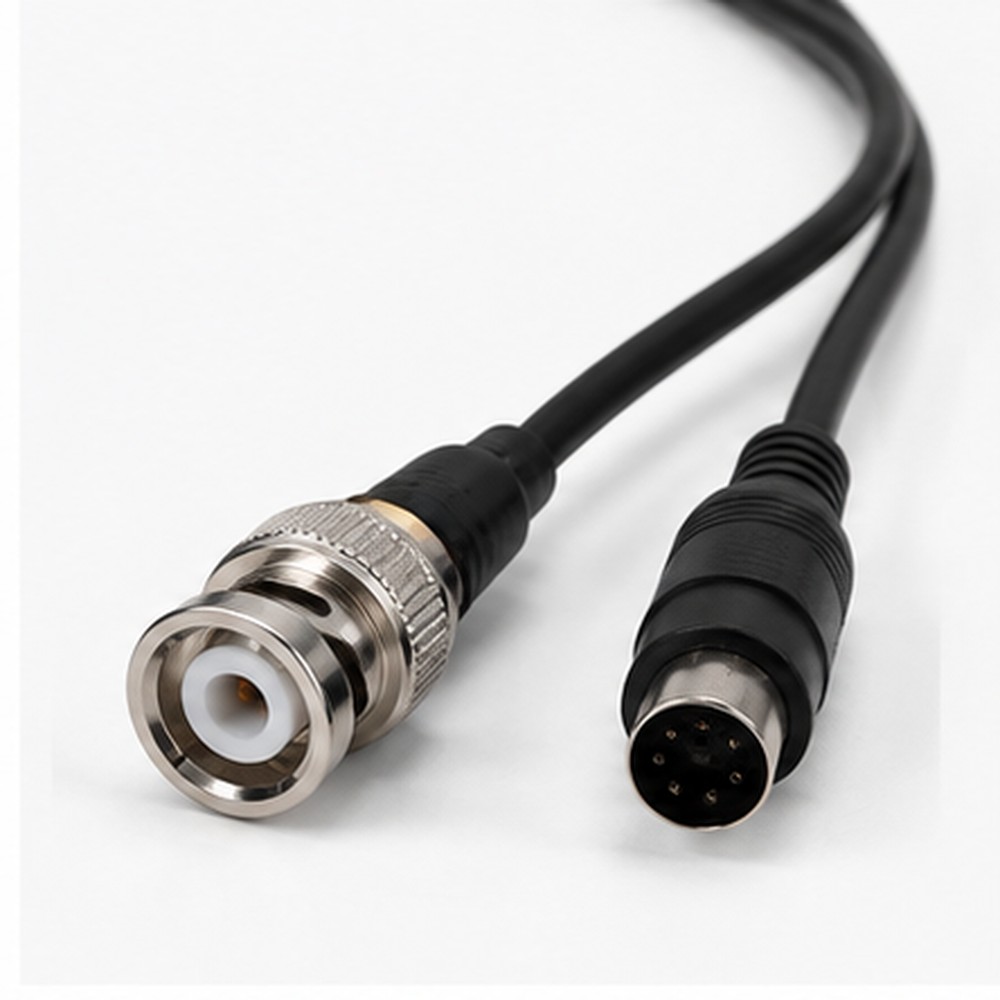

| Connector Type | Waterproof BNC + 8-pin Mini-DIN - |
| Temperature Sensor | Built-In - |
| Compatible Meters | Orion Star Series Meters - |
| Sample Compatibility | TRIS / Sulfides / Proteins / Organic Compounds / Enzymes / Heavy Metals - |
| Filling Solution | None Required - |
| Recommended Storage Solution | Orion ROSS pH Electrode Storage Solution 810001 - |
| Warranty | 18 Months |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | 8107BNUMD - |
| نوع المنتج | قطب مركب لقياس pH وATC - |
| نوع القطب | قطب 3 في 1 لقياس pH والتعويض التلقائي لدرجة الحرارة - |
| مادة الجسم | إيبوكسي متين - |
| نظام التعبئة | جل منخفض الصيانة - |
| قابل لإعادة التعبئة | لا - |
| المرجع الداخلي | ROSS - |
| الوصلة | شعيرة زجاجية - |
| نطاق pH | 0 إلى 14 pH |
| دقة pH | 0.01 pH |
| الدقة النسبية لـ pH | 0.03 pH للمحاليل المنظمة مع ATC - |
| نطاق درجة حرارة التشغيل | 0 إلى 80 °C |
| دقة درجة الحرارة | ±1.0 °C |
| نقطة تساوي الجهد | 7 pH |
| القطر | 12 mm |
| الطول | 120 mm |
| طول الكابل | 1 m |
| نوع الموصل | BNC مقاوم للماء + Mini-DIN ذو 8 سنون - |
| حساس درجة الحرارة | مدمج - |
| الأجهزة المتوافقة | أجهزة Orion Star Series - |
| العينات المتوافقة | TRIS / الكبريتيدات / البروتينات / المركبات العضوية / الإنزيمات / المعادن الثقيلة - |
| محلول التعبئة | غير مطلوب - |
| محلول التخزين الموصى به | Orion ROSS pH Electrode Storage Solution 810001 - |
| الضمان | 18 شهر |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status and lead time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
The Orion 8107BNUMD is used for pH and temperature measurement in laboratory and water quality applications, with automatic temperature compensation through its built-in temperature sensor.
The 8107BNUMD provides a pH measurement range of 0 to 14, making it suitable for routine laboratory and water quality analysis.
Yes. The 8107BNUMD includes a built-in temperature sensor for automatic temperature compensation when used with compatible Orion Star meters.
No. The 8107BNUMD uses a low-maintenance gel-filled reference system and is non-refillable, so no filling solution is required during normal operation.
Please confirm catalog number 8107BNUMD, meter compatibility, connector type, cable length, sample type and measurement conditions before ordering.
