Model / Part Number: 9609BNWP
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|

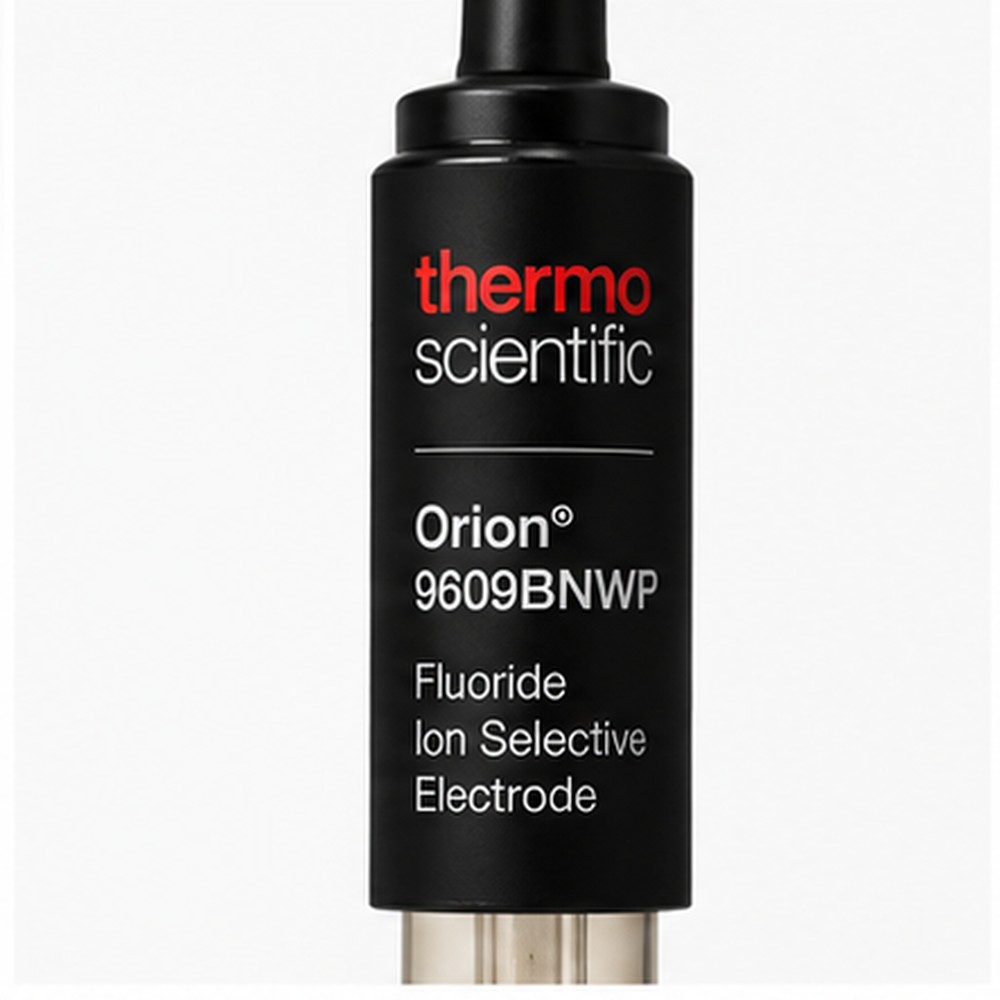

| Brand | Thermo Scientific Orion - |
| Catalog Number | 9609BNWP - |
| Product Type | Fluoride Ion Selective Electrode - |
| Electrode Type | Combination Ion Selective Electrode - |
| Ion Measured | Fluoride (F⁻) - |

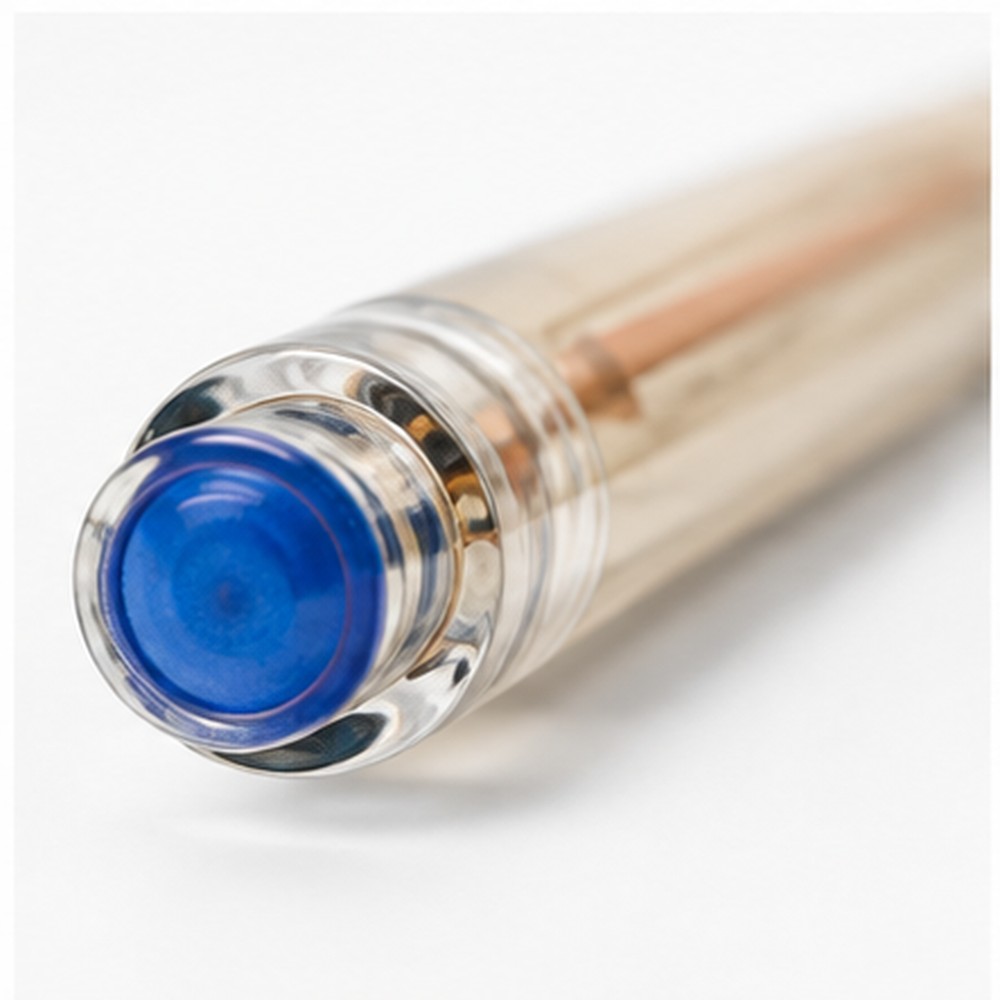

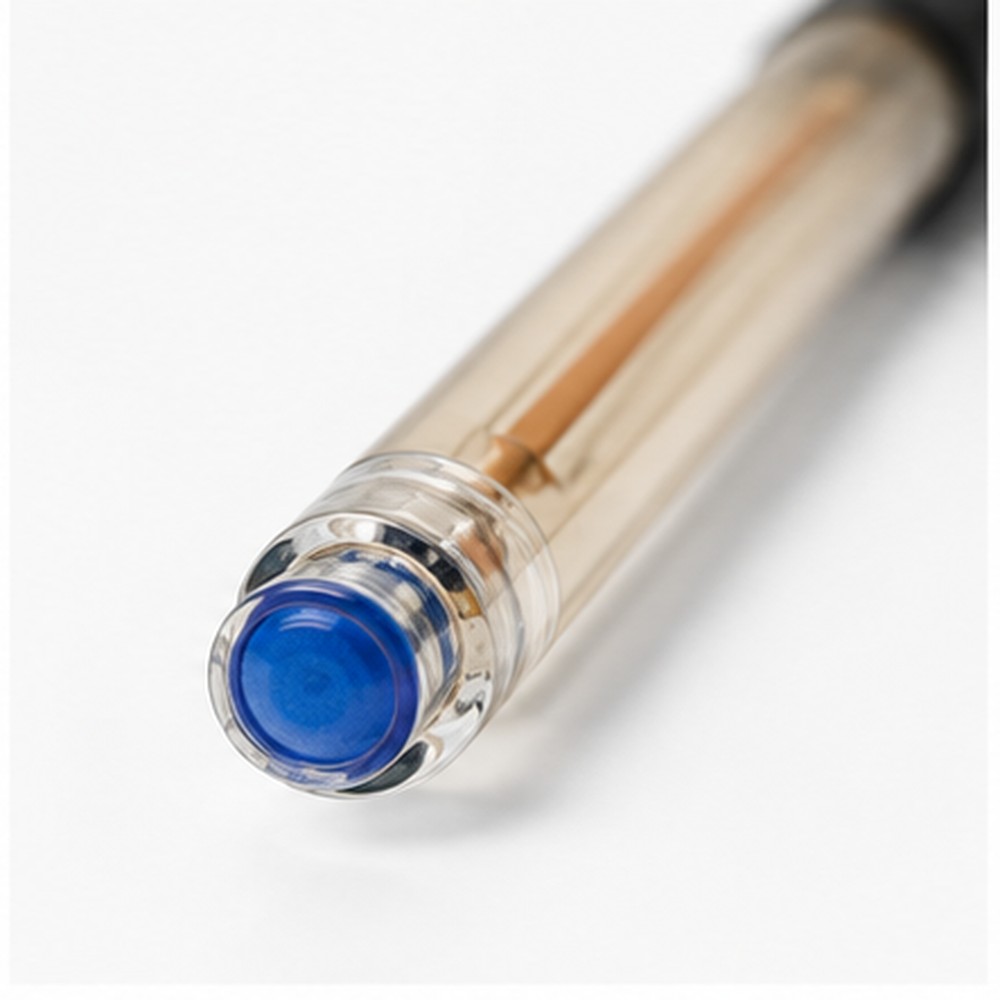

| Sensing Technology | Solid-State Fluoride Membrane - |
| Measurement Range | 0.02 ppm to Saturation ppm |
| Recommended pH Range at 10⁻⁶ M | 5 to 7 pH |
| Operating Temperature Continuous | 0 to 80 °C |
| Operating Temperature Intermittent | 80 to 100 °C |
| Electrode Resistance | 150 to 200 kΩ |
| Reproducibility | ±2 % |
| Minimum Sample Volume | 5 mL |
| Reference System | Built-In Sure-Flow Reference - |
| Junction | Sure-Flow Junction - |
| Refillable | Yes - |
| Filling Solution | 900061 Optimum Results A - |
| Body Material | Epoxy - |
| Body Diameter | 13 mm |
| Overall Length | 110 mm |

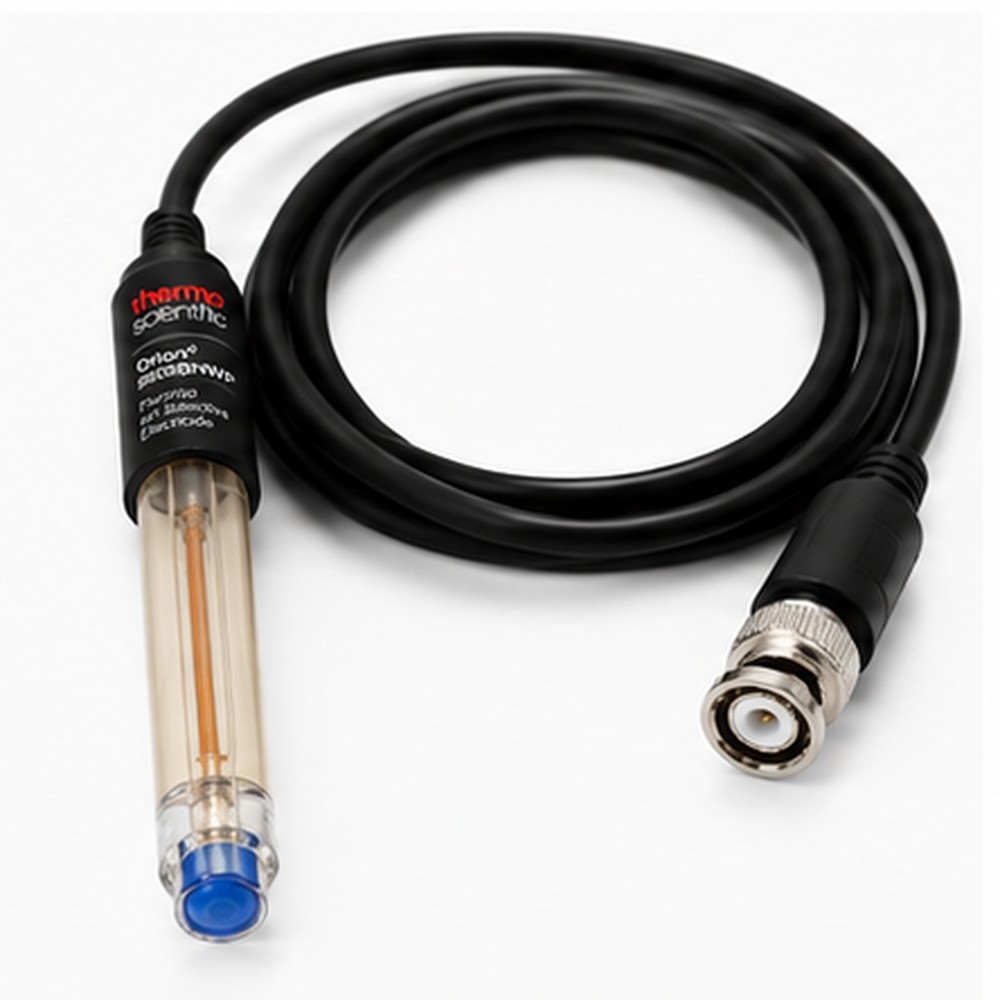

| Cable Length | 1 m |

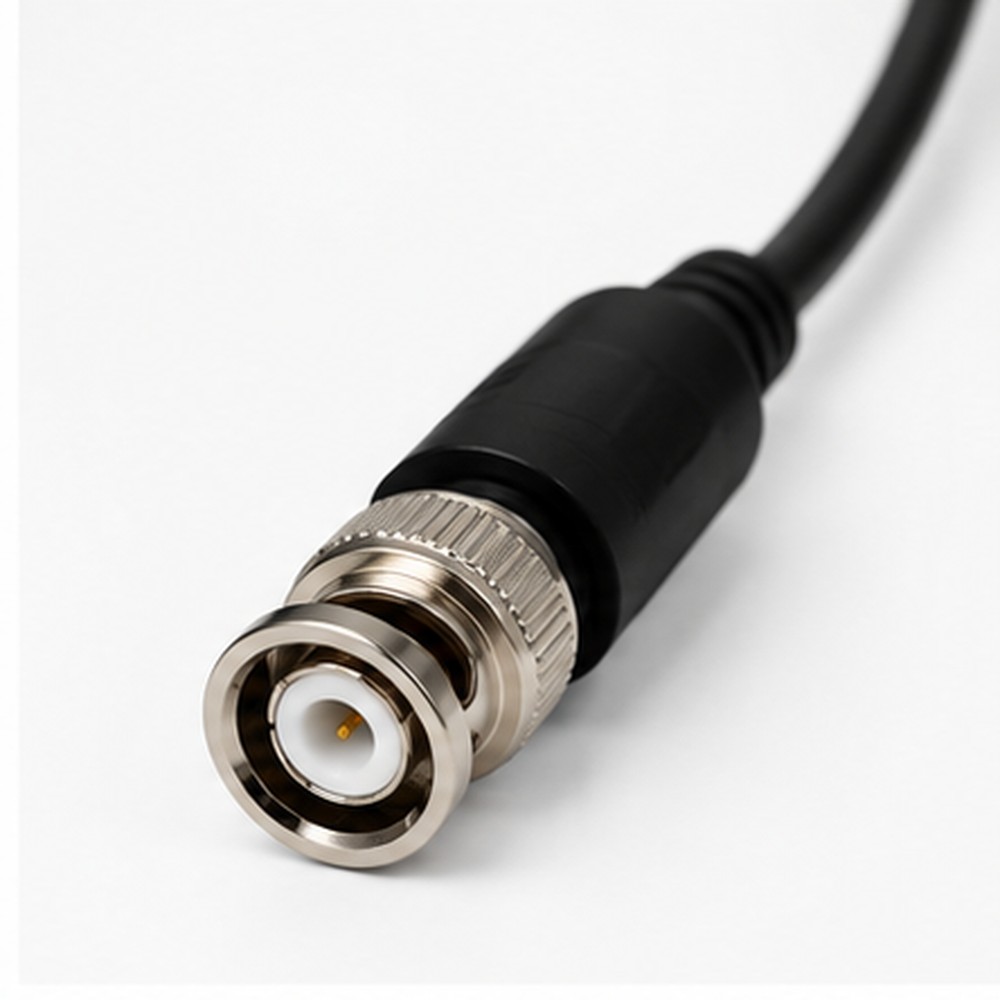

| Connector Type | Waterproof BNC - |
| Compatible Equipment | ISE Meter / Compatible Orion Meter - |
| Typical Applications | Water / Wastewater / Food / Soil / Minerals / Plating Baths / Acids / Dental / Tissue / Supplements - |
| Compliance | ASTM D1179 / Standard Methods 4500-F C / EPA SW-846 9214 / ISO 10359-1 - |
| Included | 900061 Filling Solution, 60 mL - |
| Warranty | 12 Months |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | 9609BNWP - |
| نوع المنتج | قطب انتقائي لأيون الفلوريد - |
| نوع القطب | قطب انتقائي مركب للأيونات - |
| الأيون المقاس | الفلوريد F⁻ - |
| تقنية الاستشعار | غشاء فلوريد صلب - |
| نطاق القياس | 0.02 ppm إلى التشبع ppm |
| نطاق pH الموصى به عند 10⁻⁶ M | 5 إلى 7 pH |
| درجة حرارة التشغيل المستمر | 0 إلى 80 °C |
| درجة حرارة التشغيل المتقطع | 80 إلى 100 °C |
| مقاومة القطب | 150 إلى 200 kΩ |
| قابلية التكرار | ±2 % |
| الحد الأدنى لحجم العينة | 5 mL |
| النظام المرجعي | مرجع Sure-Flow مدمج - |
| نوع الوصلة | Sure-Flow - |
| قابل لإعادة التعبئة | نعم - |
| محلول التعبئة | 900061 Optimum Results A - |
| مادة الجسم | إيبوكسي - |
| قطر الجسم | 13 mm |
| الطول الكلي | 110 mm |
| طول الكابل | 1 m |
| نوع الموصل | BNC مقاوم للماء - |
| الأجهزة المتوافقة | جهاز ISE / أجهزة Orion المتوافقة - |
| الاستخدامات النموذجية | المياه / مياه الصرف / الأغذية / التربة / المعادن / أحواض الطلاء / الأحماض / طب الأسنان / الأنسجة / المكملات - |
| المعايير | ASTM D1179 / Standard Methods 4500-F C / EPA SW-846 9214 / ISO 10359-1 - |
| المحتويات | محلول التعبئة 900061 سعة 60 mL - |
| الضمان | 12 شهر |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status and lead time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

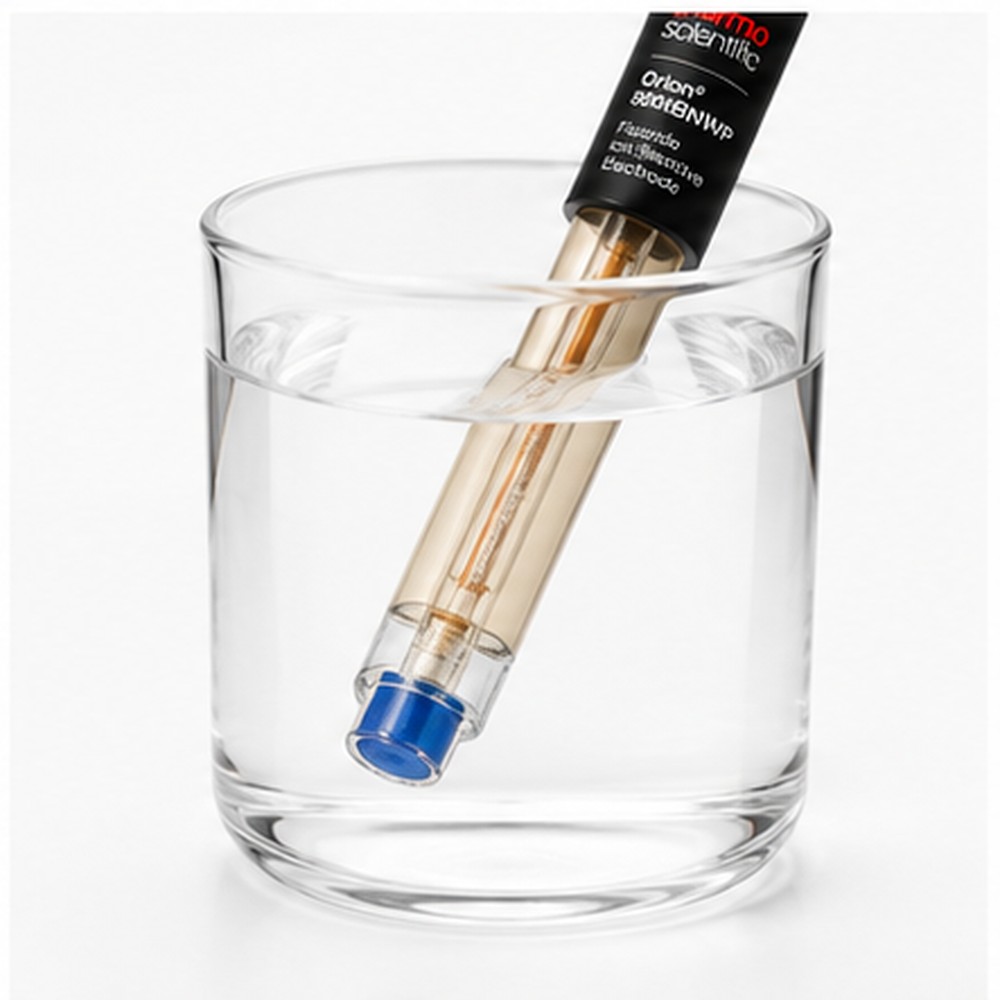

The Orion 9609BNWP is used to measure free fluoride ion concentration in water, wastewater, food, soil, industrial and laboratory samples using ion selective electrode technology.
The 9609BNWP provides a fluoride measurement range from approximately 1 × 10⁻⁶ M, or about 0.02 ppm, up to saturation.
Yes. The 9609BNWP has a refillable reference system with a Sure-Flow junction, helping maintain stable measurements and allowing the junction to be cleaned when required.
TISAB is generally recommended for fluoride samples and standards to control ionic strength and pH and reduce interference, helping improve measurement accuracy.
Please confirm catalog number 9609BNWP, compatible meter, fluoride concentration range, sample type, required TISAB or standards and measurement conditions before ordering.
