Thermo Scientific Orion AQ8100 AquaMate 8100 UV-Vis Spectrophotometer

Q: What is the Thermo Scientific Orion AQ8100 used for?

The Orion AQ8100 AquaMate 8100 is used for UV-Vis analysis of water and wastewater and can measure a wide range of laboratory water quality parameters.

Q: What is the wavelength range of the AQ8100?

The AQ8100 provides a wavelength range of 190 to 1100 nm, allowing both UV and visible measurements for a wide range of water and wastewater applications.

Q: Does the AQ8100 include preprogrammed water analysis methods?

Yes. The AQ8100 includes more than 260 preprogrammed water analysis methods, and users can also create custom methods and calibration curves.

Q: What types of samples can be analyzed with the AQ8100?

The AQ8100 can be used for drinking water, wastewater, industrial water, environmental samples and many other laboratory water quality applications.

Q: What should be confirmed before ordering the AQ8100?

Please confirm the AQ8100 model, regional power configuration, required cells or vials, test methods, reagent chemistry and necessary accessories before ordering.

Thermo Scientific (Orion Product Line)

Model / Part Number: AQ8100

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandThermo Scientific (Orion Product Line)

Model / Part NumberAQ8100

Product TypeUV-Vis Spectrophotometer -

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

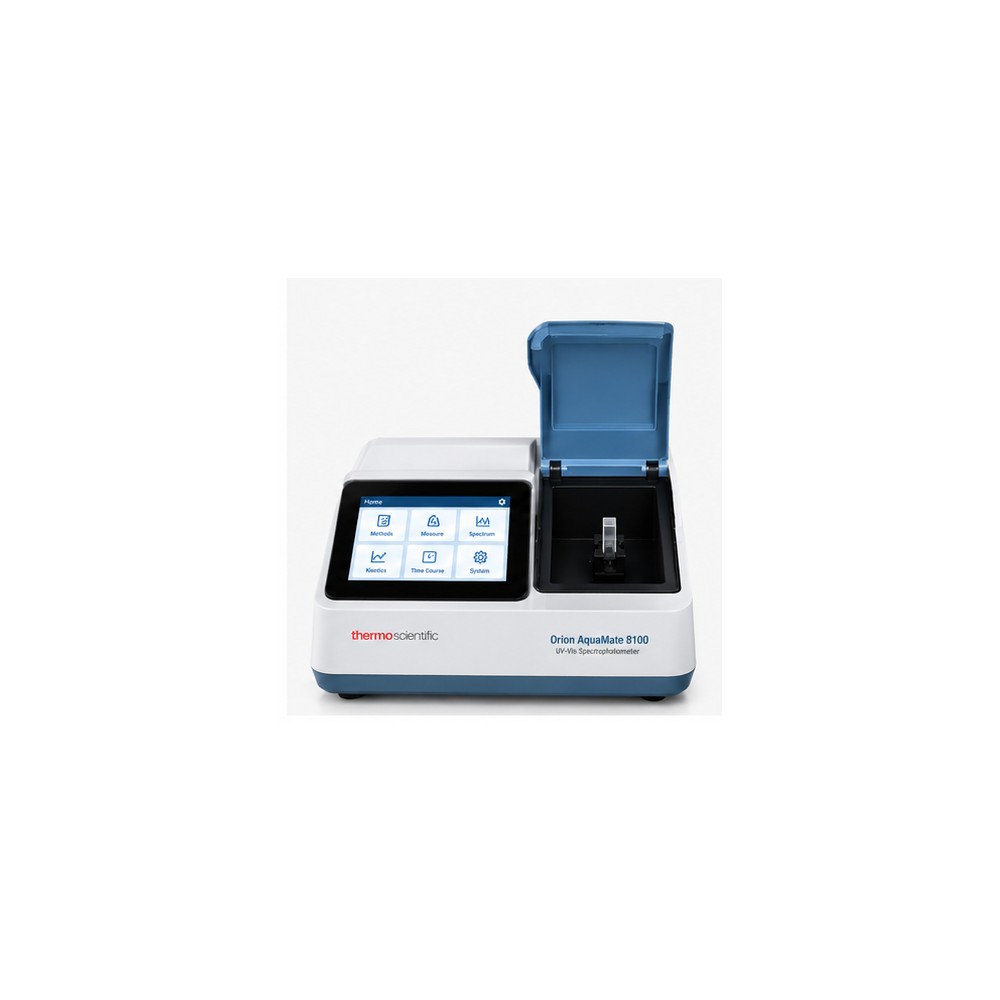

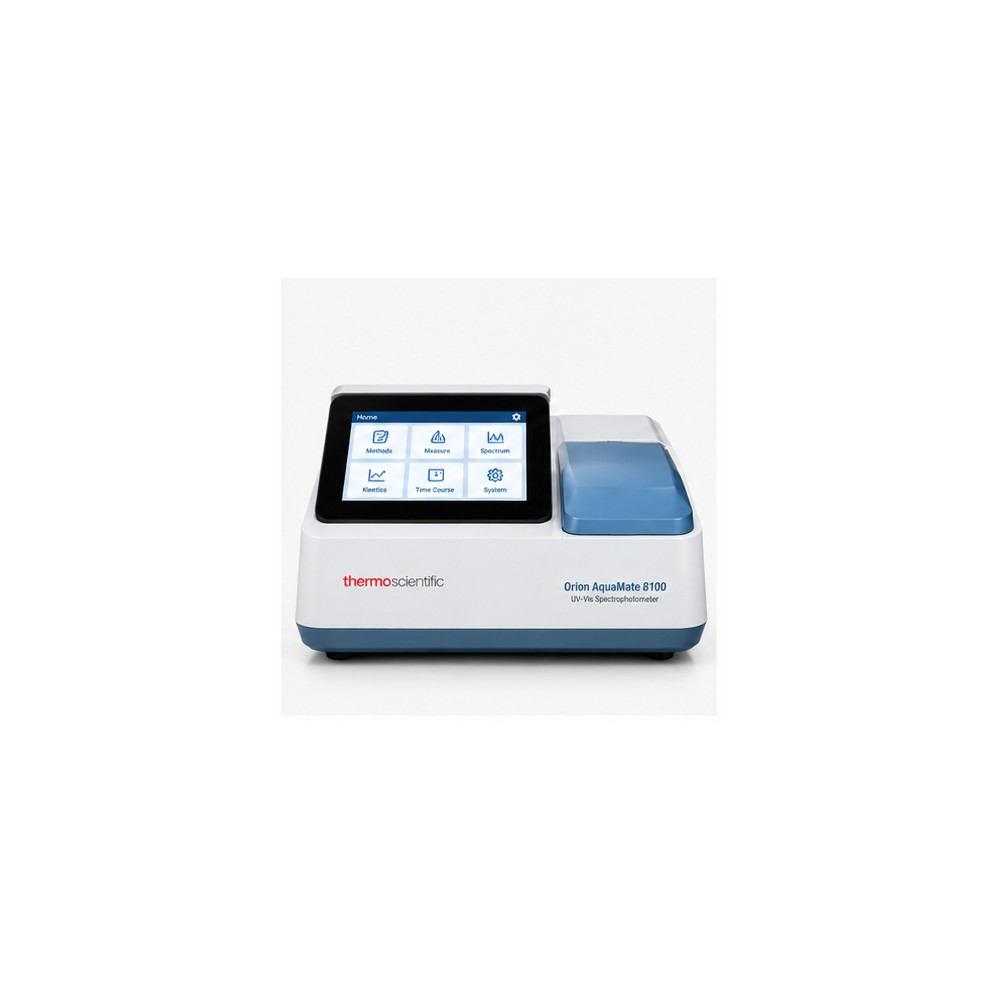

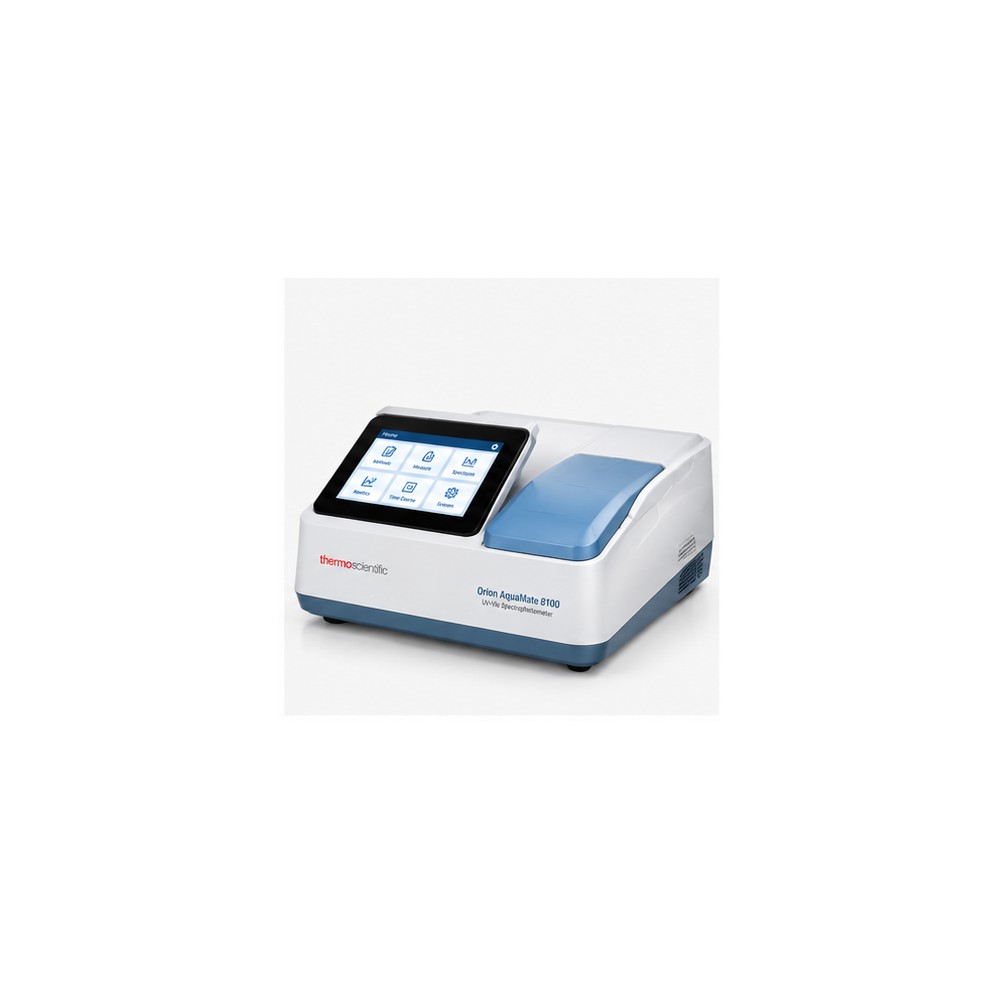

Thermo Scientific Orion AQ8100 AquaMate 8100 is a UV-Visible spectrophotometer developed specifically for laboratory water and wastewater analysis.

The instrument uses a double-beam optical design with dual silicon photodiode detectors and a xenon flash lamp. It provides a wavelength range from 190 to 1100 nm with a spectral bandwidth of 2 nm.

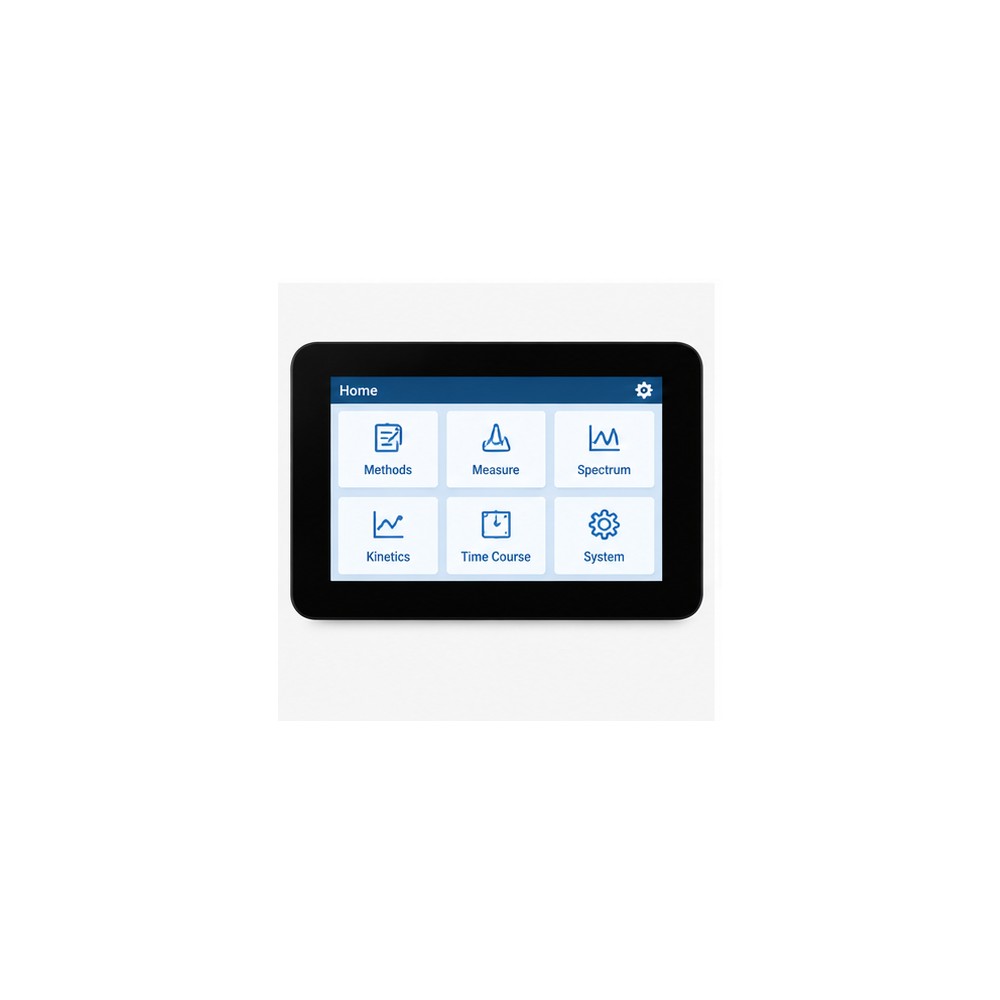

A 7-inch high-definition color touchscreen provides an intuitive, glove-friendly operating interface for routine laboratory testing.

AQ8100 includes more than 260 preprogrammed test methods for use with Thermo Scientific Orion AQUAfast, Merck and CHEMetrics reagent chemistries. These methods cover a wide range of water quality parameters, including chlorine, COD, nitrate, nitrite, phosphate, fluoride, iron, hardness, ammonia, color, silica and many other analytes.

Preprogrammed methods can be adjusted for reagent variations, and users can also create custom methods and calibration curves for additional testing requirements.

The instrument supports absorbance, percent transmittance and concentration measurements. It also provides wavelength scanning, kinetics and time-course functions for more advanced UV-Vis analysis.

Performance verification functions help confirm wavelength accuracy and instrument operation, while reports can include date, time and instrument identification to support GLP and GMP laboratory workflows.

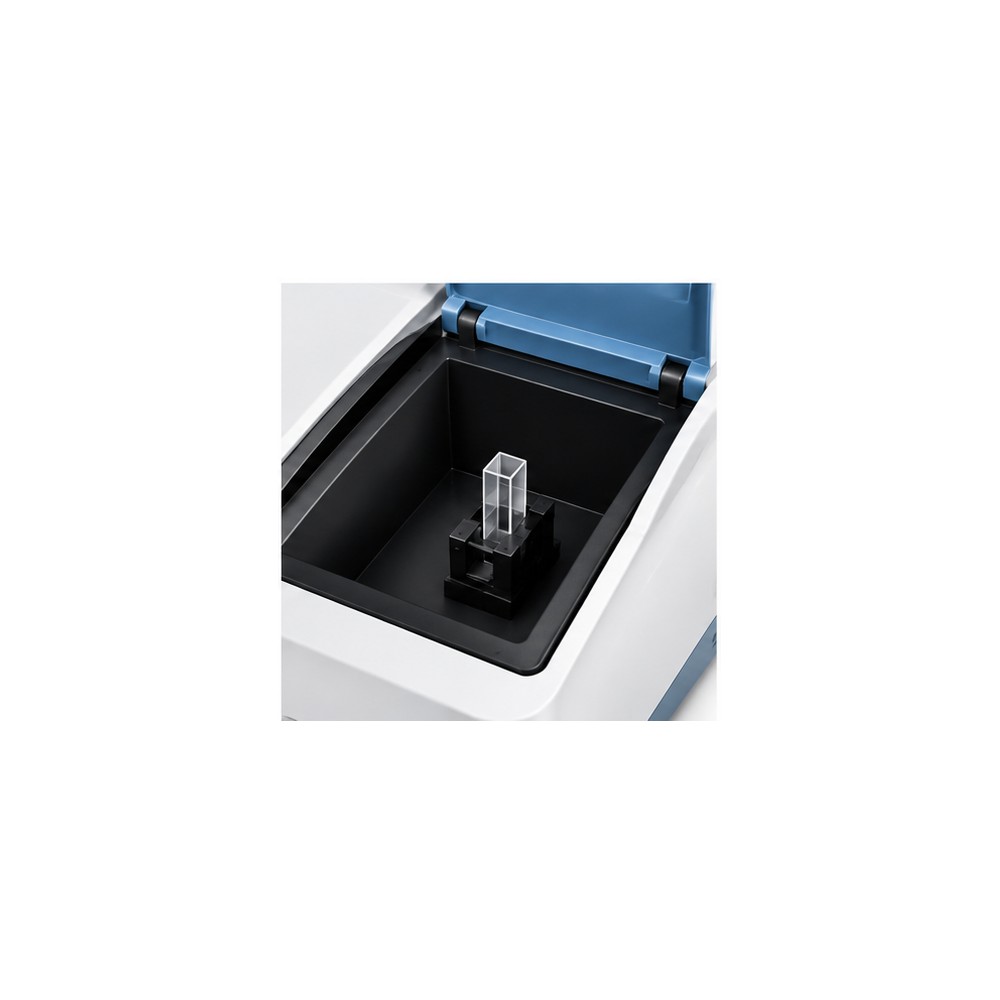

AQ8100 accepts multiple vial and cell formats, including 10 mm square cells, rectangular cells and adjustable round vial or test tube holders.

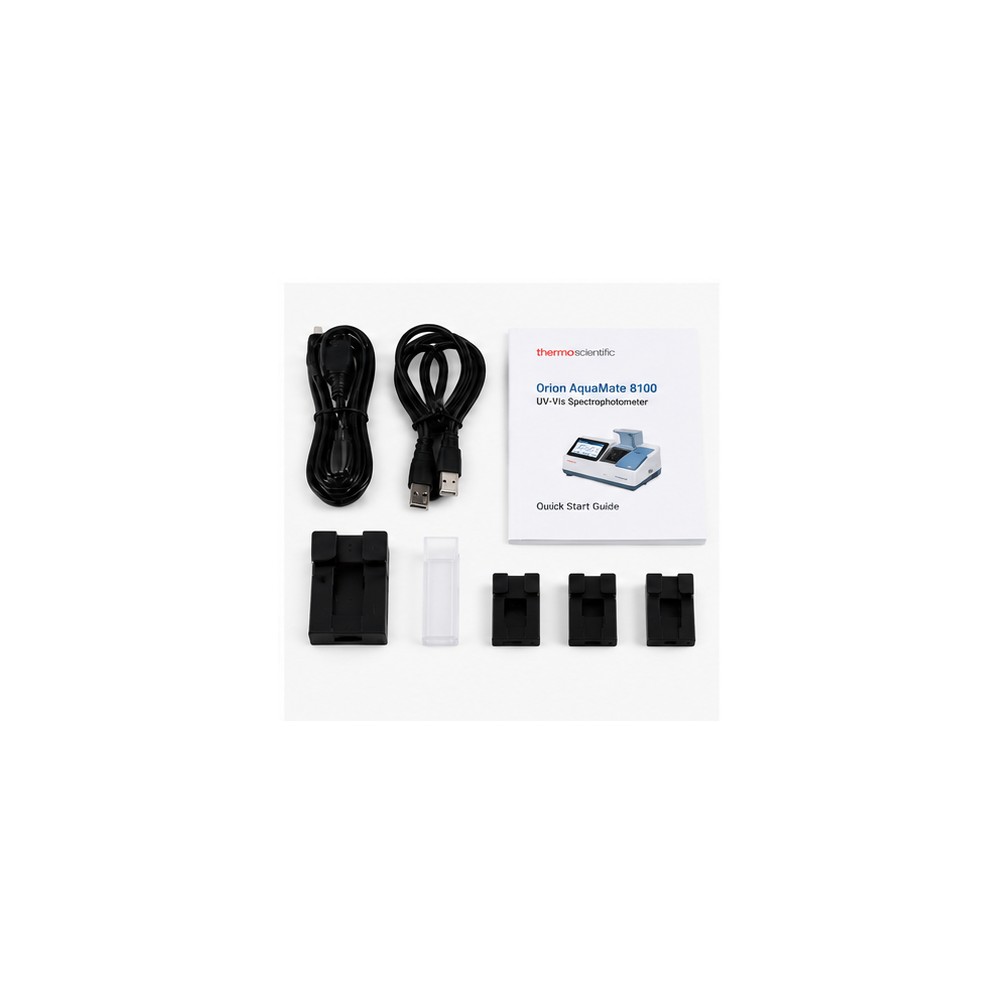

The standard AQ8100 configuration includes the AquaMate 8100 spectrophotometer, preloaded water analysis methods, vial and test tube holders, 10 mm square-cell holder, snap-on printer, dust cover, external power supply and regional power cables.

Key Features:

• UV-Vis spectrophotometer for water and wastewater analysis

• Wavelength range: 190–1100 nm

• Double-beam optical design

• 2 nm spectral bandwidth

• Xenon flash lamp with long service life

• Dual silicon photodiode detectors

• More than 260 preprogrammed water analysis methods

• Custom methods and calibration curves

• 7-inch high-definition glove-friendly touchscreen

• Absorbance, % transmittance and concentration measurement

• Wavelength scanning up to 1600 nm/min

• Multiple vial and cell formats

• Performance verification for GLP/GMP workflows

⚙ Technical Specifications

Parameter Name	Parameter Value Unit
Brand	Thermo Scientific Orion -
Catalog Number	AQ8100 -
Model	AquaMate 8100 -
Product Type	UV-Vis Spectrophotometer -
Application	Water and Wastewater Analysis -
Optical Design	Double Beam -
Spectral Bandwidth	2 nm
Light Source	Xenon Flash Lamp -
Typical Lamp Life	More than 5 Years
Detector	Dual Silicon Photodiodes -
Wavelength Range	190 to 1100 nm
Wavelength Accuracy	±0.5 nm
Wavelength Repeatability	< ±0.2 nm
Scan Speed	Up to 1600 nm/min
Wavelength Data Interval	0.2 / 0.5 / 1 / 2 / 5 nm
Photometric Measurement Modes	Absorbance / % Transmittance / Concentration -
Photometric Range	-2 to +3.5 A
Photometric Display Range	-3 to +5 A
Photometric Accuracy	±0.002 A at 0.5 A / ±0.004 A at 1.0 A / ±0.008 A at 2.0 A -
Photometric Repeatability	±0.001 A at 1.0 A -
Baseline Flatness	±0.002 A
Photometric Drift	<0.0005 A/hr at 500 nm after warm-up -
Preprogrammed Methods	More than 260 -
Display	7-inch High-Definition Color Touchscreen -
Display Resolution	800 × 1280 Pixels
Touchscreen	Glove Friendly -

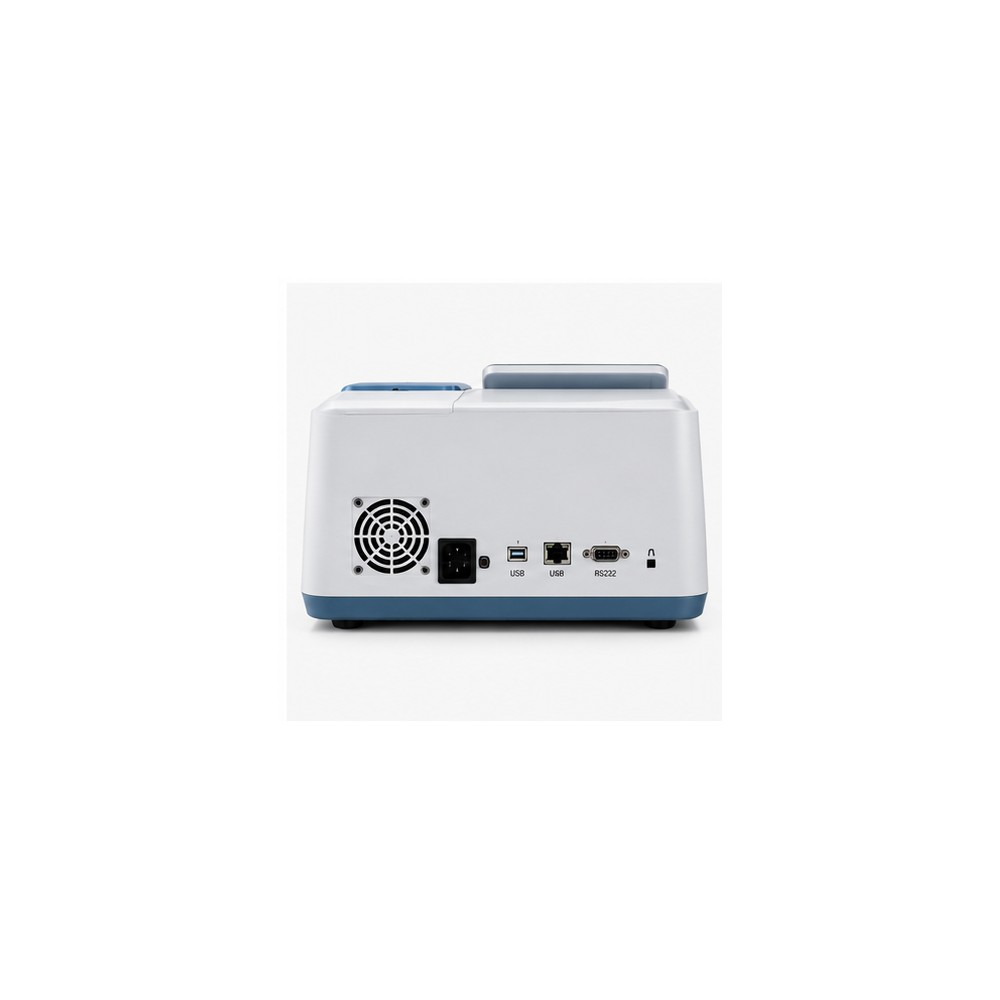

Connectivity	USB / Ethernet / Optional Wi-Fi Adapter -
Printer	Snap-On Printer Included -
Sample Compartment	Top / Front / Side Access -
Maximum Cell Length	100 mm
Tube Compatibility	12 to 25 mm OD -
Dimensions	35.5 × 38.5 × 19.5 cm
Weight	7.5 kg
Power Supply	100-240 V, 50/60 Hz -
Certifications	CE / TUV -
Warranty	1 Year
Included	Test Tube Holder / 10 mm Square Cell Holder / Water Analysis Methods Software / Snap-On Printer / Dust Cover / External Power Supply / Power Cables -
اسم المعلمة	قيمة المعلمة الوحدة
العلامة التجارية	Thermo Scientific Orion -
رقم الكتالوج	AQ8100 -
الموديل	AquaMate 8100 -
نوع المنتج	مطياف UV-Vis -
الاستخدام	تحليل المياه ومياه الصرف -
التصميم البصري	شعاع مزدوج -
عرض النطاق الطيفي	2 nm
مصدر الضوء	مصباح زينون فلاش -
العمر النموذجي للمصباح	أكثر من 5 سنوات
نوع الكاشف	فوتوديودات سيليكون مزدوجة -
نطاق الطول الموجي	190 إلى 1100 nm
دقة الطول الموجي	±0.5 nm
تكرارية الطول الموجي	< ±0.2 nm
سرعة المسح	حتى 1600 nm/min
فاصل بيانات الطول الموجي	0.2 / 0.5 / 1 / 2 / 5 nm
أوضاع القياس الضوئي	الامتصاص / النفاذية % / التركيز -
النطاق الضوئي	-2 إلى +3.5 A
نطاق العرض الضوئي	-3 إلى +5 A
الدقة الضوئية	±0.002 A عند 0.5 A / ±0.004 A عند 1.0 A / ±0.008 A عند 2.0 A -
تكرارية القياس الضوئي	±0.001 A عند 1.0 A -
استواء خط الأساس	±0.002 A
الانجراف الضوئي	<0.0005 A/ساعة عند 500 nm بعد الإحماء -
الطرق المبرمجة مسبقًا	أكثر من 260 -
الشاشة	شاشة لمس ملونة عالية الدقة 7 بوصات -
دقة الشاشة	800 × 1280 بكسل
شاشة اللمس	تعمل مع القفازات -
الاتصال	USB / Ethernet / محول Wi-Fi اختياري -
الطابعة	طابعة قابلة للتركيب مرفقة -
حجرة العينة	وصول من الأعلى / الأمام / الجانب -
أقصى طول للخلية	100 mm
توافق الأنابيب	قطر خارجي من 12 إلى 25 mm -
الأبعاد	35.5 × 38.5 × 19.5 cm
الوزن	7.5 kg
مصدر الطاقة	100-240 V, 50/60 Hz -
الشهادات	CE / TUV -
الضمان	1 سنة
المحتويات	حامل أنابيب / حامل خلية مربعة 10 mm / برنامج طرق تحليل المياه / طابعة / غطاء حماية / مصدر طاقة / كابلات طاقة -

▦ Typical Applications

Water & Wastewater Laboratories
Environmental Testing
Drinking Water
Municipal Water
Industrial Water

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and delivery time depend on destination and order quantity. Please contact us for current stock status, lead time and regional power-cord configuration.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What is the Thermo Scientific Orion AQ8100 used for?

The Orion AQ8100 AquaMate 8100 is used for UV-Vis analysis of water and wastewater and can measure a wide range of laboratory water quality parameters.

What is the wavelength range of the AQ8100?

The AQ8100 provides a wavelength range of 190 to 1100 nm, allowing both UV and visible measurements for a wide range of water and wastewater applications.

Does the AQ8100 include preprogrammed water analysis methods?

Yes. The AQ8100 includes more than 260 preprogrammed water analysis methods, and users can also create custom methods and calibration curves.

What types of samples can be analyzed with the AQ8100?

The AQ8100 can be used for drinking water, wastewater, industrial water, environmental samples and many other laboratory water quality applications.

What should be confirmed before ordering the AQ8100?

Please confirm the AQ8100 model, regional power configuration, required cells or vials, test methods, reagent chemistry and necessary accessories before ordering.
