Model / Part Number: PSTAR2110
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Brand | Thermo Scientific Orion - |
| Catalog Number | PSTAR2110 - |
| Model | PH211 - |
| Product Type | pH/ORP Benchtop Meter - |
| Measurement Channels | 1 - |
| Measurement Parameters | pH / mV / ORP / Temperature - |
| pH Range | -2 to 20 pH |
| pH Resolution | 0.1 / 0.01 / 0.001 pH |
| pH Accuracy | ±0.002 pH |
| pH Calibration Points | 1 to 5 Points |
| ORP Range | -2000 to 2000 mV |
| Relative mV Range | -2000 to 2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.2 mV or ±0.05% of Reading - |
| Temperature Range | -30 to 130 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.3 °C |
| Temperature Calibration | 1 or 2 Points |
| Temperature Compensation | Automatic ATC / Ambient / Manual - |

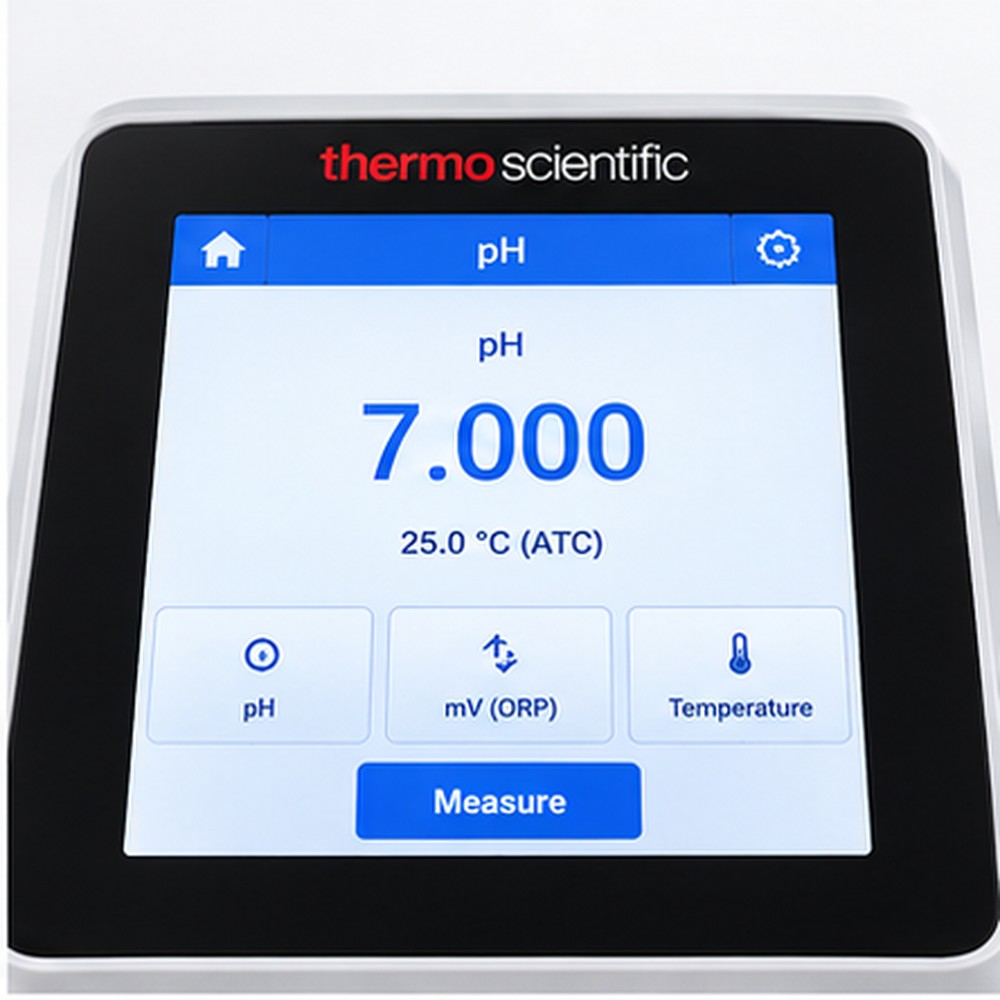

| Display | 7-inch High-Resolution Color Graphic LCD - |
| Touchscreen | Capacitive, Glove Compatible - |
| Data Storage | 10000 Data Sets |
| Stored Methods | 10 - |
| Calibration Logs | 20 per Parameter - |
| IP Rating | IP54 - |

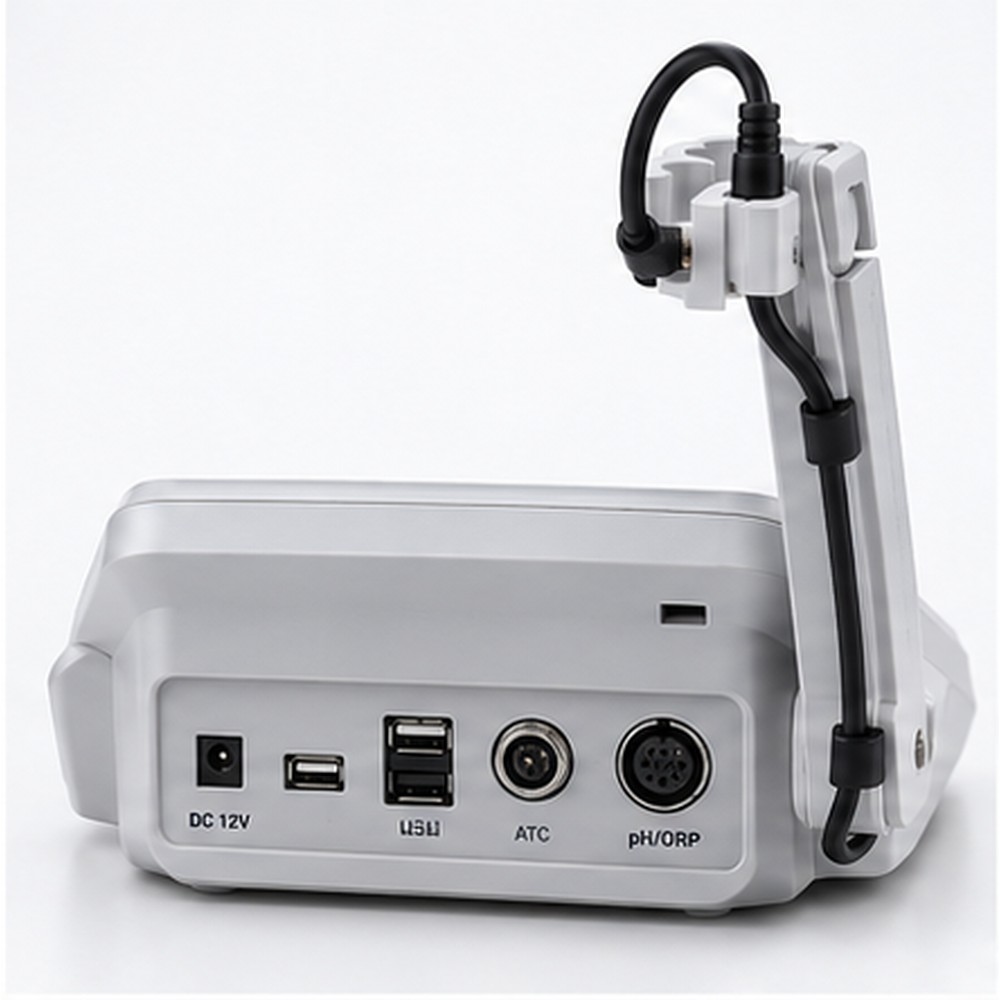

| Inputs | BNC pH/ORP / 8-pin MiniDIN ATC / Pin-tip Reference - |
| Data Outputs | USB Flash Drive / Computer / Printer - |
| Data Export Format | Report / CSV / Print - |
| Dimensions | 218.9 × 153.2 × 91.33 mm |
| Weight | 1.00 kg |
| Power Supply | 100-240 V, 50/60 Hz - |
| Certifications | CE / TUV 3-1 / FCC Class A - |
| Warranty | 2 Years |
| Included | Meter / Electrode Stand / USB Flash Drive / Computer Cable / Universal Power Adapter - |
| Electrode | Electrode Purchased Separately - |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | PSTAR2110 - |
| الموديل | PH211 - |
| نوع المنتج | جهاز مكتبي لقياس pH وORP - |
| عدد قنوات القياس | 1 - |
| معلمات القياس | pH / mV / ORP / درجة الحرارة - |
| نطاق pH | -2 إلى 20 pH |
| دقة عرض pH | 0.1 / 0.01 / 0.001 pH |
| دقة قياس pH | ±0.002 pH |
| نقاط معايرة pH | 1 إلى 5 نقاط |
| نطاق ORP | -2000 إلى 2000 mV |
| نطاق mV النسبي | -2000 إلى 2000 mV |
| دقة عرض mV | 0.1 mV |
| دقة قياس mV | ±0.2 mV أو ±0.05% من القراءة - |
| نطاق درجة الحرارة | -30 إلى 130 °C |
| دقة عرض درجة الحرارة | 0.1 °C |
| دقة درجة الحرارة | ±0.3 °C |
| معايرة درجة الحرارة | 1 أو 2 نقاط |
| تعويض درجة الحرارة | تلقائي ATC / محيط / يدوي - |
| الشاشة | شاشة LCD ملونة عالية الدقة 7 بوصات - |
| شاشة اللمس | سعوية وتعمل مع القفازات - |
| تخزين البيانات | 10000 مجموعة بيانات |
| عدد الطرق المحفوظة | 10 - |
| سجلات المعايرة | 20 لكل معلمة - |
| درجة الحماية | IP54 - |
| المدخلات | BNC لـ pH/ORP / MiniDIN 8-pin لـ ATC / مرجع Pin-tip - |
| مخرجات البيانات | USB / كمبيوتر / طابعة - |
| صيغة تصدير البيانات | Report / CSV / Print - |
| الأبعاد | 218.9 × 153.2 × 91.33 mm |
| الوزن | 1.00 kg |
| مصدر الطاقة | 100-240 V, 50/60 Hz - |
| الشهادات | CE / TUV 3-1 / FCC Class A - |
| الضمان | 2 سنة |
| المحتويات | الجهاز / حامل الأقطاب / ذاكرة USB / كابل الكمبيوتر / محول طاقة عالمي - |
| قطب القياس | يباع بشكل منفصل - |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status, lead time and configuration availability. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

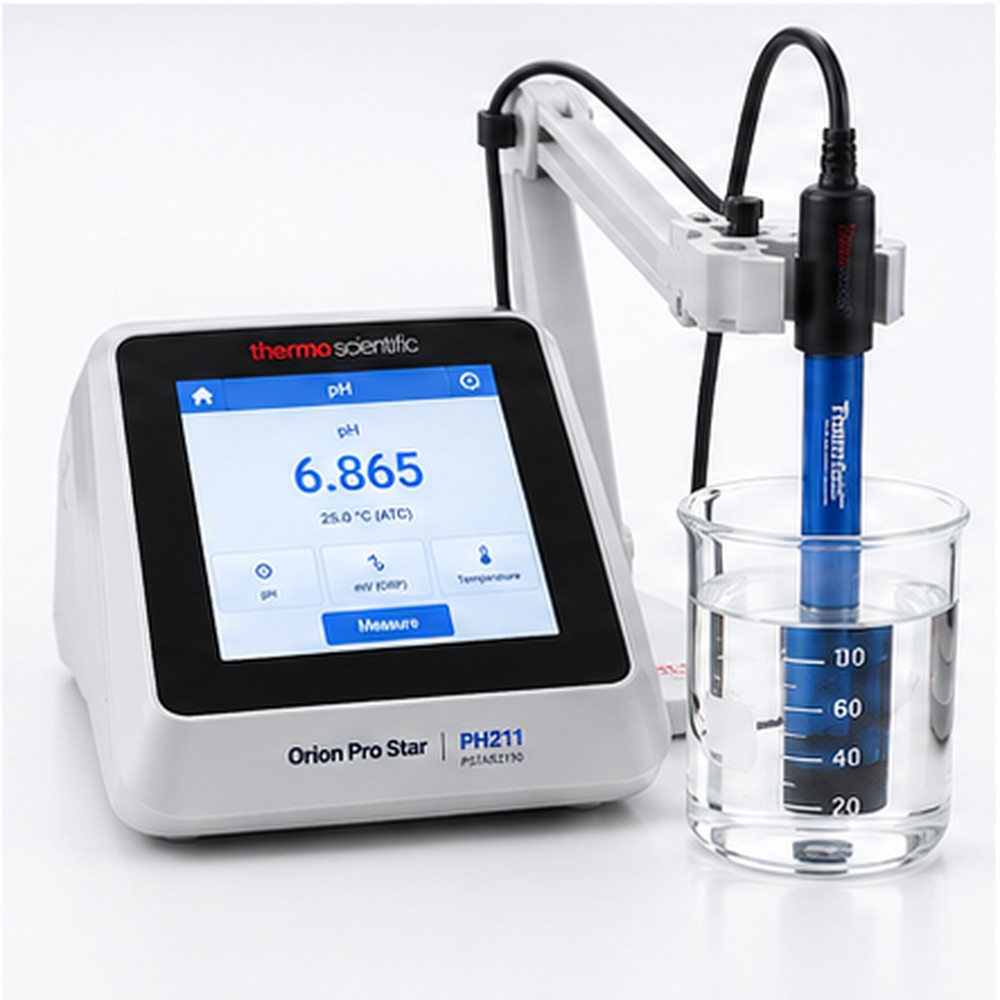

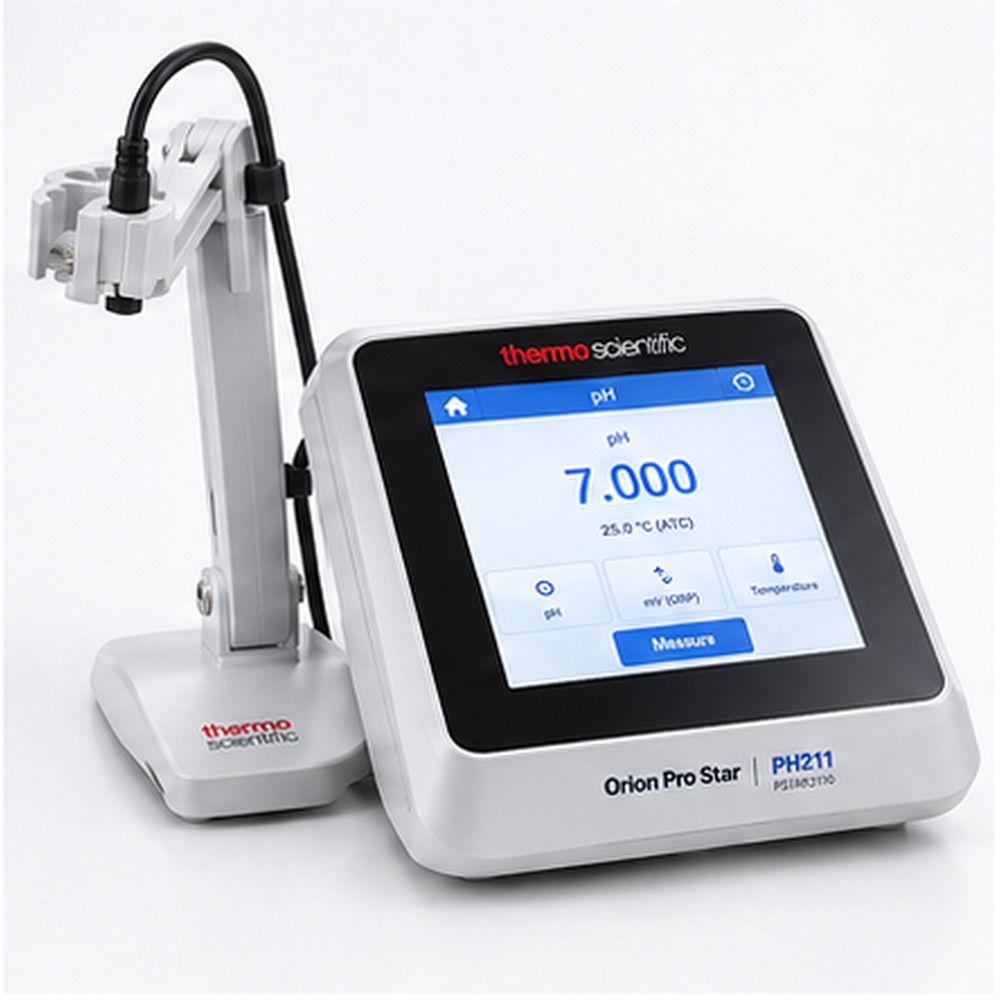

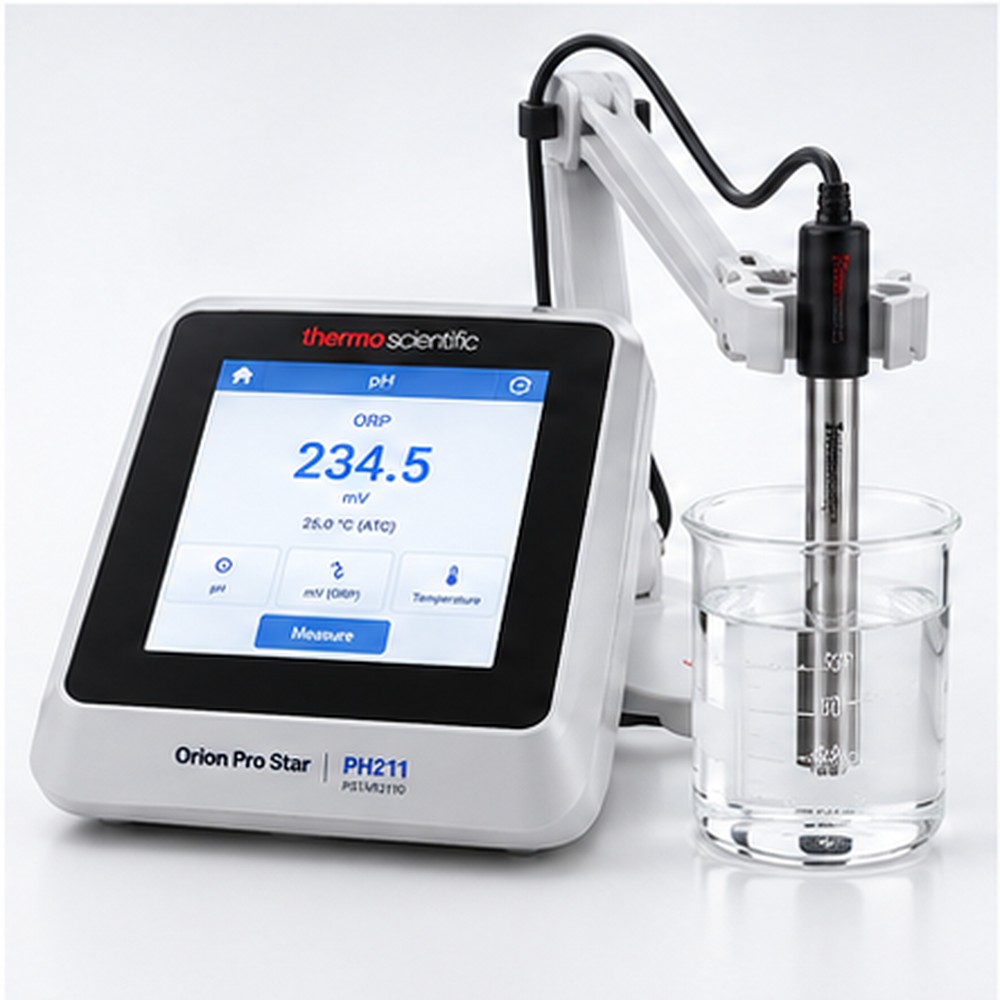

The PSTAR2110 Orion Pro Star PH211 is used for accurate laboratory measurement of pH, ORP, mV and temperature in water quality, environmental, food, pharmaceutical and industrial quality-control applications.
The Orion Pro Star PH211 provides a pH measurement range of -2 to 20 pH, with selectable resolution down to 0.001 pH and accuracy up to ±0.002 pH.
Yes. The PSTAR2110 supports ORP, mV and temperature measurements in addition to pH and can use automatic temperature compensation with a compatible ATC sensor.
The meter can store up to 10,000 data sets with date and time stamps, and measurement results can be exported to a USB flash drive or computer for record management and analysis.

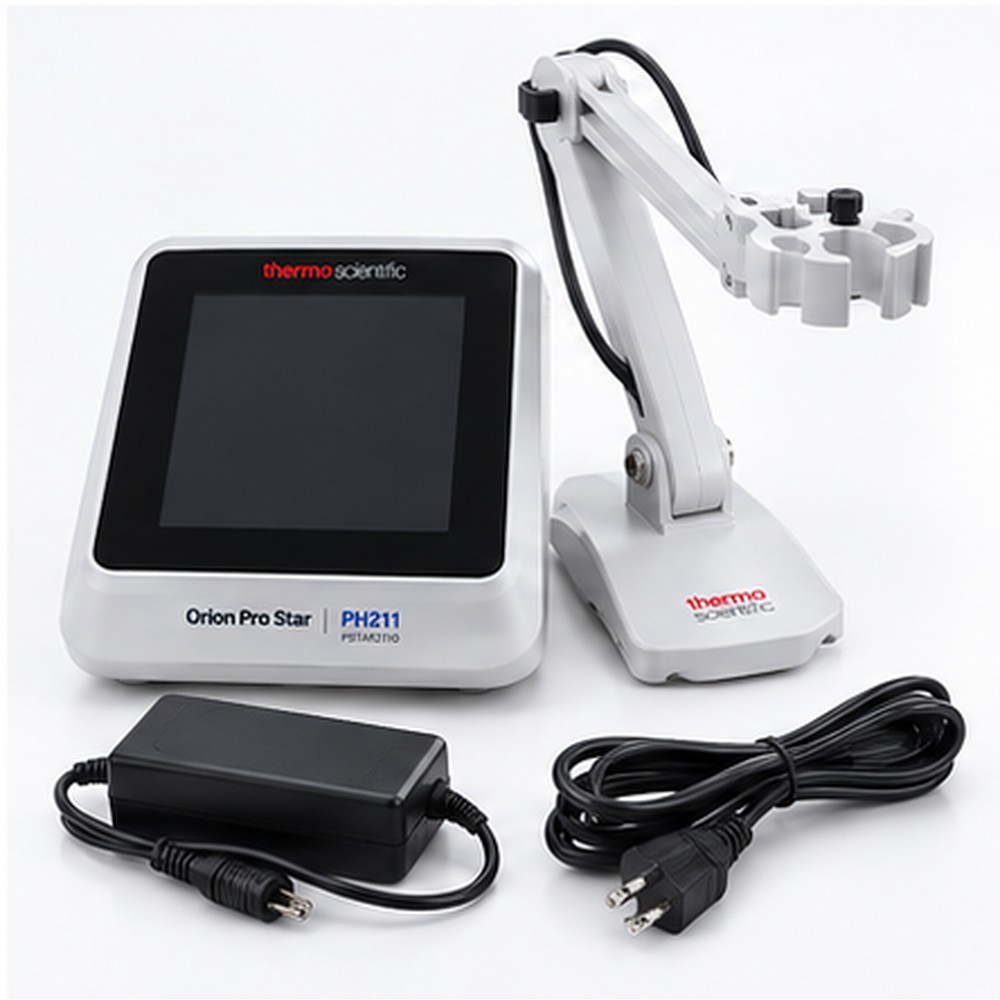

The PSTAR2110 includes the PH211 meter, electrode stand, USB flash drive, computer cable and power adapter. pH and ORP electrodes are sold separately and should be selected according to the measurement application.
