Model / Part Number: STARA2230
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Brand | Thermo Scientific Orion - |
| Catalog Number | STARA2230 - |
| Model | Star A223 - |
| Product Type | RDO/DO Portable Meter - |
| Measurement Channels | 1 - |
| Measurement Parameters | Dissolved Oxygen / Temperature - |
| Compatible DO Technology | RDO Optical / Polarographic - |
| RDO Concentration Range | 0.00 to 50.00 mg/L |
| RDO Resolution | 0.01 / 0.1 mg/L |
| RDO Accuracy | ±0.1 mg/L up to 8 mg/L; ±0.2 mg/L from 8 to 20 mg/L; ±10% of reading up to 50 mg/L - |
| RDO Saturation Range | 0.0 to 500.0 % |
| RDO Saturation Resolution | 0.1 / 1 % |
| Polarographic DO Range | 0.00 to 90.00 mg/L |
| Polarographic DO Resolution | 0.01 / 0.1 mg/L |
| Polarographic DO Accuracy | ±0.2 mg/L or ±2% of reading - |
| Polarographic Saturation Range | 0.0 to 600.0 % |
| Polarographic Saturation Resolution | 0.1 / 1 % |
| Temperature Range | 0.0 to 50.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.1 °C |
| Barometric Pressure Range | 400 to 850 mmHg |
| Barometric Pressure Accuracy | ±6 mmHg |
| Pressure Resolution | 1 mmHg |
| Barometric Compensation | Automatic / Manual - |
| Salinity Correction | 0.0 to 45.0 ppt |
| Calibration Modes | Water-Saturated Air / Air-Saturated Water / Winkler / Zero Point - |
| Measurement Modes | DO % Saturation / DO mg/L with Temperature and Pressure - |
| Data Storage | 1000 Data Sets |
| Methods | 10 per Channel - |
| Display | Graphic LCD with Backlight - |
| Data Outputs | USB / RS232 - |
| IP Rating | IP67 - |
| Battery Type | 4 AA Batteries - |
| Battery Life | Up to 800 h |
| Dimensions | 24 × 10 × 6.5 cm |
| Weight | 0.5 kg |
| Operating Temperature | 5 to 45 °C |
| Relative Humidity | 5 to 85 % |
| Warranty | 3 Years |

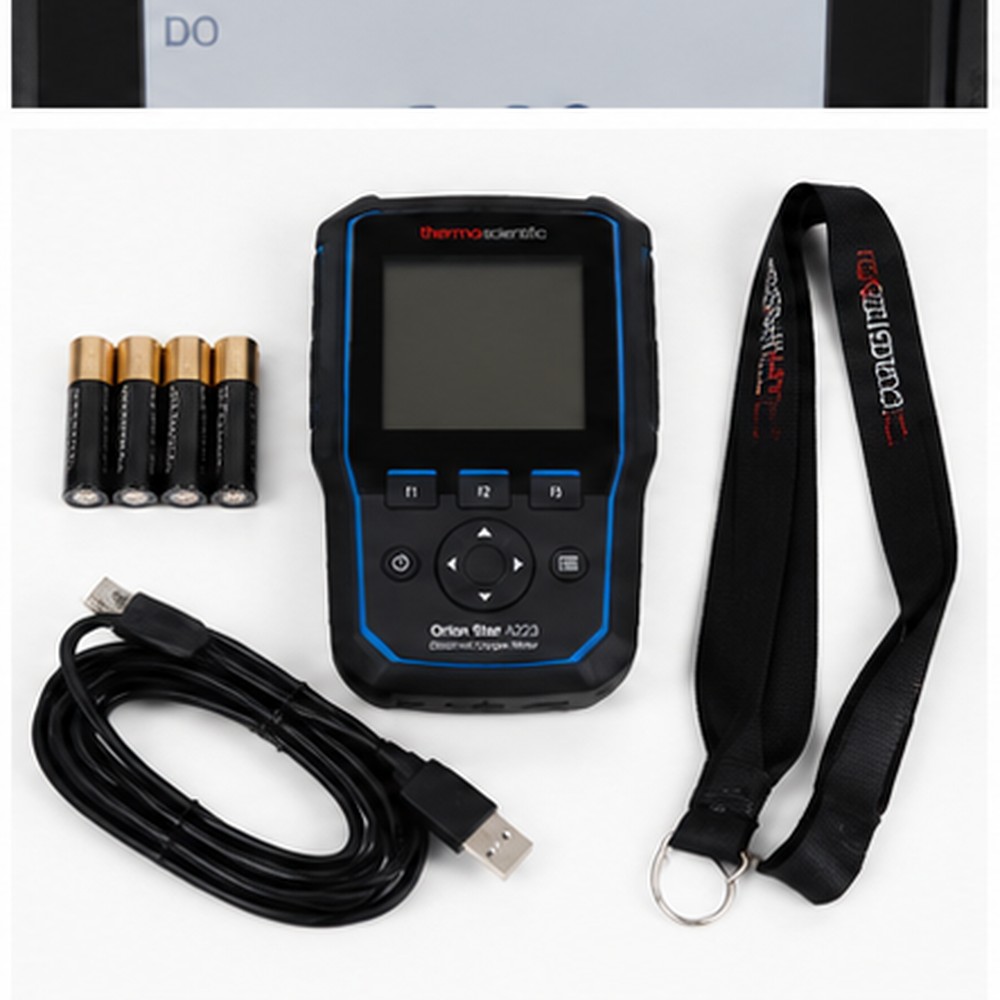

| Included | Meter / 4 AA Batteries / Quick Start Guide / Computer Interface Cable / Meter Test Certificate - |
| Measurement Probe | Not Included - |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | STARA2230 - |
| الموديل | Star A223 - |
| نوع المنتج | جهاز محمول لقياس RDO/DO - |
| عدد قنوات القياس | 1 - |
| معلمات القياس | الأكسجين المذاب / درجة الحرارة - |
| تقنية قياس DO | RDO بصري / قطبي - |
| نطاق RDO | 0.00 إلى 50.00 mg/L |
| دقة عرض RDO | 0.01 / 0.1 mg/L |
| دقة RDO | ±0.1 mg/L حتى 8 mg/L؛ ±0.2 mg/L من 8 إلى 20 mg/L؛ ±10% حتى 50 mg/L - |
| نطاق تشبع RDO | 0.0 إلى 500.0 % |
| دقة عرض تشبع RDO | 0.1 / 1 % |
| نطاق DO القطبي | 0.00 إلى 90.00 mg/L |
| دقة عرض DO القطبي | 0.01 / 0.1 mg/L |
| دقة DO القطبي | ±0.2 mg/L أو ±2% من القراءة - |
| نطاق التشبع القطبي | 0.0 إلى 600.0 % |
| دقة عرض التشبع القطبي | 0.1 / 1 % |
| نطاق درجة الحرارة | 0.0 إلى 50.0 °C |
| دقة عرض درجة الحرارة | 0.1 °C |
| دقة درجة الحرارة | ±0.1 °C |
| نطاق الضغط الجوي | 400 إلى 850 mmHg |
| دقة الضغط الجوي | ±6 mmHg |
| دقة عرض الضغط | 1 mmHg |
| تعويض الضغط الجوي | تلقائي / يدوي - |
| تصحيح الملوحة | 0.0 إلى 45.0 ppt |
| طرق المعايرة | هواء مشبع بالماء / ماء مشبع بالهواء / Winkler / نقطة الصفر - |
| أوضاع القياس | تشبع DO % / DO mg/L مع درجة الحرارة والضغط - |
| تخزين البيانات | 1000 مجموعة بيانات |
| الطرق المحفوظة | 10 لكل قناة - |
| الشاشة | LCD رسومية بإضاءة خلفية - |
| مخرجات البيانات | USB / RS232 - |
| درجة الحماية | IP67 - |
| نوع البطارية | 4 بطاريات AA - |
| عمر البطارية | حتى 800 ساعة |
| الأبعاد | 24 × 10 × 6.5 cm |
| الوزن | 0.5 kg |
| درجة حرارة التشغيل | 5 إلى 45 °C |
| الرطوبة النسبية | 5 إلى 85 % |
| الضمان | 3 سنوات |
| المحتويات | الجهاز / 4 بطاريات AA / دليل البدء السريع / كابل الكمبيوتر / شهادة اختبار الجهاز - |
| مجس القياس | غير مرفق - |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status, lead time and compatible dissolved oxygen probe availability. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |
The Orion STARA2230 Star A223 is used for dissolved oxygen and temperature measurement in water quality, environmental monitoring, wastewater, aquaculture and field testing applications.
The STARA2230 supports Orion RDO optical dissolved oxygen probes as well as polarographic DO probes, allowing the appropriate measurement technology to be selected for the application.
Yes. The STARA2230 has an IP67 protection rating, making it suitable for field use, wet environments and water quality monitoring applications.
No. The STARA2230 is the meter-only configuration and does not include a dissolved oxygen probe. A compatible RDO optical or polarographic DO probe must be selected separately.
Please confirm the STARA2230 model, required dissolved oxygen probe type, cable length, measurement range and field or laboratory operating conditions before ordering.
