Model / Part Number: STARA3290
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Brand | Thermo Scientific Orion - |
| Catalog Number | STARA3290 - |
| Model | Star A329 - |
| Product Type | Portable Multiparameter Meter - |
| Measurement Channels | 3 - |
| Measurement Parameters | pH / ISE / mV / Relative mV / ORP / Conductivity / TDS / Salinity / Resistivity / RDO / DO / Temperature - |
| pH Range | -2 to 20 pH |
| pH Resolution | 0.1 / 0.01 / 0.001 pH |
| pH Accuracy | ±0.002 pH |
| pH Calibration Points | 1 to 5 Points |
| ISE Range | 0.0001 to 19900 Selectable Units |
| ISE Accuracy | ±0.2 mV or ±0.05% of Reading - |
| ISE Calibration Points | 1 to 5 Points |
| ORP Range | -2000 to 2000 mV |
| Relative mV Range | -2000 to 2000 mV |
| mV Resolution | 0.1 mV |
| Conductivity Range | 0.001 µS/cm to 3000 mS/cm |
| Conductivity Accuracy | 0.5% of Reading ±1 Digit - |
| Conductivity Calibration Points | Up to 5 Points |
| TDS Range | 0.001 ppm to 200.0 ppt |
| Salinity Range | 0.06 to 80.00 psu / 0.05 to 42.00 ppt |
| Resistivity Range | 2 ohm to 100.0 megaohm - |
| RDO Range | 0.00 to 50.00 mg/L |
| RDO Accuracy | ±0.1 mg/L up to 8 mg/L; ±0.2 mg/L from 8 to 20 mg/L; ±10% up to 50 mg/L - |
| Polarographic DO Range | 0.00 to 90.00 mg/L |
| Polarographic DO Accuracy | ±0.2 mg/L or ±2% of Reading - |
| Temperature Range | -5.0 to 105.0 °C |
| Temperature Accuracy | ±0.1 °C |
| Barometric Pressure Range | 400 to 850 mmHg |
| Barometric Pressure Accuracy | ±6 mmHg |
| Data Storage | 5000 Data Sets |
| Display | LCD Graphic, Backlit - |
| Measurement Modes | Auto-Read / Continuous / Timed - |
| Data Outputs | USB / RS232 - |
| IP Rating | IP67 - |
| Battery Type | 4 AA Batteries - |
| Battery Life | Up to 800 h |
| Dimensions | 24 × 10 × 6.5 cm |
| Weight | 0.5 kg |
| Certifications | CE / TUV 3-1 / FCC Class A - |
| Warranty | 3 Years |

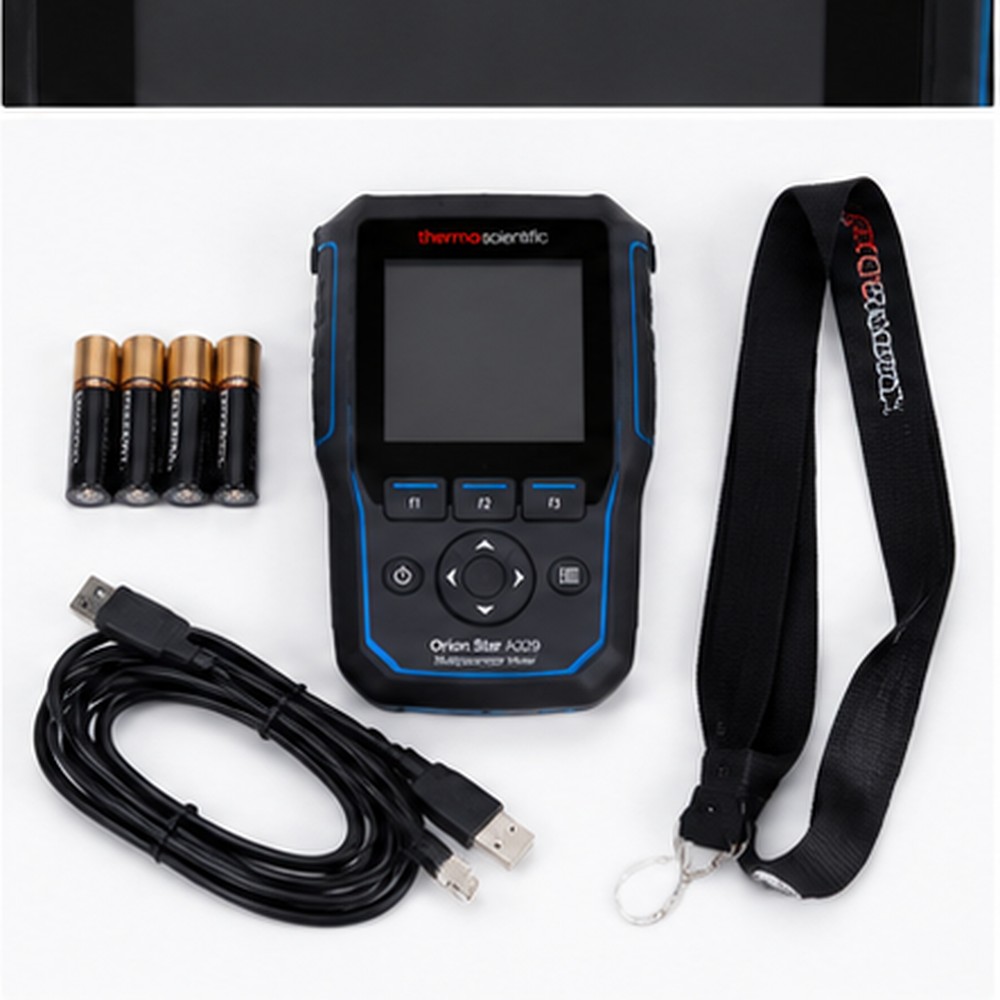

| Included | Meter / 4 AA Batteries / Quick Start Guide / Computer Interface Cable / Meter Test Certificate - |
| Measurement Probes | Not Included - |
| اسم المعلمة | قيمة المعلمة الوحدة |
| العلامة التجارية | Thermo Scientific Orion - |
| رقم الكتالوج | STARA3290 - |
| الموديل | Star A329 - |
| نوع المنتج | جهاز محمول متعدد المعلمات - |
| عدد قنوات القياس | 3 - |
| معلمات القياس | pH / ISE / mV / mV النسبي / ORP / التوصيلية / TDS / الملوحة / المقاومة / RDO / DO / درجة الحرارة - |
| نطاق pH | -2 إلى 20 pH |
| دقة عرض pH | 0.1 / 0.01 / 0.001 pH |
| دقة قياس pH | ±0.002 pH |
| نقاط معايرة pH | 1 إلى 5 نقاط |
| نطاق ISE | 0.0001 إلى 19900 وحدات قابلة للاختيار |
| دقة ISE | ±0.2 mV أو ±0.05% من القراءة - |
| نقاط معايرة ISE | 1 إلى 5 نقاط |
| نطاق ORP | -2000 إلى 2000 mV |
| نطاق mV النسبي | -2000 إلى 2000 mV |
| دقة عرض mV | 0.1 mV |
| نطاق التوصيلية | 0.001 µS/cm إلى 3000 mS/cm |
| دقة التوصيلية | 0.5% من القراءة ±1 رقم - |
| نقاط معايرة التوصيلية | حتى 5 نقاط |
| نطاق TDS | 0.001 ppm إلى 200.0 ppt |
| نطاق الملوحة | 0.06 إلى 80.00 psu / 0.05 إلى 42.00 ppt |
| نطاق المقاومة | 2 ohm إلى 100.0 megaohm - |
| نطاق RDO | 0.00 إلى 50.00 mg/L |
| دقة RDO | ±0.1 mg/L حتى 8 mg/L؛ ±0.2 mg/L من 8 إلى 20 mg/L؛ ±10% حتى 50 mg/L - |
| نطاق DO القطبي | 0.00 إلى 90.00 mg/L |
| دقة DO القطبي | ±0.2 mg/L أو ±2% من القراءة - |
| نطاق درجة الحرارة | -5.0 إلى 105.0 °C |
| دقة درجة الحرارة | ±0.1 °C |
| نطاق الضغط الجوي | 400 إلى 850 mmHg |
| دقة الضغط الجوي | ±6 mmHg |
| تخزين البيانات | 5000 مجموعة بيانات |
| الشاشة | LCD رسومية بإضاءة خلفية - |
| أوضاع القياس | Auto-Read / Continuous / Timed - |
| مخرجات البيانات | USB / RS232 - |
| درجة الحماية | IP67 - |
| نوع البطارية | 4 بطاريات AA - |
| عمر البطارية | حتى 800 ساعة |
| الأبعاد | 24 × 10 × 6.5 cm |
| الوزن | 0.5 kg |
| الشهادات | CE / TUV 3-1 / FCC Class A - |
| الضمان | 3 سنوات |
| المحتويات | الجهاز / 4 بطاريات AA / دليل البدء السريع / كابل الكمبيوتر / شهادة اختبار الجهاز - |
| مجسات القياس | غير مرفقة - |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on destination and order quantity. Please contact us for current stock status, lead time and compatible probe availability. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

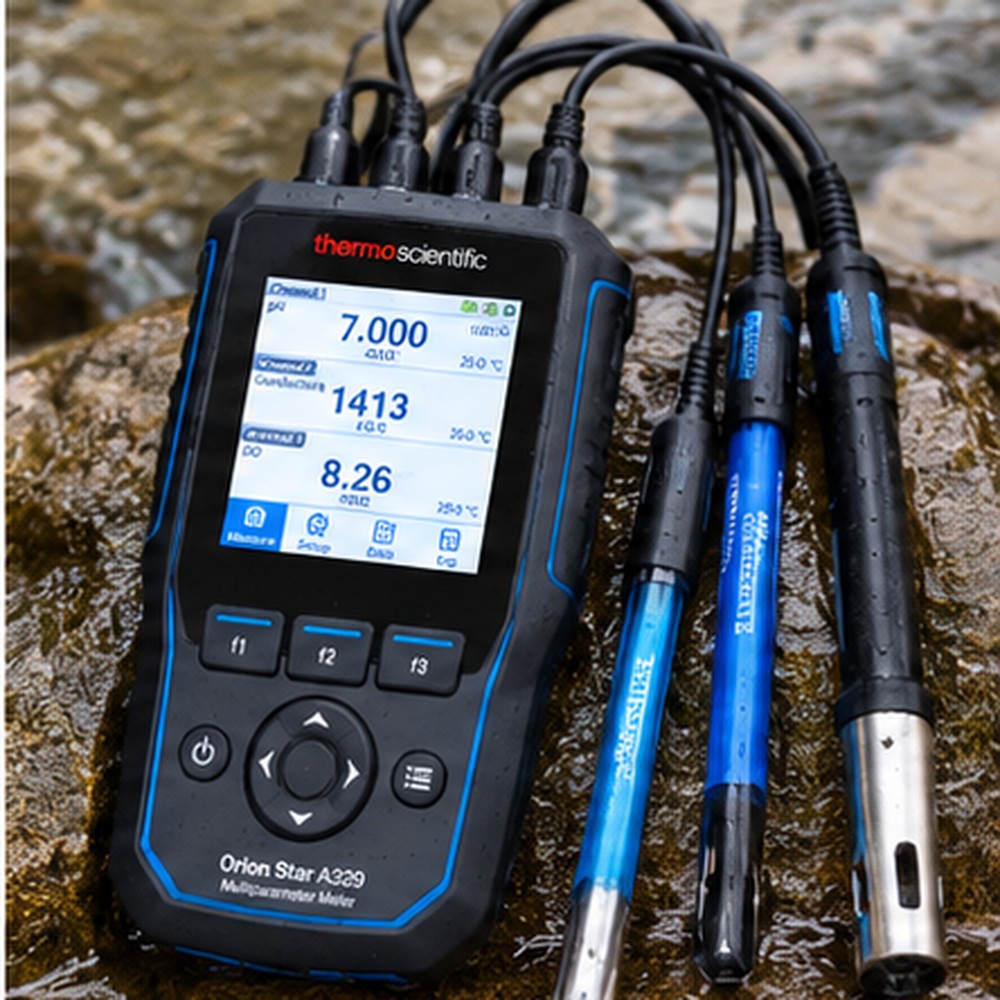

The Orion STARA3290 Star A329 is used for laboratory and field water quality analysis, including pH, ISE, ORP, conductivity, TDS, salinity, resistivity, dissolved oxygen and temperature measurements.

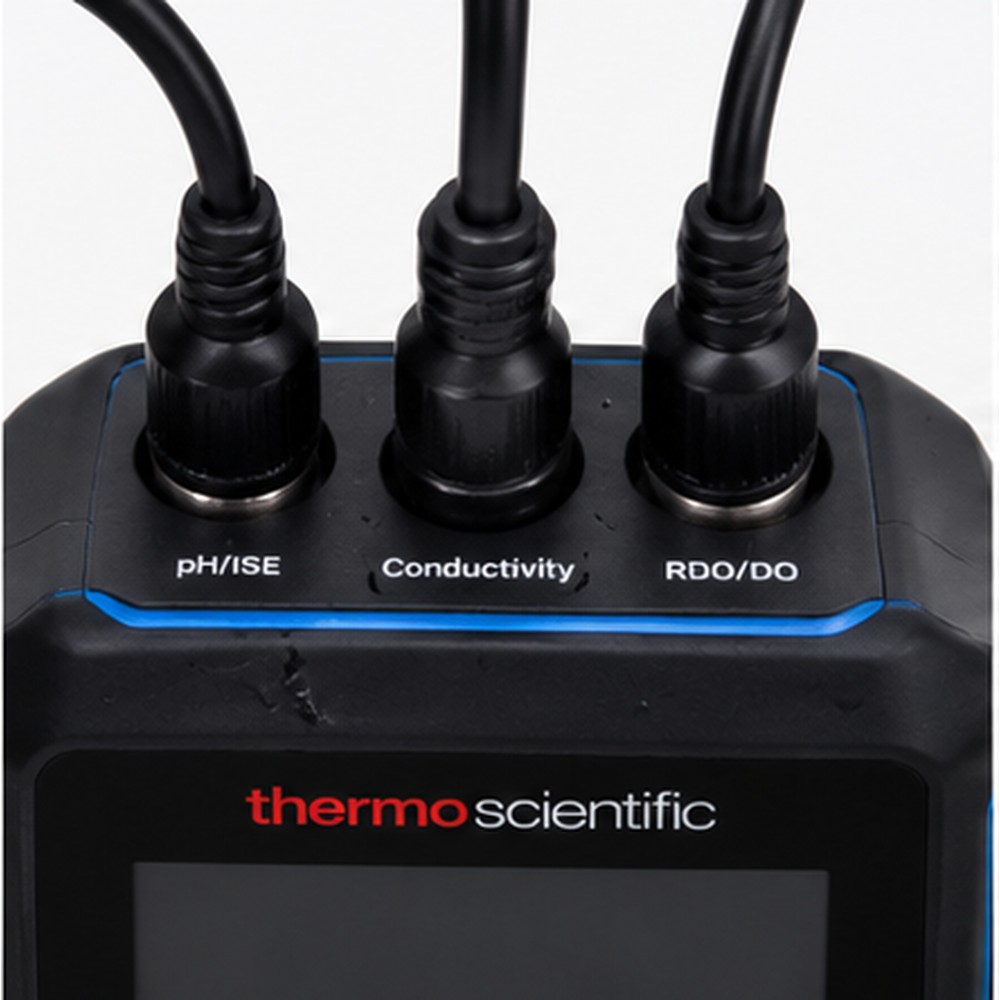

The Star A329 supports three independent measurement channels, allowing multiple parameters such as pH, conductivity and dissolved oxygen to be viewed at the same time.
Yes. The STARA3290 has an IP67 protection rating, making it suitable for field use, wet environments and water quality monitoring applications.
No. The STARA3290 is the meter-only configuration and does not include pH electrodes, conductivity probes or dissolved oxygen sensors. Compatible probes must be selected separately.
Please confirm the STARA3290 model, required measurement parameters, electrode and probe types, cable length, and field or laboratory operating conditions before ordering.
