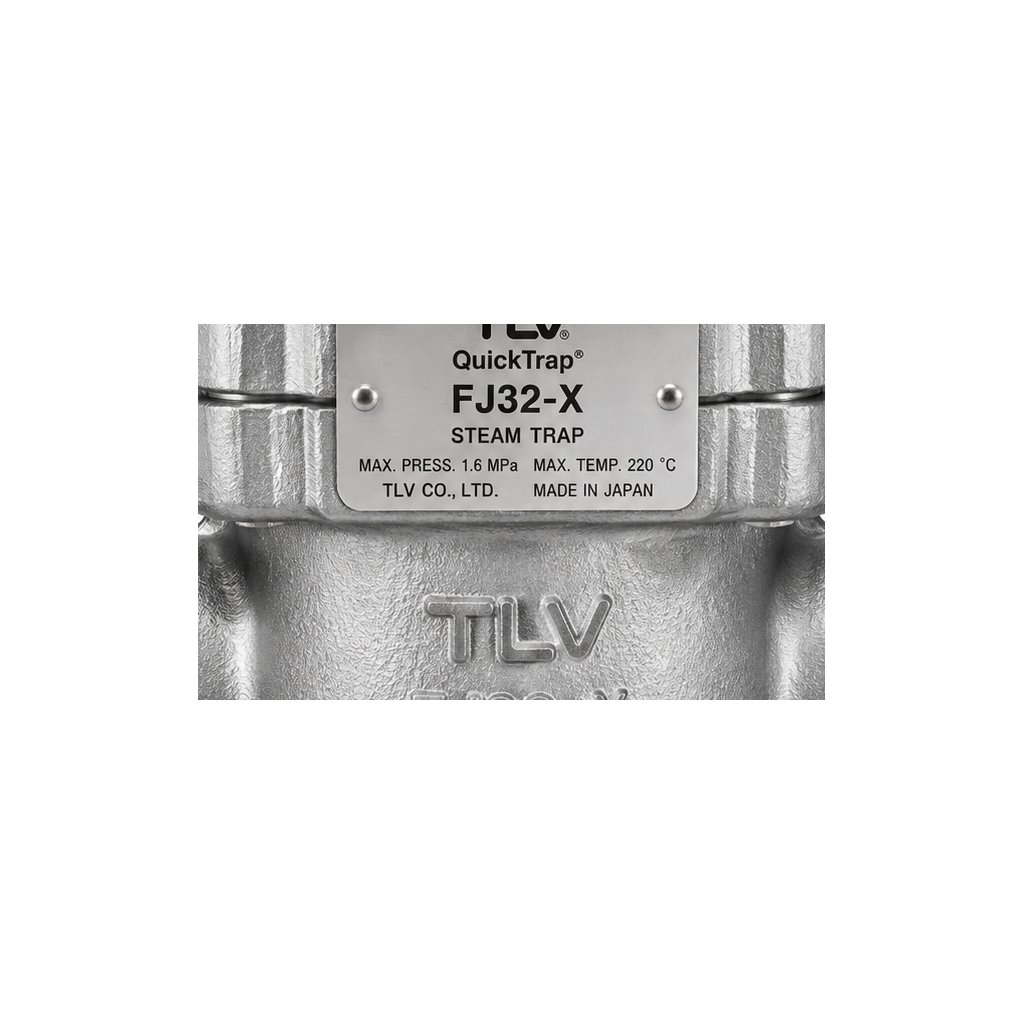

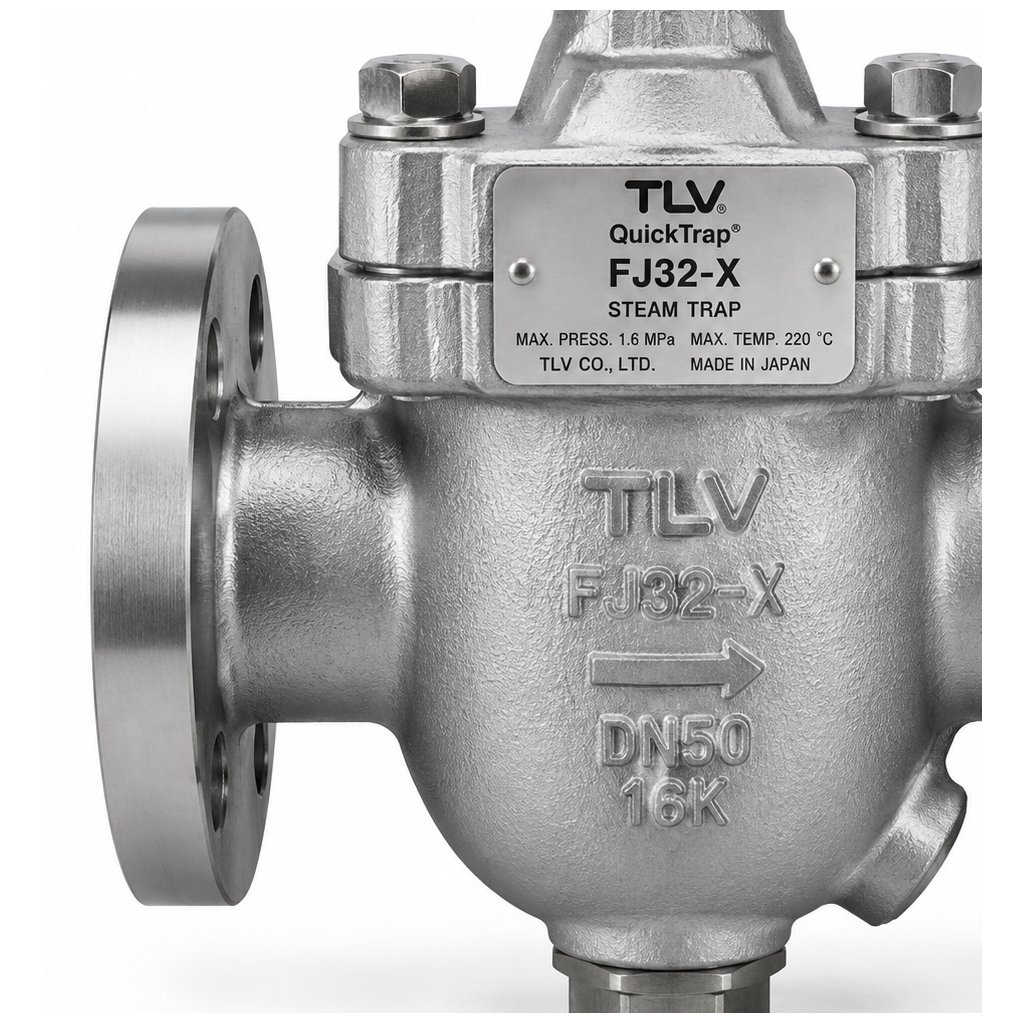

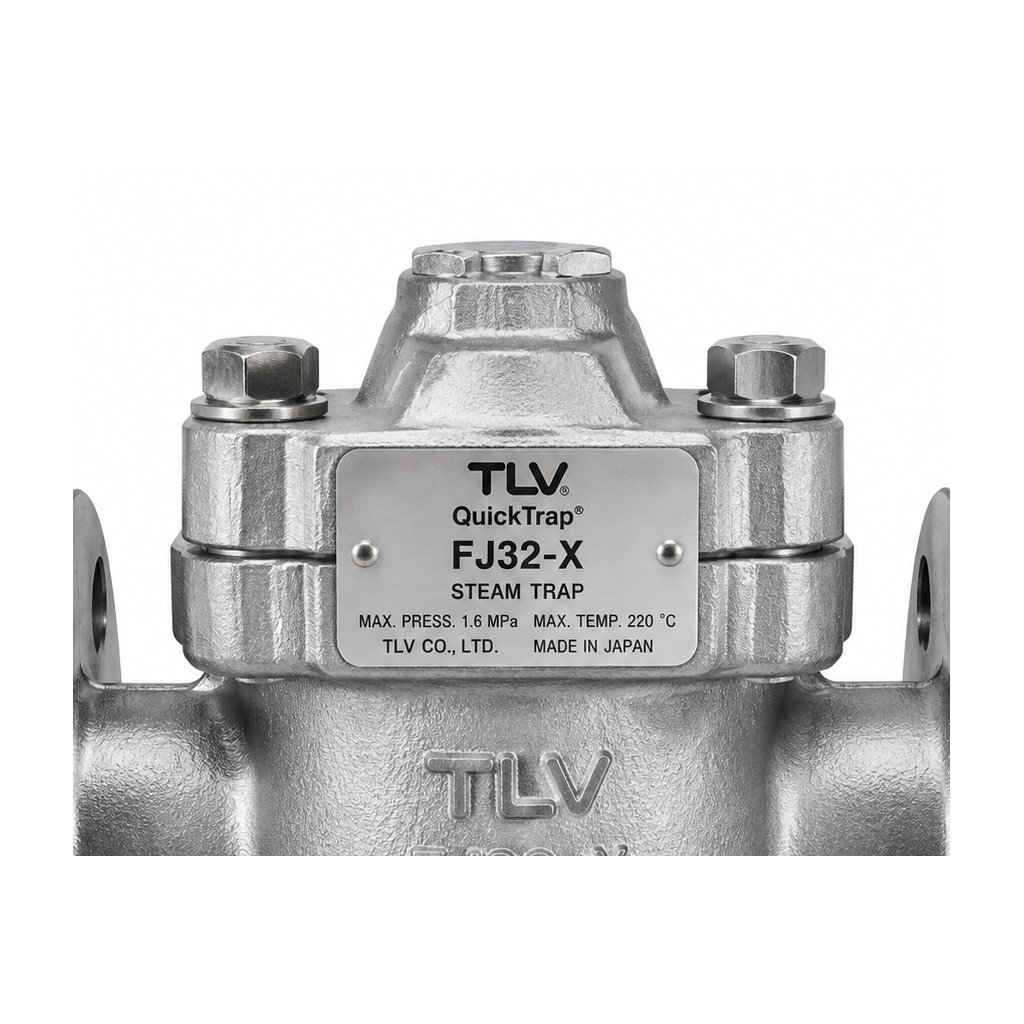

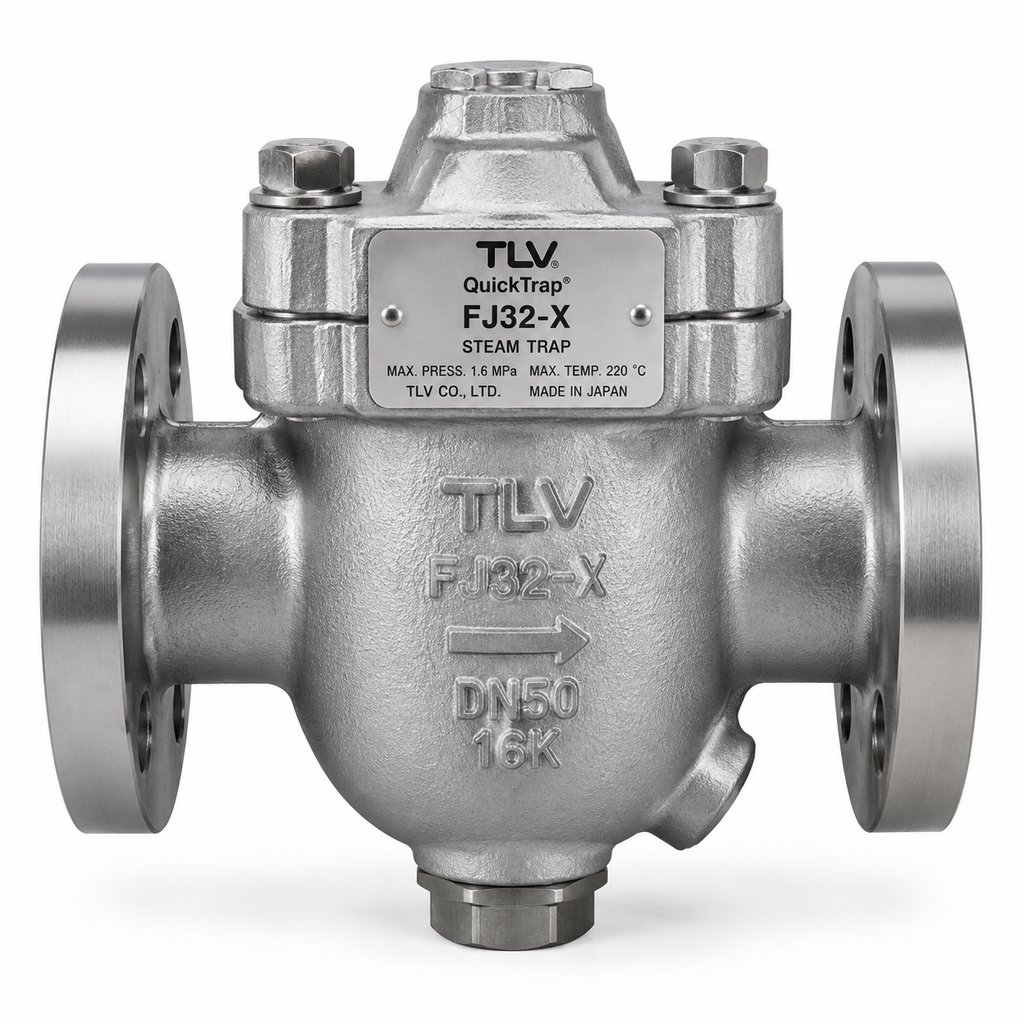

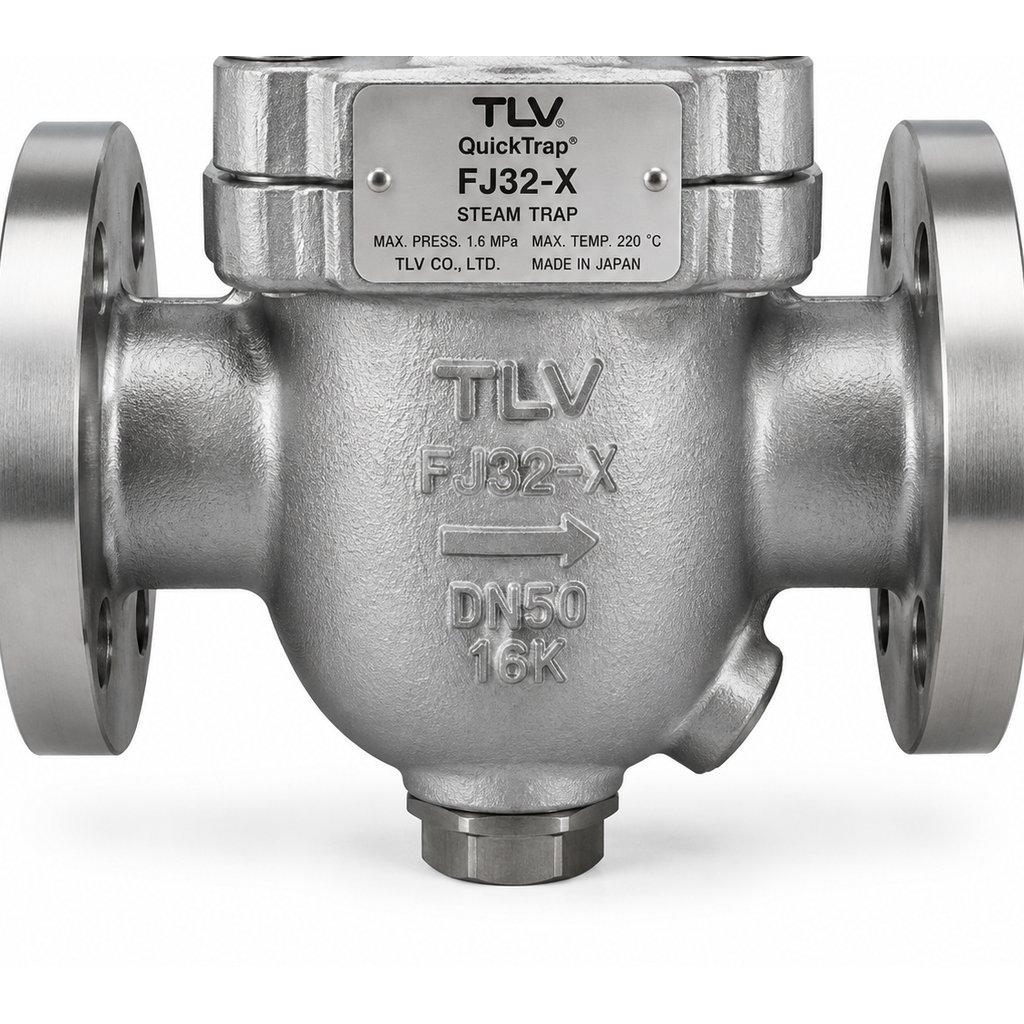

TLV FJ32-X QuickTrap stainless steel Free Float steam trap

TLV FJ32-X QuickTrap Free Float Steam Trap

TLV

Model / Part Number: FJ32-X

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

pcsRequest a Quote
WhatsApp InquiryResponse within 1 business day
BrandTLV
Model / Part NumberFJ32-X
Product TypeQuickTrap Free Float Steam Trap -
Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

The TLV FJ32-X QuickTrap is a stainless steel Free Float steam trap developed for reliable condensate drainage from steam mains and process equipment.

Its two-bolt universal connector allows the trap unit to be replaced quickly in-line, helping reduce maintenance time without replacing the complete piping connector.

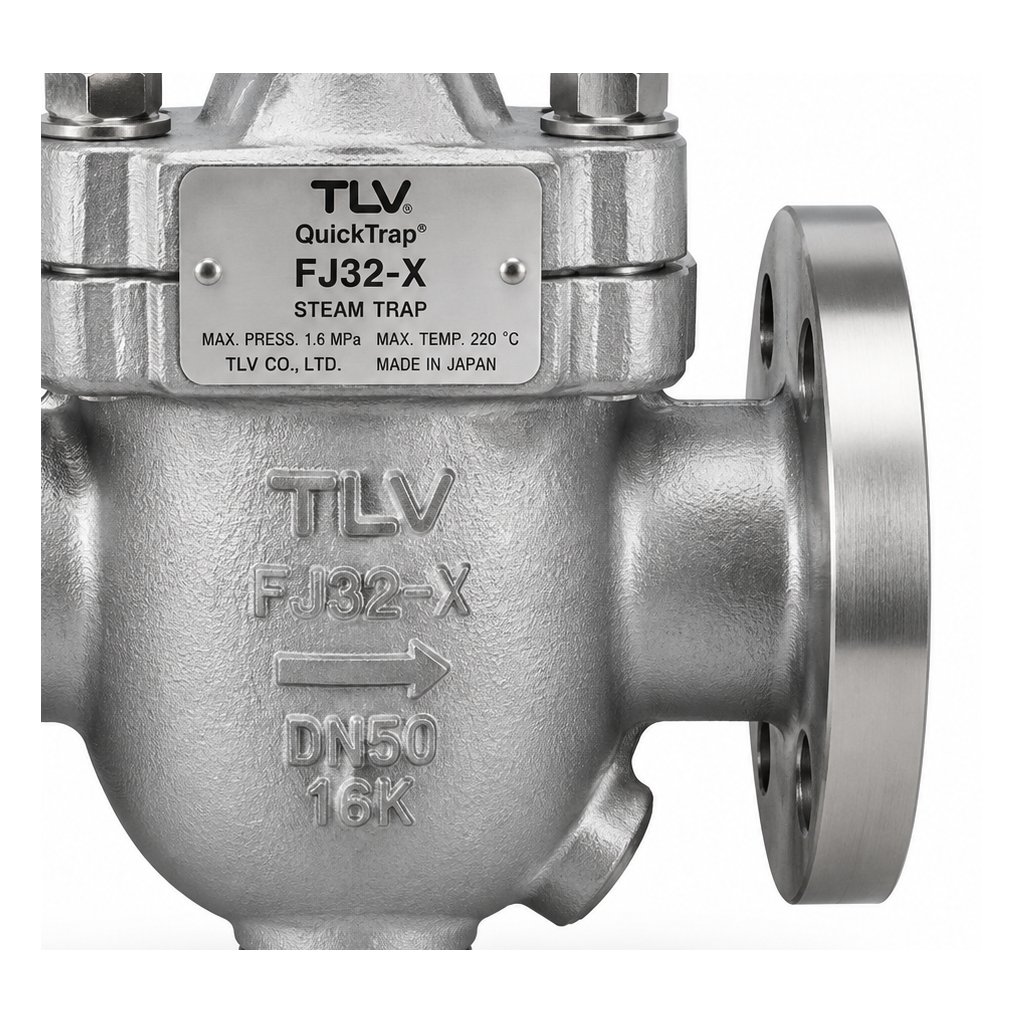

The universal flange design allows the steam trap to be positioned correctly regardless of the pipeline configuration.

The FJ32-X uses TLV's Free Float mechanism with three-point seating to provide a steam-tight seal and reliable condensate discharge under changing load conditions.

A thermostatic X-element automatically vents air at temperatures close to steam temperature and incorporates a fail-open design.

Built-in screens in both the connector and trap body help protect internal components from dirt and debris.

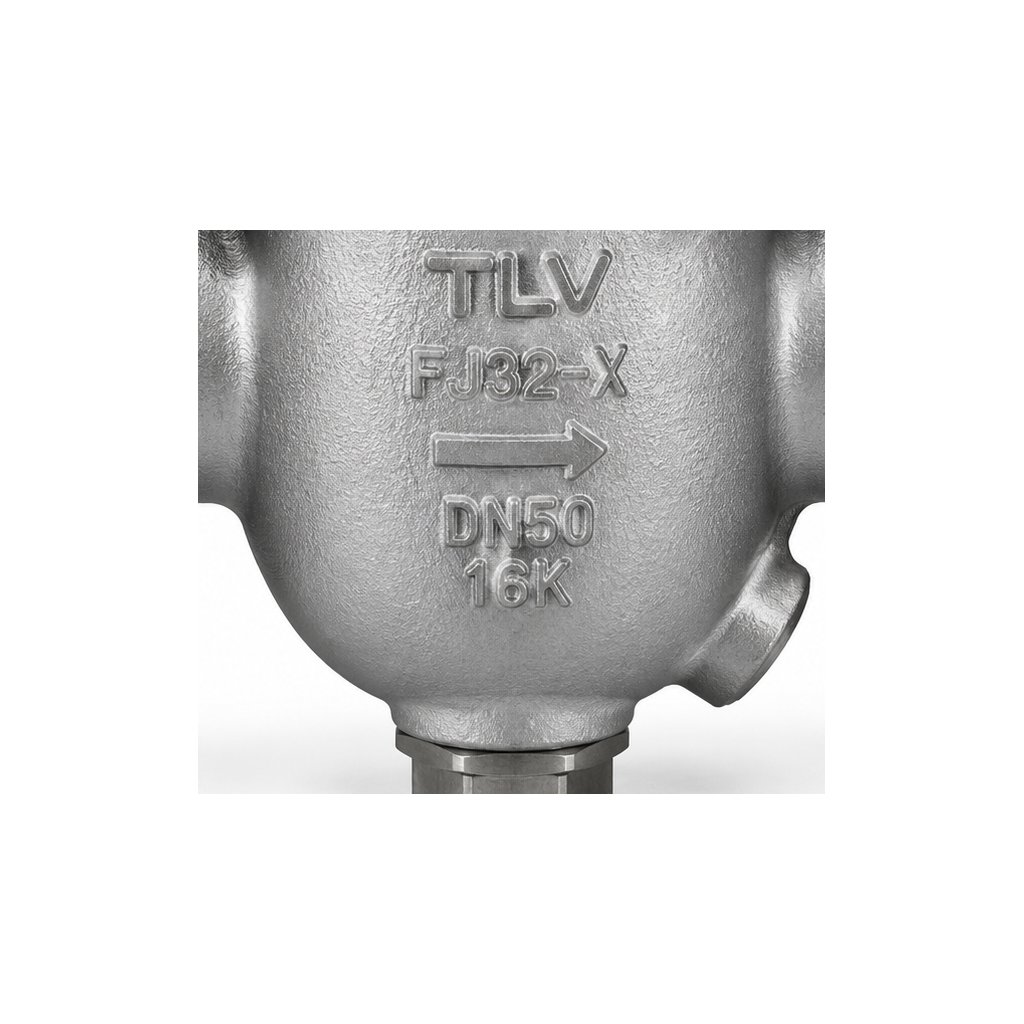

The trap body is manufactured from cast stainless steel for durability and corrosion resistance.

Available connection options include screwed, socket-welded and flanged configurations, with nominal sizes from DN15 to DN25 depending on the connector specification.

The maximum operating pressure is up to 3.2 MPaG, depending on the selected orifice, and the maximum operating temperature is 240°C. Maximum condensate discharge capacity can reach approximately 670 kg/h depending on pressure differential and configuration.

Typical applications include steam mains, process equipment, heat exchangers and industrial steam systems where reliable condensate removal and convenient maintenance are required.

Please confirm the required connector, nominal size, orifice number and operating conditions before purchase.

⚙ Technical Specifications

Parameter NameParameter Value Unit
Product TypeQuickTrap Free Float Steam Trap -
ModelFJ32-X -
Trap UnitJ32-X -
Connector UnitF46 -
Body MaterialCast Stainless Steel -
ConnectionScrewed / Socket Welded / Flanged -
Nominal SizeDN15 / DN20 / DN25 -
Orifice Number2 / 5 / 10 / 14 / 22 / 32 -
Maximum Operating Pressure0.2 / 0.5 / 1.0 / 1.4 / 2.2 / 3.2 MPaG
Minimum Operating Pressure0.01 MPaG
Maximum Differential Pressure0.2 / 0.5 / 1.0 / 1.4 / 2.2 / 3.2 MPa
Maximum Operating Temperature240 °C
Air VentX-element Type C6 -
Subcooling6 °C
Maximum Discharge CapacityApprox. 670 kg/h
اسم المعلمةقيمة المعلمة الوحدة
نوع المنتجمصيدة بخار QuickTrap ذات عوامة حرة -
الموديلFJ32-X -
وحدة المصيدةJ32-X -
وحدة الموصلF46 -
مادة الهيكلفولاذ مقاوم للصدأ مصبوب -
نوع التوصيلملولب / لحام بالمقبس / ذو شفة -
المقاس الاسميDN15 / DN20 / DN25 -
رقم الفتحة2 / 5 / 10 / 14 / 22 / 32 -
أقصى ضغط تشغيل0.2 / 0.5 / 1.0 / 1.4 / 2.2 / 3.2 MPaG
أدنى ضغط تشغيل0.01 MPaG
أقصى فرق ضغط0.2 / 0.5 / 1.0 / 1.4 / 2.2 / 3.2 MPa
أقصى درجة حرارة تشغيل240 °C
تنفيس الهواءX-element Type C6 -
درجة التبريد الفرعي6 °C
أقصى سعة تصريفحوالي 670 kg/h

▦ Typical Applications

  • Steam Mains
  • Process Equipment & Industrial Condensate Drainage

▰ Availability & Delivery

Availability & DeliveryAvailability subject to quotation and stock confirmation
Lead TimeAvailability and lead time depend on the required connection, size, orifice number and operating pressure. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping OptionsAir freight, sea freight, express
PackagingSecure export packaging

? FAQ

What is the TLV FJ32-X QuickTrap used for?

The TLV FJ32-X QuickTrap is designed for reliable condensate drainage from steam mains, process equipment and industrial steam systems. It helps maintain efficient steam operation by removing condensate continuously.

What is the advantage of the QuickTrap design?

The QuickTrap universal connector allows fast in-line replacement of the steam trap unit, reducing maintenance time and simplifying steam trap servicing.

How does the Free Float mechanism work in the FJ32-X?

The Free Float mechanism automatically adjusts condensate discharge according to operating conditions, providing continuous drainage while minimizing steam loss.

What are the main applications of the TLV FJ32-X?

The FJ32-X is suitable for steam mains, process equipment, heat exchangers and industrial applications requiring reliable condensate removal and easy maintenance.

What should be confirmed before ordering the FJ32-X?

Please confirm the model number, connector type, nominal size, orifice number, operating pressure and steam conditions before purchase to ensure correct selection.
