Model / Part Number: HR150A
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Parameter Name | Parameter Value Unit |
|---|---|
| Product Type | High-Pressure Thermodynamic Disc Steam Trap - |
| Model | HR150A - |
| Series | PowerDyne - |
| Body Material | Alloy Steel A182 F22 Cl.3 - |
| Connection | Socket Welded / Flanged - |
| Nominal Size (Socket Welded) | DN15 / DN20 / DN25 - |
| Nominal Size (Flanged) | DN20 / DN25 - |
| Maximum Operating Pressure | 15 MPaG |
| Minimum Operating Pressure | 1.6 MPaG |
| Maximum Operating Temperature | 550 °C |
| Maximum Allowable Pressure | 15 at 550°C MPaG |
| Maximum Allowable Temperature | 550 at 15 MPaG °C |
| Maximum Back Pressure | 50% of Inlet Pressure - |
| Valve Mechanism | Thermodynamic Disc - |
| Disc Material | Stainless Steel AISI 440C - |
| Module Valve Seat Material | Stainless Steel AISI 420 - |
| Built-in Screen | Yes - |
| Air Jacket | Yes - |
| Application | High-Pressure Steam Mains / Turbines - |
| اسم المعلمة | قيمة المعلمة الوحدة |
| نوع المنتج | مصيدة بخار قرصية حرارية ديناميكية عالية الضغط - |
| الموديل | HR150A - |
| السلسلة | PowerDyne - |
| مادة الهيكل | فولاذ سبائكي A182 F22 Cl.3 - |
| نوع التوصيل | لحام بالمقبس / فلنجة - |
| المقاس الاسمي - لحام بالمقبس | DN15 / DN20 / DN25 - |
| المقاس الاسمي - فلنجة | DN20 / DN25 - |
| أقصى ضغط تشغيل | 15 MPaG |
| أدنى ضغط تشغيل | 1.6 MPaG |
| أقصى درجة حرارة تشغيل | 550 °C |
| أقصى ضغط مسموح | 15 عند 550°C MPaG |
| أقصى درجة حرارة مسموحة | 550 عند 15 MPaG °C |
| أقصى ضغط خلفي | 50% من ضغط الدخول - |
| آلية الصمام | قرص حراري ديناميكي - |
| مادة القرص | فولاذ مقاوم للصدأ AISI 440C - |
| مادة مقعد الصمام | فولاذ مقاوم للصدأ AISI 420 - |
| مصفاة مدمجة | نعم - |
| غلاف هوائي | نعم - |
| التطبيق | خطوط البخار عالية الضغط / التوربينات - |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Availability and delivery time depend on connection size, pressure class, flange or socket-weld specification and order quantity. Please contact us to confirm current stock and delivery schedule. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

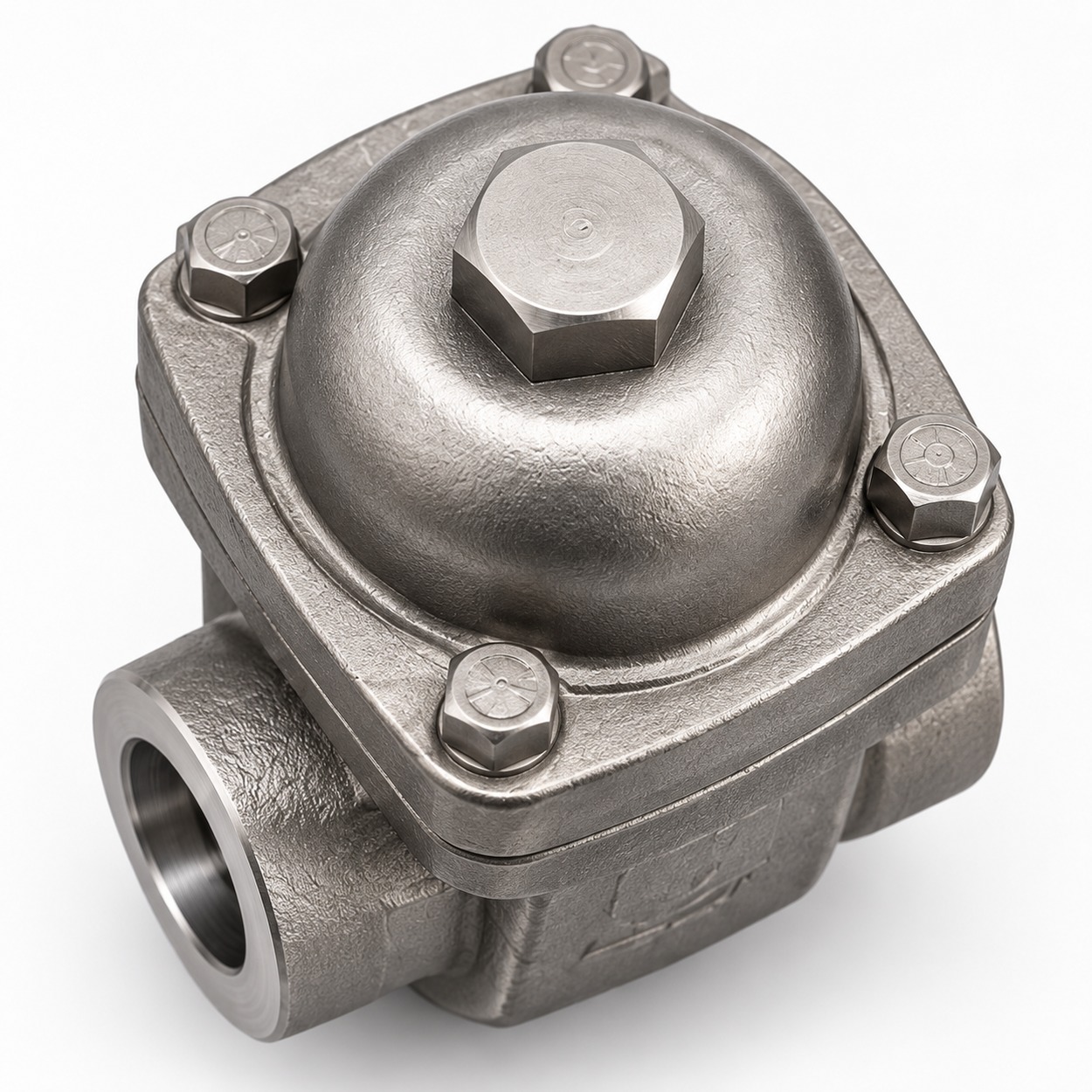

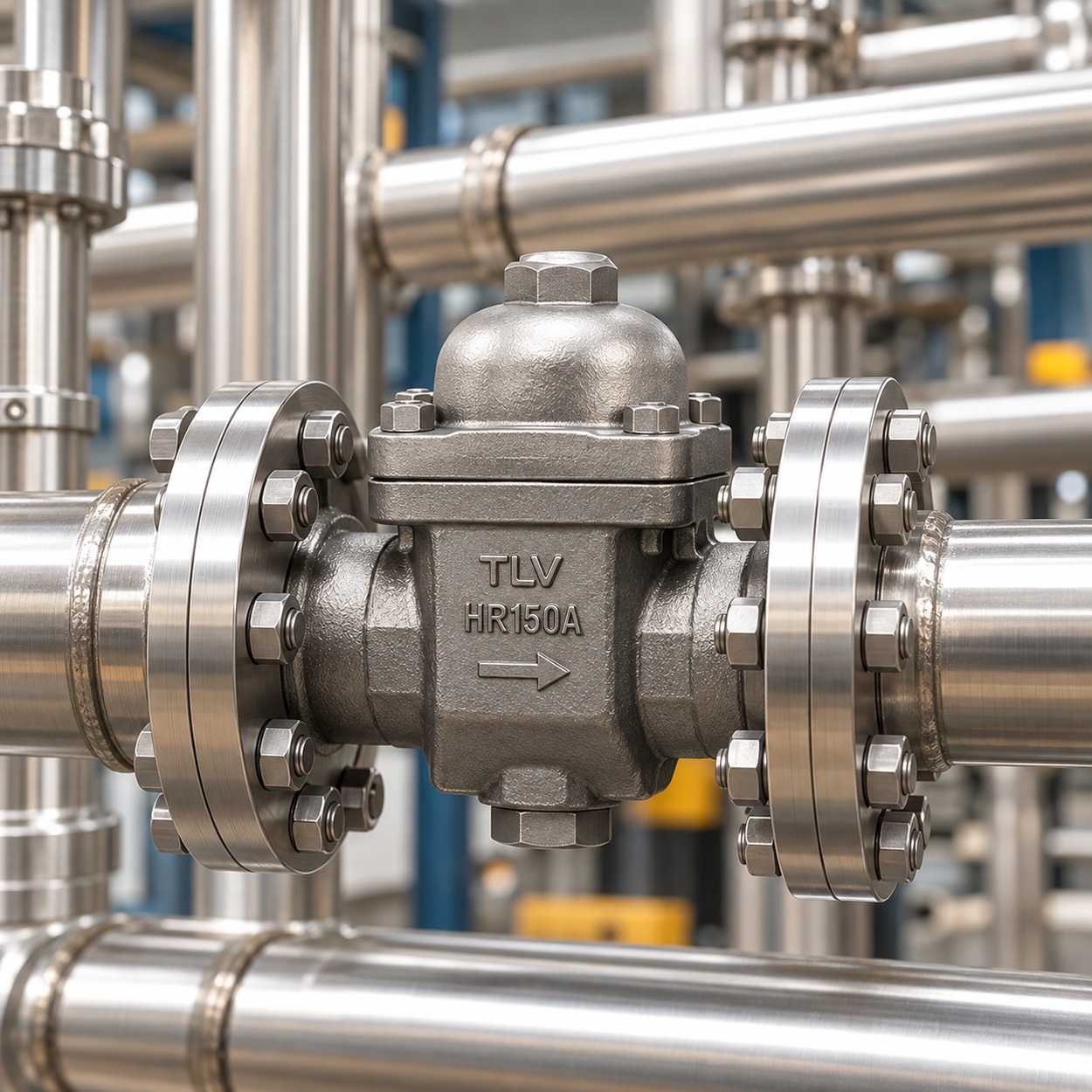

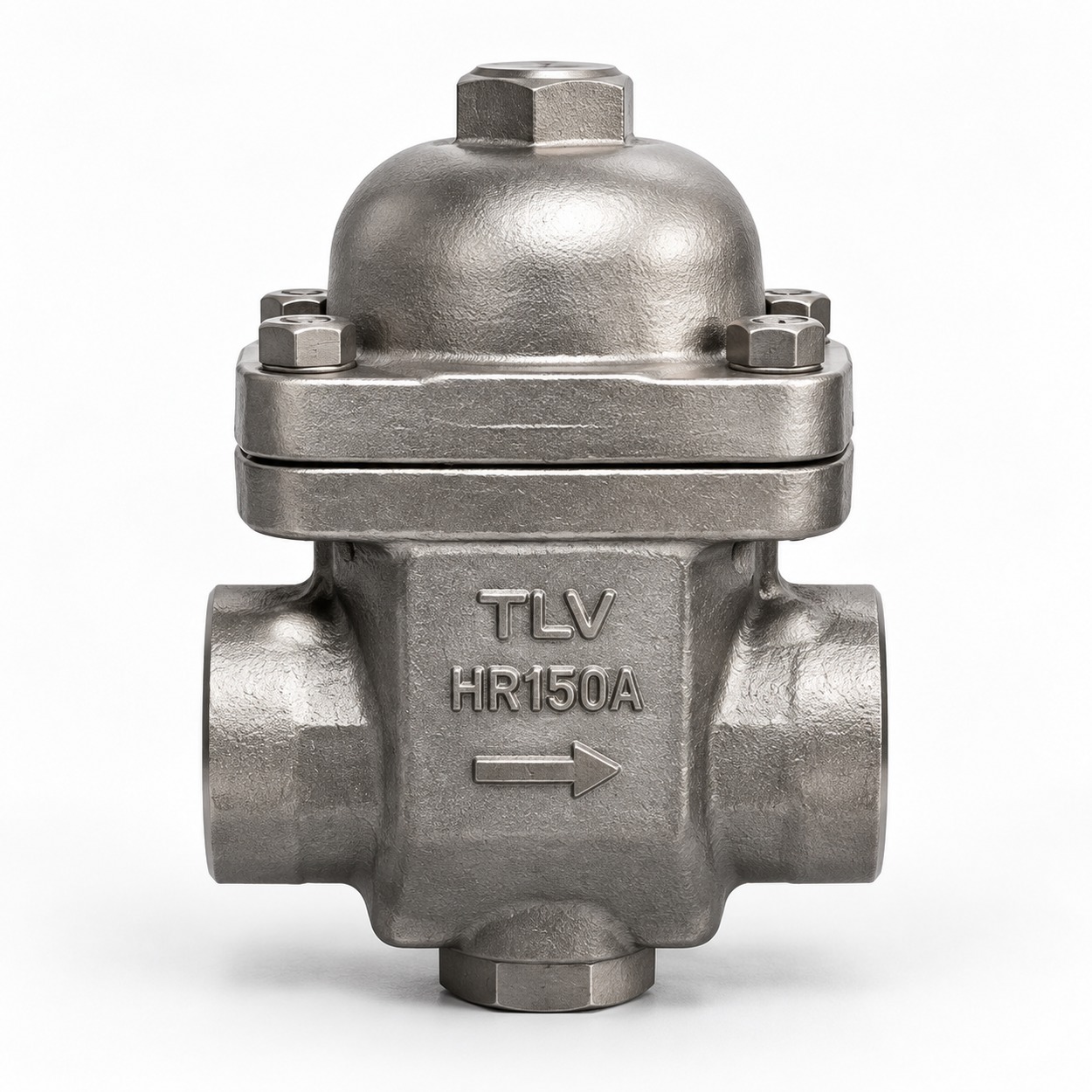

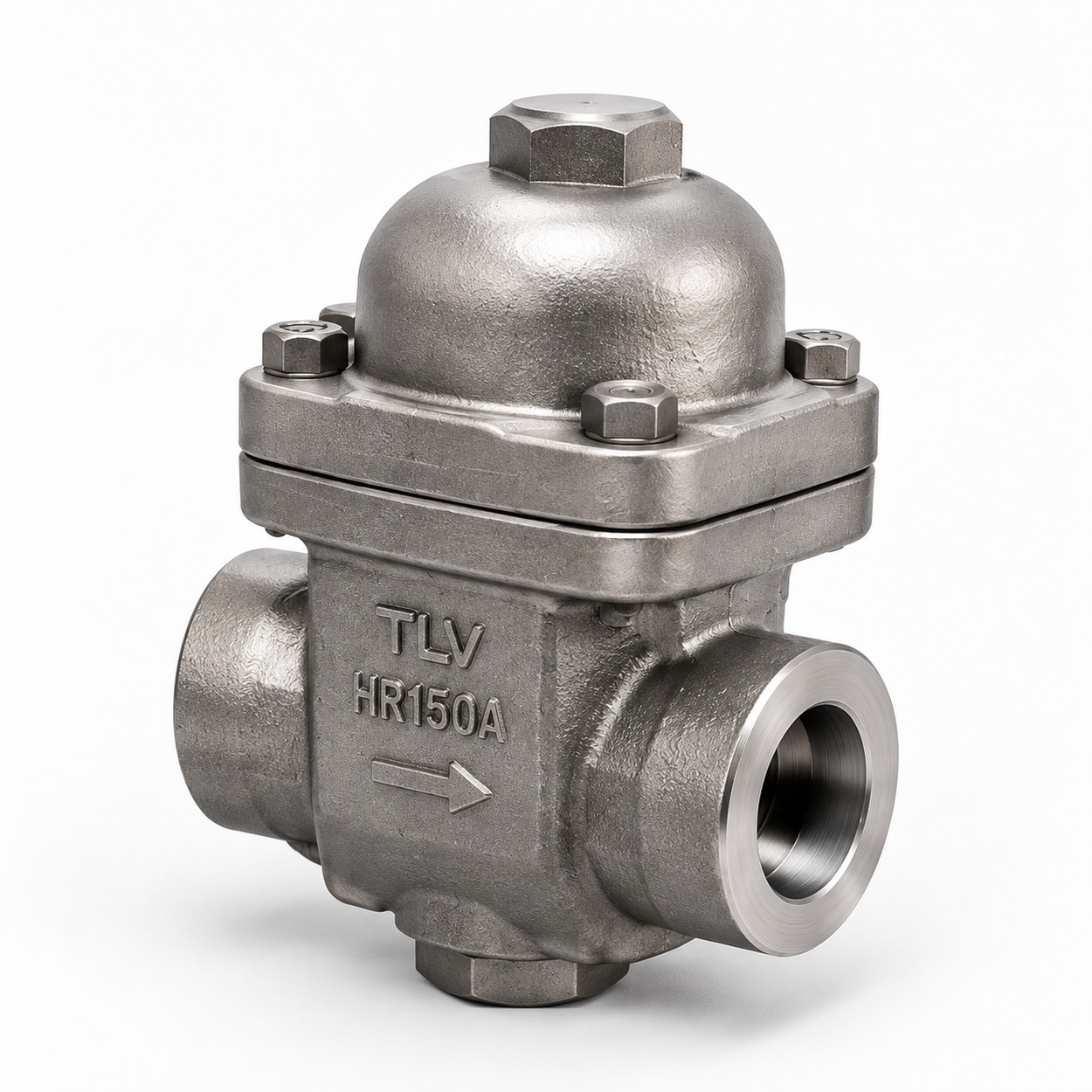

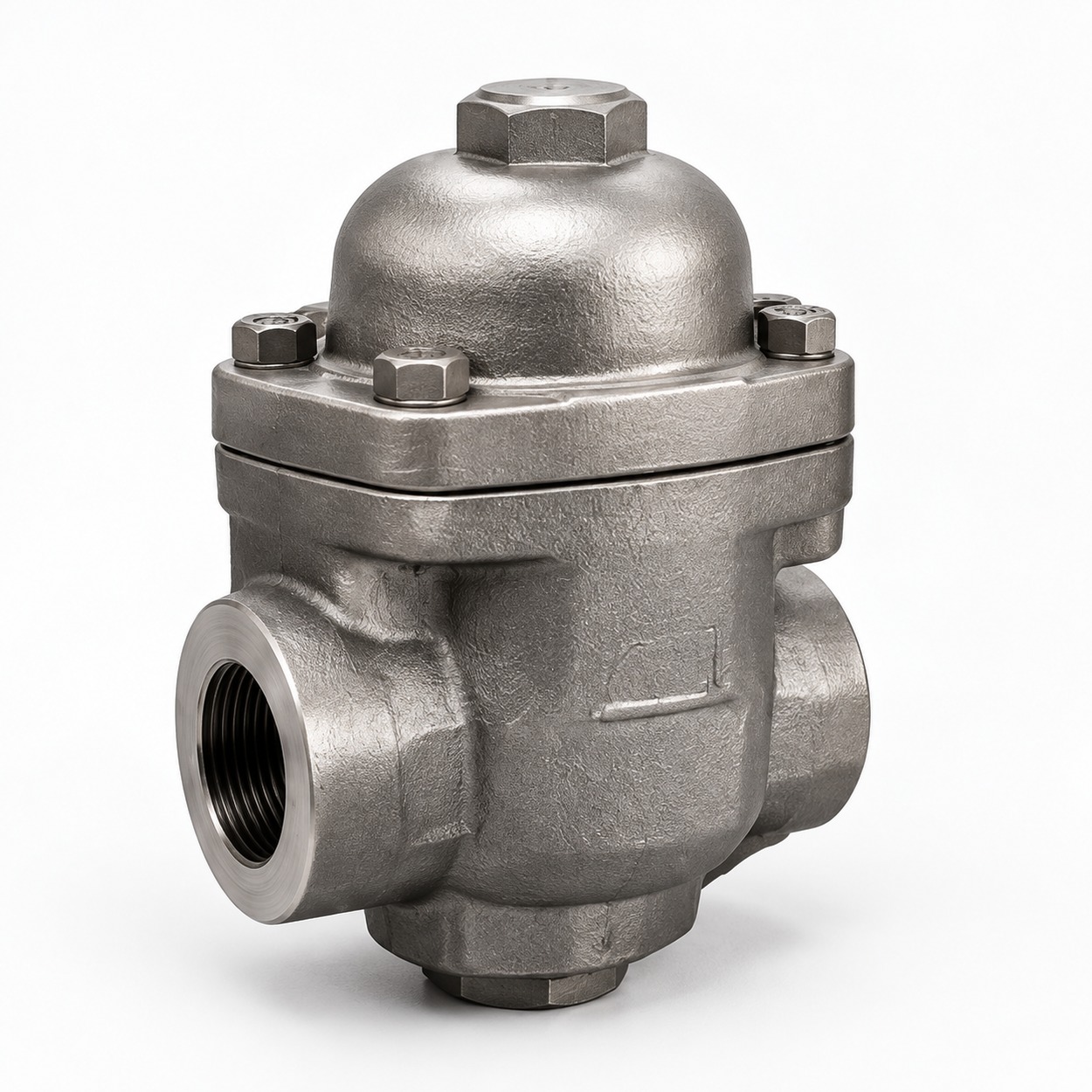

The TLV HR150A PowerDyne is designed to remove condensate from high-pressure and high-temperature steam mains. It is suitable for power plants, petrochemical facilities, turbines and demanding industrial steam systems.
The HR150A is a thermodynamic disc-type steam trap in the TLV PowerDyne series. It uses a precision disc mechanism to control condensate discharge while helping minimize steam loss.
The TLV HR150A supports a maximum operating pressure of 15 MPaG and a maximum operating temperature of 550°C, making it suitable for severe high-pressure steam service.

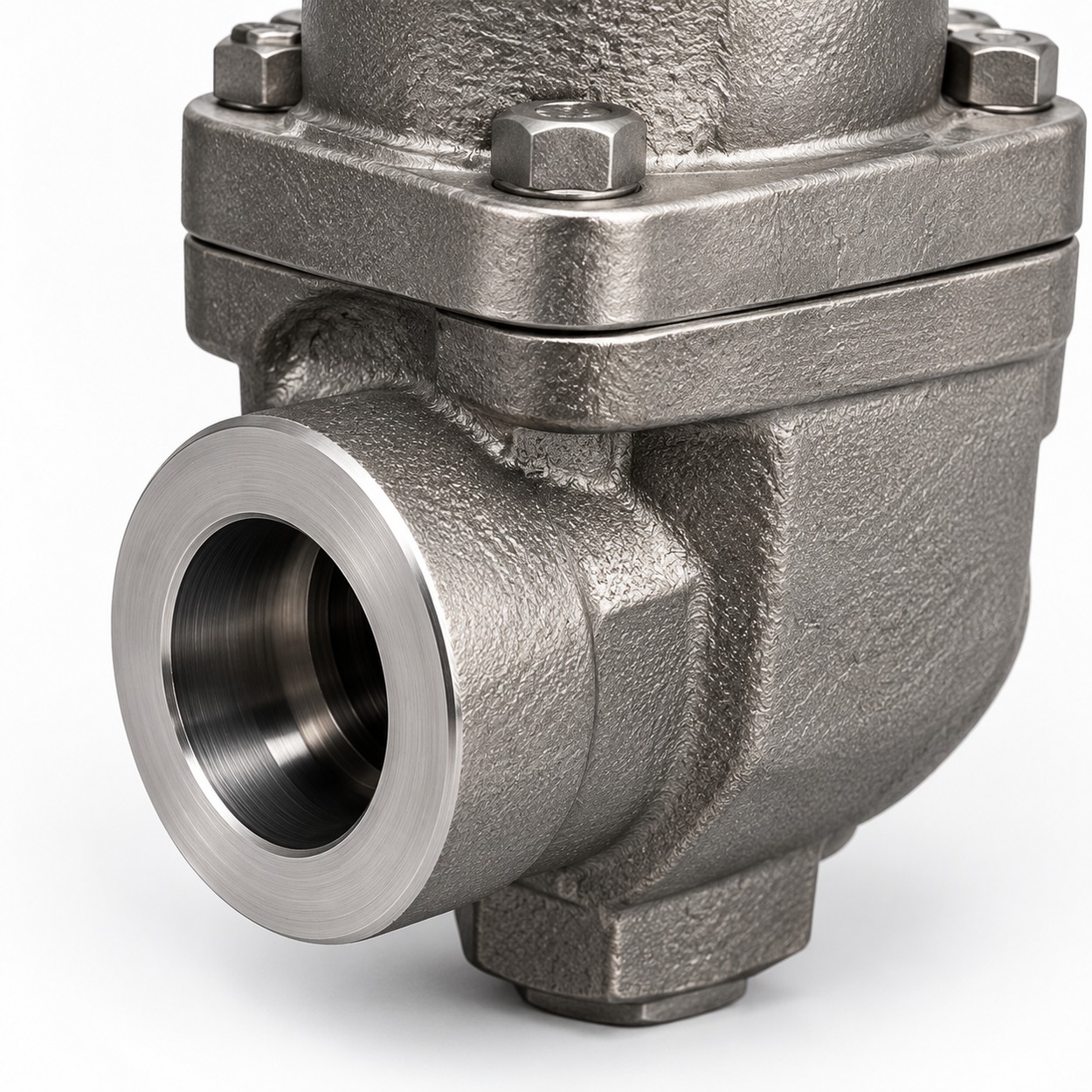

The TLV HR150A is available with socket-welded or flanged connections. The required connection type, nominal size and pressure class should be selected according to the piping specification.
Please confirm the HR150A model, nominal size, connection type, pressure class, operating pressure, temperature and condensate load before ordering.
