TLV J3X JF3X Free Float steam trap for condensate drainage

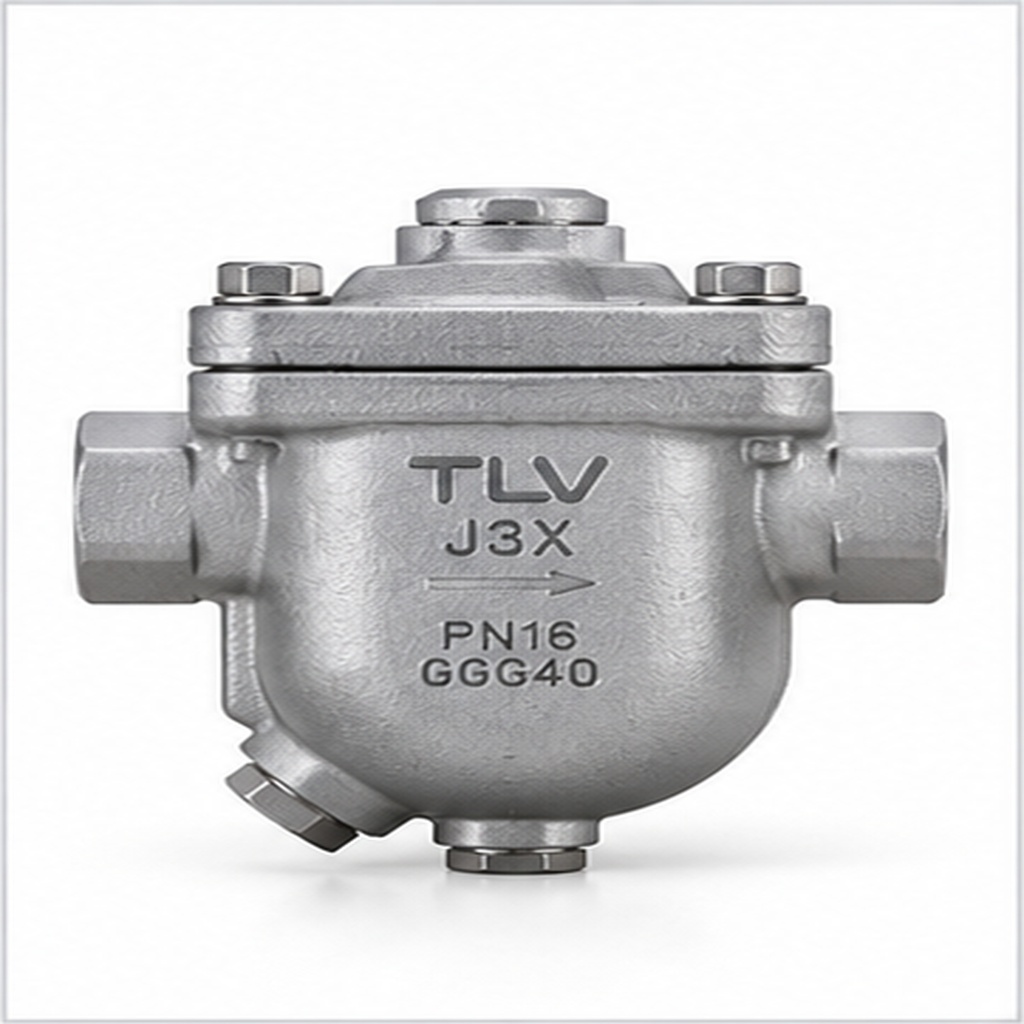

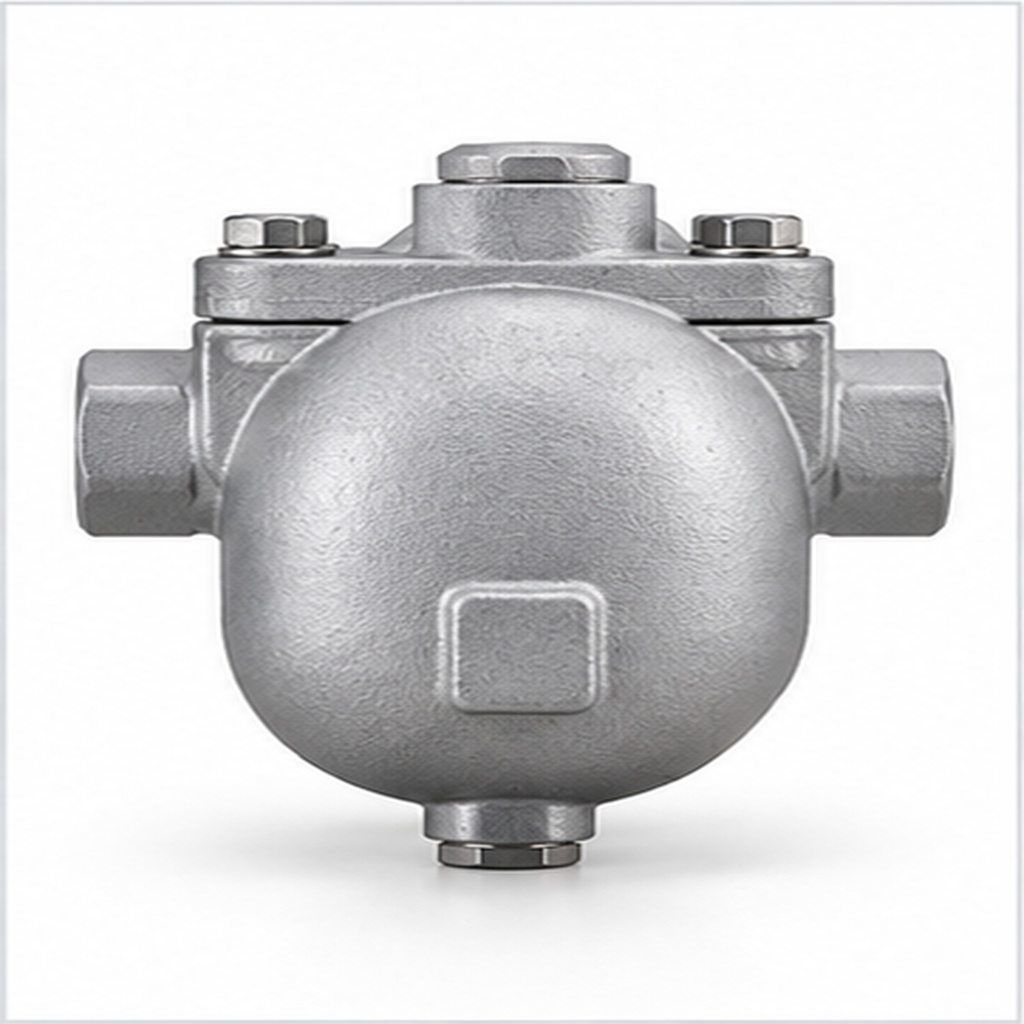

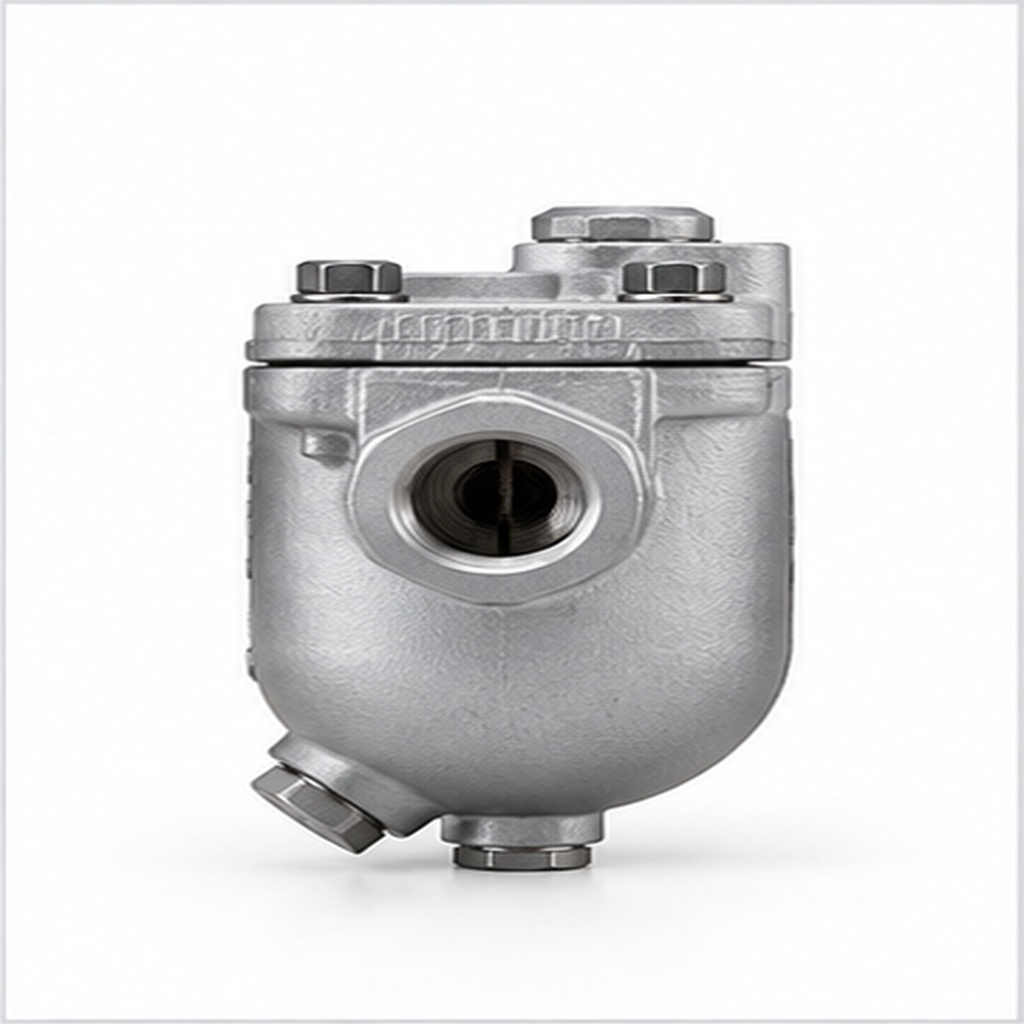

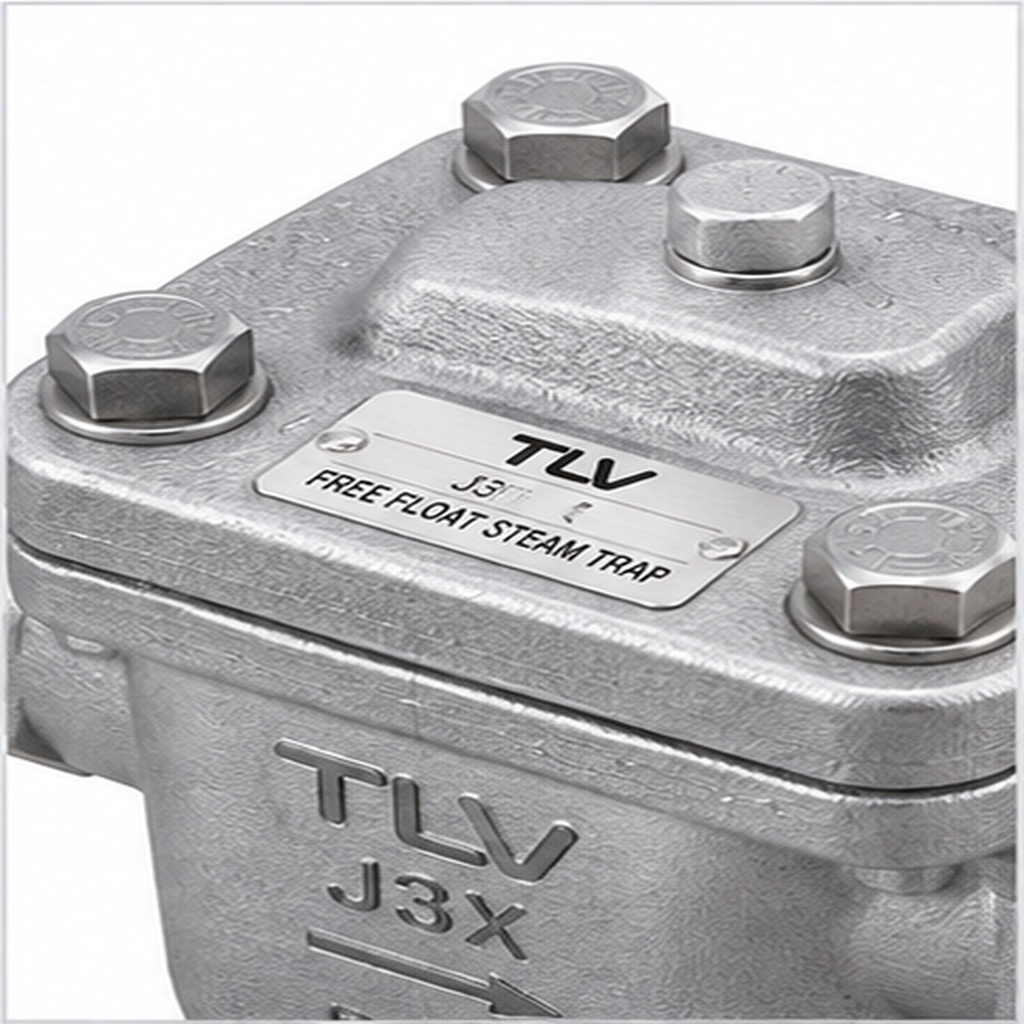

TLV J3X / JF3X Free Float Steam Trap

TLV

Model / Part Number: J3X / JF3X

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

pcsRequest a Quote
WhatsApp InquiryResponse within 1 business day
BrandTLV
Model / Part NumberJ3X / JF3X
Product TypeFree Float Steam Trap -
Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

The TLV J3X / JF3X Free Float Steam Trap is designed for reliable condensate drainage from low-pressure steam systems and small process equipment.

Its self-modulating Free Float mechanism continuously adjusts condensate discharge according to the actual process load. This provides smooth, low-velocity drainage and helps maintain stable process performance.

The trap uses a simple float mechanism with only one principal moving component, helping reduce concentrated wear and provide long service life.

An integrated thermostatic air vent automatically removes air during start-up and closes as the temperature approaches steam conditions, helping improve start-up performance and steam system efficiency.

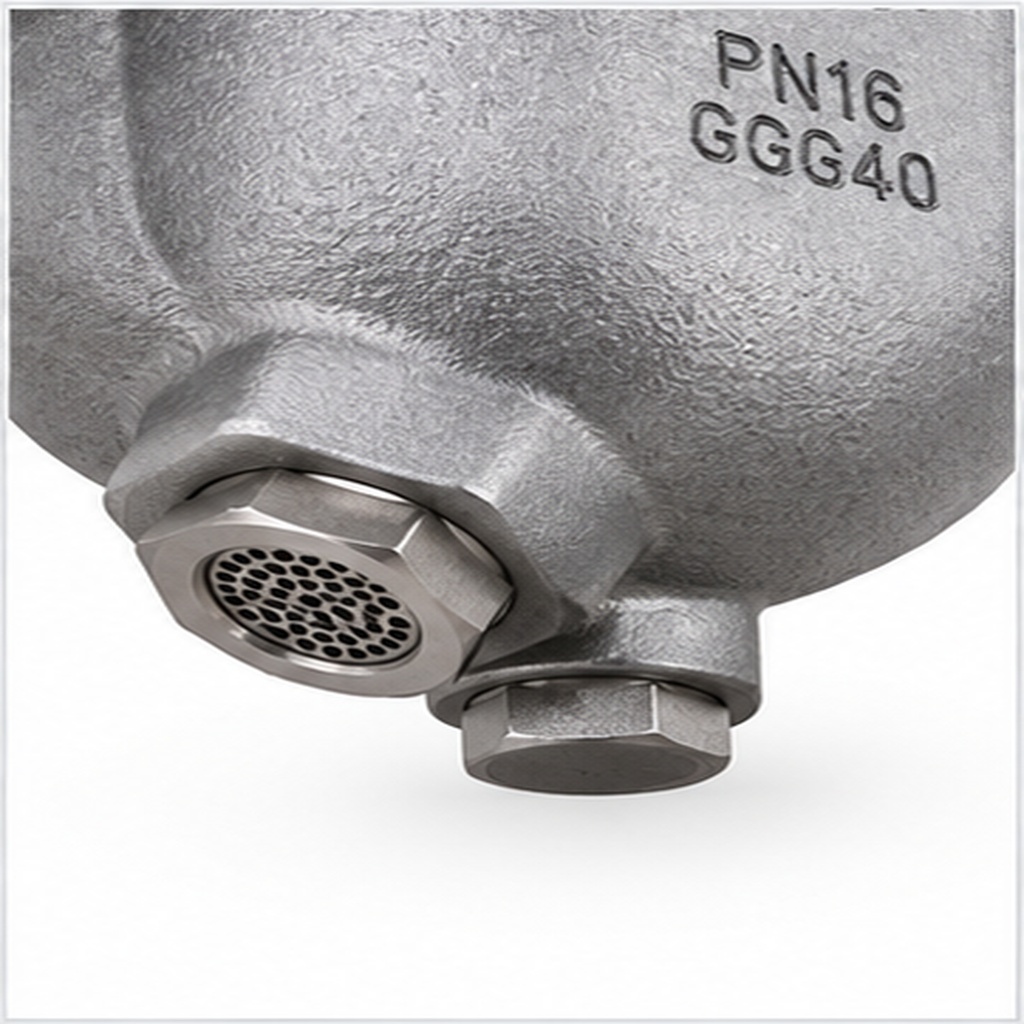

A built-in large-area strainer helps protect the internal valve mechanism from dirt and debris, supporting reliable operation and reduced maintenance requirements.

The internal components can be accessed in-line for inspection, cleaning and servicing without removing the complete trap from the piping system.

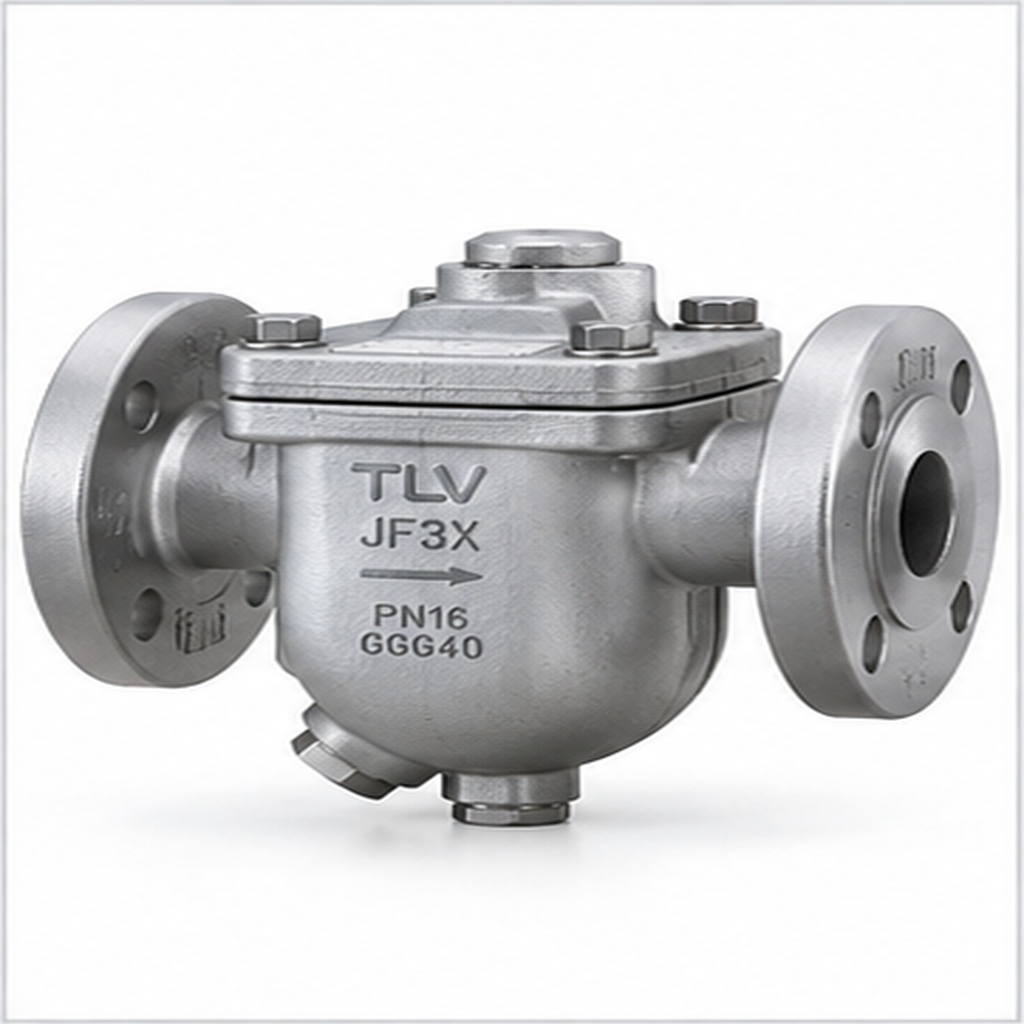

J3X versions are available with screwed connections, while JF3X versions use flanged connections. Available sizes, orifices and operating pressure ranges depend on the selected configuration.

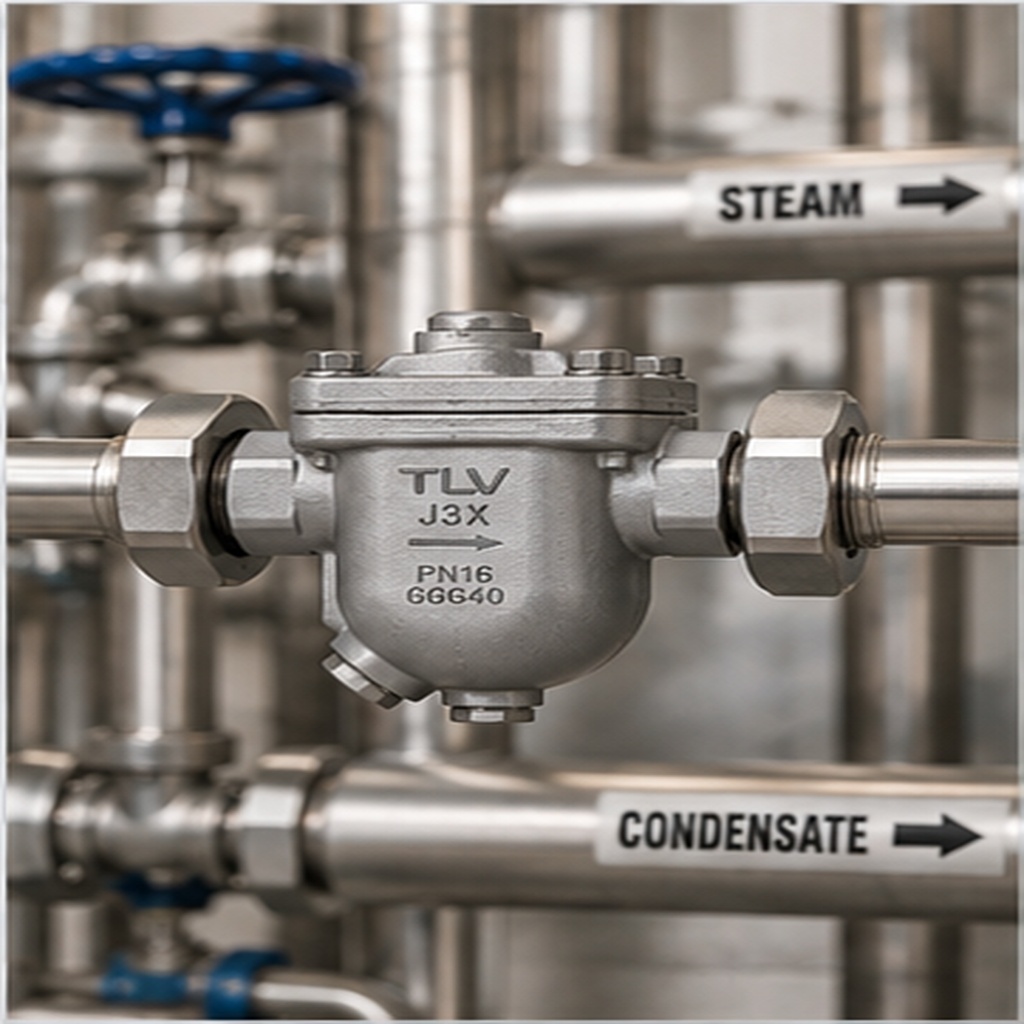

Typical applications include steam process equipment, heat exchangers, heating systems, small production equipment and general industrial condensate drainage.

Please confirm the required model, connection size, operating pressure and installation conditions before purchase.

⚙ Technical Specifications

Parameter NameParameter Value Unit
Product TypeFree Float Steam Trap -
Operating PrincipleSelf-modulating Free Float -
ConnectionJ3X: Screwed / JF3X: Flanged -
Nominal SizeDN15 / DN20 / DN25 -
Body MaterialDuctile Cast Iron -
Maximum Operating PressureJ3X: up to 2.1 / JF3X: up to 1.6 MPaG
Maximum Operating Temperature220 °C
Air VentThermostatic X-element -
Condensate DischargeContinuous and Smooth -
Built-in StrainerLarge-area Integrated Screen -
MaintenanceInline Serviceable -
ApplicationLow-pressure Steam / Small Process Equipment -
