TLV J5X JF5X Free Float steam trap for steam condensate drainage

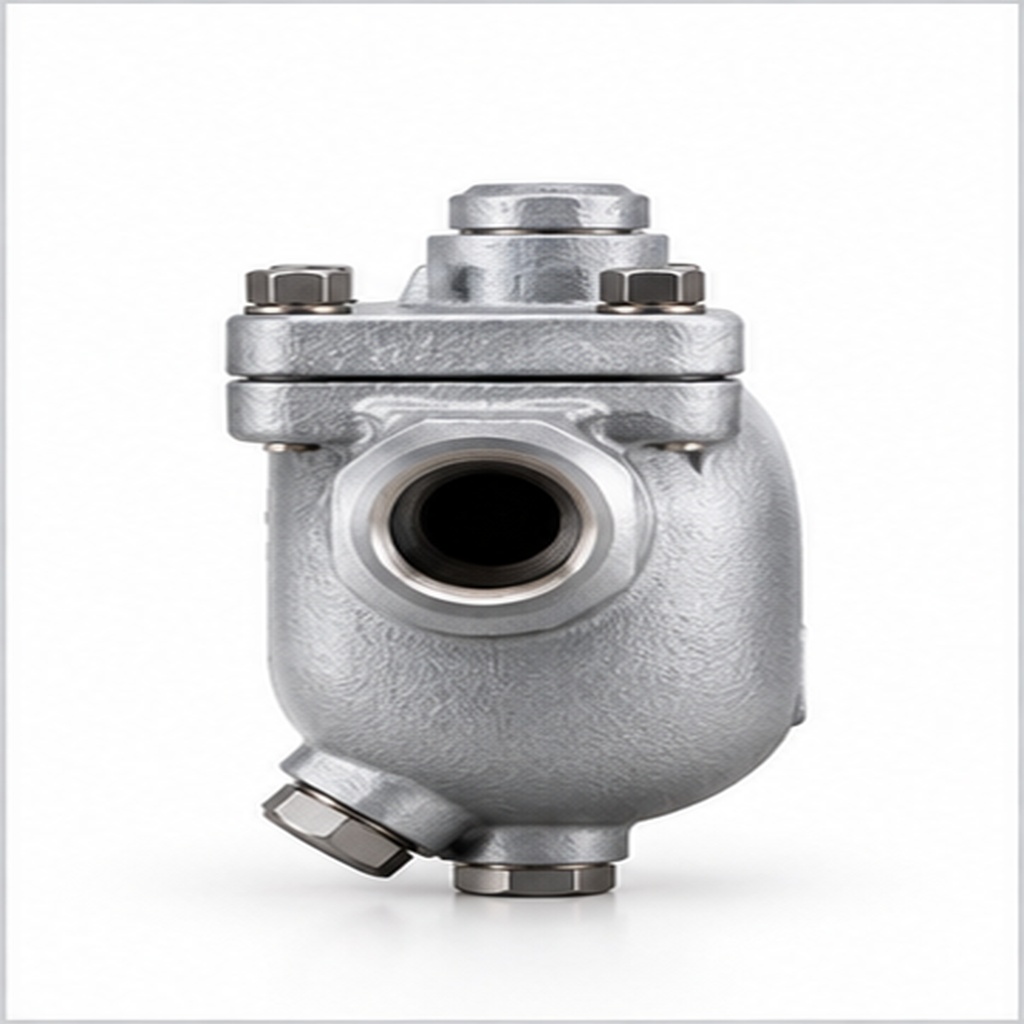

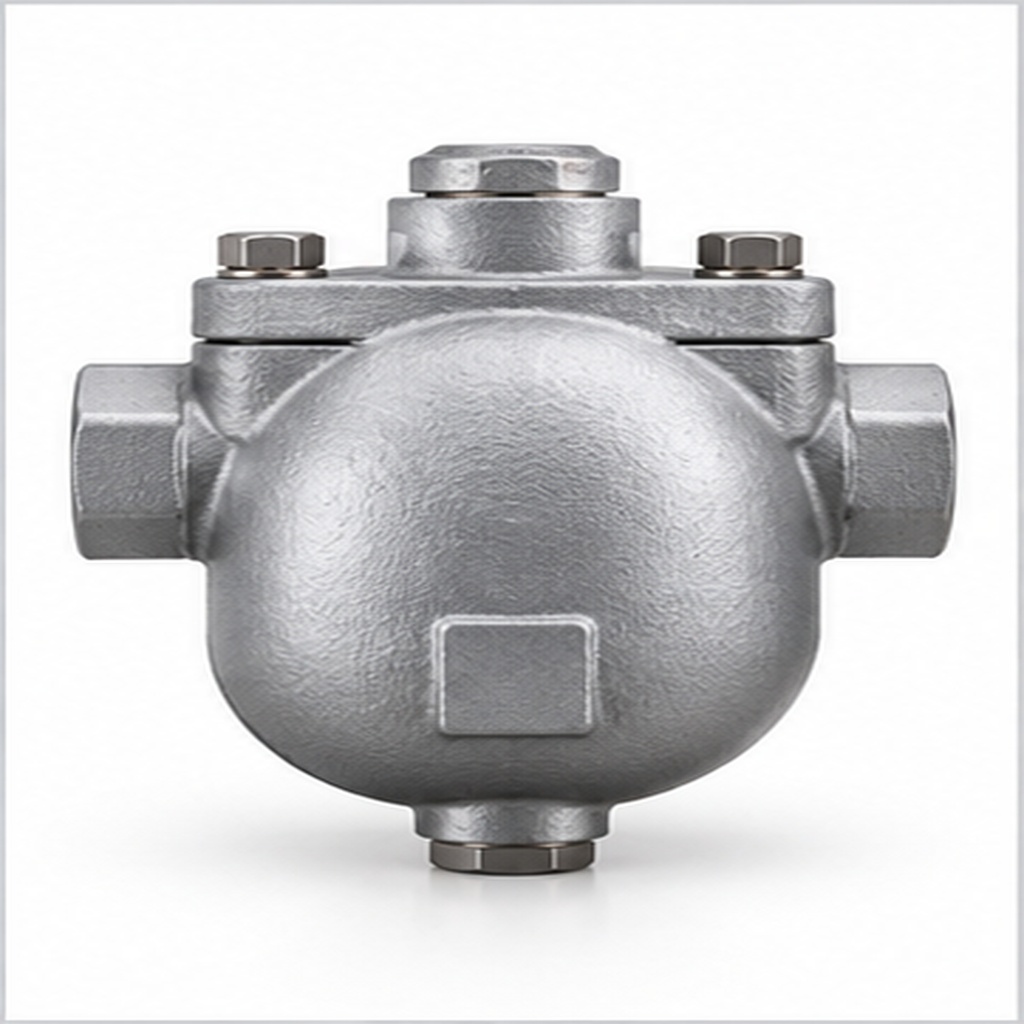

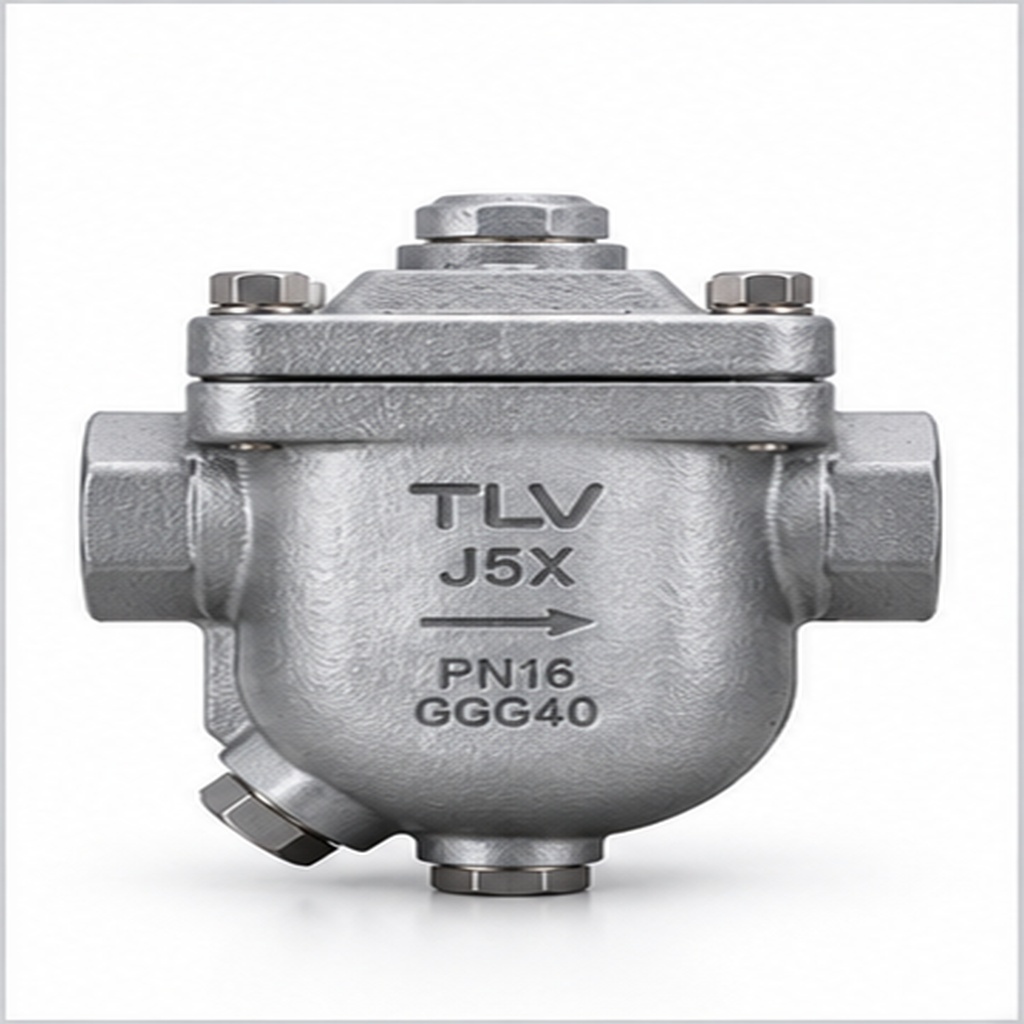

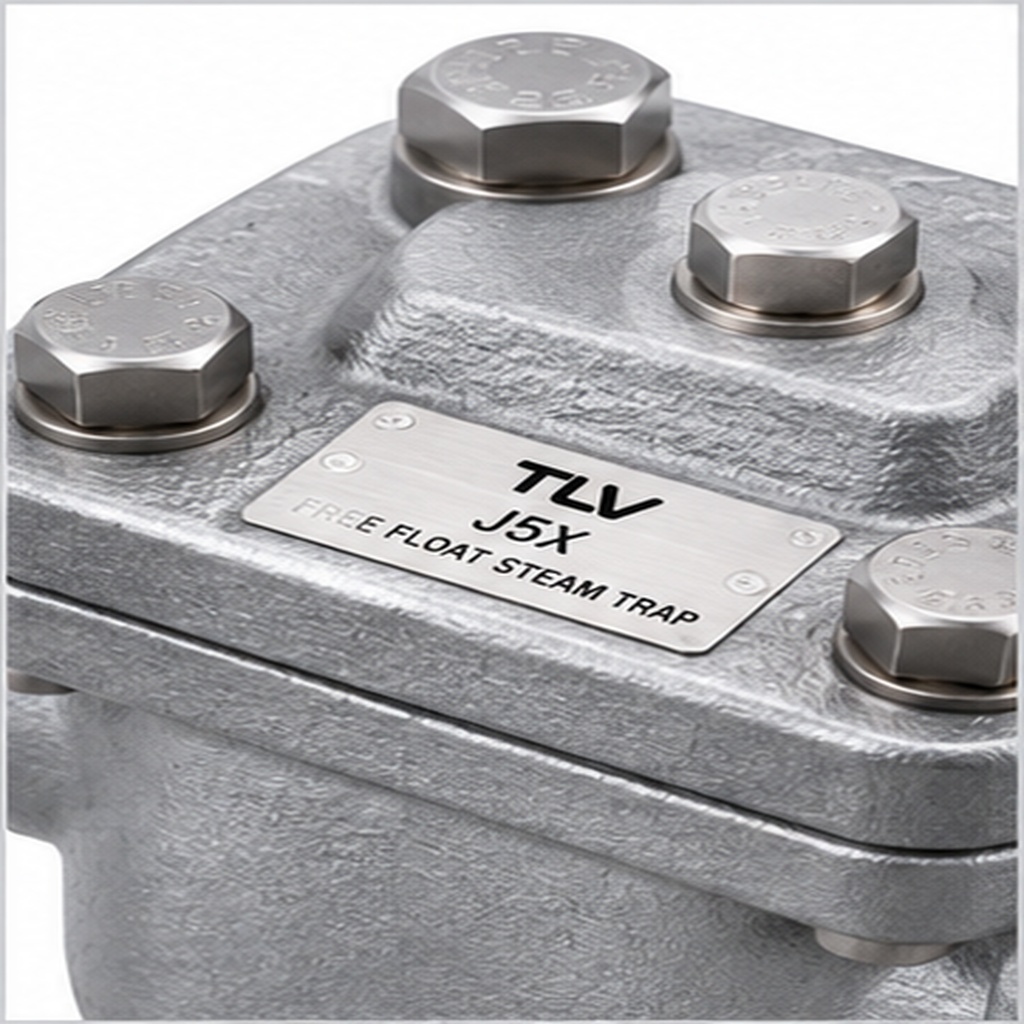

TLV J5X / JF5X Free Float Steam Trap

TLV

Model / Part Number: J5X / JF5X

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

pcsRequest a Quote
WhatsApp InquiryResponse within 1 business day
BrandTLV
Model / Part NumberJ5X / JF5X
Product TypeFree Float Steam Trap -
Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

The TLV J5X / JF5X Free Float Steam Trap is designed for reliable and continuous condensate drainage from small to medium-size steam process equipment.

Its self-modulating Free Float mechanism automatically adjusts condensate discharge according to the actual load, providing smooth and low-velocity drainage as operating conditions change.

The trap uses a simple free float mechanism with only one principal moving part, helping minimise concentrated wear and support long service life.

An integrated thermostatic X-element automatically vents air during start-up and remains open until temperatures approach steam conditions, helping improve start-up performance and heat transfer efficiency.

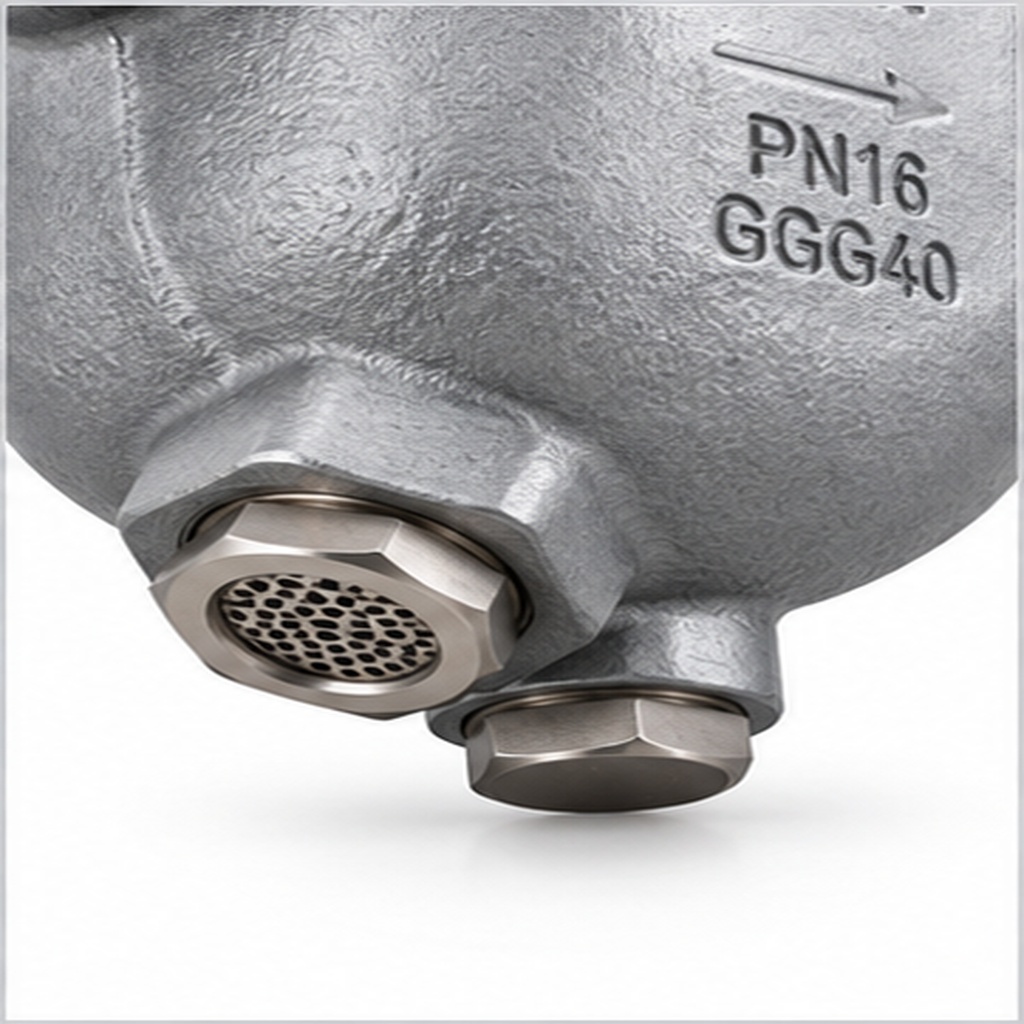

A built-in large-area strainer helps protect the internal valve mechanism from dirt and debris, supporting stable operation and reduced maintenance requirements.

Internal components can be accessed in-line for inspection, cleaning and servicing without removing the complete trap from the piping system.

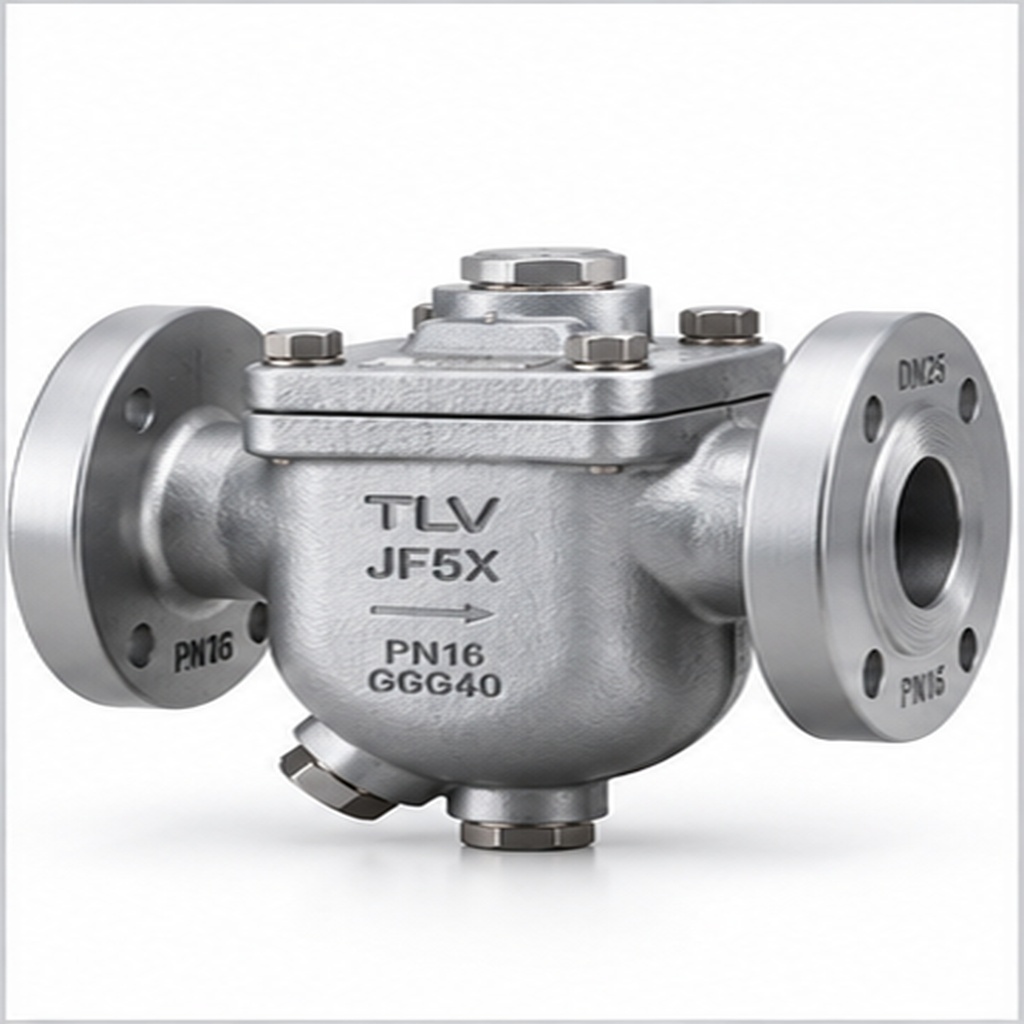

The J5X is available with screwed connections, while the JF5X uses flanged connections. Depending on the selected regional specification, sizes and pressure ratings vary by model and orifice.

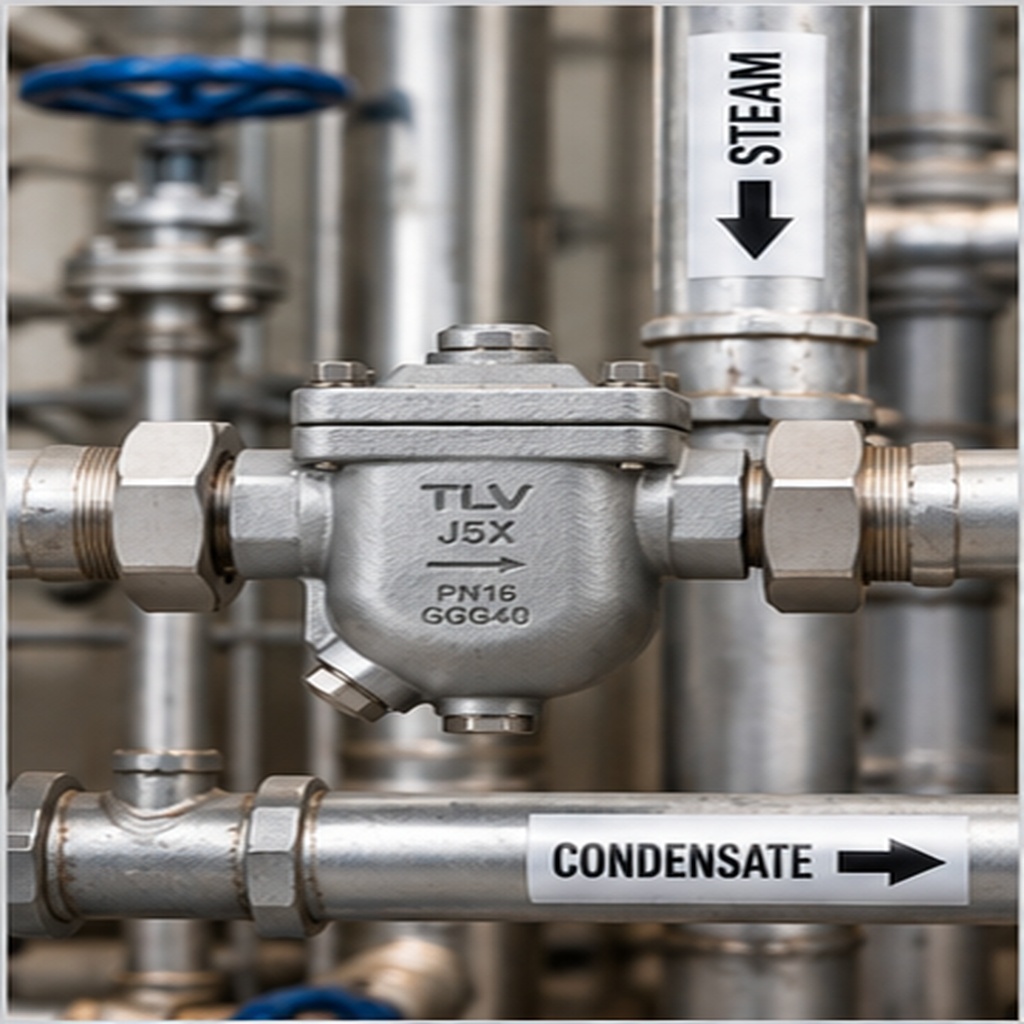

The J5X / JF5X is suitable for steam process equipment, heat exchangers, heating systems, production equipment and other applications requiring reliable continuous condensate discharge.

Please confirm the required model, connection size, operating pressure, orifice and installation conditions before purchase.

⚙ Technical Specifications

Parameter NameParameter Value Unit
Product TypeFree Float Steam Trap -
Operating PrincipleSelf-modulating Free Float -
Connection TypeJ5X: Screwed / JF5X: Flanged -
Nominal SizeDN15 / DN20 / DN25 -
Body MaterialDuctile Cast Iron -
Maximum Operating PressureUp to 2.1 MPaG
Maximum Operating Temperature200 °C
Air Vent TypeThermostatic X-element -
Condensate DischargeContinuous and Smooth -
Built-in StrainerLarge-area Integrated Strainer -
MaintenanceInline Serviceable Design -
ApplicationSmall to Medium Steam Process Equipment -
اسم المعلمةقيمة المعلمة الوحدة
نوع المنتجمصيدة بخار ذات عوامة حرة -
مبدأ التشغيلعوامة حرة ذاتية التنظيم -
نوع التوصيلJ5X: ملولب / JF5X: ذو شفة -
المقاس الاسميDN15 / DN20 / DN25 -
مادة الهيكلحديد زهر مطيل -
أقصى ضغط تشغيلحتى 2.1 MPaG
أقصى درجة حرارة تشغيل200 °C
نوع تنفيس الهواءعنصر حراري X-element -
تصريف المكثفاتمستمر وسلس -
المصفاة المدمجةمصفاة مدمجة ذات مساحة كبيرة -
الصيانةتصميم يسمح بالصيانة داخل خط الأنابيب -
التطبيقمعدات العمليات البخارية الصغيرة والمتوسطة -

▦ Typical Applications

  • Steam Systems
  • Process Equipment & Condensate Drainage

▰ Availability & Delivery

Availability & DeliveryAvailability subject to quotation and stock confirmation
Lead TimeAvailability and lead time depend on the required model, connection size, connection standard, orifice and operating pressure. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping OptionsAir freight, sea freight, express
PackagingSecure export packaging

? FAQ

What is the TLV J5X / JF5X Free Float Steam Trap used for?

The TLV J5X / JF5X is designed for continuous condensate drainage from small to medium steam process equipment, heat exchangers and low-pressure steam systems.

What is the difference between J5X and JF5X?

The main difference is the connection type. The J5X model uses screwed connections, while the JF5X model uses flanged connections. Both use the same Free Float steam trap technology.

Does the TLV J5X / JF5X automatically remove air?

Yes. The built-in thermostatic X-element automatically vents air during start-up and improves steam system performance by reducing air accumulation.

What are the advantages of the Free Float design?

The Free Float mechanism provides continuous and smooth condensate discharge, automatically adjusting to changing condensate loads while reducing steam loss.

What should be confirmed before ordering the TLV J5X / JF5X?

Please confirm the model, connection type, nominal size, operating pressure, differential pressure and installation conditions before ordering to ensure the correct configuration.
