Trolex TX6363 infrared gas detector for methane and carbon dioxide monitoring

Trolex TX6363 Infrared Gas Detector and Transmitter

Q: What gases can the Trolex TX6363 detect?

The Trolex TX6363 is available for methane and carbon dioxide monitoring. The required gas type and measurement range should be confirmed when selecting the detector configuration.

Q: What sensing technology does the TX6363 use?

The TX6363 uses infrared gas sensing technology, providing stable long-term measurement and resistance to common sensor poisoning effects found with some conventional gas sensing methods.

Q: What output signals are available on the TX6363?

Depending on the selected configuration, the TX6363 can provide 4–20 mA, 0.4–2 V and 5–15 Hz output signals for integration with industrial monitoring and control systems.

Q: Does the TX6363 have a local display?

Yes. The TX6363 includes a local LCD display that allows gas concentration and operating information to be viewed directly at the detector.

Q: What should be confirmed before ordering the TX6363?

Before ordering, please confirm the target gas, measurement range, output signal, hazardous-area certification and connection requirements. Different configurations may have different specifications and lead times.

Trolex

Model / Part Number: TX6363 Infrared Gas Detector

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandTrolex

Model / Part NumberTX6363 Infrared Gas Detector

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

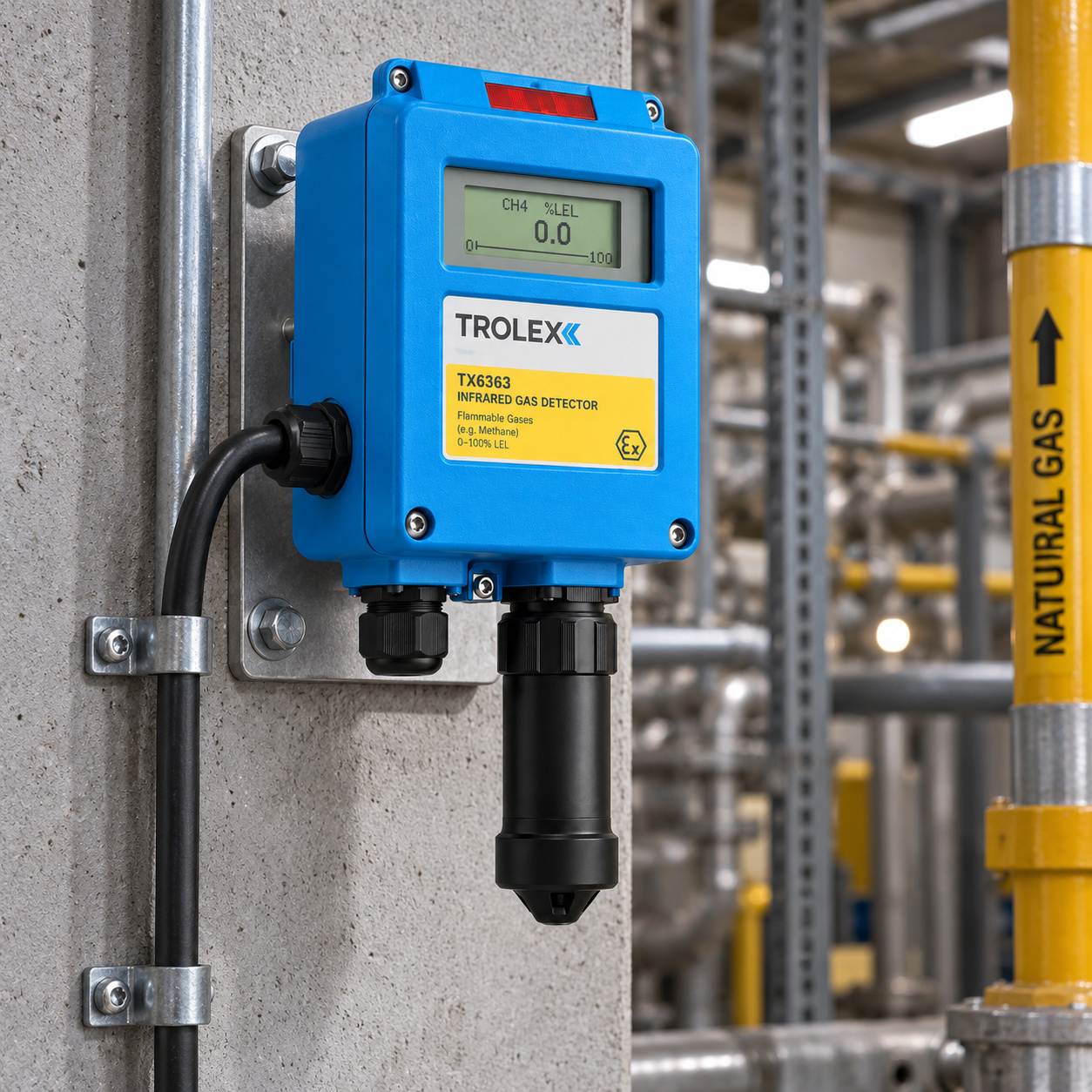

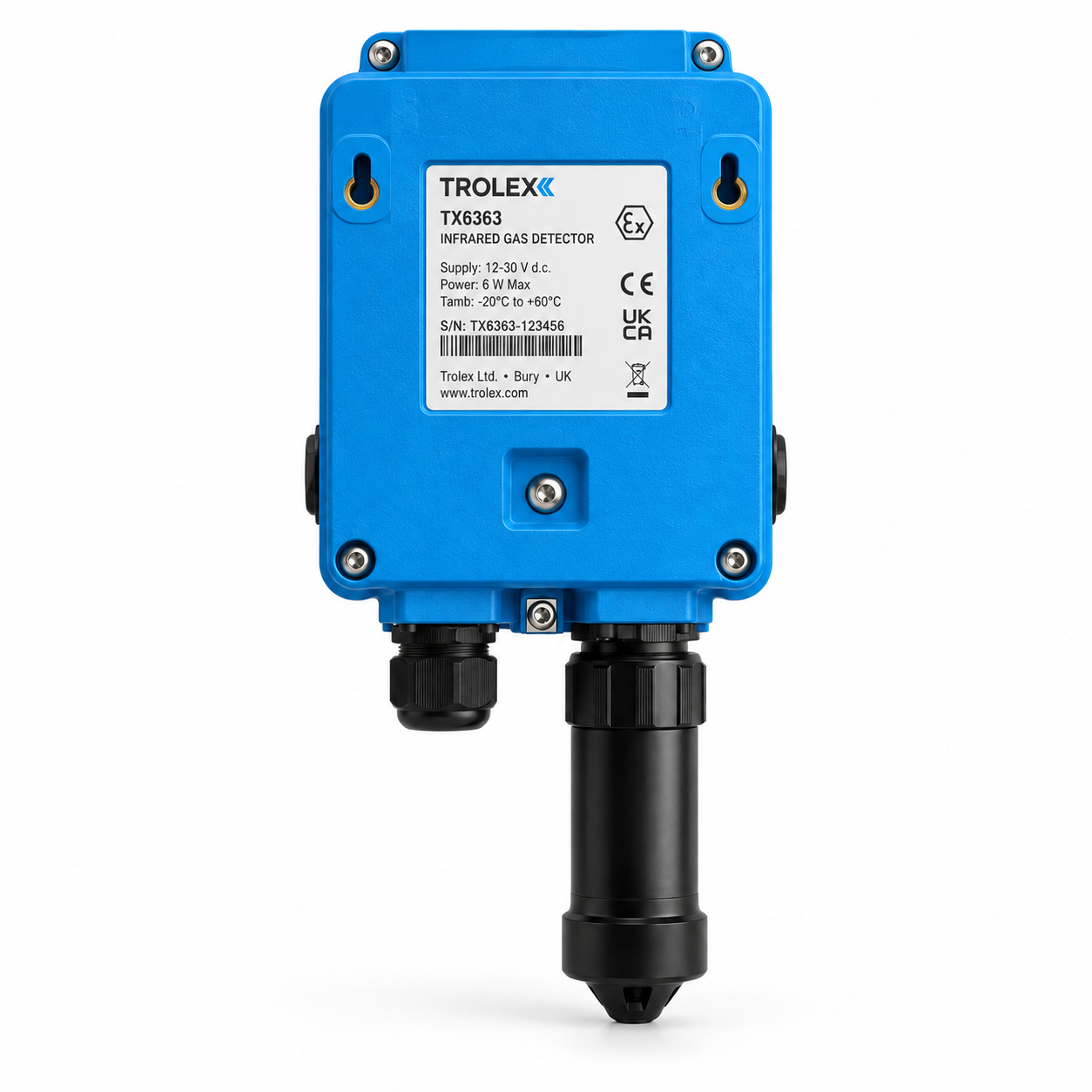

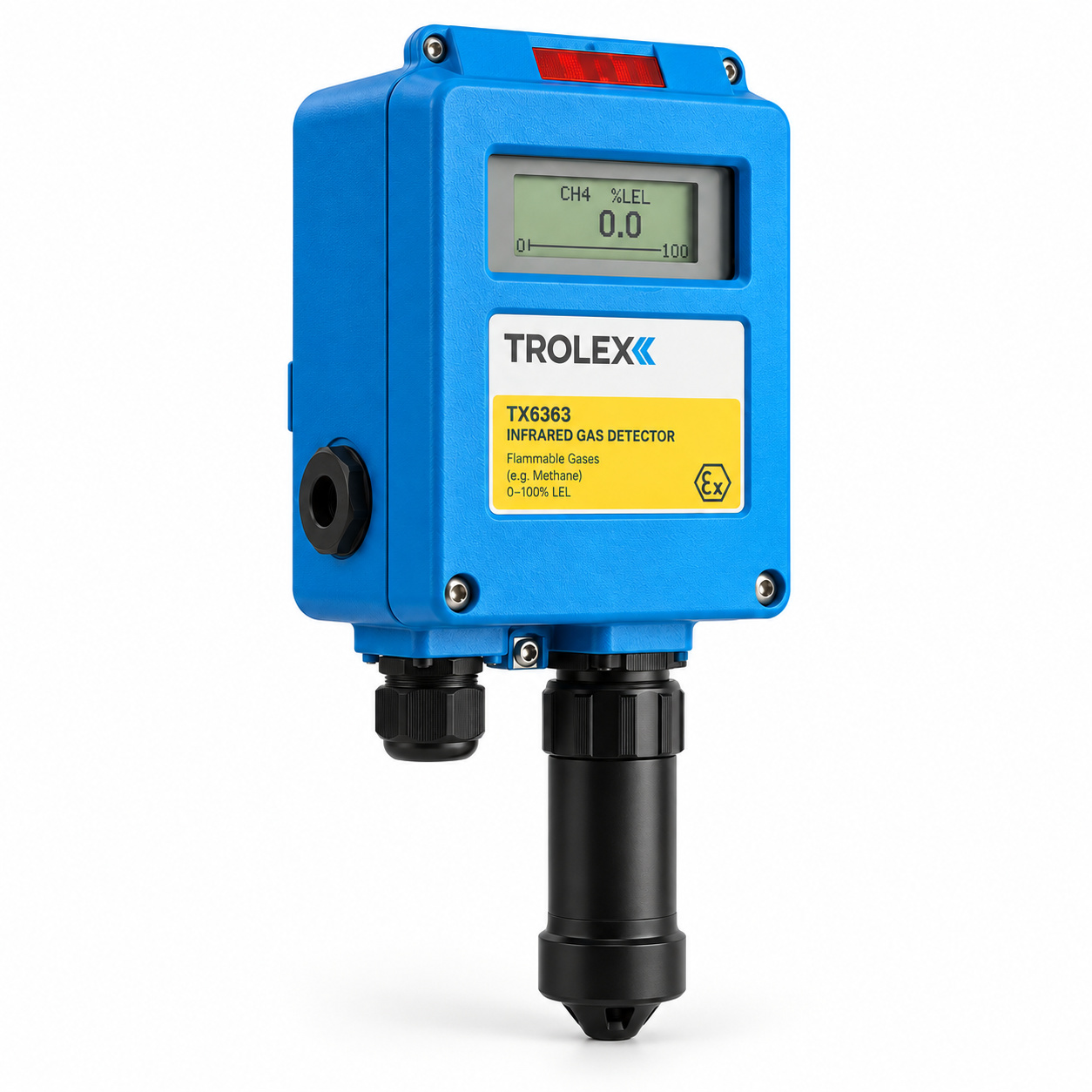

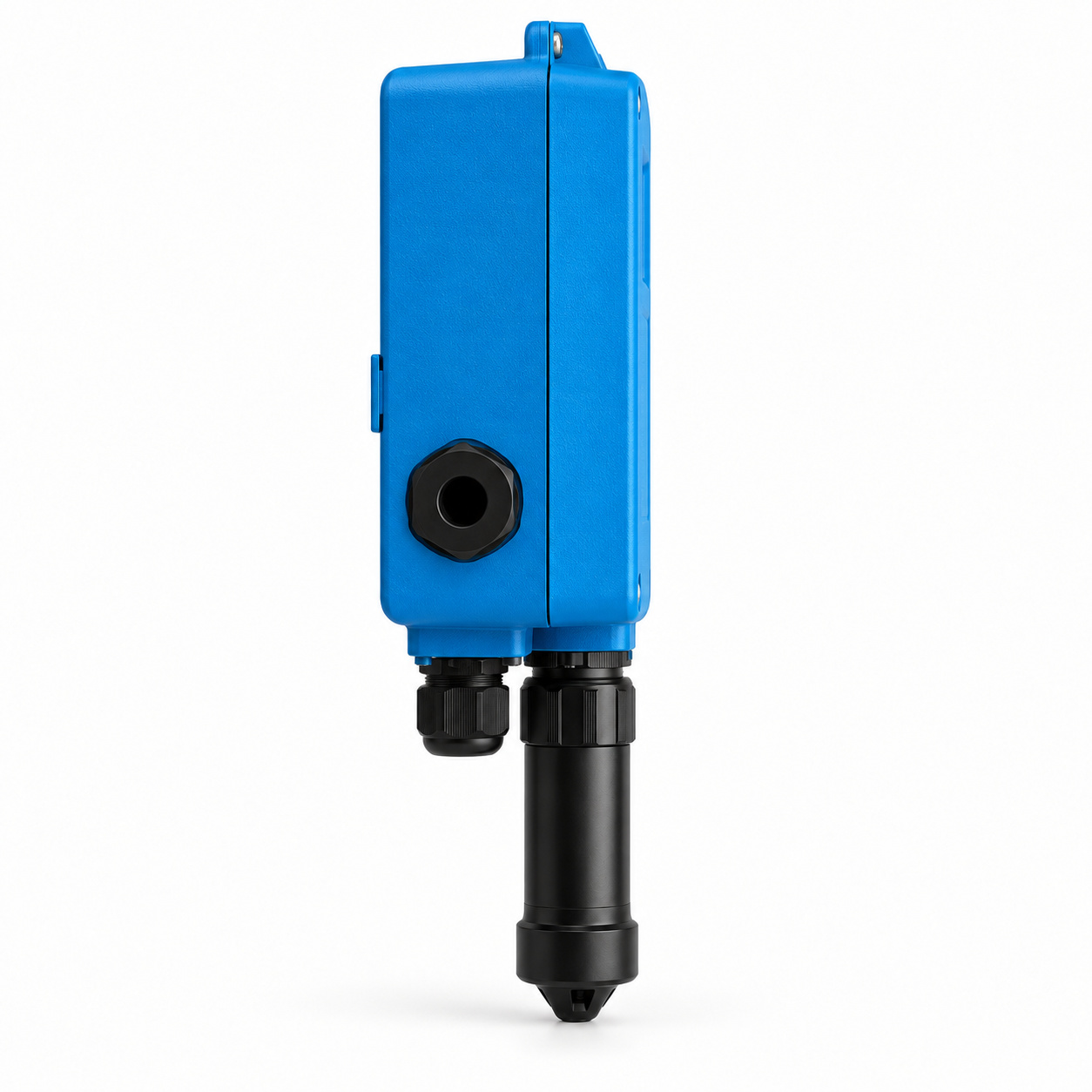

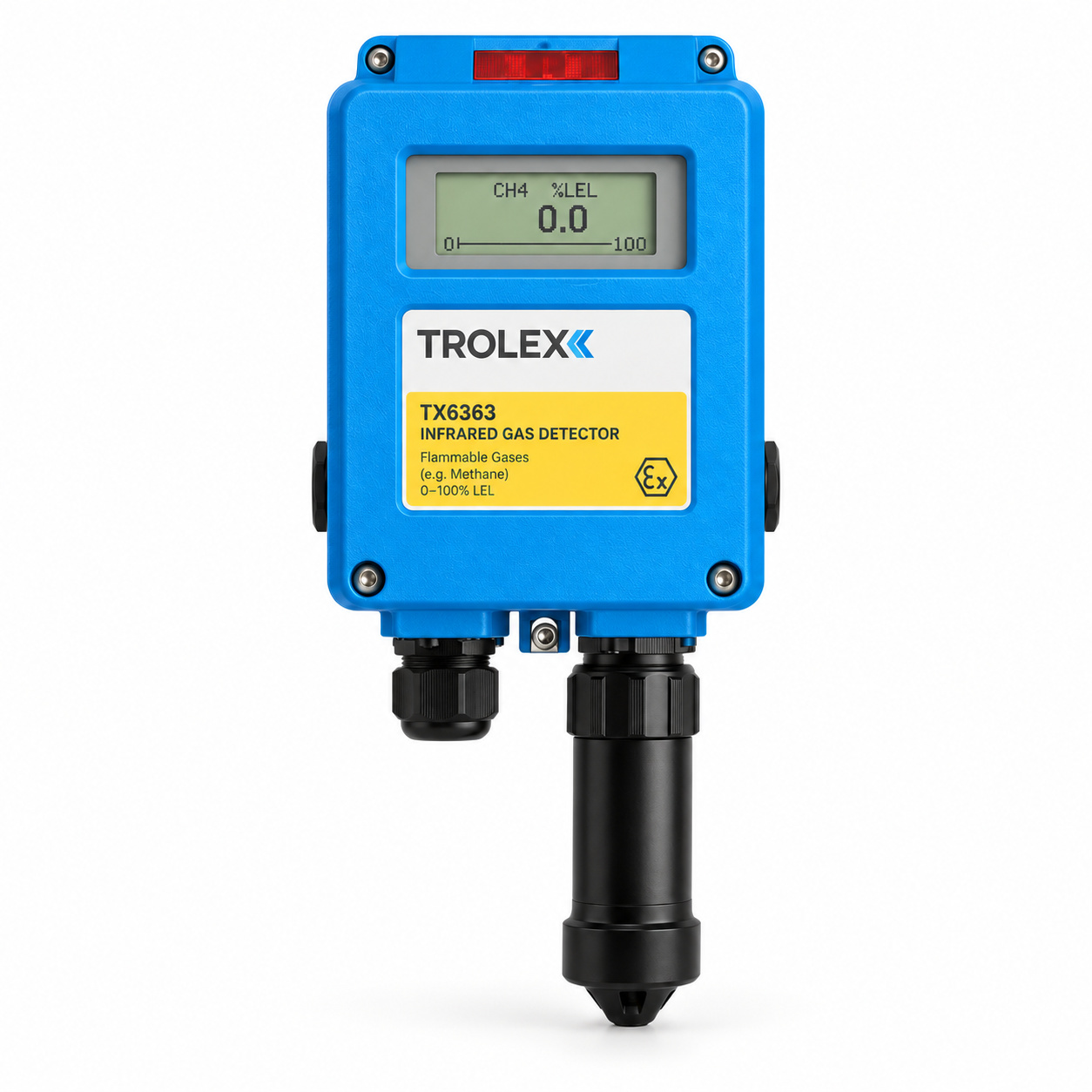

The Trolex TX6363 Infrared Gas Detector and Transmitter is designed for continuous fixed-point monitoring of methane or carbon dioxide in hazardous and demanding industrial environments.

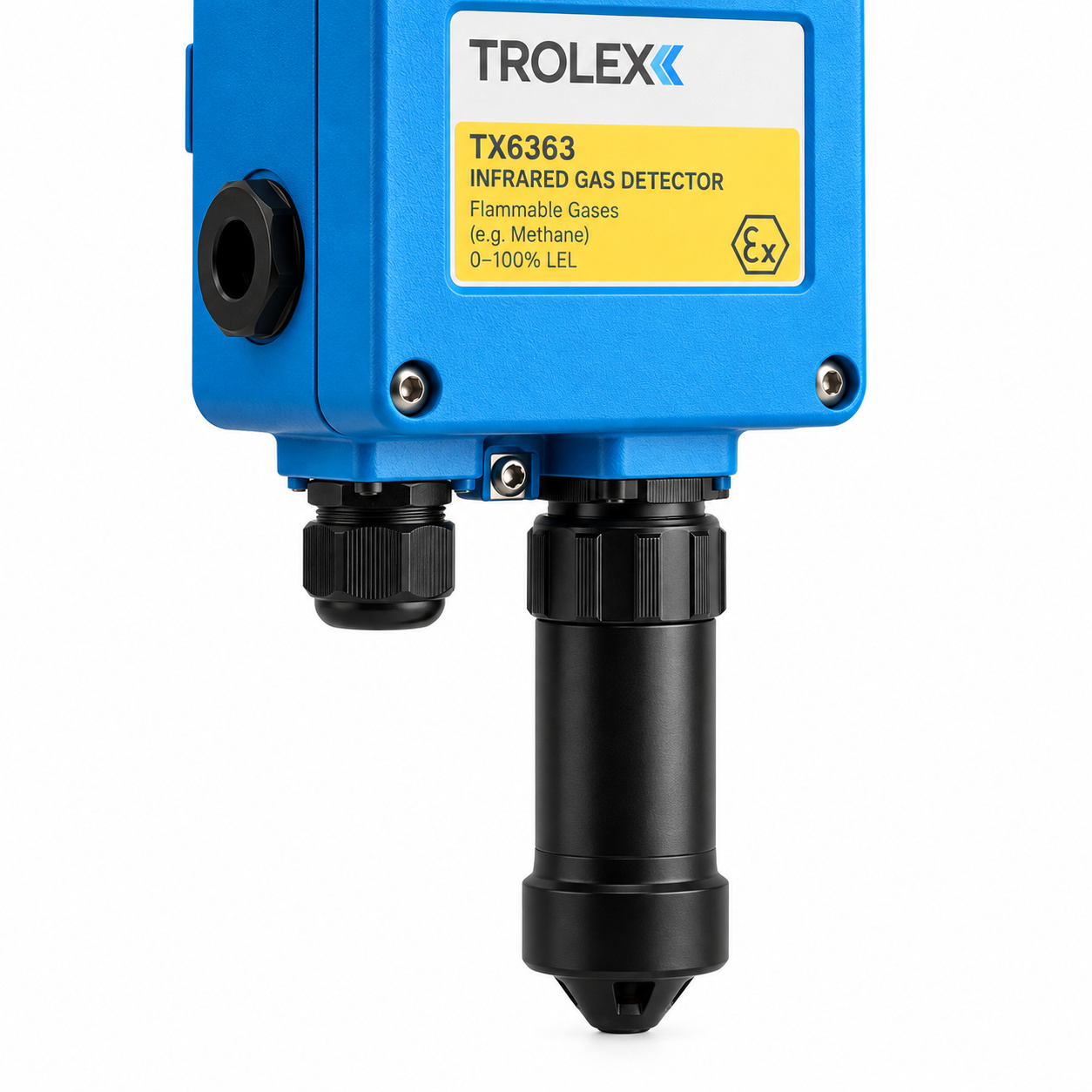

The detector uses infrared sensing technology that provides long-term stability and resistance to sensor poisoning. Interchangeable pre-calibrated plug-in gas sensing modules simplify servicing and replacement while helping reduce maintenance requirements.

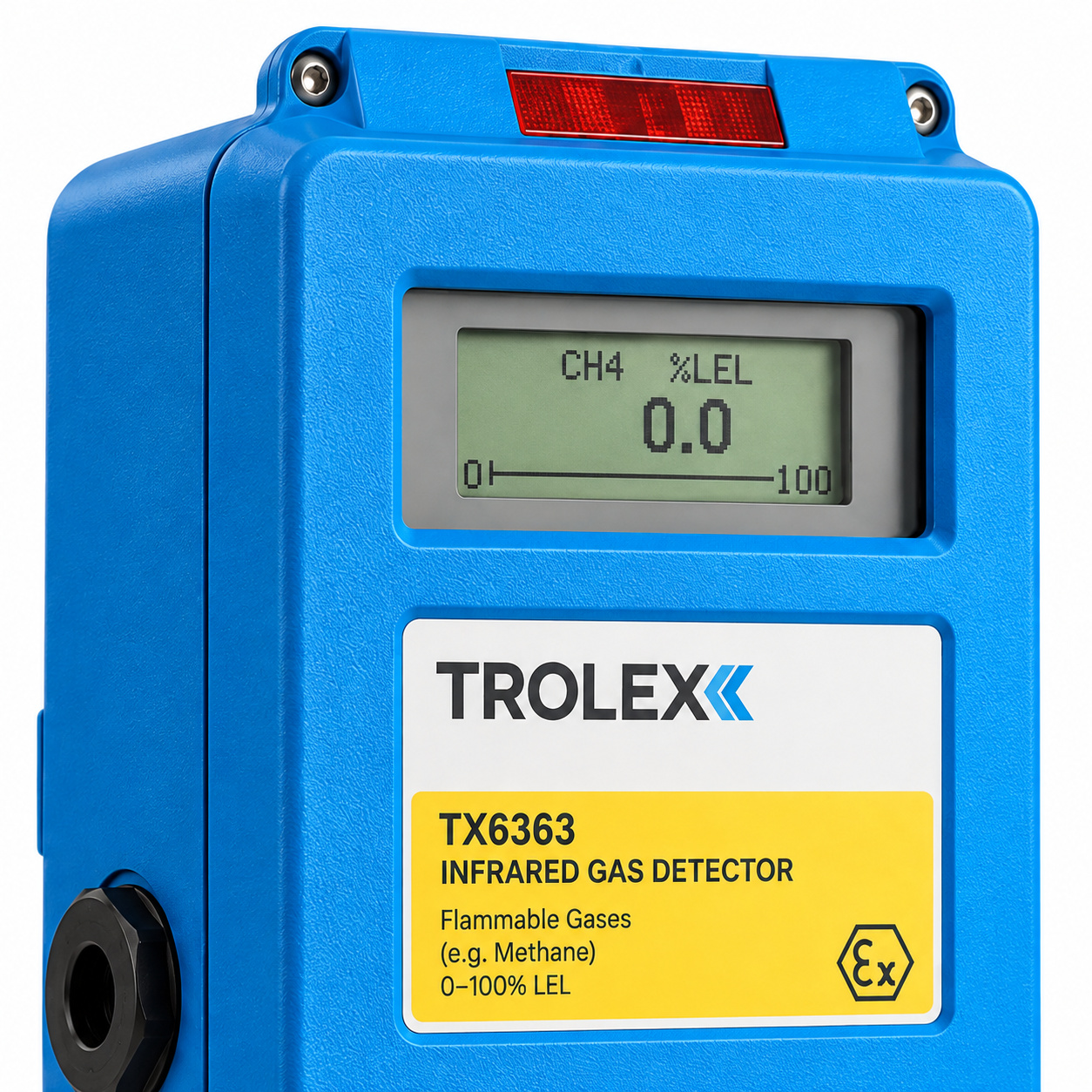

The TX6363 provides a local LCD readout of gas concentration, allowing operating conditions and gas levels to be checked directly at the installation point.

Depending on the selected configuration, output signal options include 4–20 mA, 0.4–2 V and 5–15 Hz, enabling integration with industrial monitoring, control and safety systems.

The detector is available with methane or carbon dioxide sensing modules. Methane configurations can be specified for different measurement ranges, while carbon dioxide versions are available for dedicated CO2 monitoring applications.

Its reinforced polymer housing is designed to resist electrostatic charge, and intrinsically safe versions are available for Group I and Group II hazardous areas.

Typical applications include mining, tunnelling, petrochemical processing, offshore installations, manufacturing and process plants, gas storage and distribution, wastewater treatment, power generation and other industrial gas monitoring applications.

Please confirm the required gas type, measurement range, output signal and certification before placing an order.

⚙ Technical Specifications

Parameter Name	Parameter Value Unit
Detection Technology	Infrared -
Detected Gases	Methane / Carbon Dioxide -
Methane Measuring Range	0–4.4% v/v (0–100% LEL) or 0–100% v/v -
Carbon Dioxide Measuring Range	0–5% v/v -
Display	3.5 Digit LCD -
Output Signal	4–20 mA / 0.4–2 V / 5–15 Hz -
Response Time (T90)	20 s
Warm-up Time	<20 s
Ingress Protection	IP66 housing / IP52 gas inlet -
Housing Material	Reinforced Polymer -
اسم المعلمة	قيمة المعلمة الوحدة
تقنية الكشف	الأشعة تحت الحمراء -
الغازات المكتشفة	الميثان / ثاني أكسيد الكربون -
نطاق قياس الميثان	0–4.4% v/v (0–100% LEL) أو 0–100% v/v -
نطاق قياس ثاني أكسيد الكربون	0–5% v/v -
الشاشة	شاشة LCD رقمية 3.5 -
إشارة الخرج	4–20 mA / 0.4–2 V / 5–15 Hz -
زمن الاستجابة (T90)	20 s
وقت الإحماء	<20 s
درجة الحماية	IP66 للهيكل / IP52 لمدخل الغاز -
مادة الهيكل	بوليمر مقوى -

▦ Typical Applications

Mining
Tunnelling & Hazardous Industrial Gas Monitoring

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Please confirm the target gas, sensing range, output signal, hazardous-area certification and connection requirements before ordering. Methane and carbon dioxide versions are available with different configurations.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What gases can the Trolex TX6363 detect?

The Trolex TX6363 is available for methane and carbon dioxide monitoring. The required gas type and measurement range should be confirmed when selecting the detector configuration.

What sensing technology does the TX6363 use?

The TX6363 uses infrared gas sensing technology, providing stable long-term measurement and resistance to common sensor poisoning effects found with some conventional gas sensing methods.

What output signals are available on the TX6363?

Depending on the selected configuration, the TX6363 can provide 4–20 mA, 0.4–2 V and 5–15 Hz output signals for integration with industrial monitoring and control systems.

Does the TX6363 have a local display?

Yes. The TX6363 includes a local LCD display that allows gas concentration and operating information to be viewed directly at the detector.

What should be confirmed before ordering the TX6363?

Before ordering, please confirm the target gas, measurement range, output signal, hazardous-area certification and connection requirements. Different configurations may have different specifications and lead times.
