Trolex TX6373 Toxic Gas Detector

Trolex

Model / Part Number: TX6373 Toxic Gas Detector

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandTrolex

Model / Part NumberTX6373 Toxic Gas Detector

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

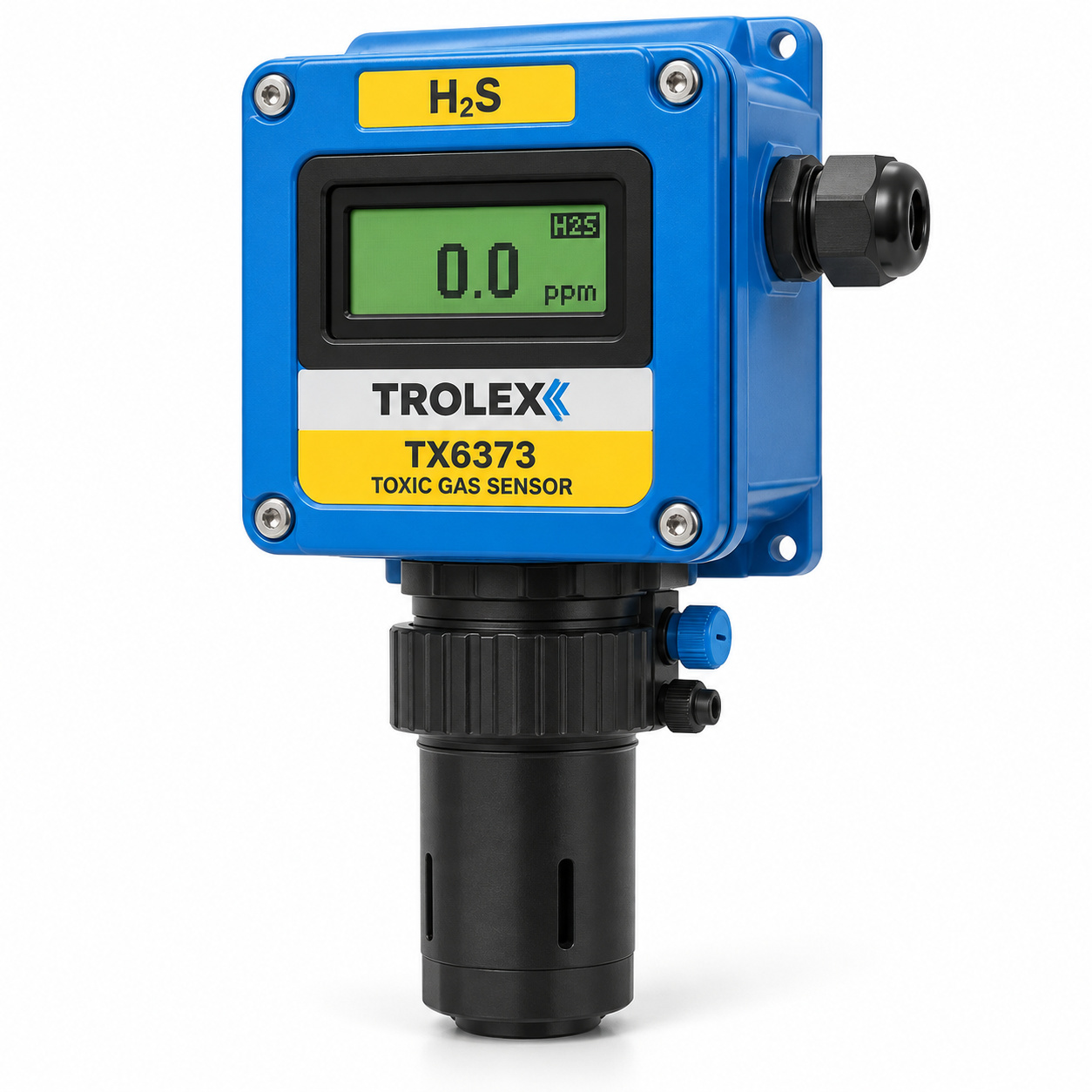

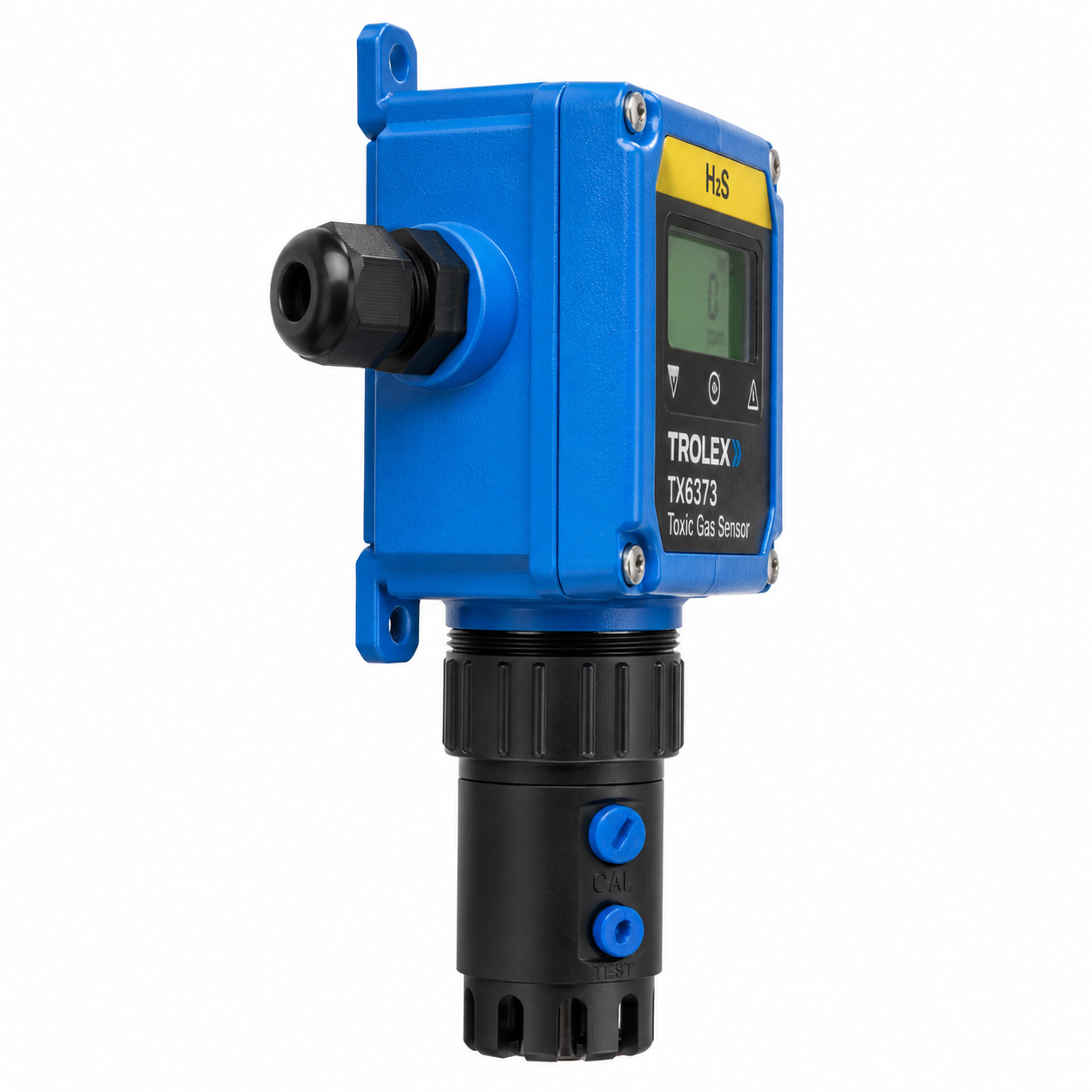

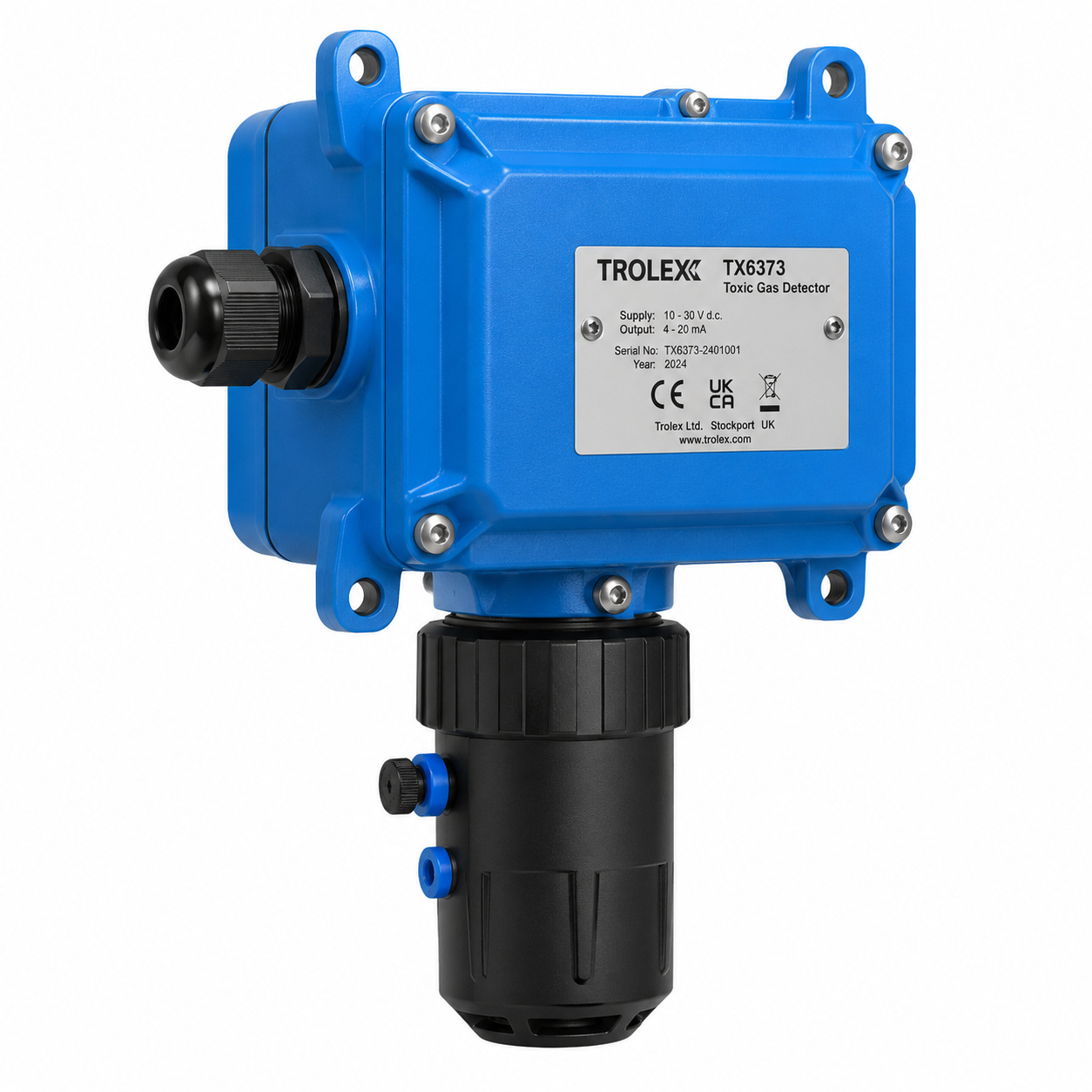

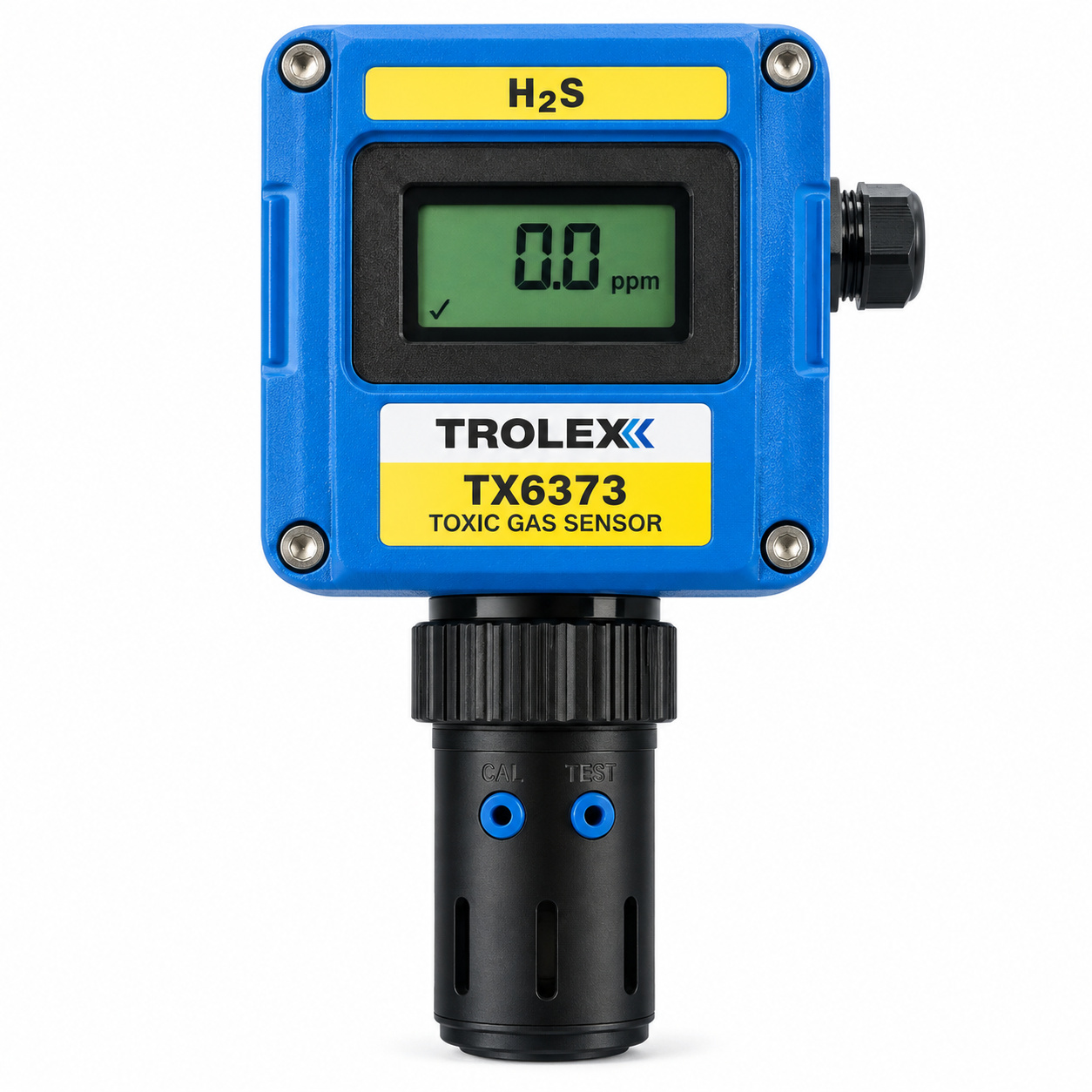

The Trolex TX6373 Toxic Gas Detector is a fixed gas monitoring instrument using high-accuracy electrochemical sensing technology for continuous detection of toxic and industrial gases in demanding environments.

The TX6373 can be configured for a wide range of gases including CO, H2S, SO2, H2, NH3, NO2, Cl2, NO and O2, depending on the selected sensing module and application requirements.

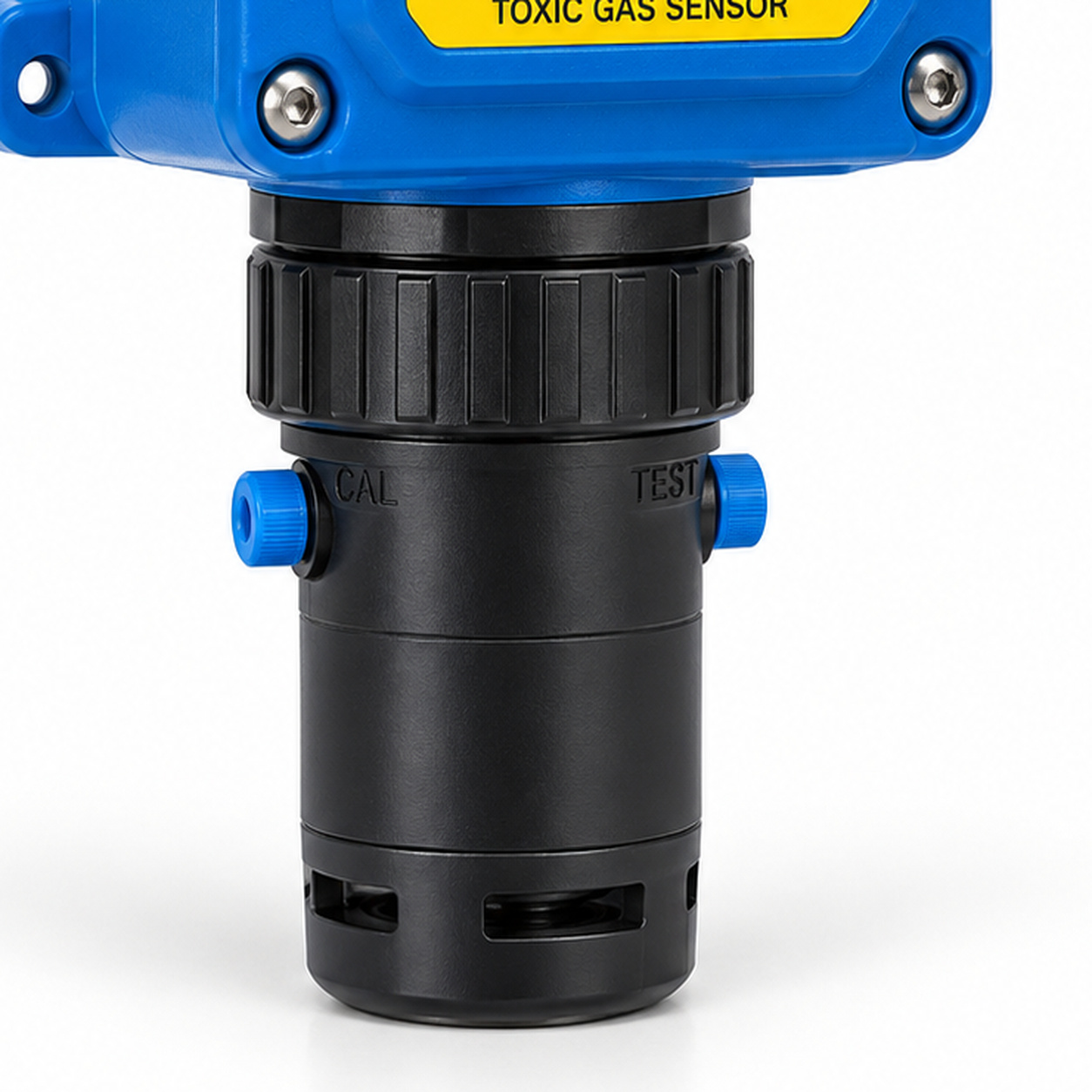

Its pre-calibrated plug-in gas sensing module provides a standardised output and allows convenient sensor replacement and servicing. ZERO and SPAN calibration can be carried out using the integrated push-button calibration function.

Depending on configuration, available output signals include 4–20 mA, 0.4–2 V and 5–15 Hz, allowing integration with industrial control, alarm and monitoring systems.

The detector features a rugged anti-static polycarbonate/ABS housing and intrinsically safe configurations are available for Group I and Group II hazardous areas.

The TX6373 is suitable for SIL 1 and SIL 2 applications when used in accordance with the applicable conditions and restrictions.

An optional remote-mounted gas sensing module is also available for applications where the sensing point needs to be separated from the main transmitter.

Typical applications include mining, chemical processing, heavy industry, process plants, hazardous areas and other facilities requiring continuous toxic gas monitoring.

Please confirm the required gas type, measurement range, output signal and certification before purchase.

⚙ Technical Specifications

Parameter Name	Parameter Value Unit
Detection Technology	Electrochemical -
Supported Gases	CO / H2S / SO2 / H2 / NH3 / NO2 / Cl2 / NO / O2 -
Output Signals	4–20 mA / 0.4–2 V / 5–15 Hz -

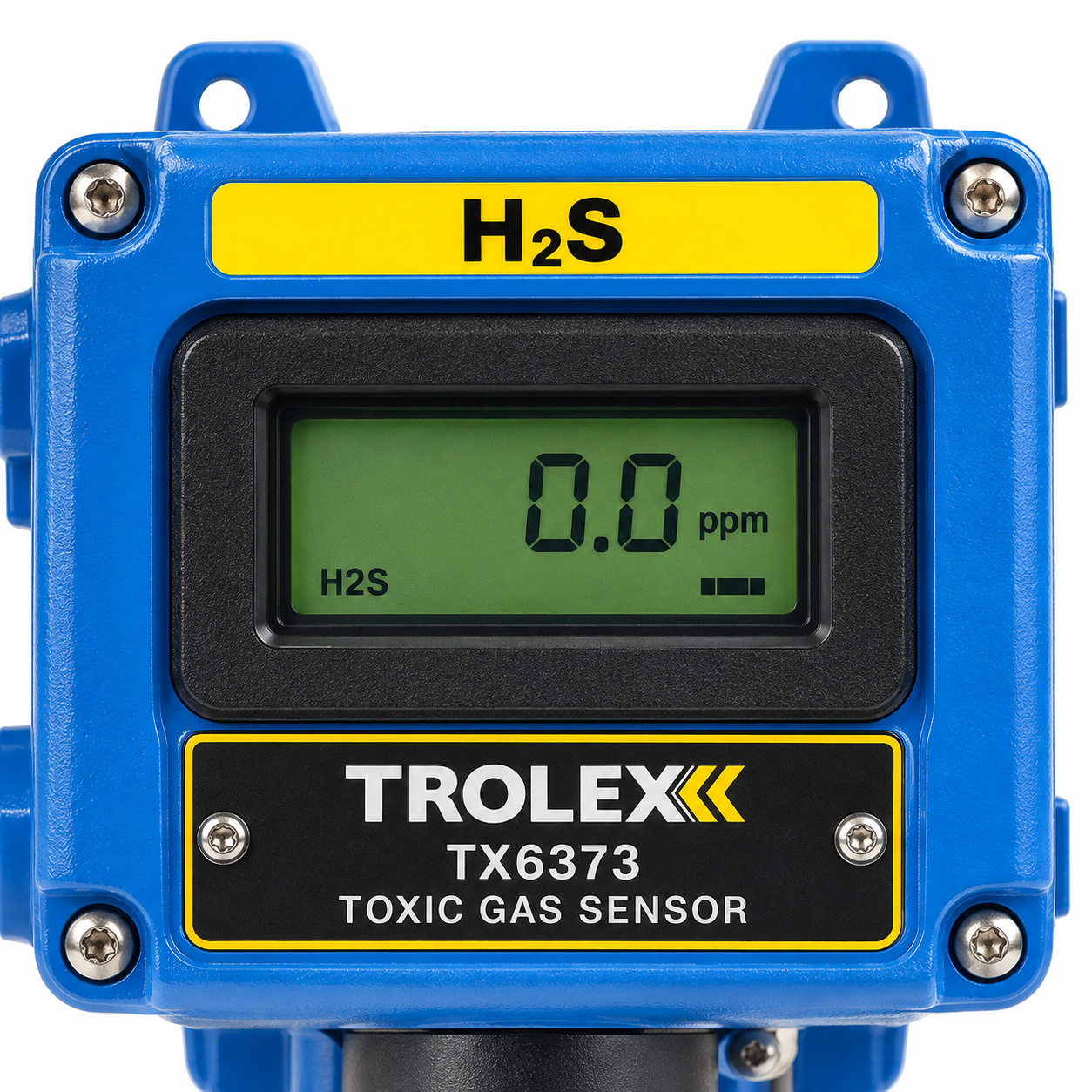

Display	Graphic LCD -
Ambient Temperature	-10 to +50 °C
Storage Temperature	-20 to +60 °C
Humidity	Up to 90% RH, non-condensing -
Protection Rating	IP66 housing / IP54 gas inlet -
Housing Material	Anti-static Polycarbonate / ABS -
Net Weight	450 g

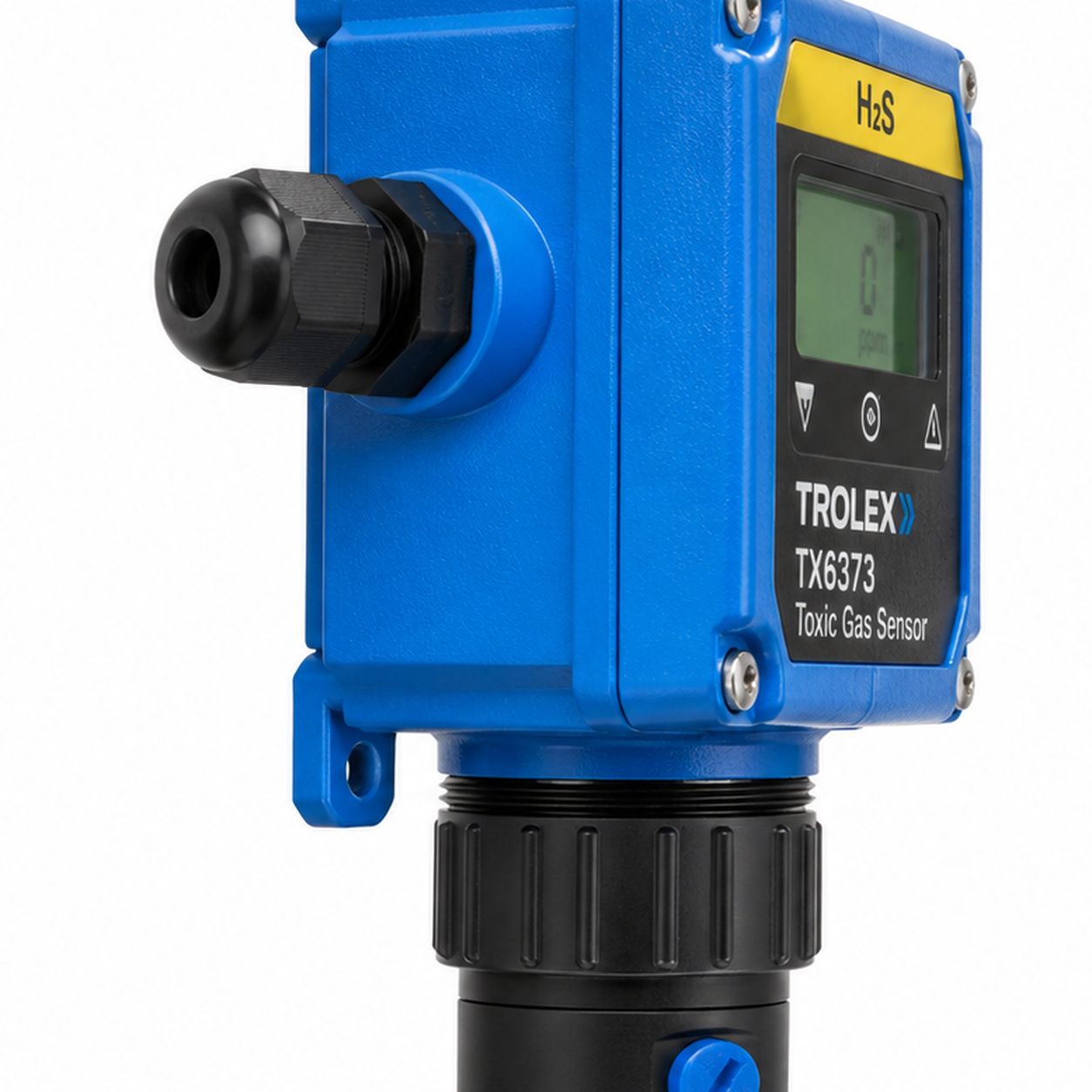

Cable Entry	M20 × 1.5 -
اسم المعلمة	قيمة المعلمة الوحدة
تقنية الكشف	كهروكيميائية -
الغازات المدعومة	CO / H2S / SO2 / H2 / NH3 / NO2 / Cl2 / NO / O2 -
إشارات الخرج	4–20 mA / 0.4–2 V / 5–15 Hz -
الشاشة	شاشة LCD رسومية -
درجة حرارة التشغيل	-10 إلى +50 °C
درجة حرارة التخزين	-20 إلى +60 °C
الرطوبة	حتى 90% RH بدون تكاثف -
درجة الحماية	IP66 للهيكل / IP54 لمدخل الغاز -
مادة الهيكل	بولي كربونات / ABS مضاد للكهرباء الساكنة -
الوزن الصافي	450 g
مدخل الكابل	M20 × 1.5 -

▦ Typical Applications

Mining
Chemical Processing & Hazardous Industrial Gas Monitoring

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and lead time depend on the required gas type, measurement range, output signal and certification. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What gases can the Trolex TX6373 detect?

The Trolex TX6373 can be configured for gases including CO, H2S, SO2, H2, NH3, NO2, Cl2, NO and O2, depending on the selected sensing module and application requirements.

What sensing technology does the TX6373 use?

The TX6373 uses high-accuracy electrochemical sensing technology for continuous monitoring of toxic gases in industrial and hazardous-area applications.

What output signals are available on the Trolex TX6373?

Depending on the selected configuration, the TX6373 can provide 4–20 mA, 0.4–2 V and 5–15 Hz output signals for integration with industrial control, alarm and monitoring systems.

Can the gas sensing module in the TX6373 be replaced?

Yes. The TX6373 uses pre-calibrated plug-in gas sensing modules, helping simplify sensor replacement and maintenance for different gas monitoring applications.

What should be confirmed before ordering the Trolex TX6373?

Before ordering, please confirm the target gas, measurement range, output signal, hazardous-area certification and sensing module configuration. Specifications and lead times may vary depending on the selected version.
