Trolex TX8005 AIR XD Real-Time Area Dust Monitor

Trolex

Model / Part Number: TX8005 AIR XD

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandTrolex

Model / Part NumberTX8005 AIR XD

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

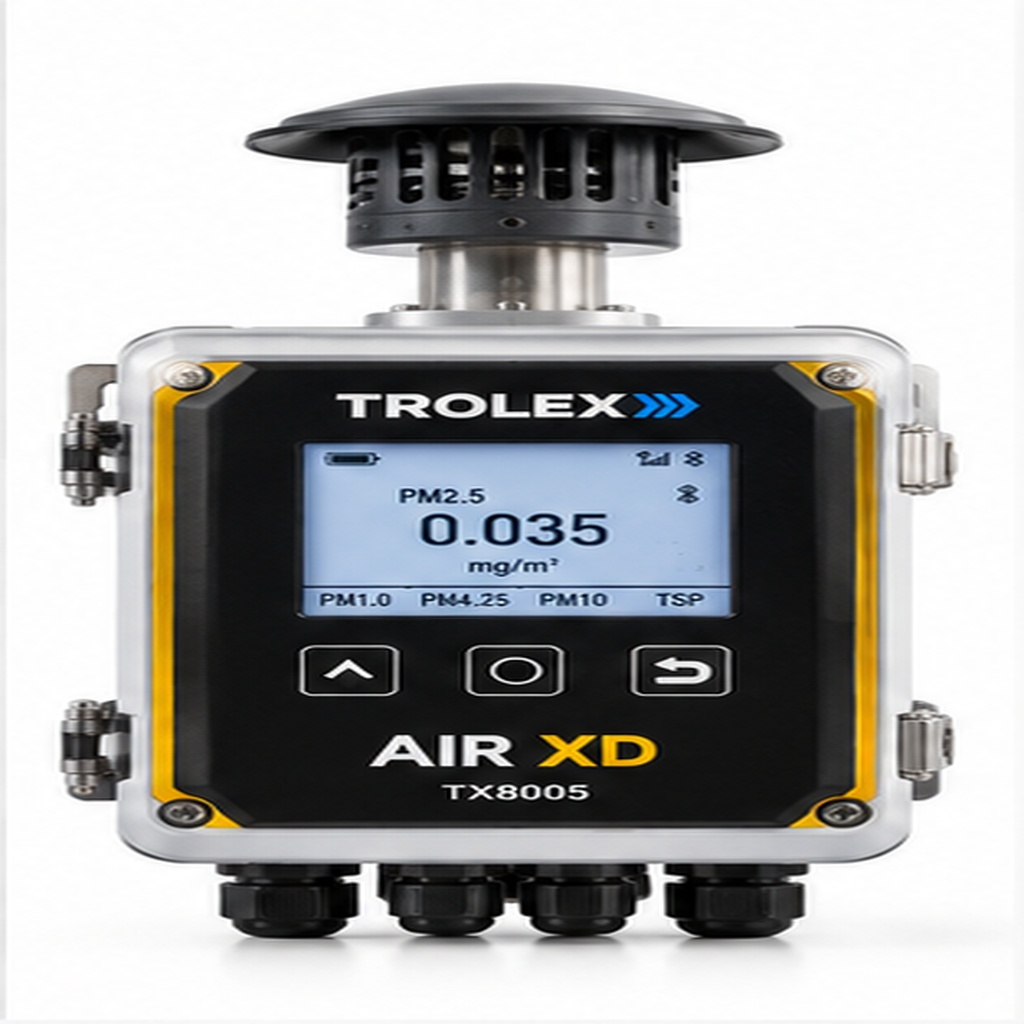

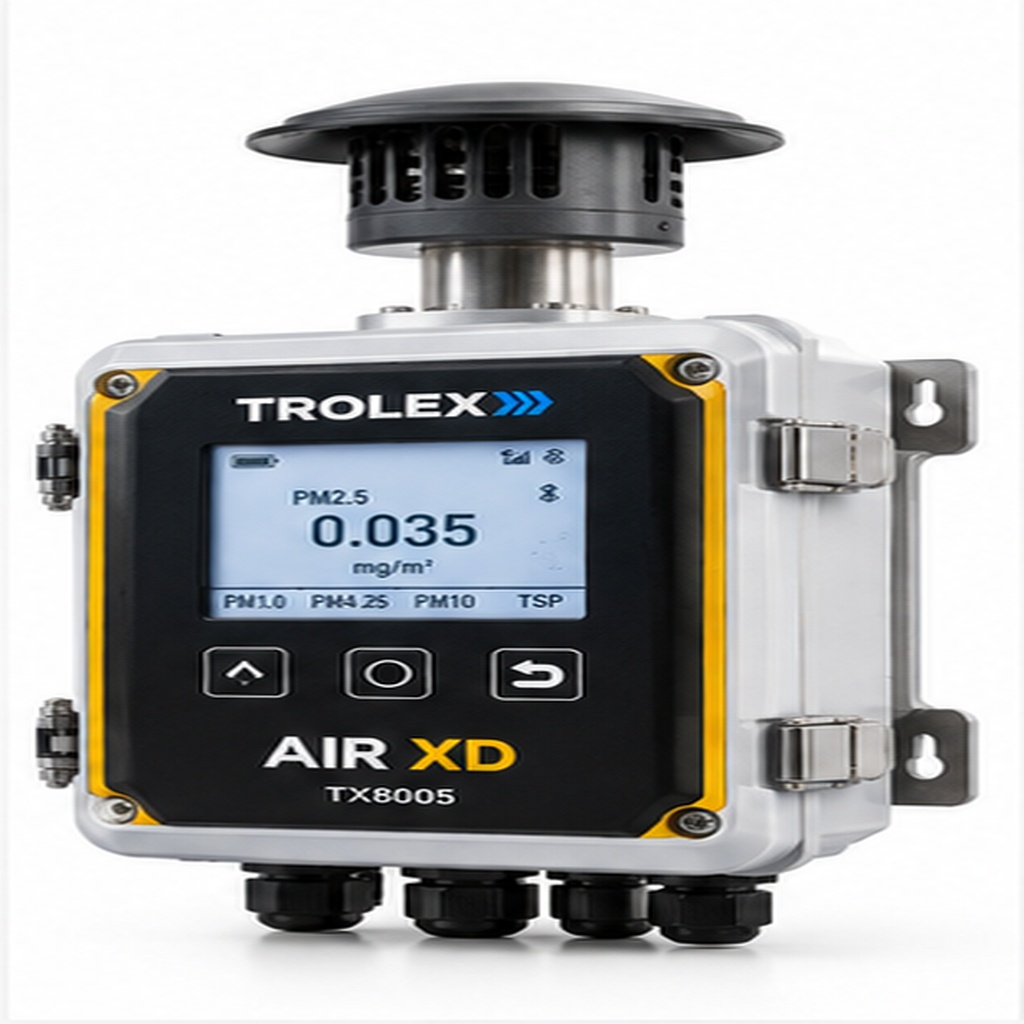

The Trolex TX8005 AIR XD Dust Monitor is designed for continuous real-time monitoring of airborne particulate matter in harsh, high-dust and hazardous industrial environments.

AIR XD uses a high-capacity optical particle counter (OPC) with adaptive particle flow technology to measure and classify airborne particles in real time. It can simultaneously report PM1.0, PM2.5, PM4.25 and PM10 concentrations, as well as Total Suspended Particulates (TSP) and custom particle size categories.

The instrument measures particles across a broad size range from approximately 0.35 µm to 40 µm, making it suitable for detailed dust profiling in industrial workplaces.

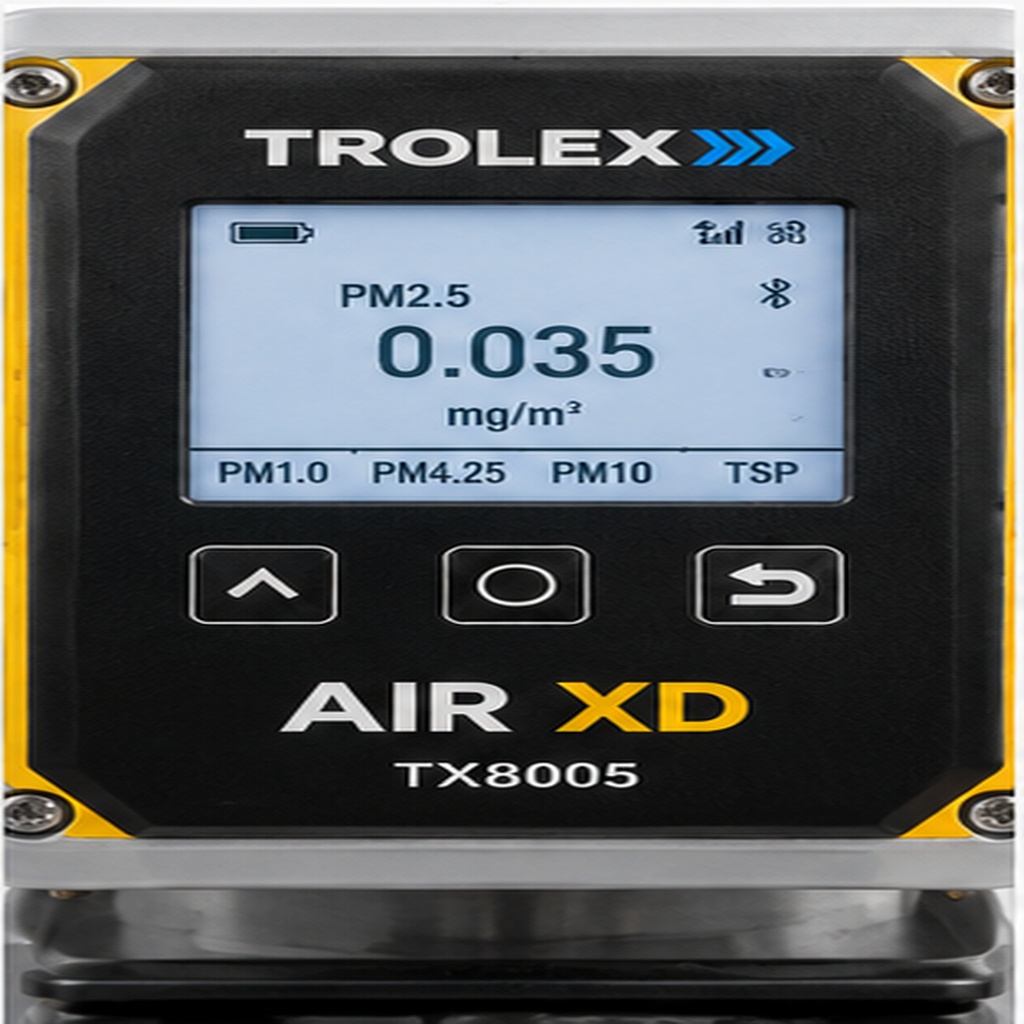

Measurement information can be viewed directly on the integrated display using live readings or configurable averaged values. High-visibility indicators and configurable alarm outputs help operators respond quickly when dust levels exceed defined thresholds.

The TX8005 supports two configurable relay outputs, two 4–20 mA analogue outputs, RS485 MODBUS RTU and Ethernet MODBUS TCP/IP communication, allowing integration with industrial control, monitoring and SCADA systems.

Measurement data can also be stored internally and transferred for further analysis using compatible Trolex software.

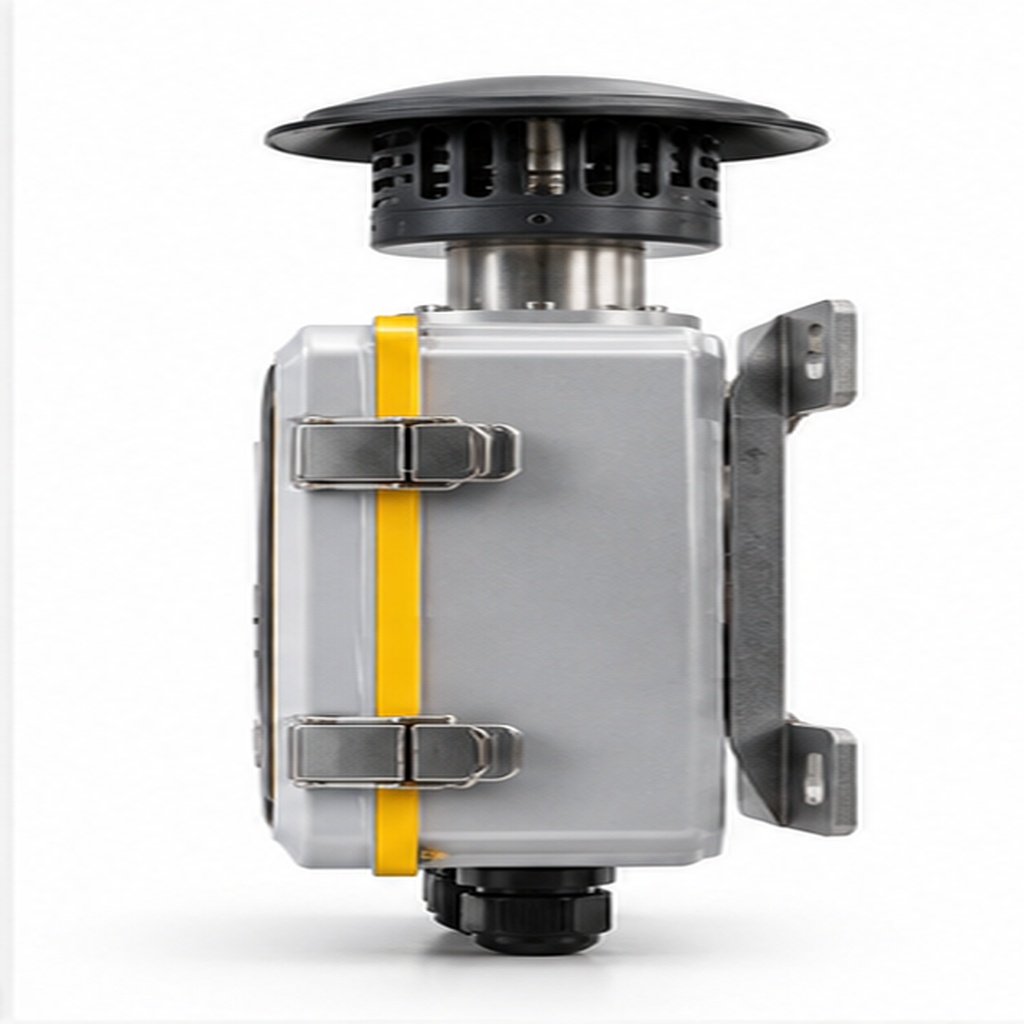

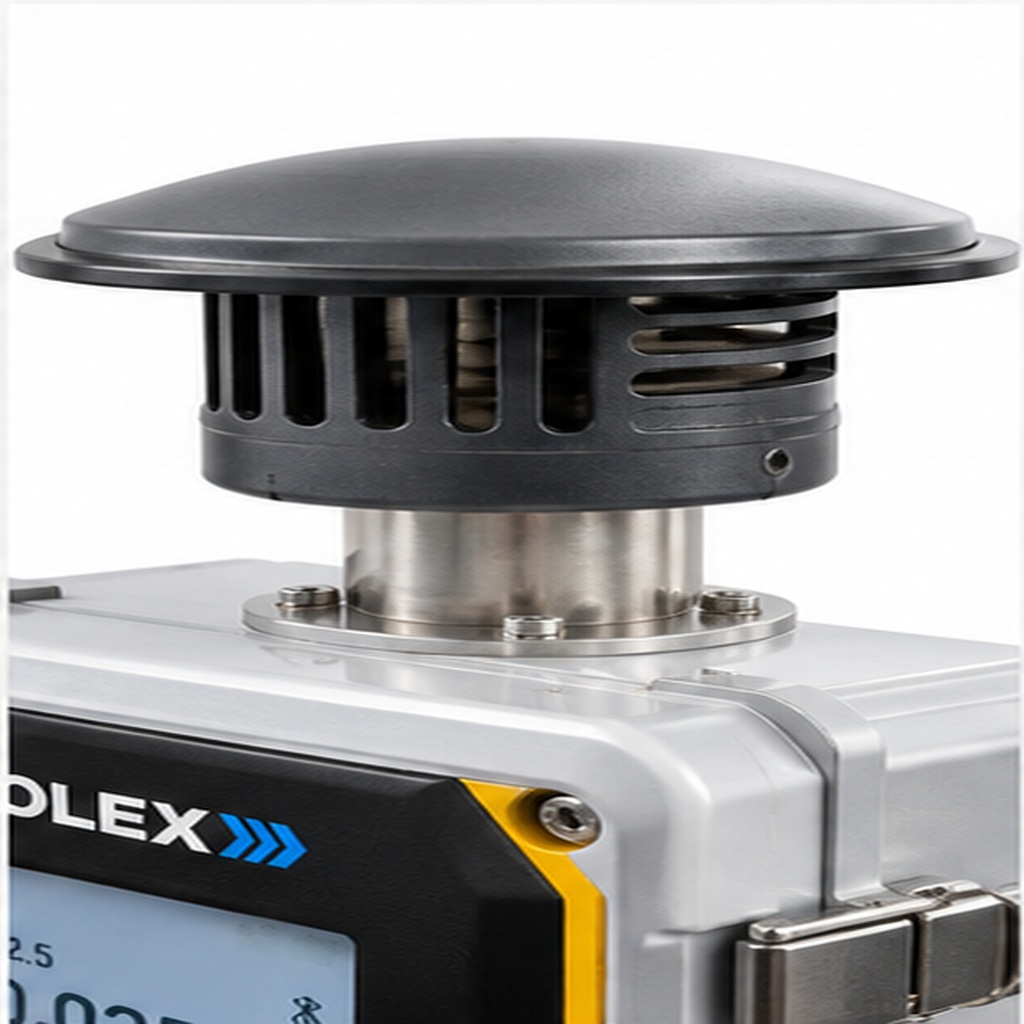

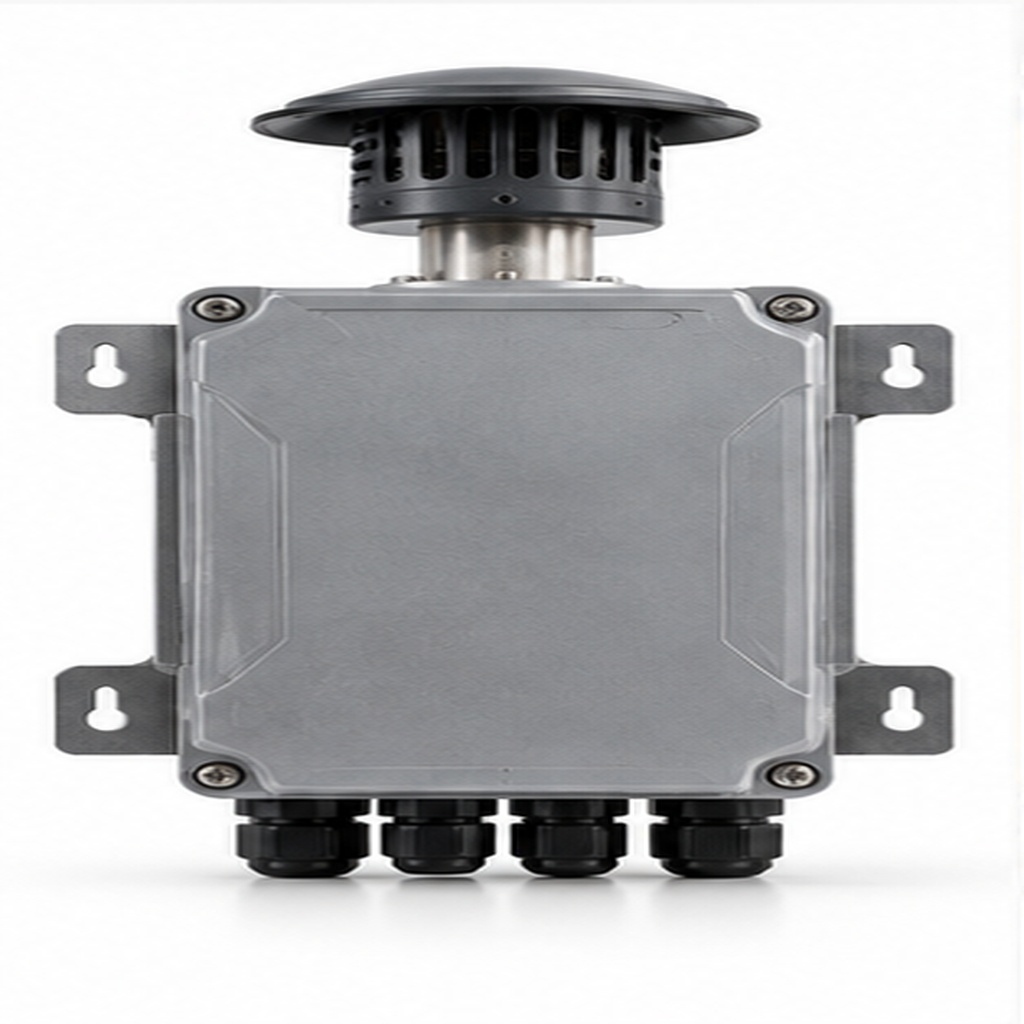

The control electronics are housed in a rugged IP66-rated coated steel enclosure, while the optical particle counter is protected inside a stainless-steel housing. The monitor can be wall-mounted, stand-mounted or used with transportable configurations depending on the application.

Certified versions are available for hazardous environments, including Group I ATEX, IECEx and MASC applications.

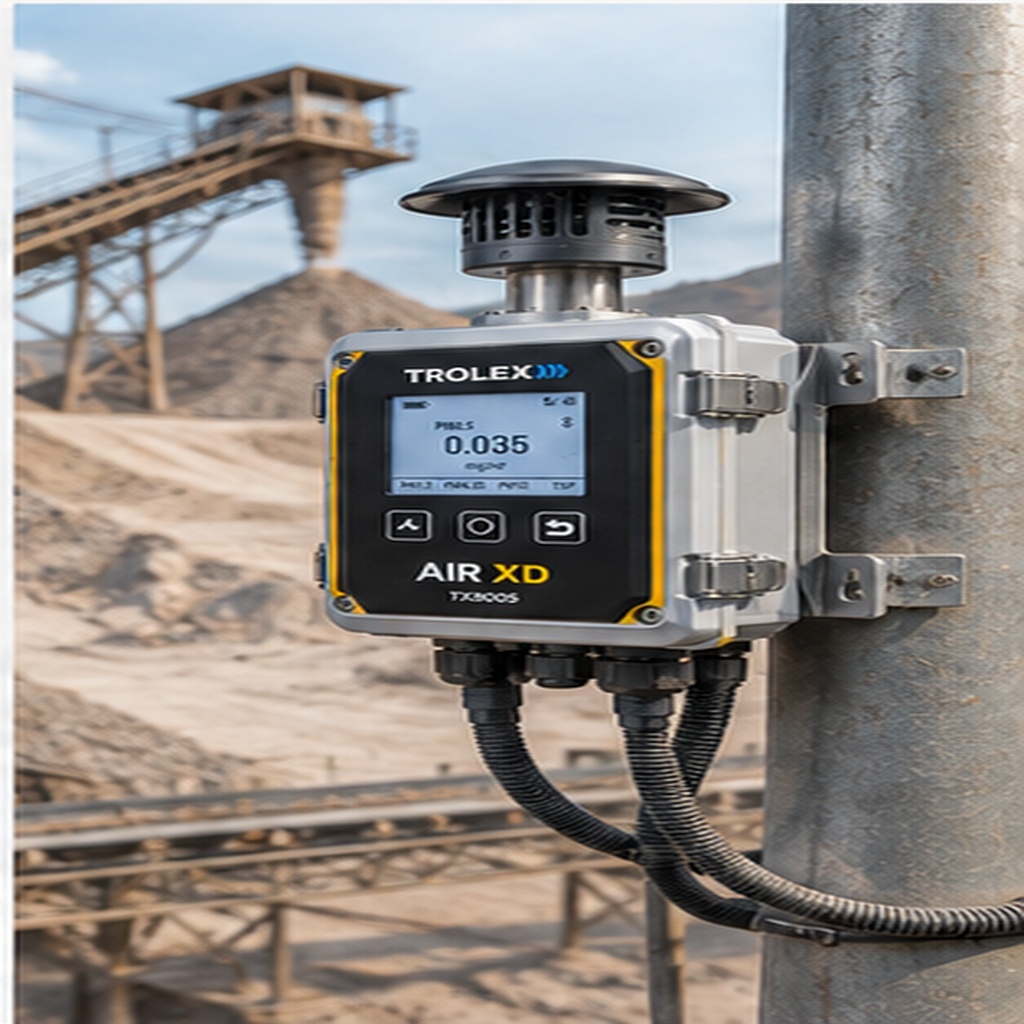

Typical applications include mining, quarrying, mineral processing, construction, bulk material handling, manufacturing and other workplaces requiring continuous area dust and particulate monitoring.

Please confirm the required particulate measurements, outputs, communication interface, certification and mounting configuration before purchase.

⚙ Technical Specifications

Parameter Name	Parameter Value Unit
Monitoring Type	Real-time Area Dust Monitoring -
Particle Measurement	PM1.0 / PM2.5 / PM4.25 / PM10 / TSP -
Particle Size Range	0.35–40 µm
Particle Processing Capacity	Up to 10000 particles/s
Display	128 × 64 Dot Matrix LCD -
Analogue Outputs	2 × 4–20 mA -
Relay Outputs	2 Configurable Alarm Relays -
Communication	RS485 MODBUS RTU / Ethernet MODBUS TCP/IP -
Ingress Protection	Main Enclosure IP66 -
Operating Temperature	-10 to +45 °C
Housing Material	Polymer-Coated Stainless Steel -
Weight	8.2 kg
Power Supply	12 V DC, 500 mA -
اسم المعلمة	قيمة المعلمة الوحدة
نوع المراقبة	مراقبة الغبار في المنطقة في الوقت الفعلي -
قياس الجسيمات	PM1.0 / PM2.5 / PM4.25 / PM10 / TSP -
نطاق حجم الجسيمات	0.35–40 µm
قدرة معالجة الجسيمات	حتى 10000 جسيم/ثانية
الشاشة	شاشة LCD نقطية 128 × 64 -
المخارج التناظرية	2 × 4–20 mA -
مخارج المرحل	2 مرحلات إنذار قابلة للضبط -
الاتصال	RS485 MODBUS RTU / Ethernet MODBUS TCP/IP -
درجة الحماية	IP66 للهيكل الرئيسي -
درجة حرارة التشغيل	-10 إلى +45 °C
مادة الهيكل	فولاذ مقاوم للصدأ مطلي بالبوليمر -
الوزن	8.2 kg
مصدر الطاقة	12 V DC، 500 mA -

▦ Typical Applications

Mining
Quarrying & Industrial Area Dust Monitoring

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and lead time depend on the required certification, communication options, mounting configuration and accessories. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What is the Trolex TX8005 AIR XD used for?

The Trolex TX8005 AIR XD is designed for continuous real-time monitoring of airborne dust and particulate matter in industrial environments such as mining, quarrying, mineral processing, construction and bulk material handling.

What particle sizes can the TX8005 AIR XD monitor?

The TX8005 AIR XD can simultaneously monitor PM1.0, PM2.5, PM4.25, PM10 and Total Suspended Particulates (TSP), providing detailed information about airborne particulate levels.

What communication options are available on the TX8005 AIR XD?

The TX8005 AIR XD supports RS485 MODBUS RTU and Ethernet MODBUS TCP/IP communication, allowing integration with industrial monitoring, control and SCADA systems.

Does the TX8005 AIR XD provide alarm and analogue outputs?

Yes. The TX8005 AIR XD supports configurable alarm relay outputs and 4–20 mA analogue outputs for connection to external monitoring, alarm and control equipment.

What should be confirmed before ordering the Trolex TX8005 AIR XD?

Before ordering, please confirm the required particulate measurements, communication interface, analogue and relay outputs, hazardous-area certification, mounting method and required accessories. Product configuration and lead time may vary.
