Trolex TX8061 XD1+ Personal Dust Monitor

Trolex

Model / Part Number: TX8061 XD1+

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandTrolex

Model / Part NumberTX8061 XD1+

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

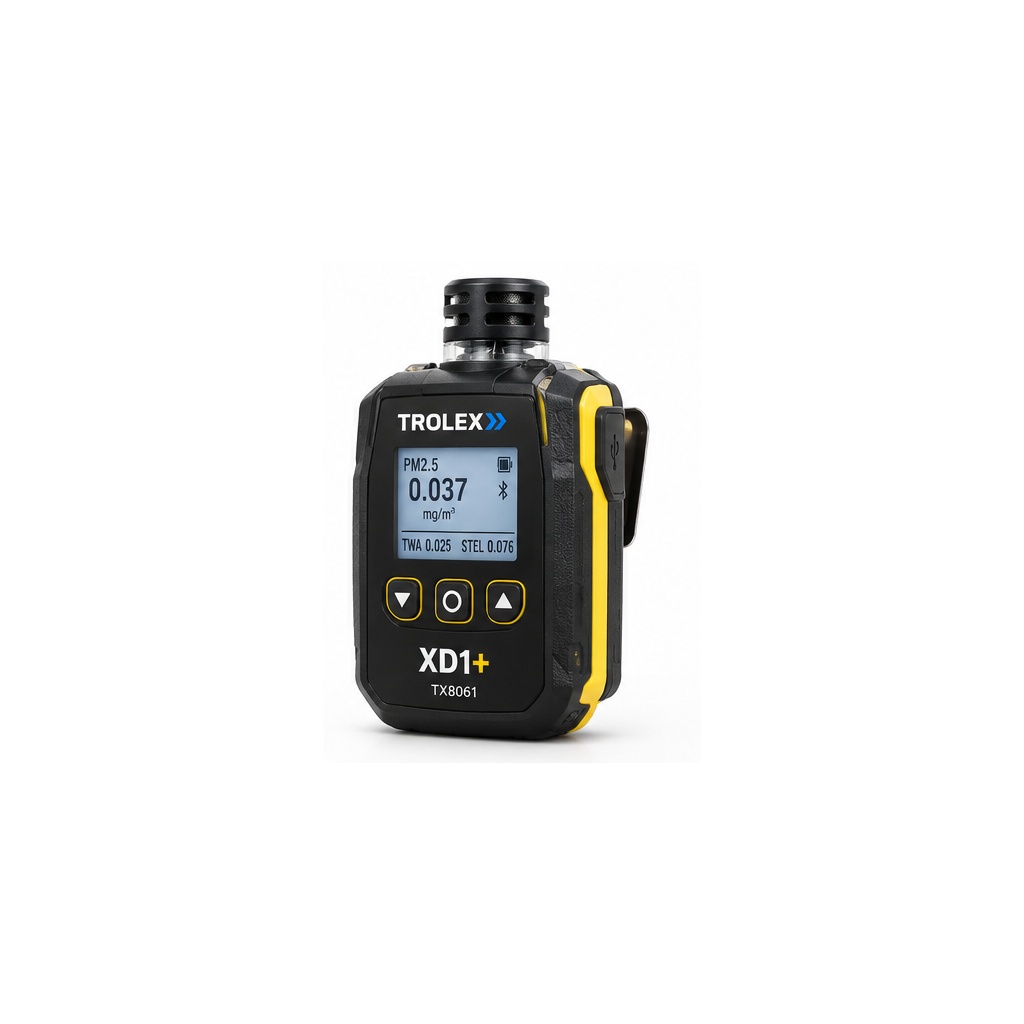

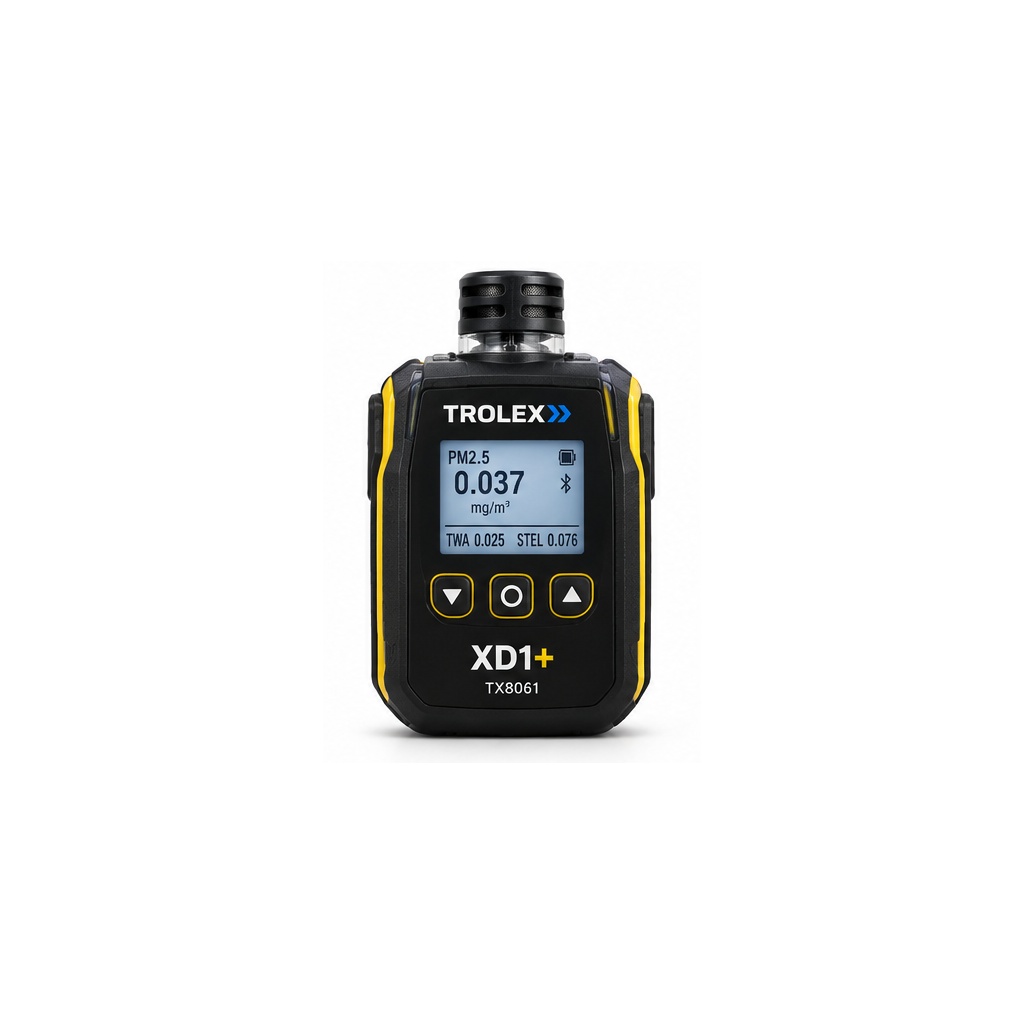

The Trolex TX8061 XD1+ Personal Dust Monitor is a compact wearable instrument designed to provide workers with real-time information about personal exposure to airborne particulate matter.

The XD1+ measures particulate matter across PM1, PM2.5, PM4.25 and PM10 ranges, with a particle sizing range from approximately 0.1 µm to over 10 µm. This allows the device to provide detailed information about respirable and airborne dust conditions in the workplace.

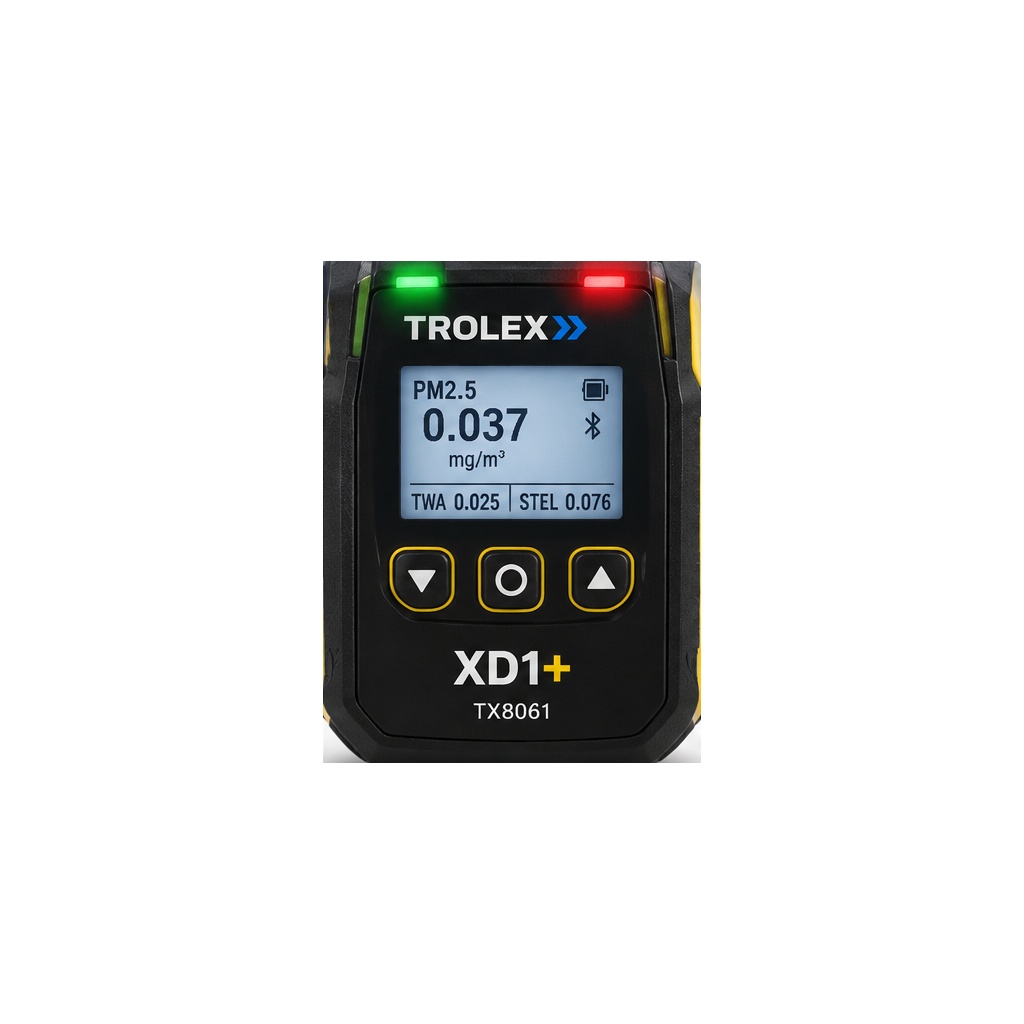

Measurement data is displayed directly on the device, allowing users to view current particulate concentrations while working. Configurable short-term exposure limit (STEL) and time-weighted average (TWA) alarm thresholds provide audio and visual warnings when particulate exposure reaches defined levels.

The TX8061 includes onboard data logging with configurable logging intervals from 10 to 60 seconds. Recorded data can be downloaded and analysed using Trolex BreatheLITE and BreatheMOBILE software, while Bluetooth connectivity supports convenient data access and device integration.

The rechargeable battery provides more than 16 hours of operation, supporting full-shift personal exposure monitoring. The unit also includes a built-in self-check routine to help verify correct operation before use.

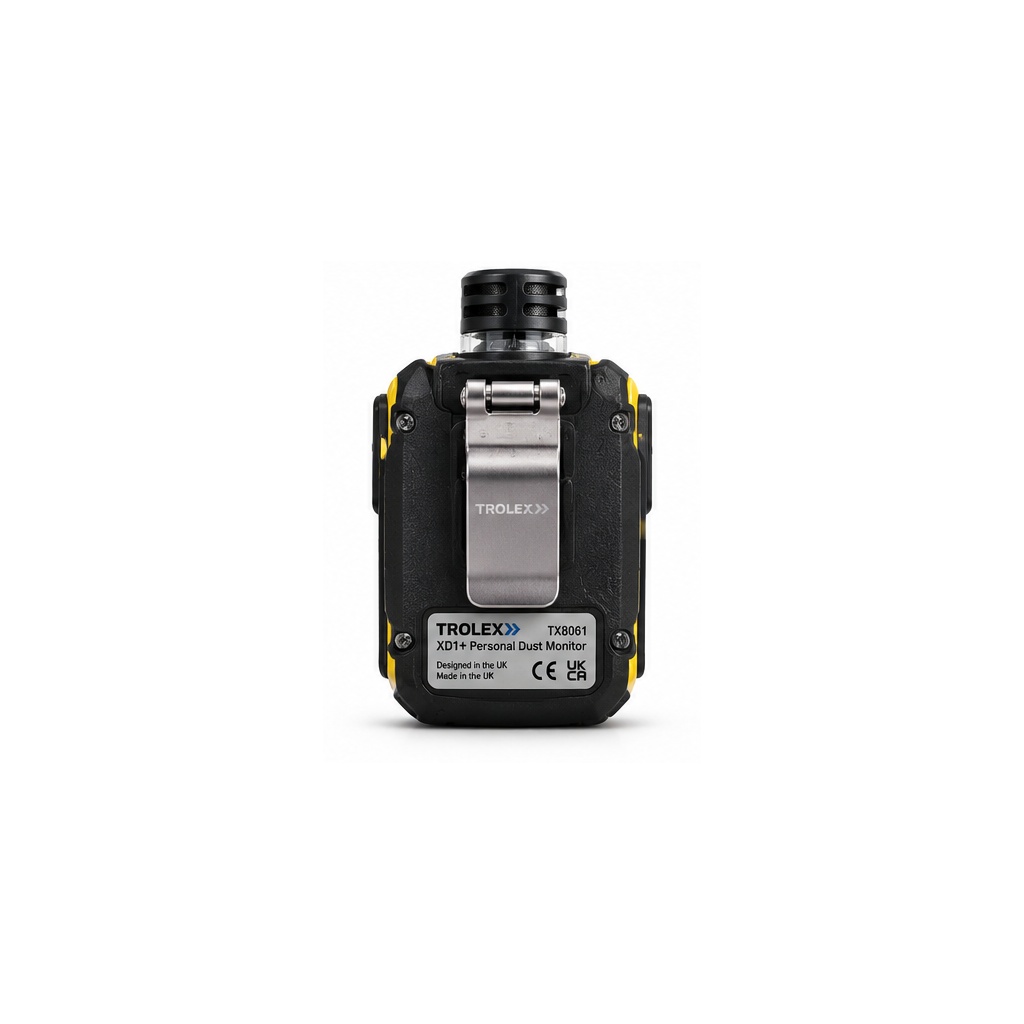

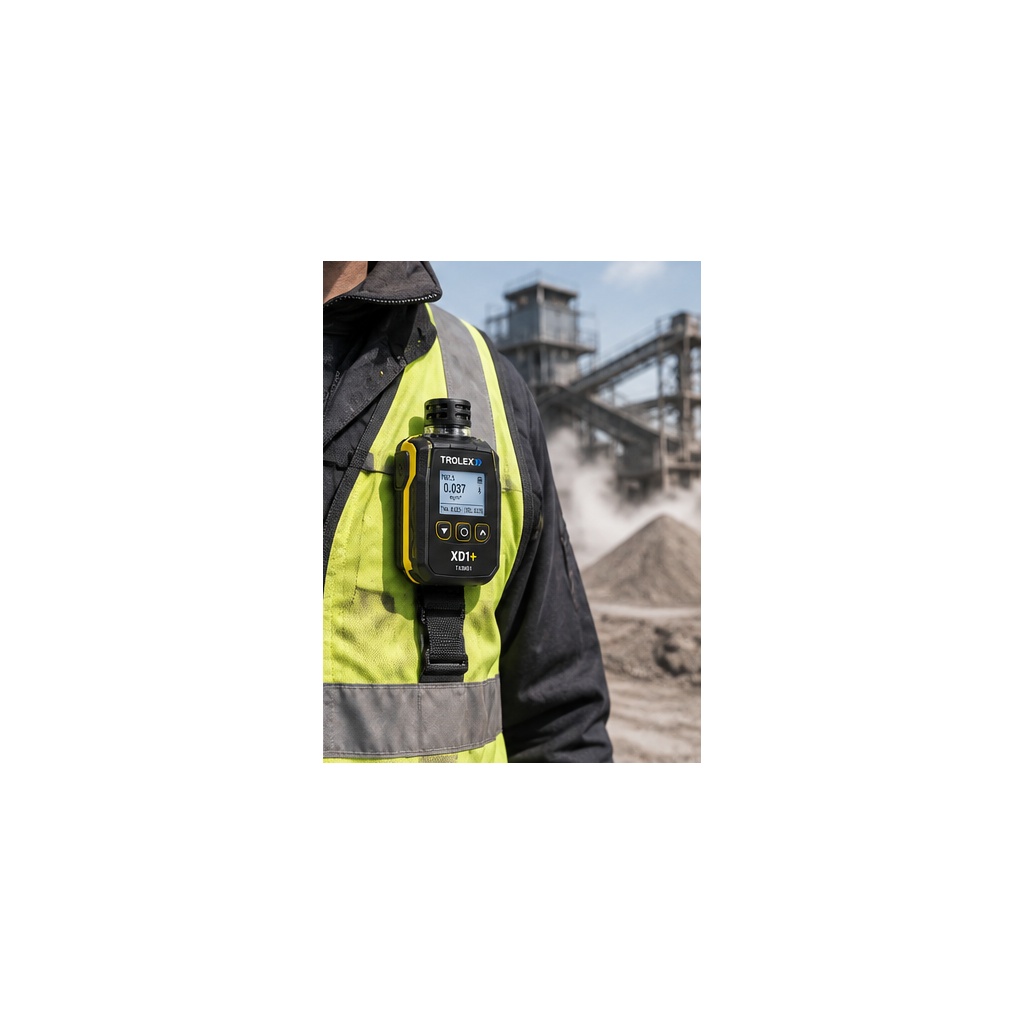

Weighing approximately 170 g and measuring around 112 × 64 × 25 mm, the XD1+ is designed to be lightweight and comfortable for personal use. A range of mounting options allows it to be attached to work clothing or personal protective equipment.

Its ruggedised design and IPX4 ingress protection make the device suitable for demanding industrial environments.

Typical applications include mining, construction, quarrying, mineral processing, manufacturing, demolition and other workplaces where employees may be exposed to hazardous airborne dust.

Please confirm the required mounting accessories, monitoring requirements and alarm settings before purchase.

⚙ Technical Specifications

Parameter Name	Parameter Value Unit

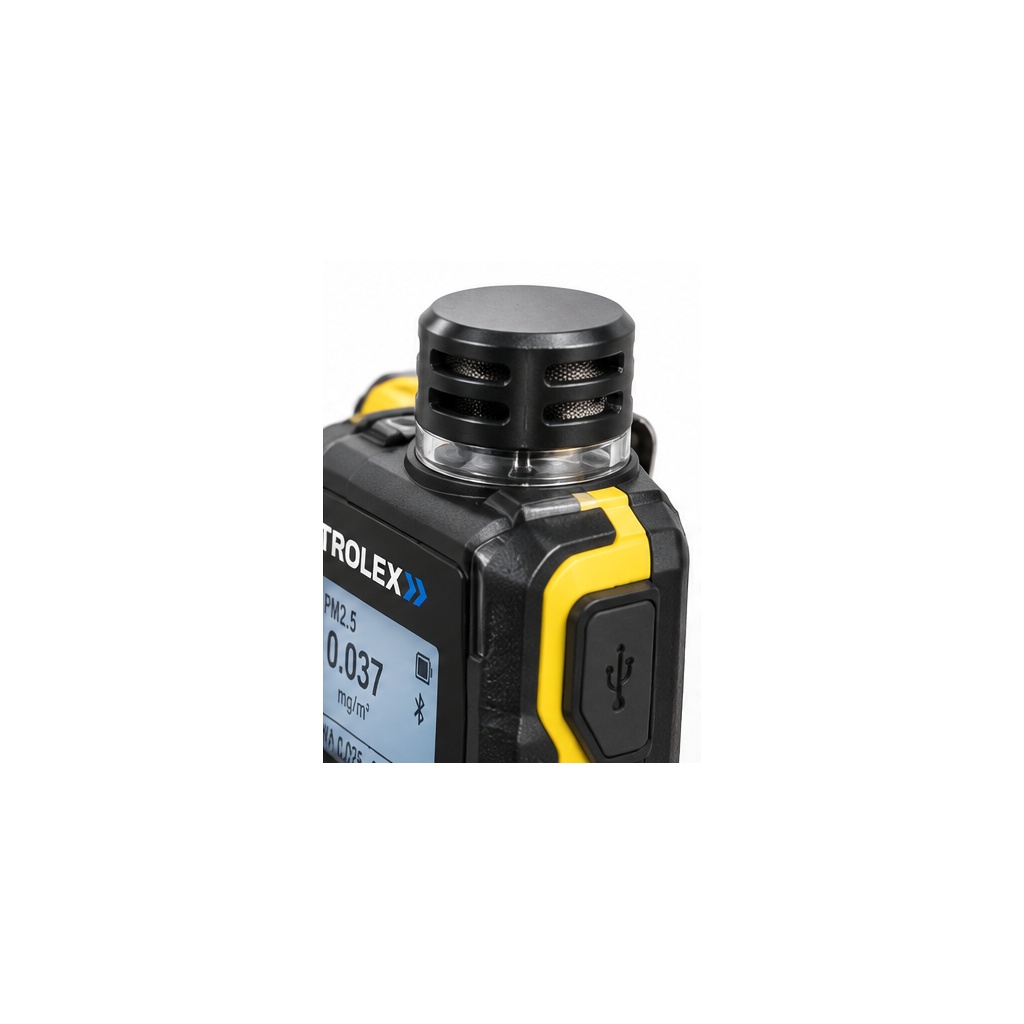

Sensing Technology	Optical Particle Counter (OPC) -
PM Measurement	PM1.0 / PM2.5 / PM4.25 / PM10 -
Particle Size Range	0.1 to >10 µm
Operating Range	Up to approx. 150 mg/m³
Sampling Interval	1 s custom / 10 s default s
Flow Rate	0.1 L/min
Measurement Accuracy	±10 %
Operating Temperature	-10 to +50 °C
Ingress Protection	Main enclosure IPX4 / Particle flow path IP4X -
Weight	170 g
Battery Runtime	16+ h
Connectivity	USB-C / Bluetooth LE 5.3 -
اسم المعلمة	قيمة المعلمة الوحدة
تقنية الاستشعار	عداد جسيمات بصري (OPC) -
قياس الجسيمات	PM1.0 / PM2.5 / PM4.25 / PM10 -
نطاق حجم الجسيمات	0.1 إلى أكثر من 10 µm
نطاق القياس	حتى حوالي 150 mg/m³
فترة أخذ العينات	1 ثانية مخصصة / 10 ثوانٍ افتراضية s
معدل التدفق	0.1 L/min
دقة القياس	±10 %
درجة حرارة التشغيل	-10 إلى +50 °C
درجة الحماية	IPX4 للهيكل الرئيسي / IP4X لمسار الجسيمات -
الوزن	170 g
مدة تشغيل البطارية	أكثر من 16 h
الاتصال	USB-C / Bluetooth LE 5.3 -

▦ Typical Applications

Mining
Construction & Occupational Dust Exposure Monitoring

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and lead time depend on the required accessories, mounting options and product configuration. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What is the Trolex TX8061 XD1+ used for?

The Trolex TX8061 XD1+ is a wearable personal dust monitor designed for real-time monitoring of worker exposure to airborne particulate matter in industrial environments.

What particle sizes can the TX8061 XD1+ monitor?

The TX8061 XD1+ can monitor PM1, PM2.5, PM4.25 and PM10 particulate matter, helping users assess different fractions of airborne dust exposure.

Does the TX8061 XD1+ support STEL and TWA alarms?

Yes. The TX8061 XD1+ supports configurable STEL and TWA alarm thresholds with audio and visual alerts to warn workers when dust exposure reaches defined levels.

Can measurement data from the TX8061 XD1+ be recorded and downloaded?

Yes. The TX8061 XD1+ includes onboard data logging and supports data transfer and analysis through compatible Trolex software and Bluetooth connectivity.

What should be confirmed before ordering the Trolex TX8061 XD1+?

Before ordering, please confirm the intended application, particulate monitoring requirements, alarm settings, mounting method and required accessories. Product configuration and delivery time may vary.
