Trolex TX8100 AIR XS Real-Time Silica Monitor

Trolex

Model / Part Number: AIR XS TX8100

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

QuantitypcsRequest a Quote

WhatsApp InquiryResponse within 1 business day

BrandTrolex

Model / Part NumberAIR XS TX8100

Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

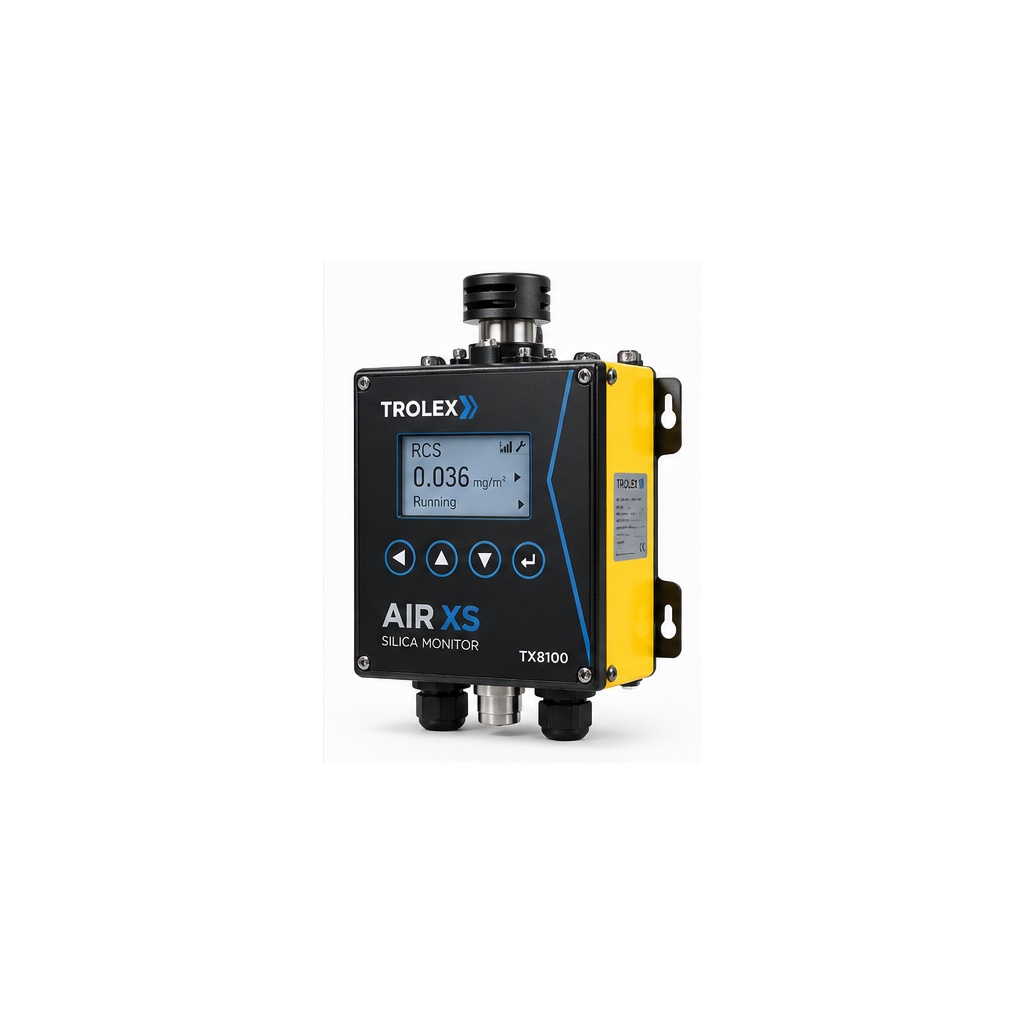

The Trolex TX8100 AIR XS Silica Monitor is designed to provide detailed, accurate and real-time monitoring of airborne respirable crystalline silica (RCS) in industrial environments.

The AIR XS uses patented Optical Refraction Technology (ORT) to analyse airborne particulate matter and distinguish crystalline silica within complex dust mixtures. The instrument combines controlled particle flow with advanced optical sensing and adaptive data processing to calculate RCS concentration.

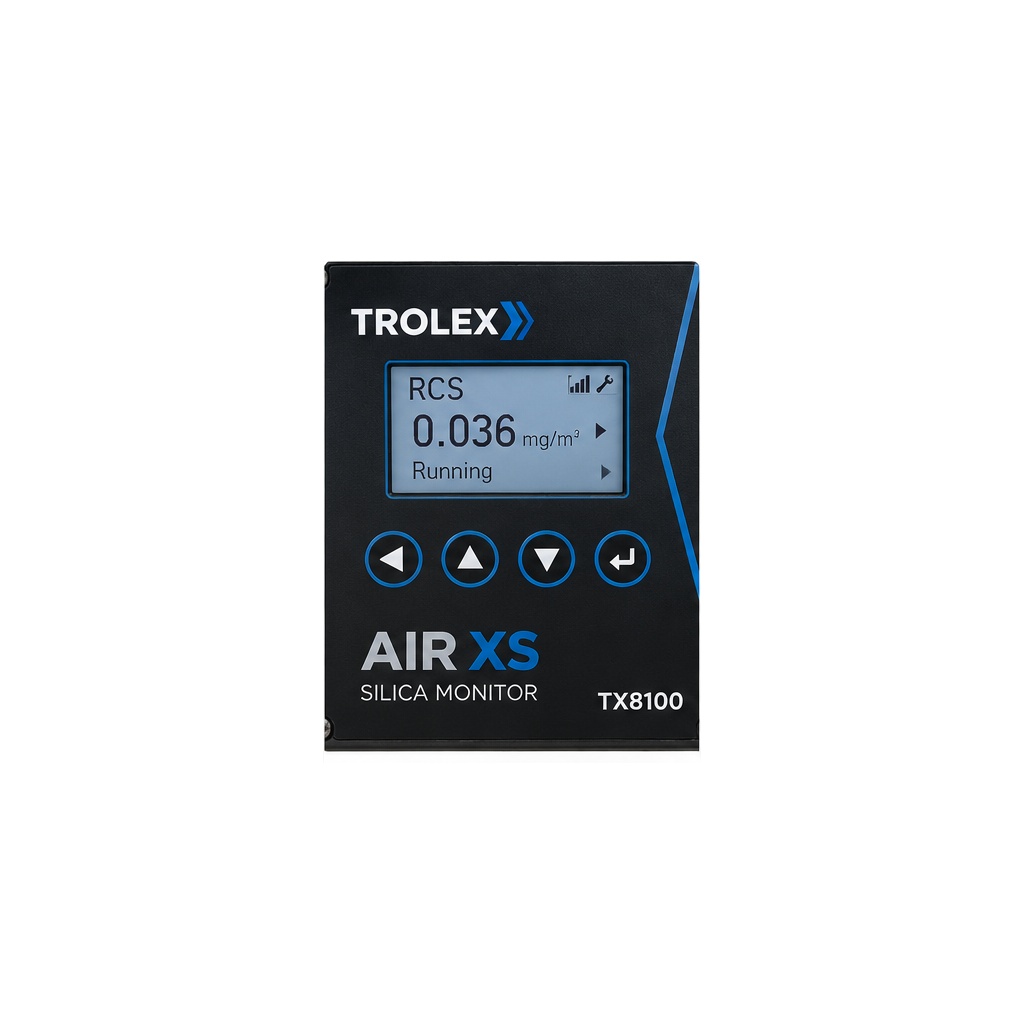

Measurement information is available directly from the instrument display, allowing operators to view current RCS levels at the monitoring location. High-visibility alarm indicators provide immediate warning when configured exposure levels are reached.

The TX8100 supports continuous monitoring and can operate for extended periods without complicated start-up or routine calibration procedures. Its rugged design is intended for challenging industrial environments where reliable dust monitoring is required.

Historical and live measurement data can also be accessed through compatible Trolex software. Communication options include RS485 and Ethernet, supporting integration with industrial monitoring and data management systems.

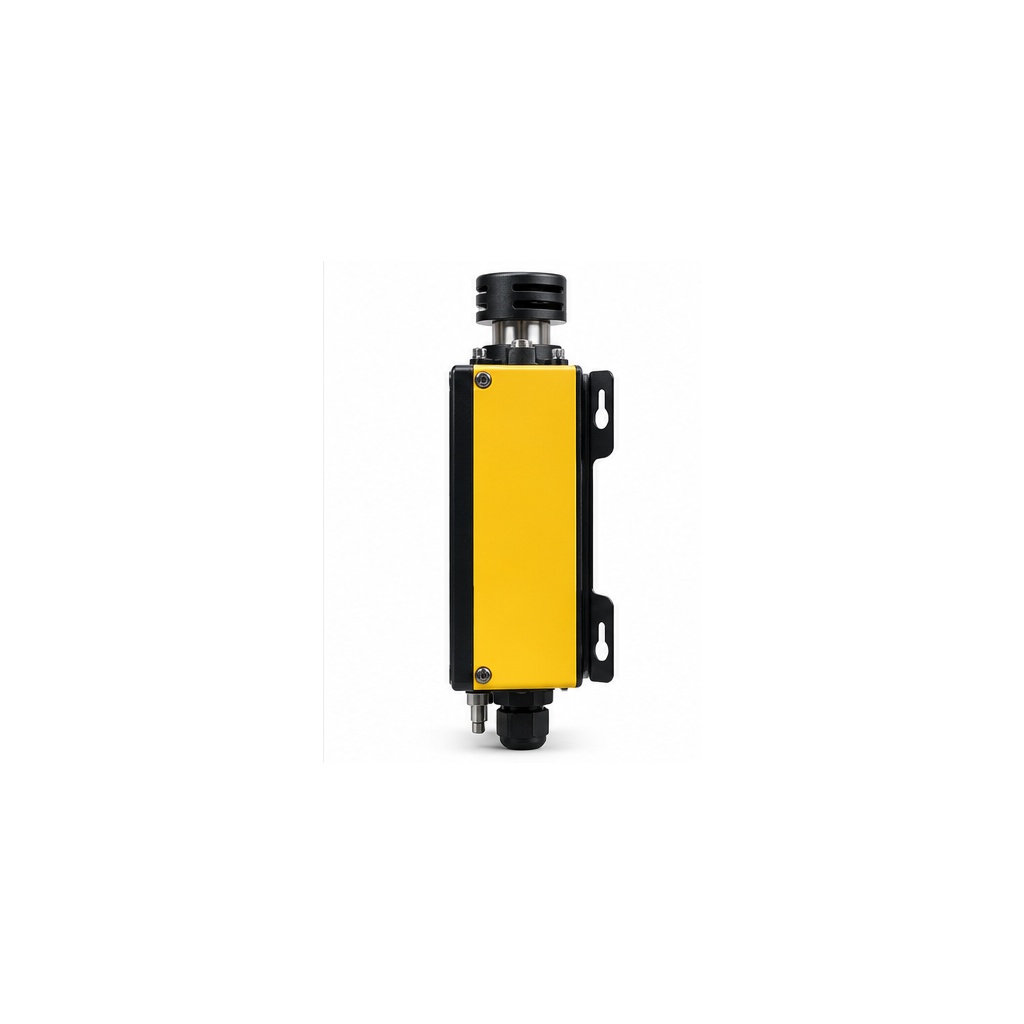

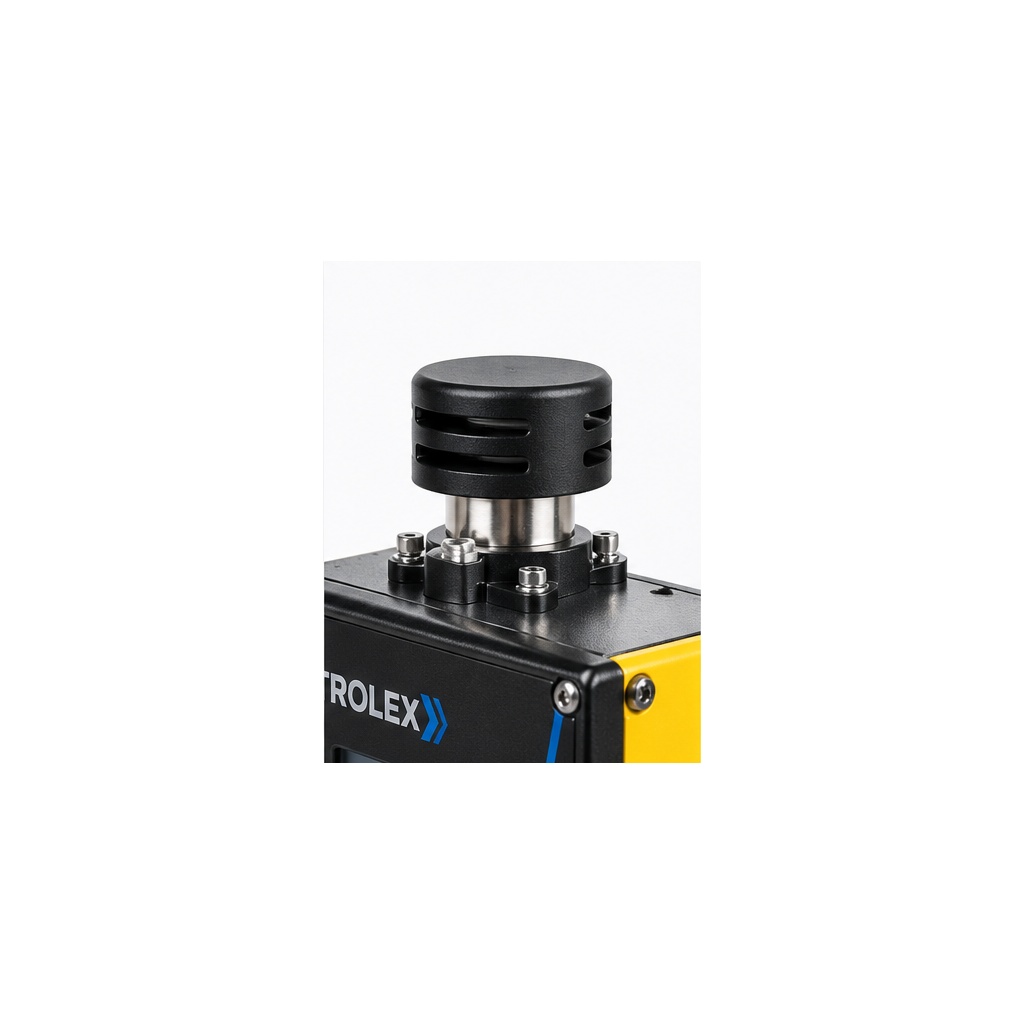

The instrument is housed in a rugged IP66-rated steel enclosure. The particle sensor is protected within a stainless-steel housing, helping isolate the particle flow path from the main control electronics.

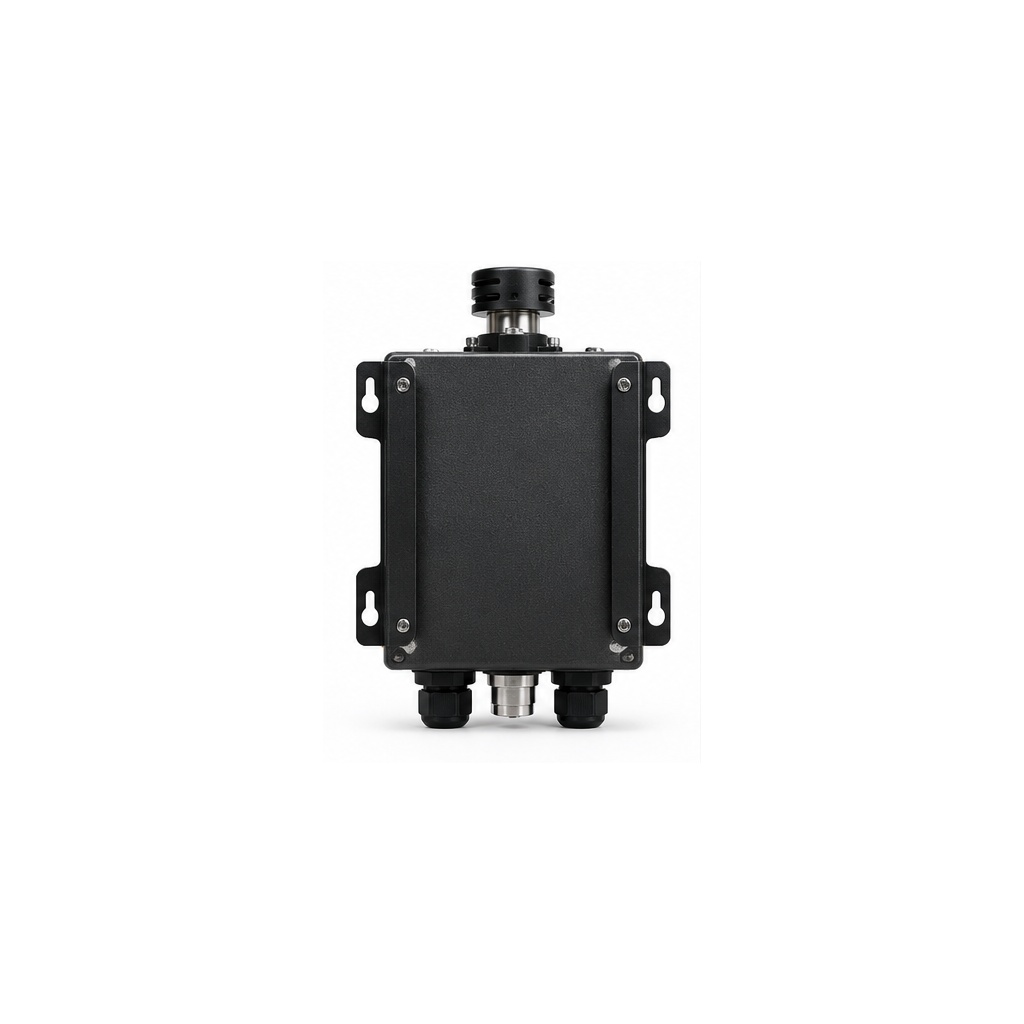

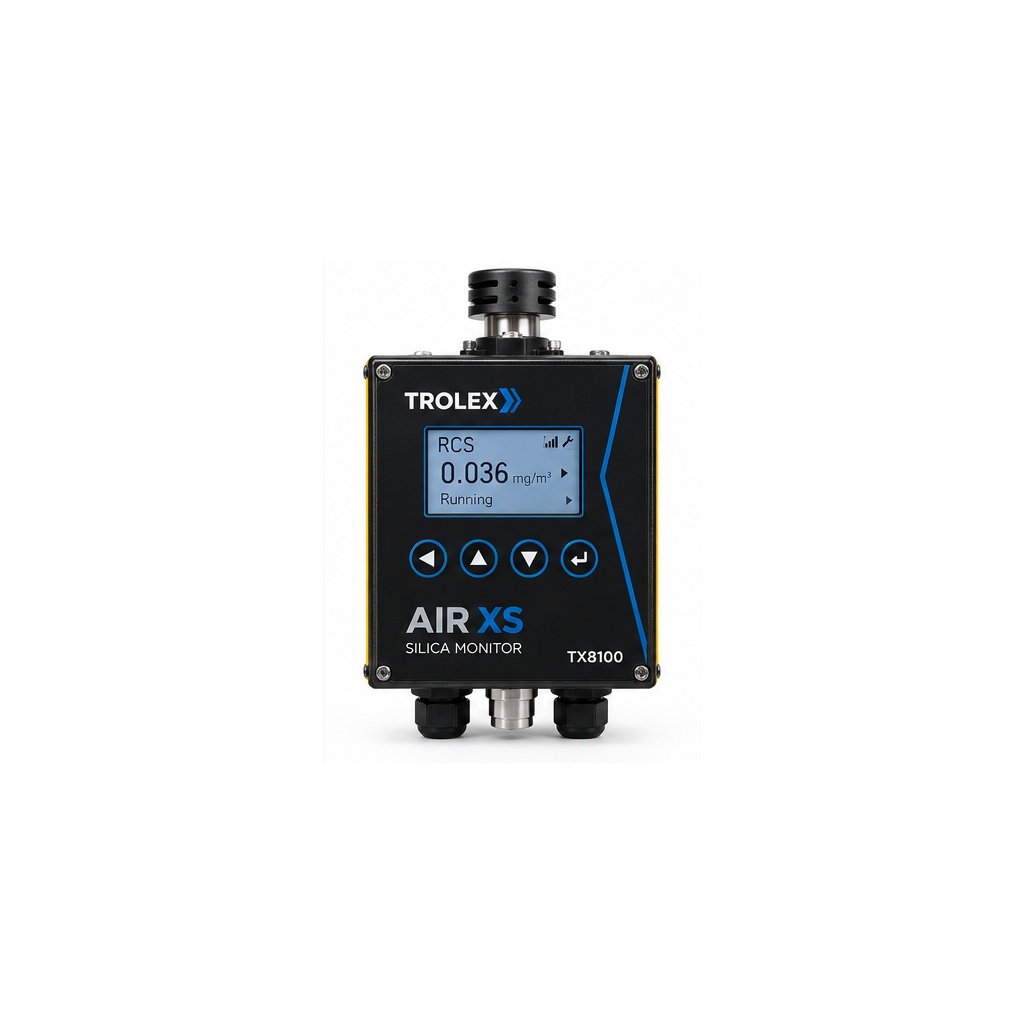

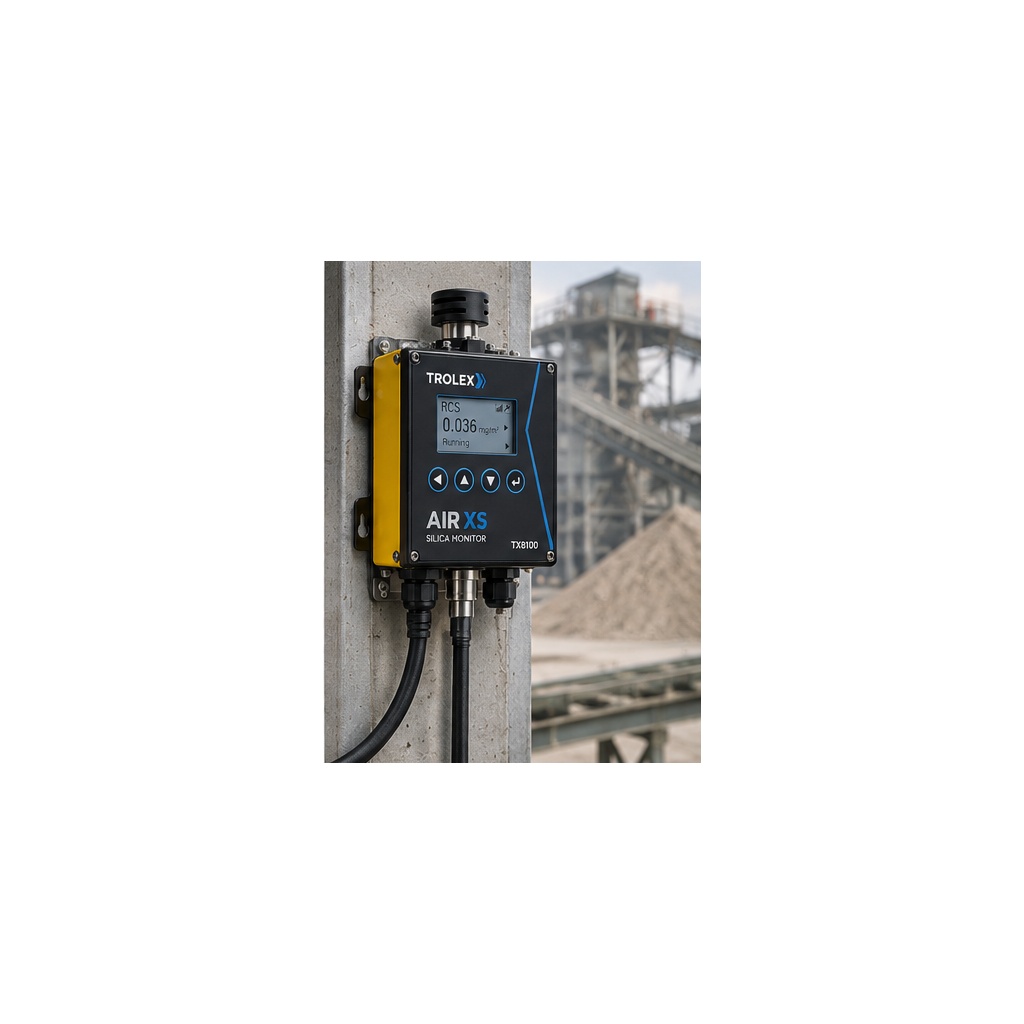

Integrated mounting brackets allow the AIR XS to be installed on a wall or suitable stand, while the front keypad and display provide convenient local access to operating information and settings.

Typical applications include mining, quarrying, construction, mineral processing, manufacturing, demolition and other workplaces where workers may be exposed to respirable crystalline silica dust.

Please confirm the required installation, communication and accessory configuration before purchase.

⚙ Technical Specifications

Parameter Name	Parameter Value Unit
Monitoring Target	Respirable Crystalline Silica (RCS) -
Detection Technology	Optical Refraction Technology (ORT) -
Particle Size Range	1–10 µm
Measurement Units	mg/m³ / Particles per Litre -
Particle Processing Capacity	10000 particles/s
Sampling Interval	10 s standard / 1 s custom s
Measurement Accuracy	±25 %
Display Averaging Period	15 min / 1 h / 4 h / 8 h / 12 h -
Communication	RS485 / Ethernet -
Ingress Protection	IP66 -
Dimensions	305 × 305 × 156 mm
Weight	8.2 kg
اسم المعلمة	قيمة المعلمة الوحدة
هدف المراقبة	السيليكا البلورية القابلة للاستنشاق (RCS) -
تقنية الكشف	تقنية الانكسار البصري (ORT) -
نطاق حجم الجسيمات	1–10 µm
وحدات القياس	mg/m³ / جسيمات لكل لتر -
قدرة معالجة الجسيمات	10000 جسيم/ثانية
فترة أخذ العينات	10 ثوانٍ قياسي / ثانية واحدة اختياري s
دقة القياس	±25 %
فترة متوسط العرض	15 دقيقة / 1 ساعة / 4 ساعات / 8 ساعات / 12 ساعة -
الاتصال	RS485 / Ethernet -
درجة الحماية	IP66 -
الأبعاد	305 × 305 × 156 mm
الوزن	8.2 kg

▦ Typical Applications

Mining
Construction & Industrial Silica Dust Monitoring

▰ Availability & Delivery

Availability & Delivery	Availability subject to quotation and stock confirmation
Lead Time	Availability and lead time depend on the required configuration, communication options and accessories. Please contact us to confirm current stock and estimated delivery time before ordering.
Shipping Options	Air freight, sea freight, express
Packaging	Secure export packaging

? FAQ

What is the Trolex TX8100 AIR XS used for?

The Trolex TX8100 AIR XS is designed for real-time monitoring of airborne respirable crystalline silica (RCS) in industrial environments such as mining, quarrying, construction, mineral processing and manufacturing.

What technology does the TX8100 AIR XS use?

The TX8100 AIR XS uses Trolex Optical Refraction Technology (ORT) to analyse airborne particles and identify respirable crystalline silica within complex dust mixtures.

Does the TX8100 AIR XS provide real-time silica readings?

Yes. The TX8100 AIR XS continuously monitors airborne RCS and displays current measurement information directly on the instrument for real-time workplace exposure monitoring.

What communication options are available on the TX8100 AIR XS?

The TX8100 AIR XS supports RS485 and Ethernet communication, allowing measurement data to be integrated with compatible industrial monitoring and data management systems.

What should be confirmed before ordering the Trolex TX8100 AIR XS?

Before ordering, please confirm the installation location, power requirements, communication interface, mounting method and required accessories. Product configuration and delivery time may vary depending on the application.
