Model / Part Number: DFC
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 1400 ln/min for air ln/min |
|---|---|
| Accuracy – Core | ±0.5% of user full scale + ±1.0% of measured value % |
| Accuracy – Prime | ±0.3% of user full scale + ±0.7% of measured value % |
| Accuracy – Prime High Accuracy | ±0.3% of user full scale + ±0.5% of measured value % |
| Dynamic Range | 1:100 fixed |
| Repeatability | ±0.2% of factory full scale % |
| Response Time | Approx. 2000 ms |
| Operating Pressure | 1–14 bar(a) |
| Operating Temperature | -20 to +60 °C |
| Power Supply | 24 VDC ±10% VDC |
| Process Connection | 1" BSPP female; optional 1/2" BSPP, 1" compression or Tri-Clamp |
| Digital Communication | RS-485 Modbus RTU; optional PROFINET or EtherCAT |
| Analog Output | 4–20 mA, 0–5 VDC or 0–10 VDC |
| Body Material | Stainless steel 316L wetted body; powder-coated stainless steel housing |
| Ingress Protection | IP54 with IP54 D-sub; IP40 with PROFINET/EtherCAT |
| نطاق القياس | حتى 1400 ln/min للهواء ln/min |
| الدقة – Core | ±0.5% من النطاق الكامل للمستخدم + ±1.0% من القيمة المقاسة % |
| الدقة – Prime | ±0.3% من النطاق الكامل للمستخدم + ±0.7% من القيمة المقاسة % |
| الدقة – Prime High Accuracy | ±0.3% من النطاق الكامل للمستخدم + ±0.5% من القيمة المقاسة % |
| النطاق الديناميكي | 1:100 ثابت |
| قابلية التكرار | ±0.2% من النطاق الكامل للمصنع % |
| زمن الاستجابة | حوالي 2000 ms |
| ضغط التشغيل | 1–14 bar(a) |
| درجة حرارة التشغيل | -20 إلى +60 °C |
| مصدر الطاقة | 24 VDC ±10% VDC |
| وصلة العملية | 1 بوصة BSPP أنثى؛ ويتوفر اختيارياً 1/2 بوصة BSPP أو وصلة ضغط 1 بوصة أو Tri-Clamp |
| الاتصال الرقمي | RS-485 Modbus RTU؛ ويتوفر اختيارياً PROFINET أو EtherCAT |
| الخرج التناظري | 4–20 mA أو 0–5 VDC أو 0–10 VDC |
| مادة الجسم | أجزاء ملامسة من الفولاذ المقاوم للصدأ 316L وهيكل إلكتروني من الفولاذ المقاوم للصدأ المطلي |
| درجة الحماية | IP54 مع موصل D-sub المناسب؛ وIP40 مع PROFINET/EtherCAT |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, valve configuration, body material, elastomer, process connection and communication interface. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

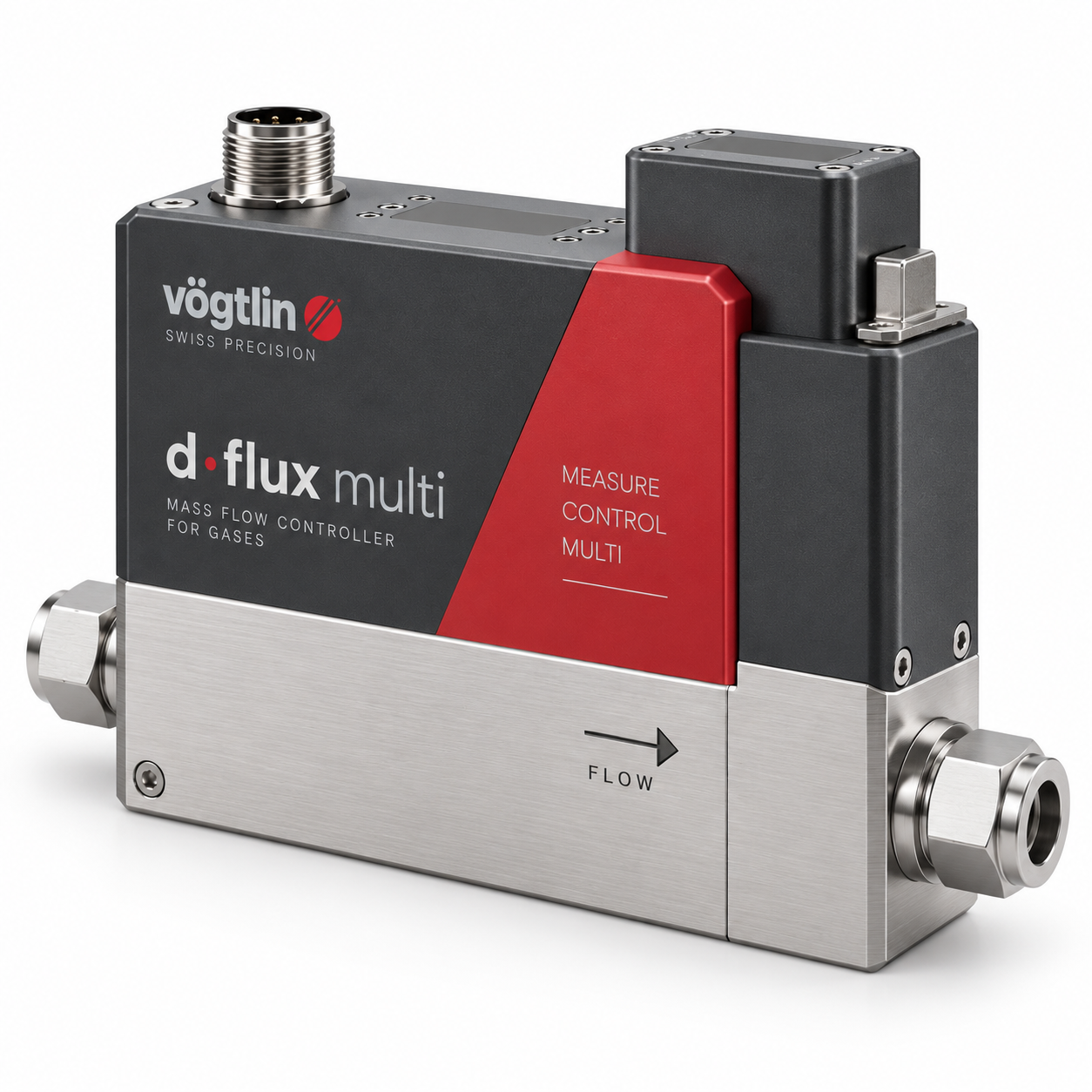

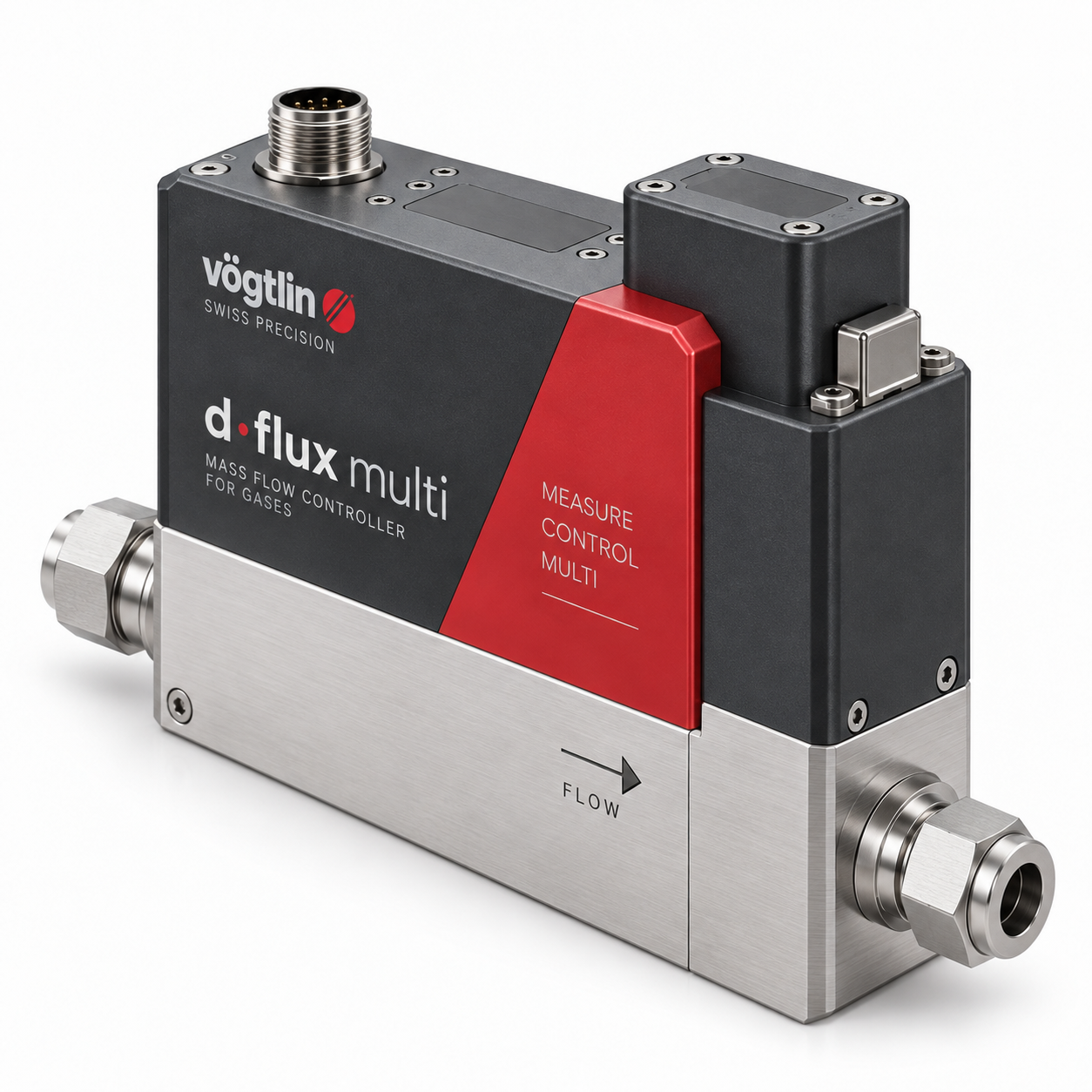

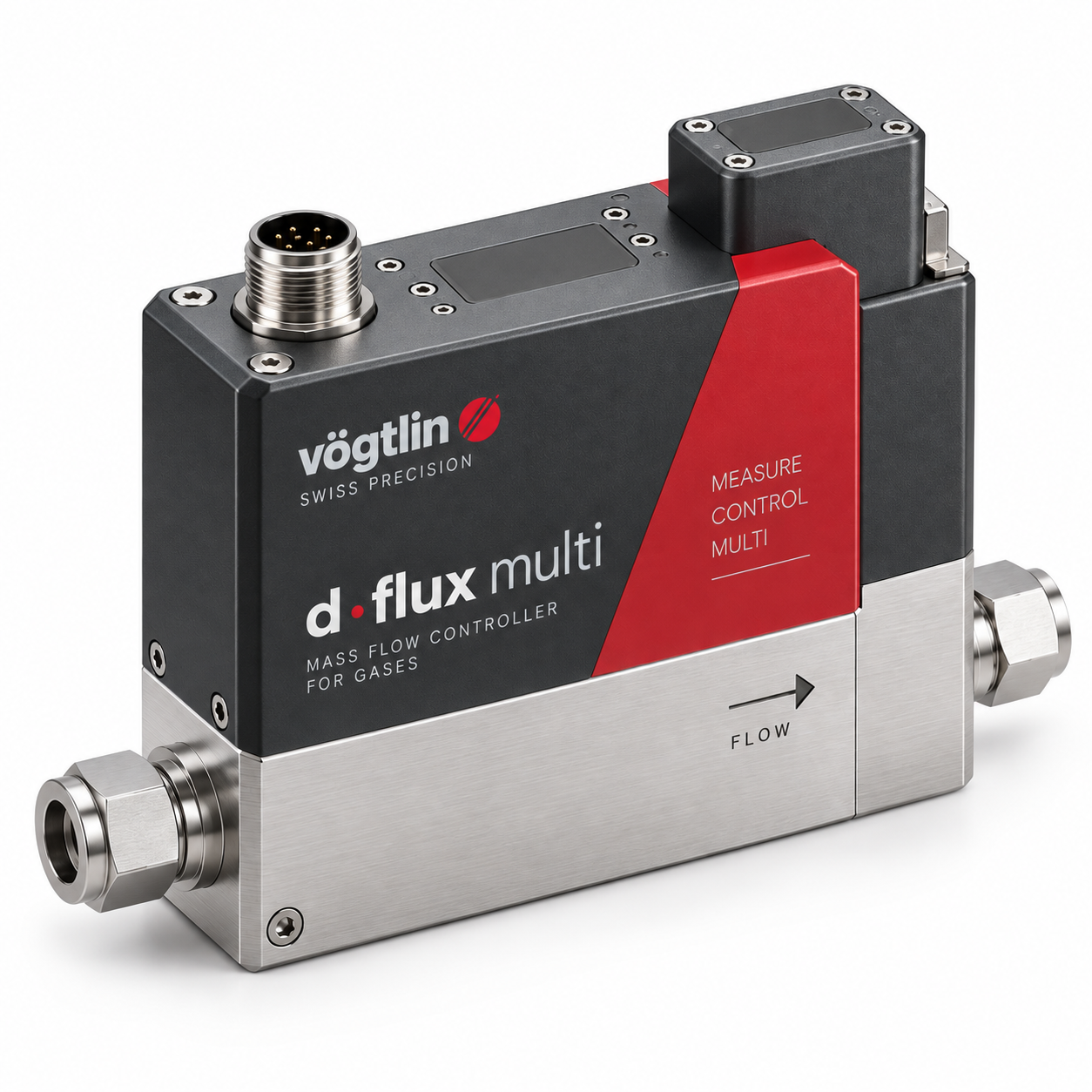

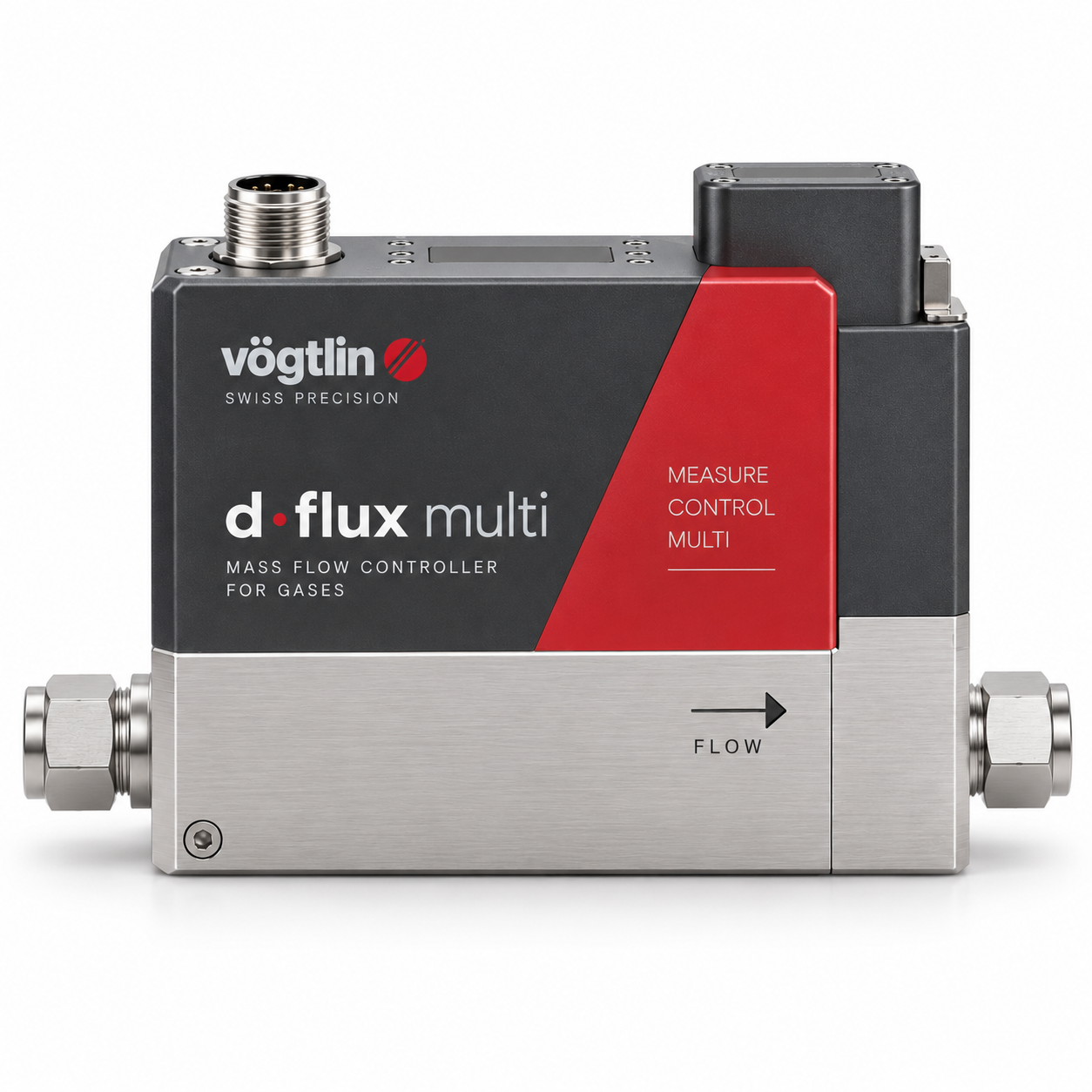

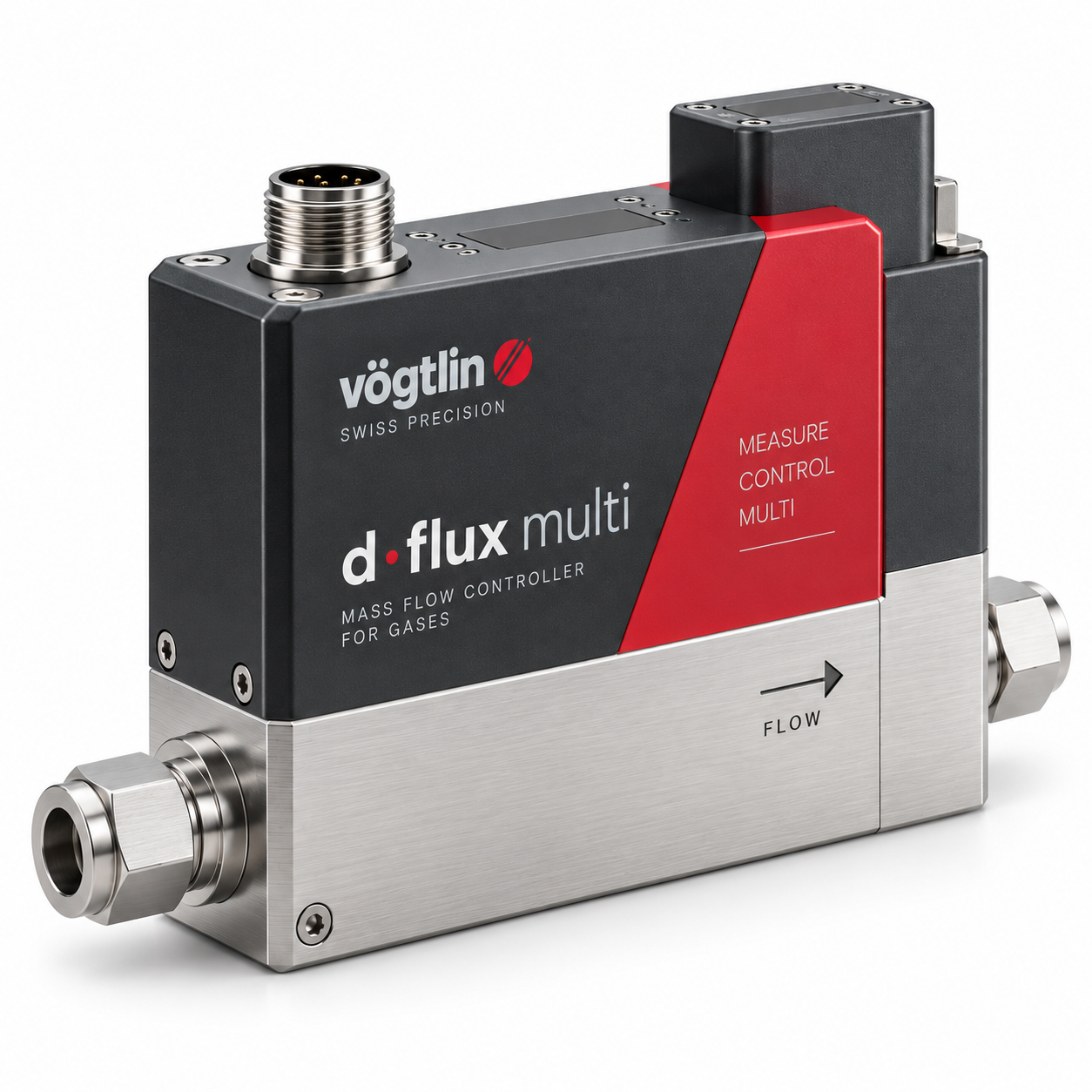

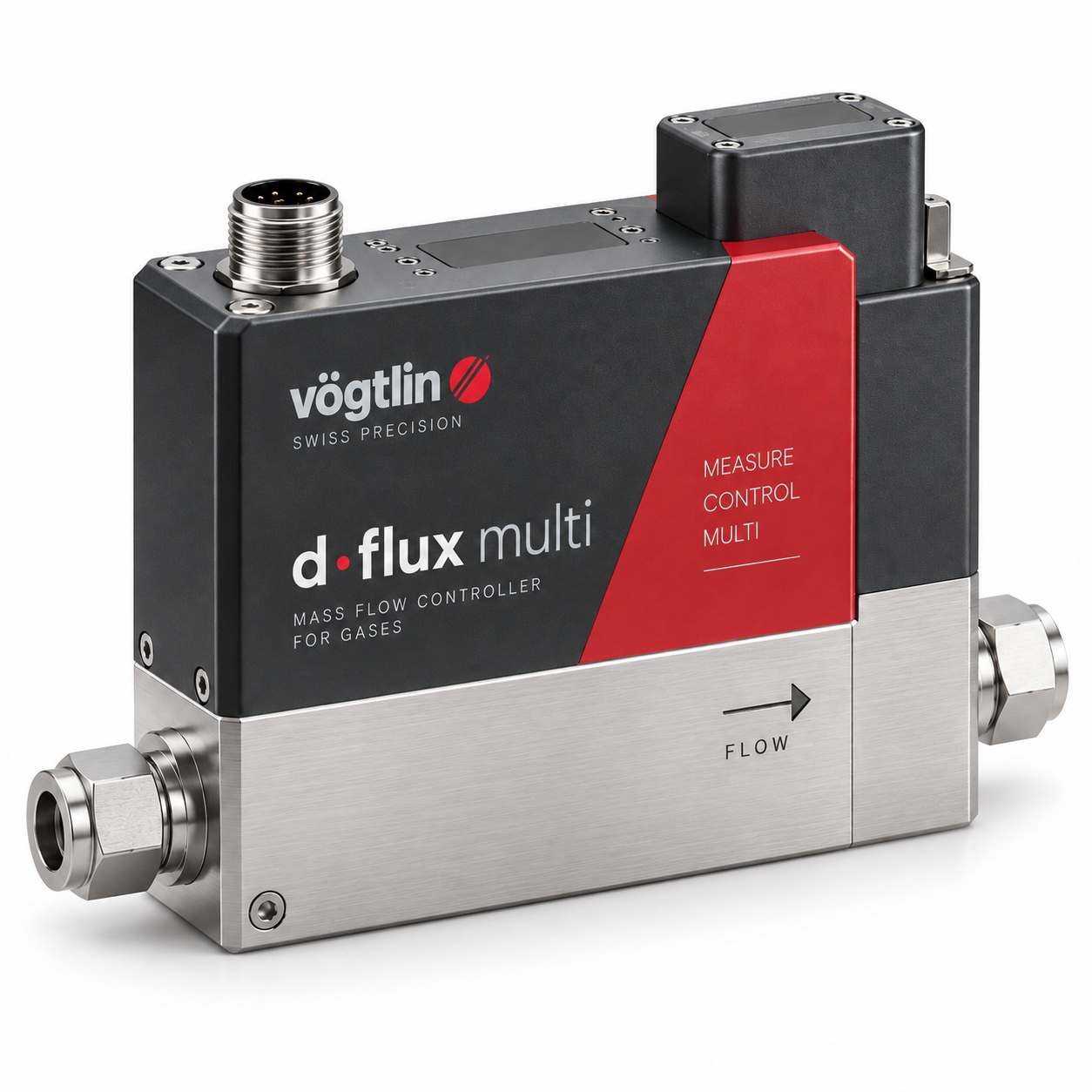

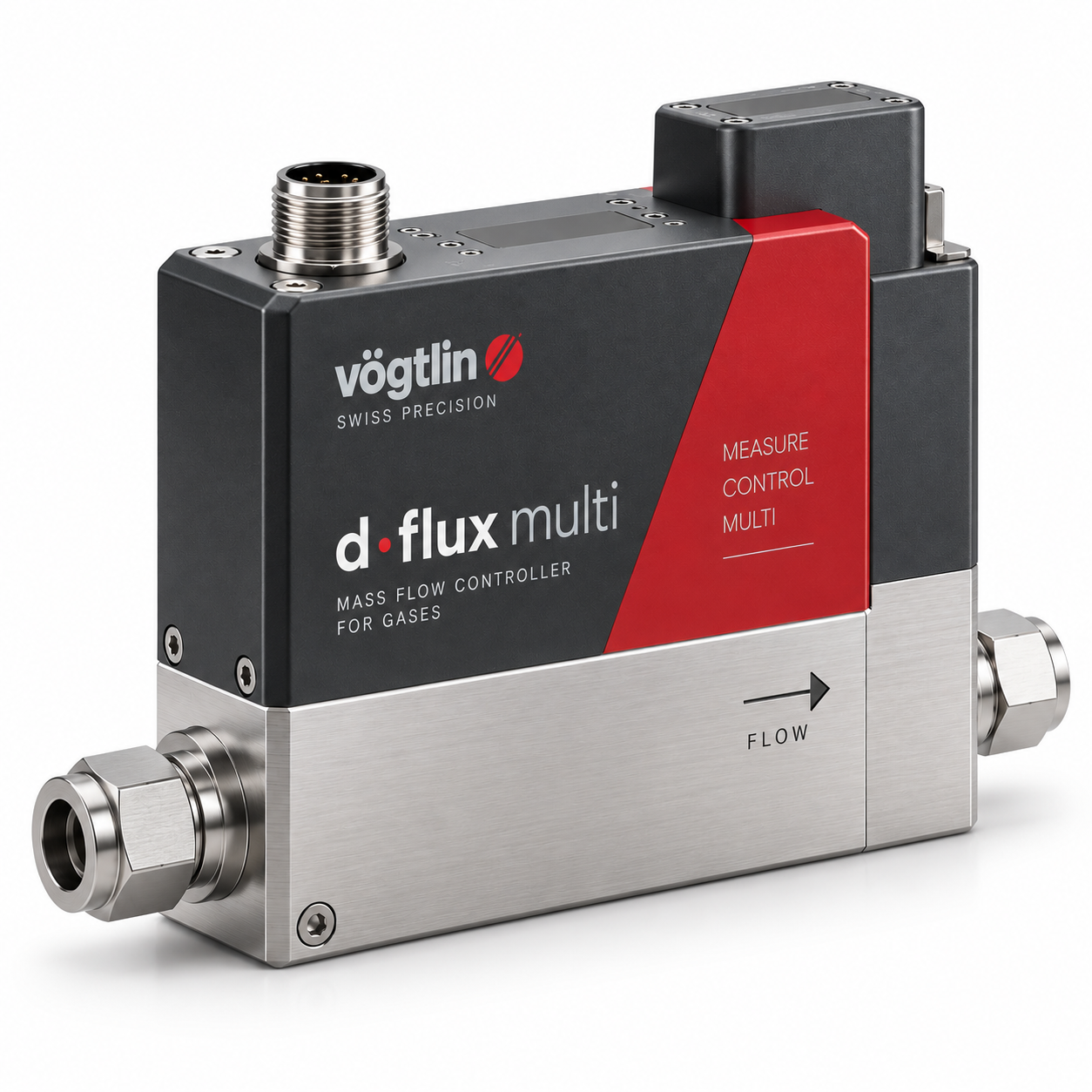

The DFC is a multi-parameter mass flow controller for gases that combines accurate flow measurement with an integrated control valve for automatic gas flow regulation.
For air applications, the DFC is available with flow ranges up to 1400 ln/min, depending on the selected configuration.
The DFC can provide mass flow, volumetric flow, normalized flow, pressure and temperature measurement while controlling gas flow.
The DFC supports RS-485 Modbus RTU and analog output, with optional PROFINET and EtherCAT interfaces depending on configuration.
Please confirm the gas type, required flow range, inlet and outlet pressure, process connection, body material, seal material and communication interface before ordering.
