Model / Part Number: GCM
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 60 ln/min with G1/4; up to 450 ln/min with G1/2 ln/min |
|---|---|
| Accuracy – Eco | ±2.0% of full scale; ±3.0% FS above 200 ln/min % |
| Accuracy – Special | ±1.0% of full scale up to 50 ln/min % |
| Turndown Ratio | 1:50 Eco; up to 1:100 Eco Plus / Special |
| Repeatability | ±0.5% of full scale % |
| Response Time | Max. 300 ms |
| Operating Pressure | 0.2–11 bar(a) |
| Operating Temperature | 0–50 °C |
| Power Supply | Standard AA battery; Micro-USB; optional external 15–30 VDC |

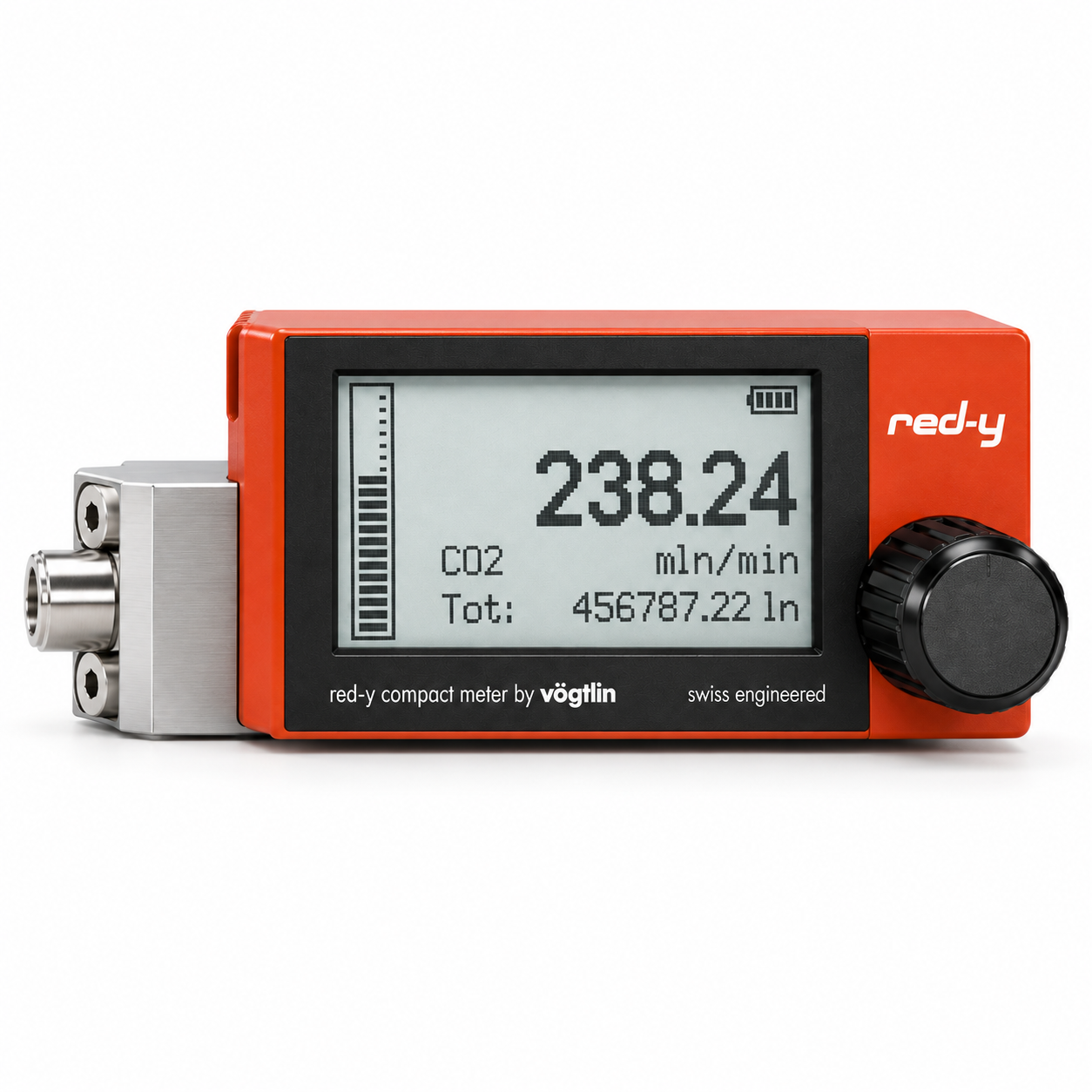

| Display | 128 × 64 px touch display with automatic orientation |

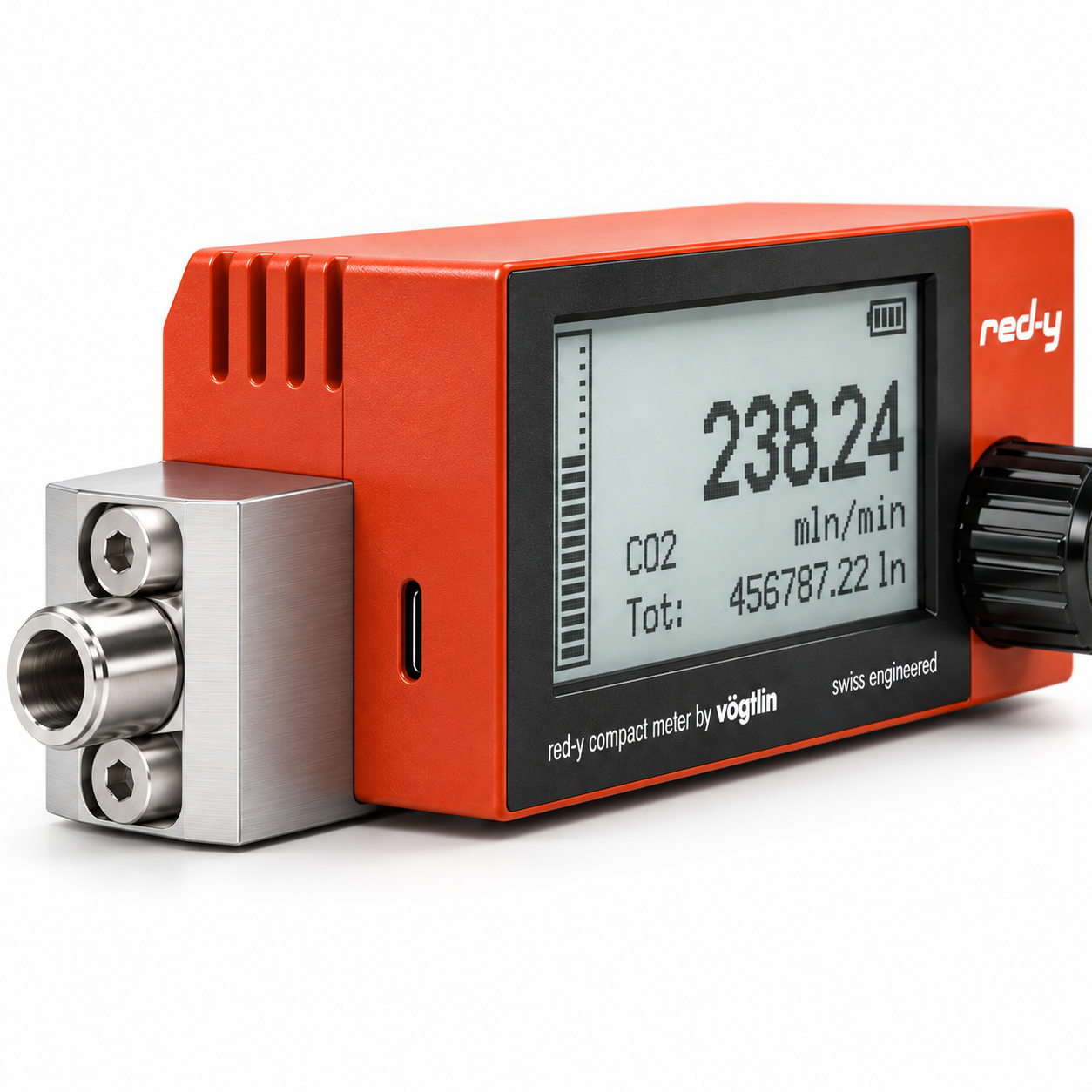

| Process Connection | G1/4 BSPP up to 60 ln/min; G1/2 BSPP up to 450 ln/min |
| Body Material | Anodized aluminium; optional electropolished stainless steel |
| نطاق القياس | حتى 60 ln/min مع G1/4؛ وحتى 450 ln/min مع G1/2 ln/min |
| الدقة – Eco | ±2.0% من النطاق الكامل؛ ±3.0% فوق 200 ln/min % |
| الدقة – Special | ±1.0% من النطاق الكامل حتى 50 ln/min % |
| نسبة المدى | 1:50 لإصدار Eco؛ وحتى 1:100 لإصدار Eco Plus / Special |
| قابلية التكرار | ±0.5% من النطاق الكامل % |
| زمن الاستجابة | بحد أقصى 300 ms |
| ضغط التشغيل | 0.2–11 bar(a) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | بطارية AA قياسية؛ Micro-USB؛ مصدر خارجي اختياري 15–30 VDC |
| الشاشة | شاشة لمس 128 × 64 بكسل مع ضبط تلقائي للاتجاه |
| وصلة العملية | G1/4 BSPP حتى 60 ln/min؛ G1/2 BSPP حتى 450 ln/min |
| مادة الجسم | ألمنيوم مؤكسد؛ ويتوفر اختيارياً فولاذ مقاوم للصدأ مصقول كهربائياً |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, body material, process connection and module configuration. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

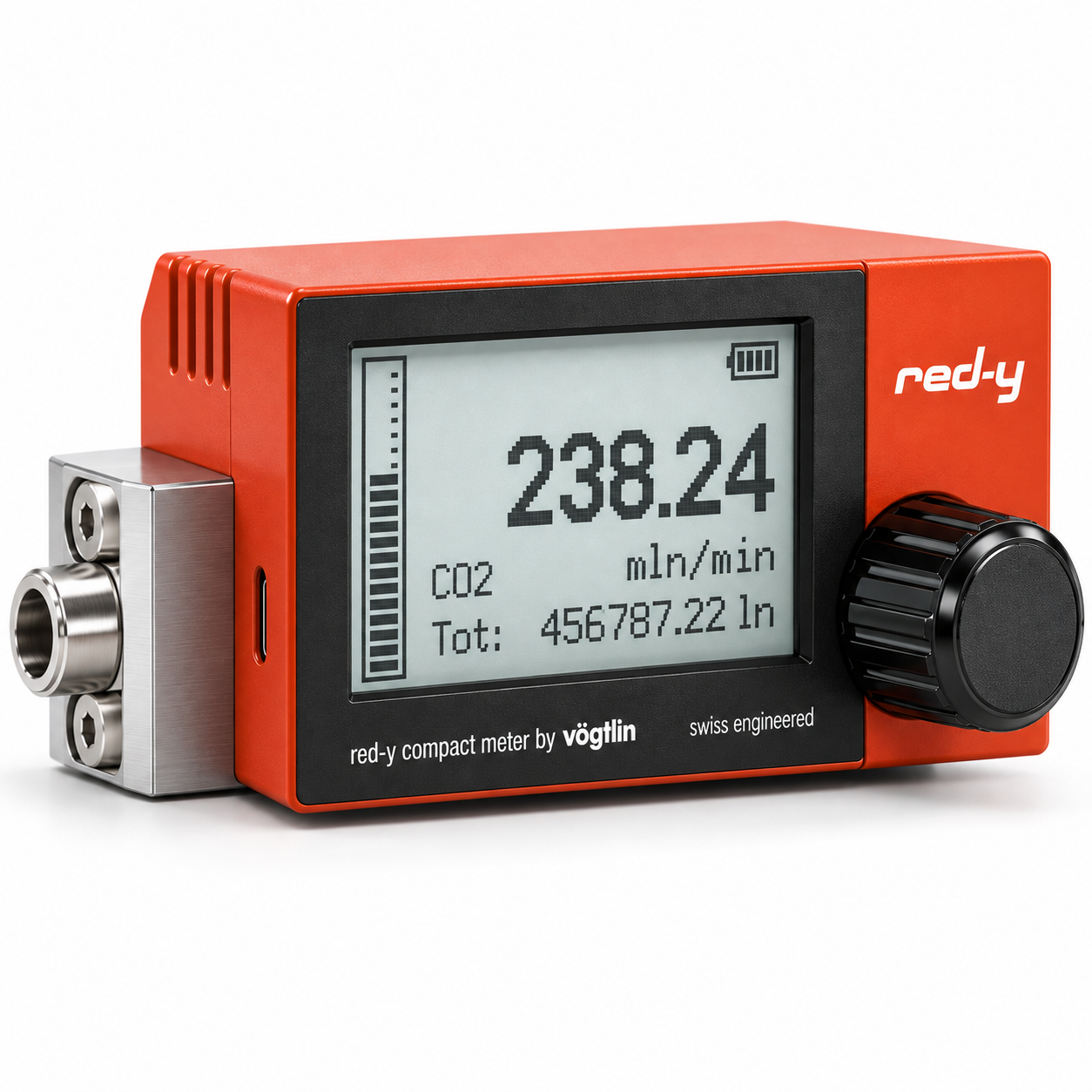

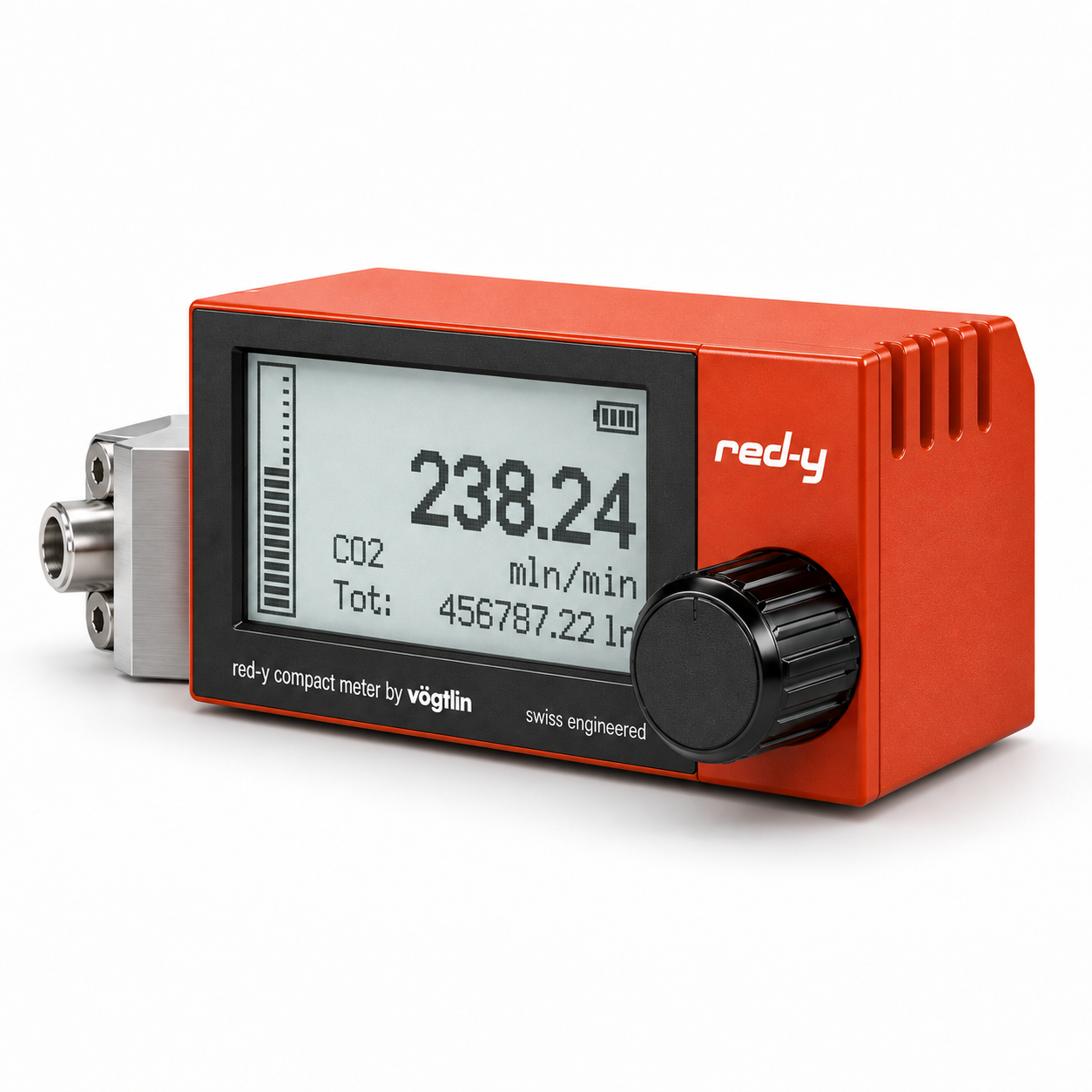

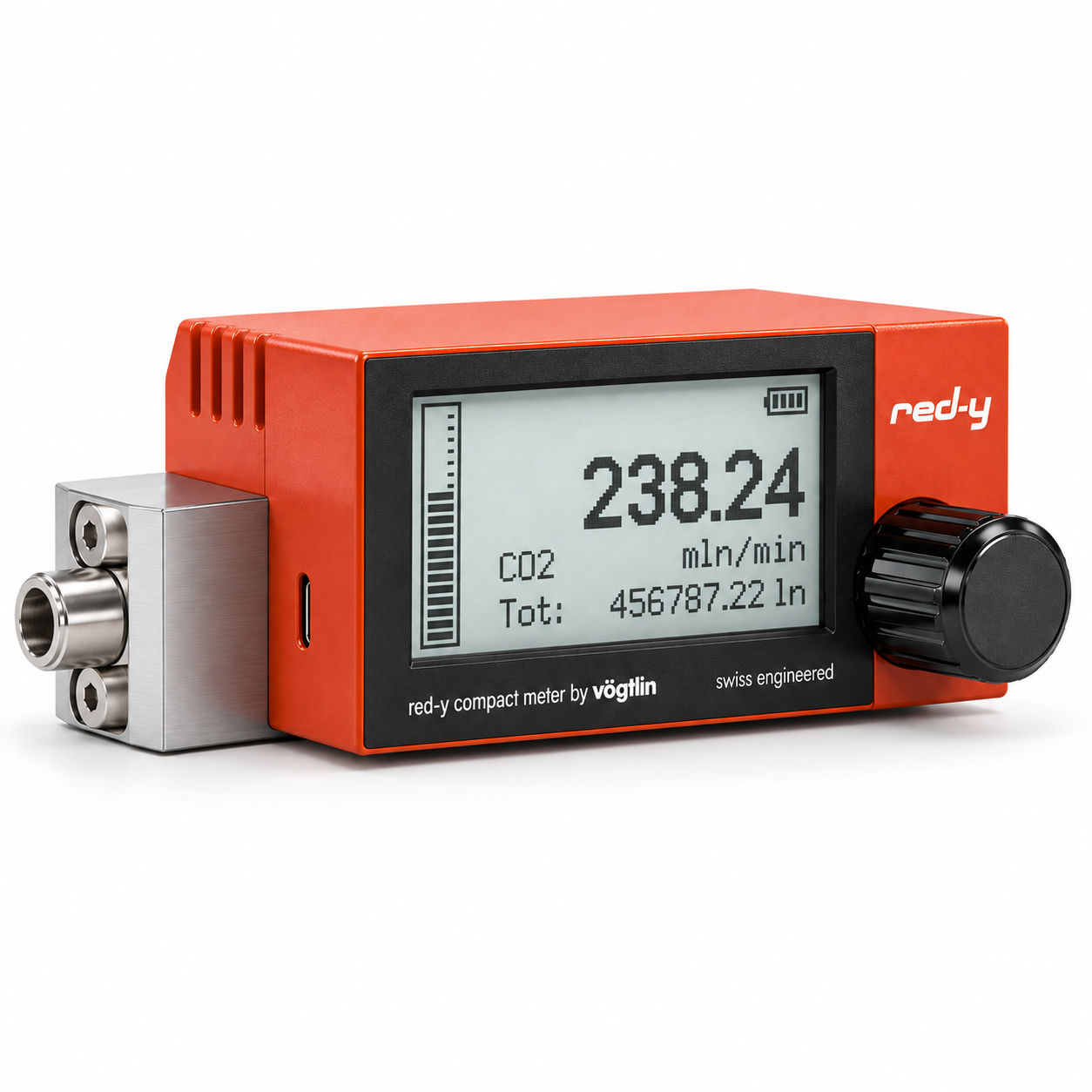

The Vögtlin red-y compact meter GCM is a portable digital mass flow meter designed for accurate measurement of gas flow in laboratory, service, industrial and OEM applications.
Depending on the selected configuration, the GCM is available for flow rates up to 450 ln/min (480 SLPM).

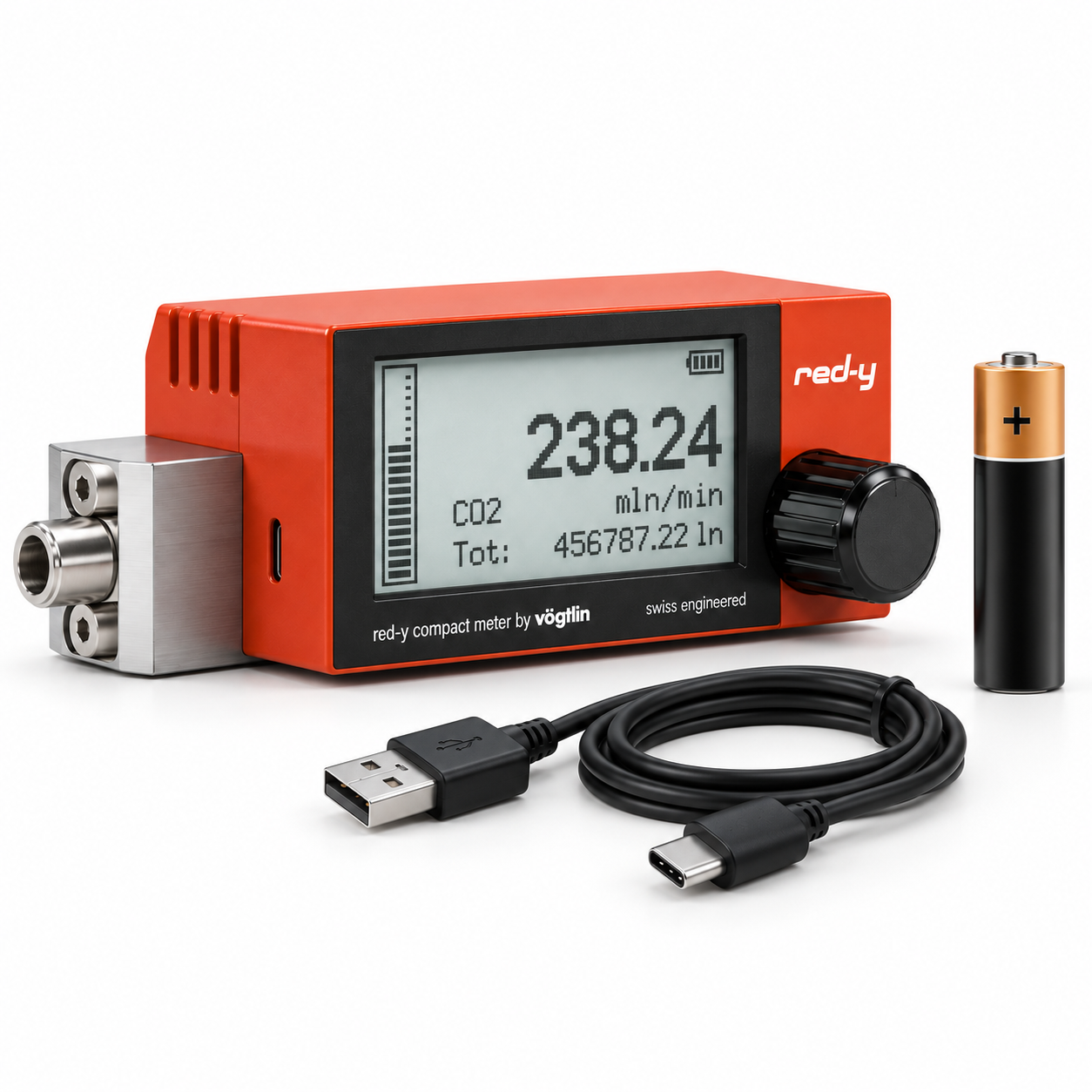

Yes. The red-y compact GCM is designed for portable operation and can run on a standard AA battery. Other power options are available depending on configuration.

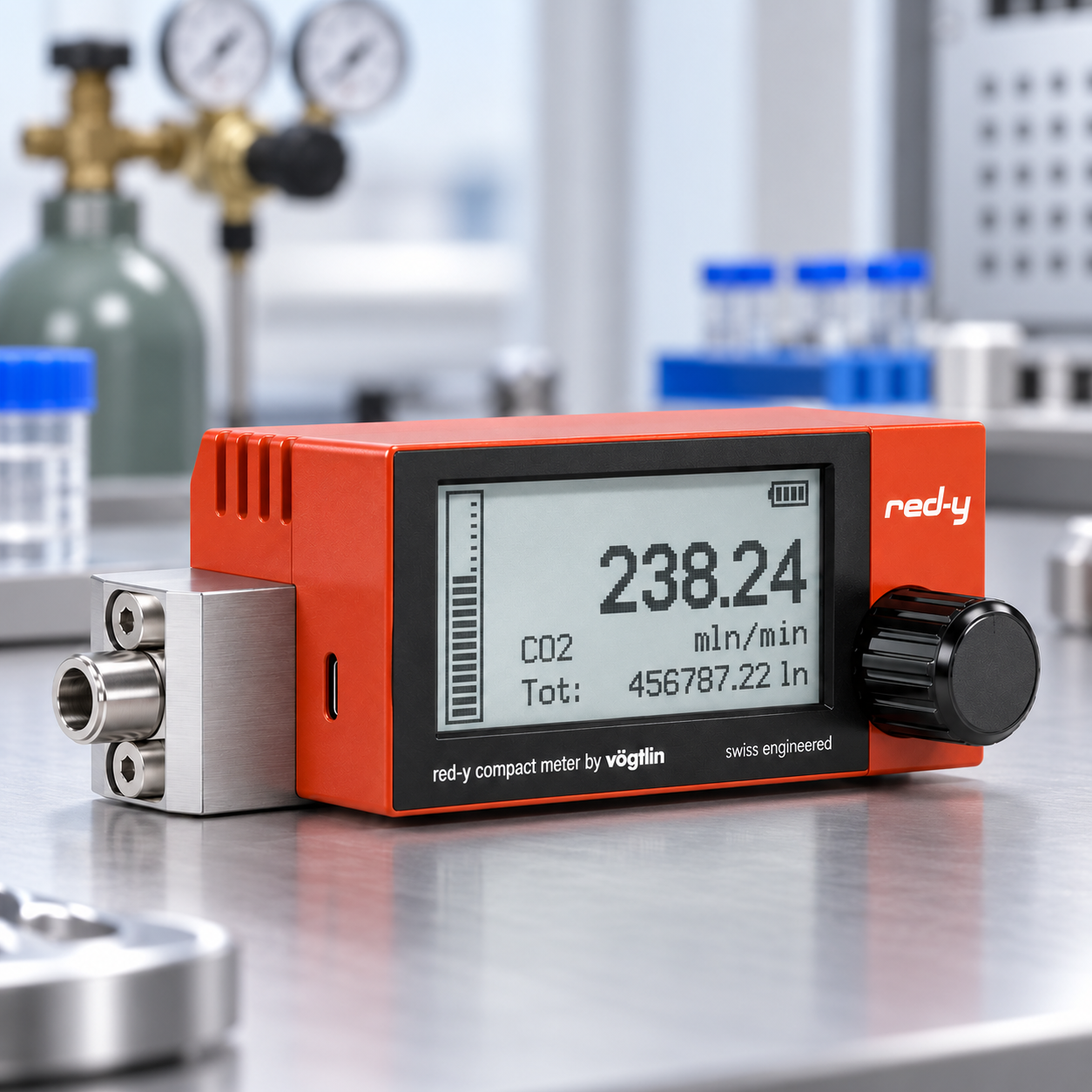

Typical applications include laboratory gas measurement, field service, test benches, calibration work, gas consumption monitoring, analytical equipment and portable process measurements.
Please confirm the gas type, required flow range, process connection, body material and required power or output options before ordering.
