Model / Part Number: GIC
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 450 ln/min (480 SLPM) ln/min |
|---|---|
| Accuracy – Standard | ±1.0% of full scale % |
| Accuracy – Hi-Performance | ±0.3% of full scale + ±0.5% of reading % |
| Turndown Ratio | 1:50 Standard; 1:100 Hi-Performance |
| Repeatability | ±0.2% of full scale % |
| Response Time | Approx. 500 ms |
| Operating Pressure | 0.2–11 bar(a) |
| Operating Temperature | 0–50 °C |
| Power Supply | 24 VDC (18–30 VDC) VDC |
| Process Connection | G1/4 BSPP up to 60 ln/min; G1/2 BSPP up to 450 ln/min |
| Digital Communication | RS-485 / Modbus RTU; optional PROFIBUS |
| Analog Signals | 0–20 mA, 4–20 mA, 0–5 V, 1–5 V, 0–10 V or 2–10 V |
| Body Material | Stainless steel 316L |
| Seal Material | EPDM standard; optional FKM or FFKM |
| Ingress Protection | IP67 / NEMA 6 |
| نطاق القياس | حتى 450 ln/min (480 SLPM) ln/min |
| الدقة – Standard | ±1.0% من النطاق الكامل % |
| الدقة – Hi-Performance | ±0.3% من النطاق الكامل + ±0.5% من القراءة % |
| نسبة المدى | 1:50 للإصدار Standard؛ و1:100 للإصدار Hi-Performance |
| قابلية التكرار | ±0.2% من النطاق الكامل % |
| زمن الاستجابة | حوالي 500 ms |
| ضغط التشغيل | 0.2–11 bar(a) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | 24 VDC (18–30 VDC) VDC |
| وصلة العملية | G1/4 BSPP حتى 60 ln/min؛ G1/2 BSPP حتى 450 ln/min |
| الاتصال الرقمي | RS-485 / Modbus RTU؛ ويتوفر اختيارياً PROFIBUS |
| الإشارات التناظرية | 0–20 mA أو 4–20 mA أو 0–5 V أو 1–5 V أو 0–10 V أو 2–10 V |
| مادة الجسم | فولاذ مقاوم للصدأ 316L |
| مادة مانع التسرب | EPDM قياسي؛ ويتوفر اختيارياً FKM أو FFKM |
| درجة الحماية | IP67 / NEMA 6 |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, valve configuration, process connection, seal material and communication interface. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

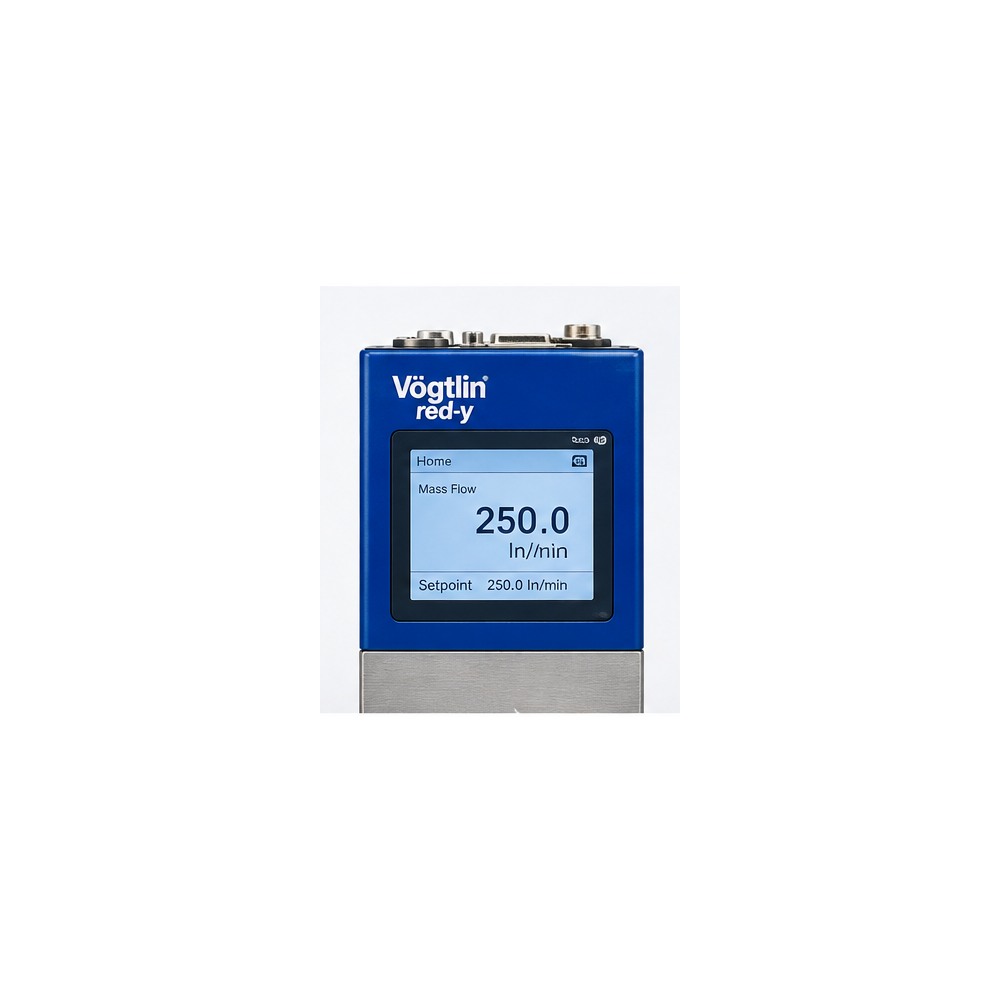

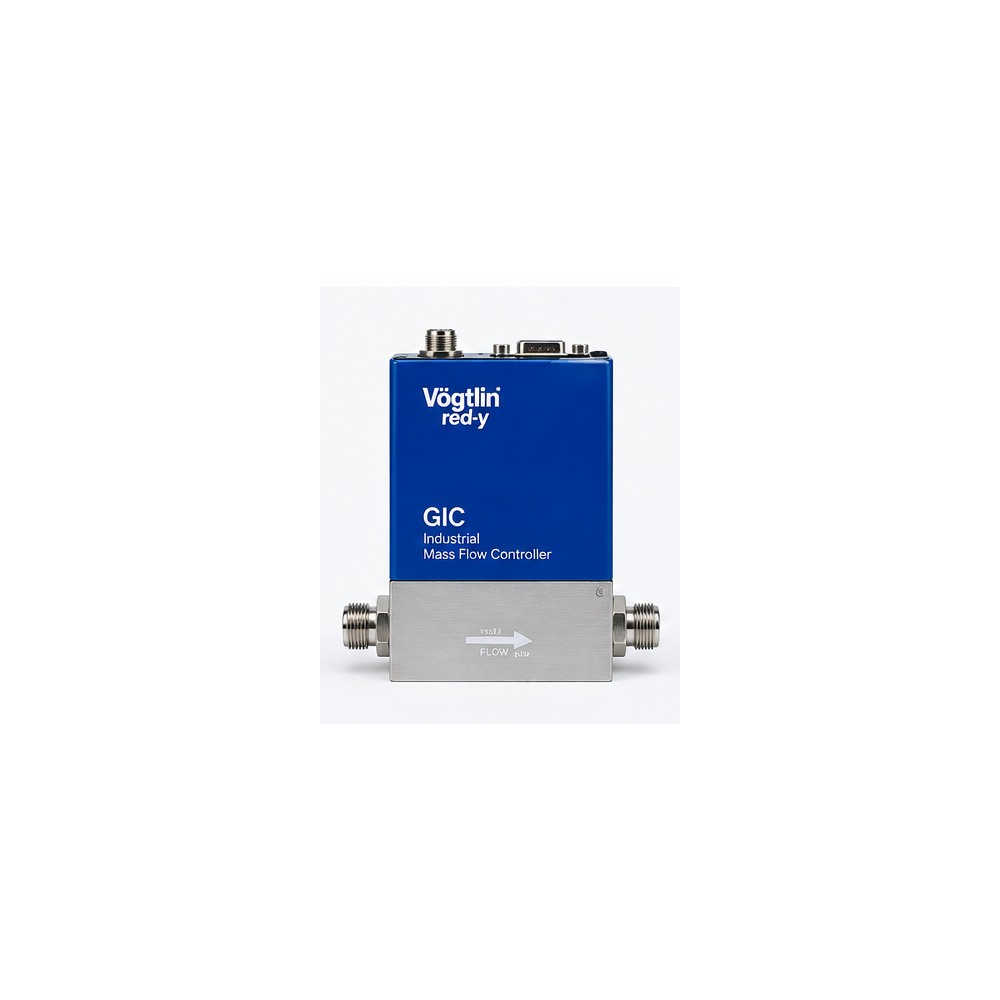

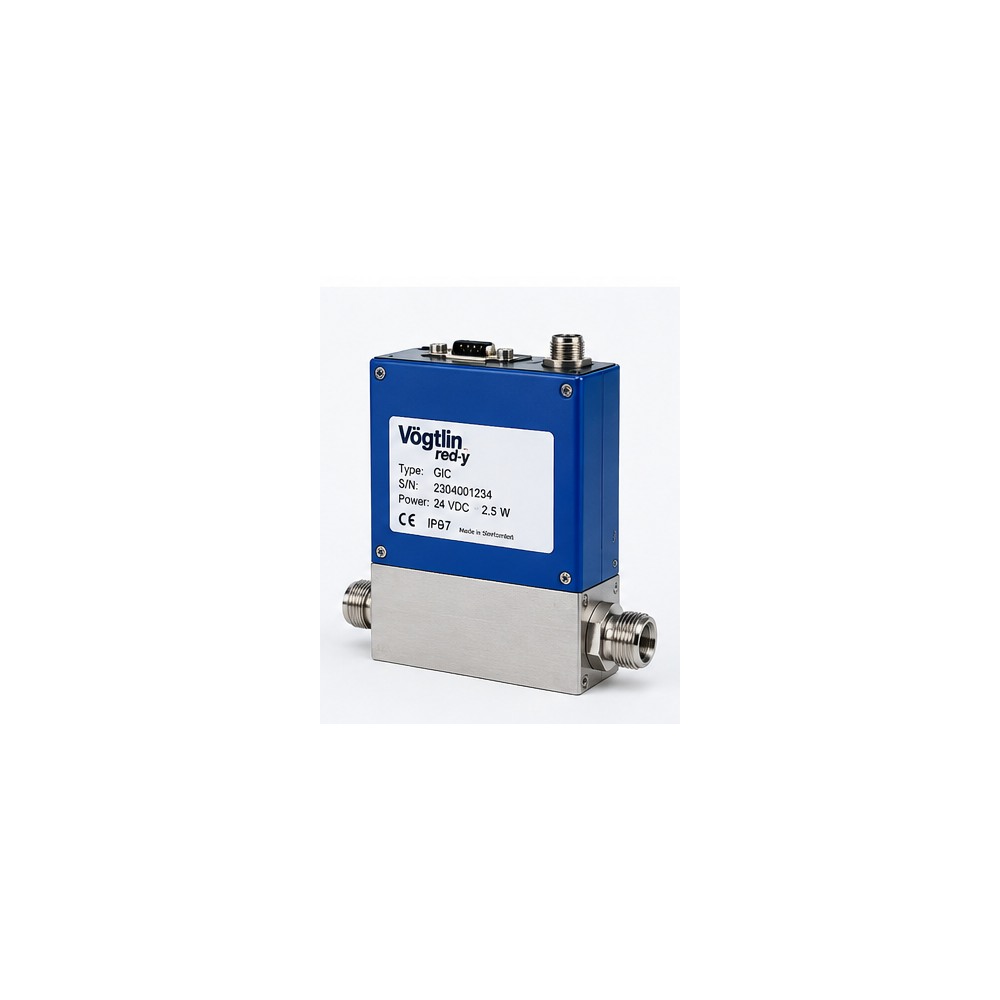

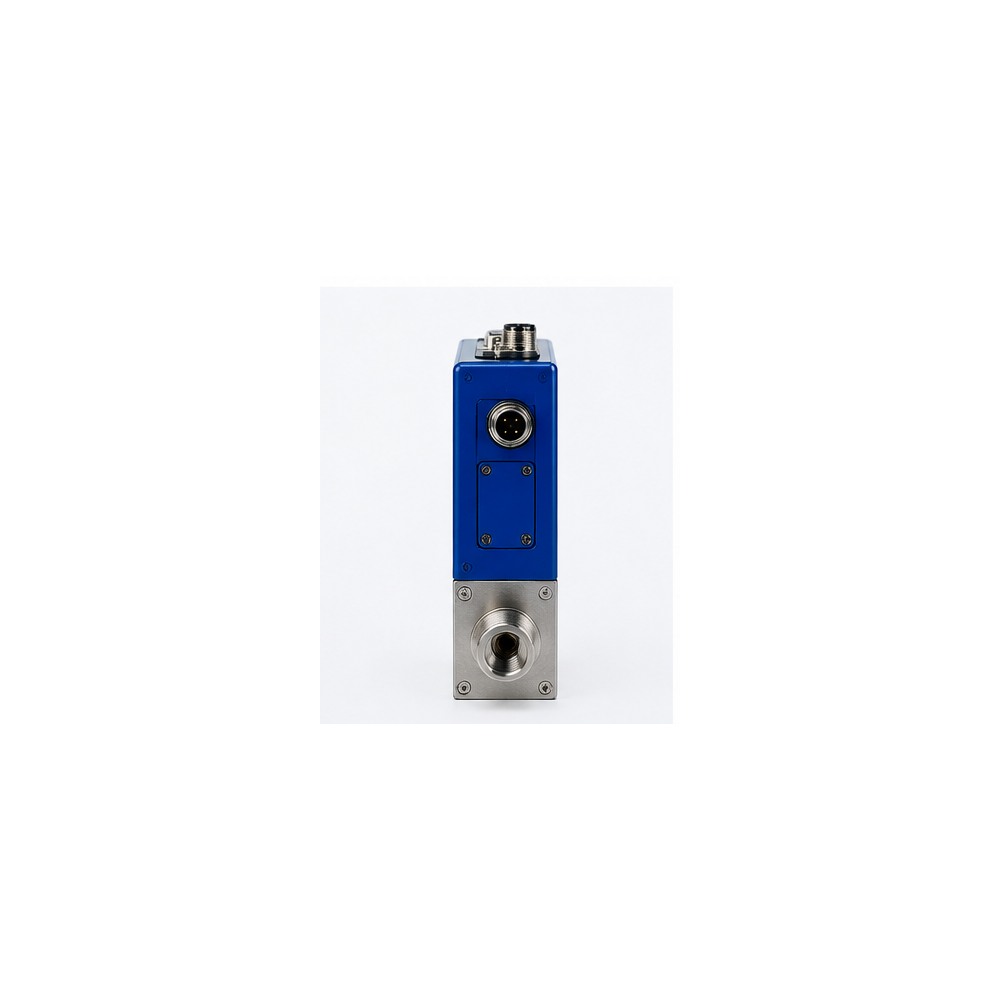

The GIC is an industrial thermal mass flow controller for gases, combining accurate mass flow measurement with an integrated control valve for automatic gas flow regulation.
Depending on configuration, the GIC is available with gas flow ranges up to 450 ln/min (480 SLPM).
The red-y industrial GIC is designed with IP67 / NEMA 6 protection for demanding industrial environments.

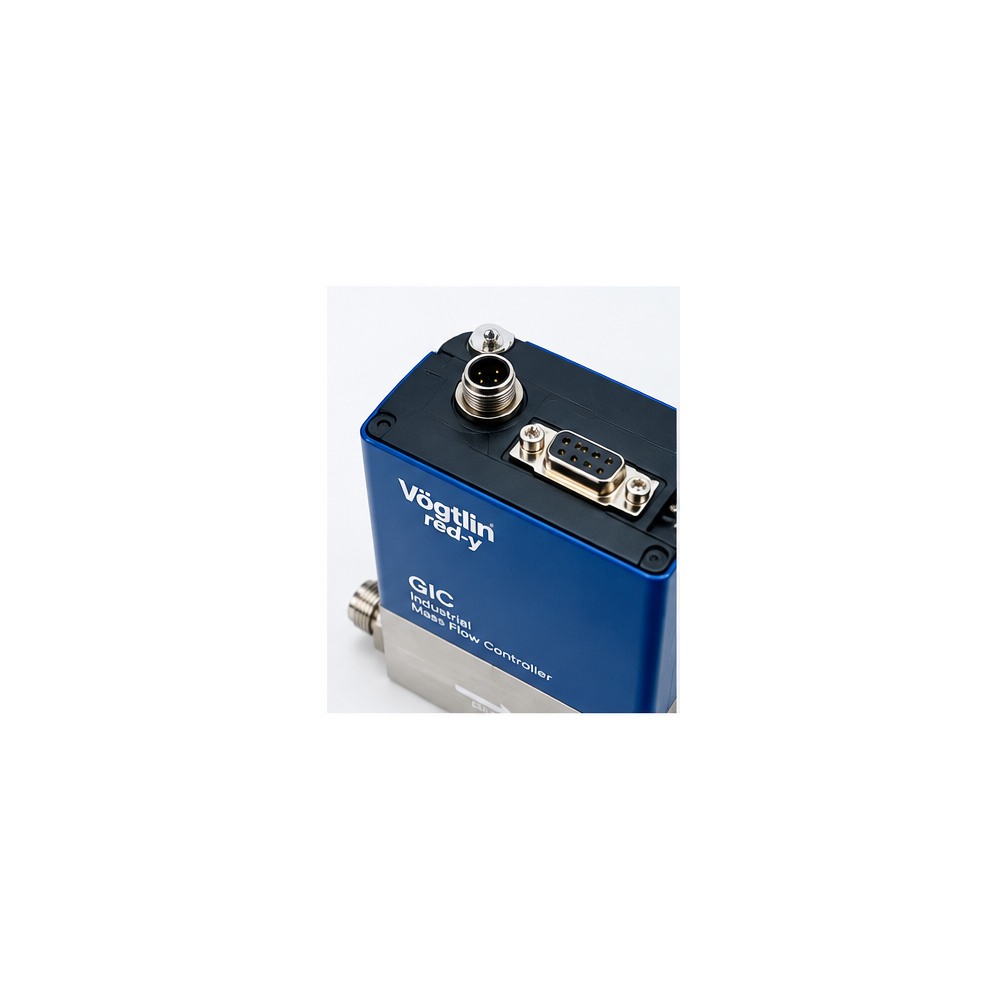

The GIC supports RS-485 Modbus RTU and analog input/output, with additional industrial communication options available depending on configuration.
Please confirm the gas type, required flow range, inlet and outlet pressure, process connection, seal material, output signal and communication interface before ordering.
