Model / Part Number: GSC
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 60 ln/min with G1/4; up to 450 ln/min with G1/2 ln/min |
|---|---|
| Accuracy – Standard | ±1.0% of full scale % |
| Accuracy – Hi-Performance | ±0.3% of full scale + ±0.5% of reading % |
| Turndown Ratio | 1:50 Standard; 1:100 Hi-Performance |
| Repeatability | ±0.2% of full scale % |
| Response Time | Approx. 500 ms |
| Operating Pressure | 0.2–11 bar(a) |
| Operating Temperature | 0–50 °C |
| Power Supply | 24 VDC (18–30 VDC) VDC |

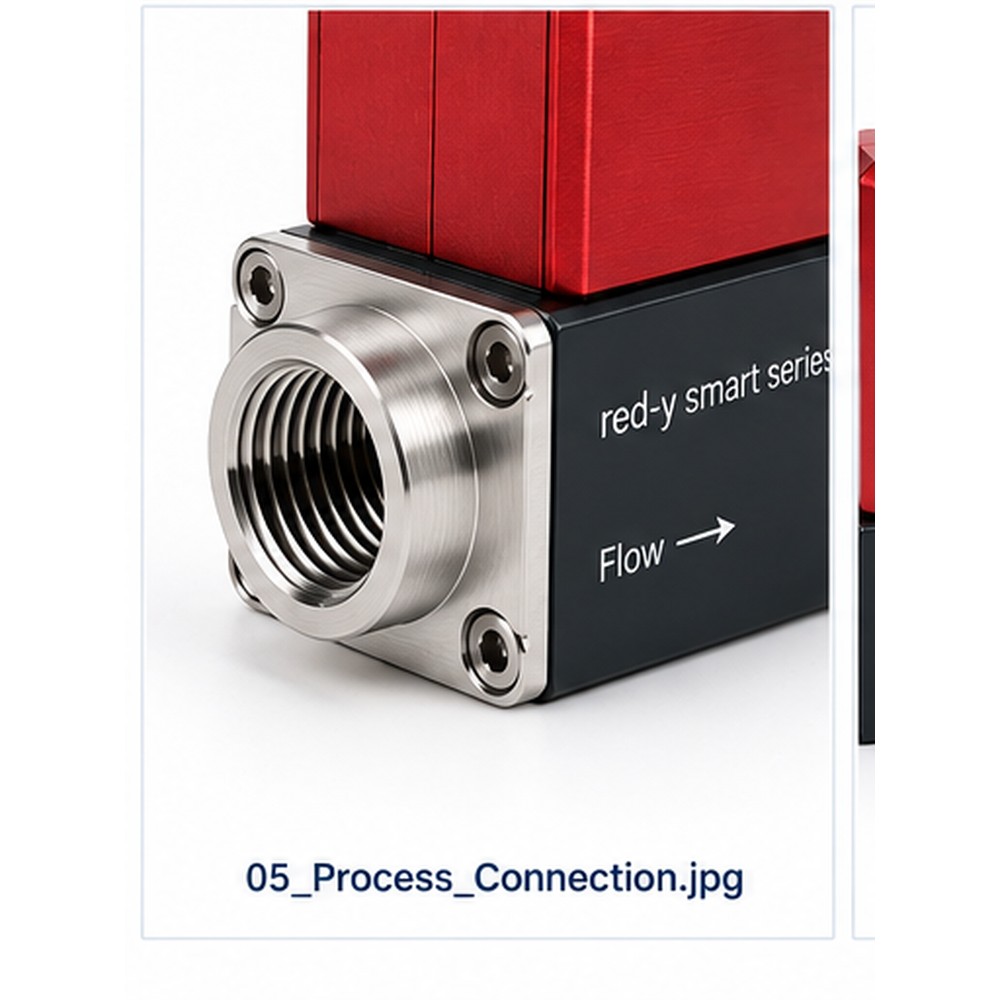

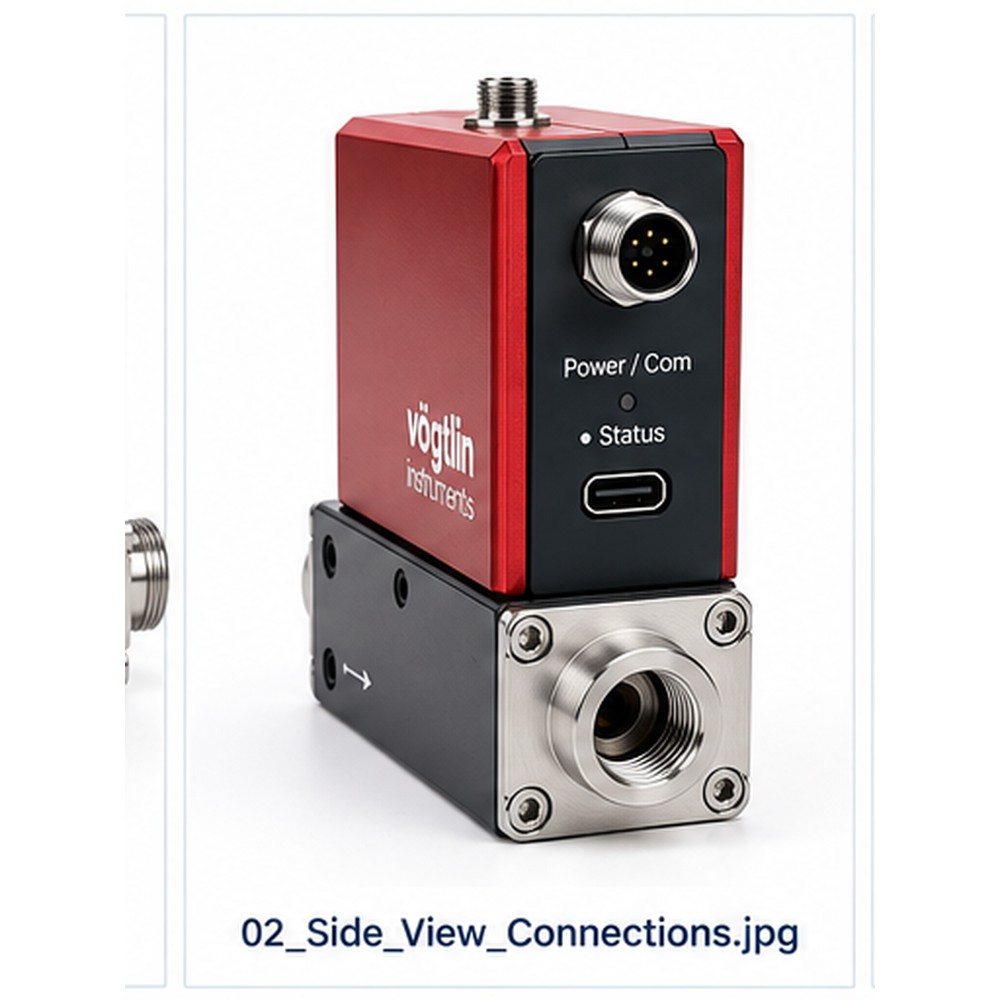

| Process Connection | G1/4 BSPP up to 60 ln/min; G1/2 BSPP up to 450 ln/min |
| Digital Communication | RS-485 / Modbus RTU; optional PROFIBUS, PROFINET RT or EtherCAT |
| Body Material | Anodized aluminium; optional electropolished stainless steel |
| نطاق القياس | حتى 60 ln/min مع G1/4؛ وحتى 450 ln/min مع G1/2 ln/min |
| الدقة – Standard | ±1.0% من النطاق الكامل % |
| الدقة – Hi-Performance | ±0.3% من النطاق الكامل + ±0.5% من القراءة % |
| نسبة المدى | 1:50 للإصدار Standard؛ و1:100 للإصدار Hi-Performance |
| قابلية التكرار | ±0.2% من النطاق الكامل % |
| زمن الاستجابة | حوالي 500 ms |
| ضغط التشغيل | 0.2–11 bar(a) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | 24 VDC (18–30 VDC) VDC |
| وصلة العملية | G1/4 BSPP حتى 60 ln/min؛ G1/2 BSPP حتى 450 ln/min |
| الاتصال الرقمي | RS-485 / Modbus RTU؛ ويتوفر اختيارياً PROFIBUS وPROFINET RT وEtherCAT |
| مادة الجسم | ألمنيوم مؤكسد؛ ويتوفر اختيارياً فولاذ مقاوم للصدأ مصقول كهربائياً |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, valve configuration, body material, process connection and communication options. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

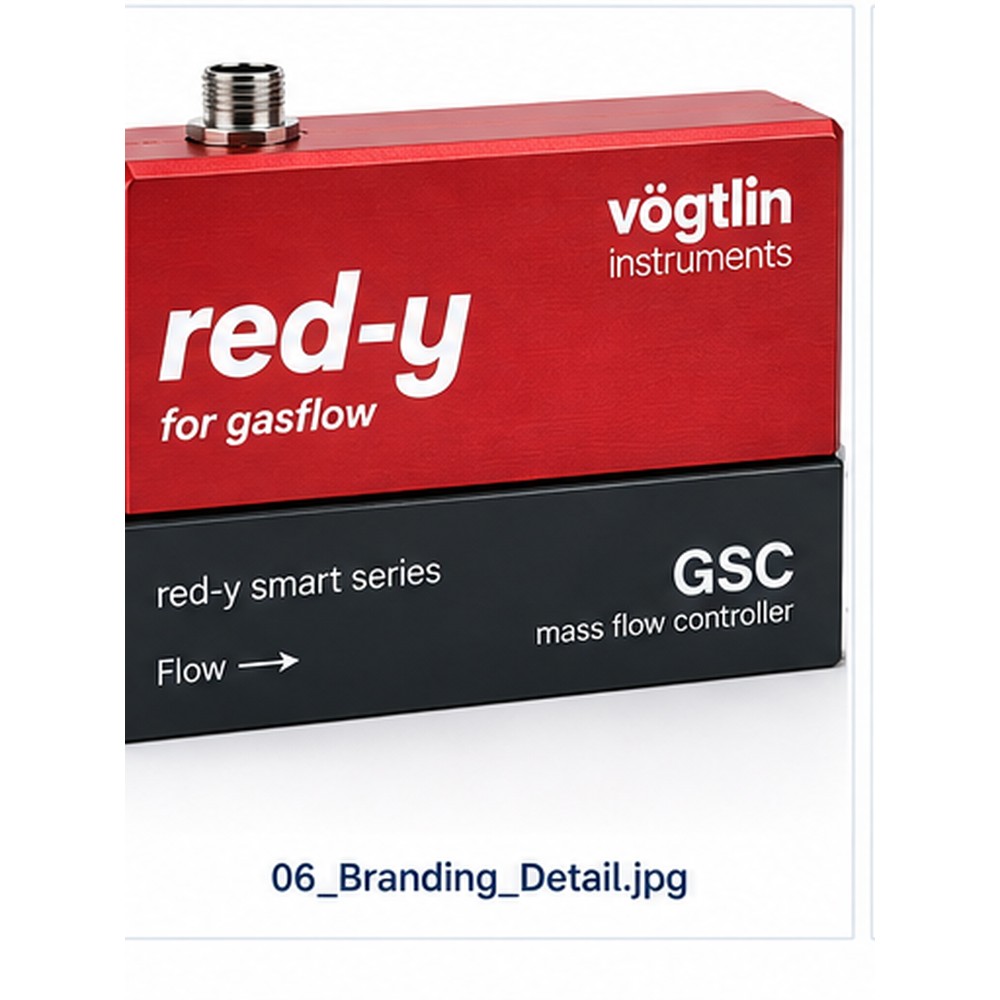

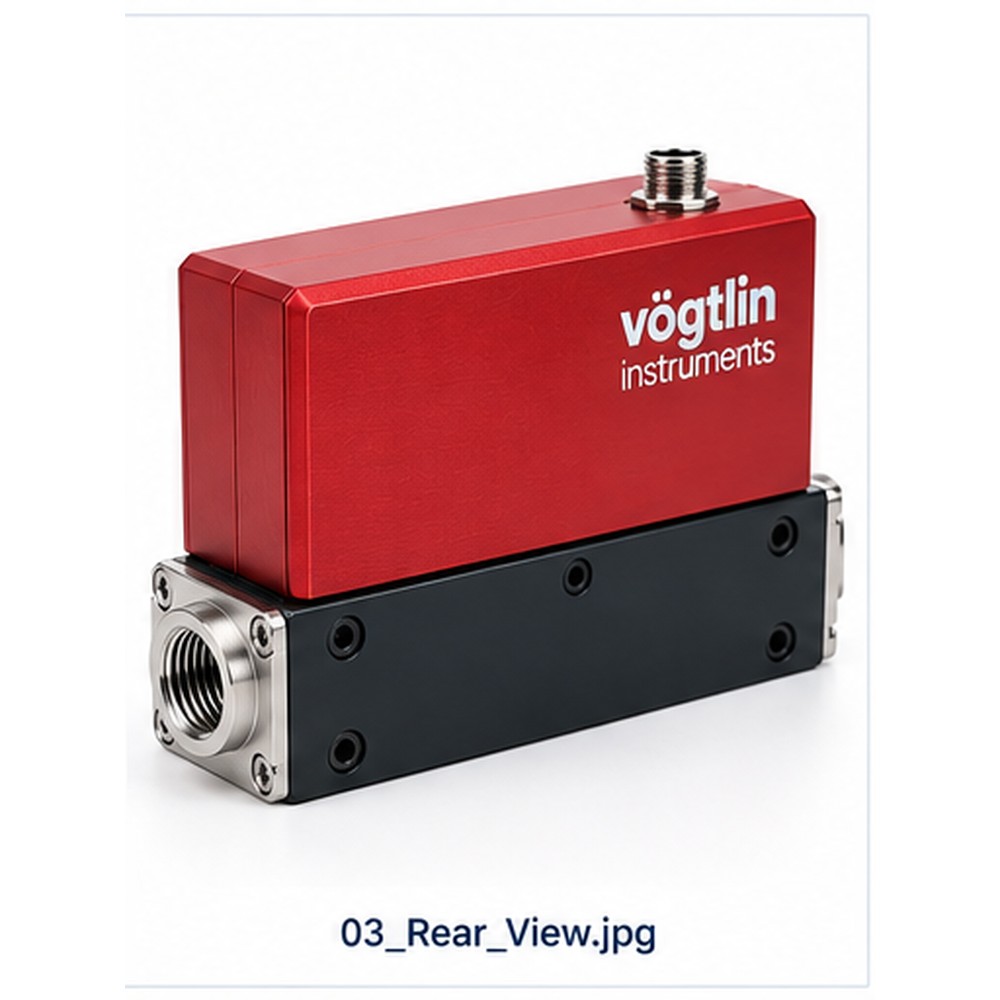

The Vögtlin red-y smart controller GSC is a high-precision thermal mass flow controller designed to measure and automatically regulate gas flow in laboratory, industrial and OEM applications.
The GSC is available for flow rates up to 60 ln/min with a G1/4 connection and up to 450 ln/min with larger G1/2 configurations.
The GSM is a thermal mass flow meter used primarily for gas flow measurement, while the GSC combines flow measurement with an integrated control valve for automatic gas flow regulation.

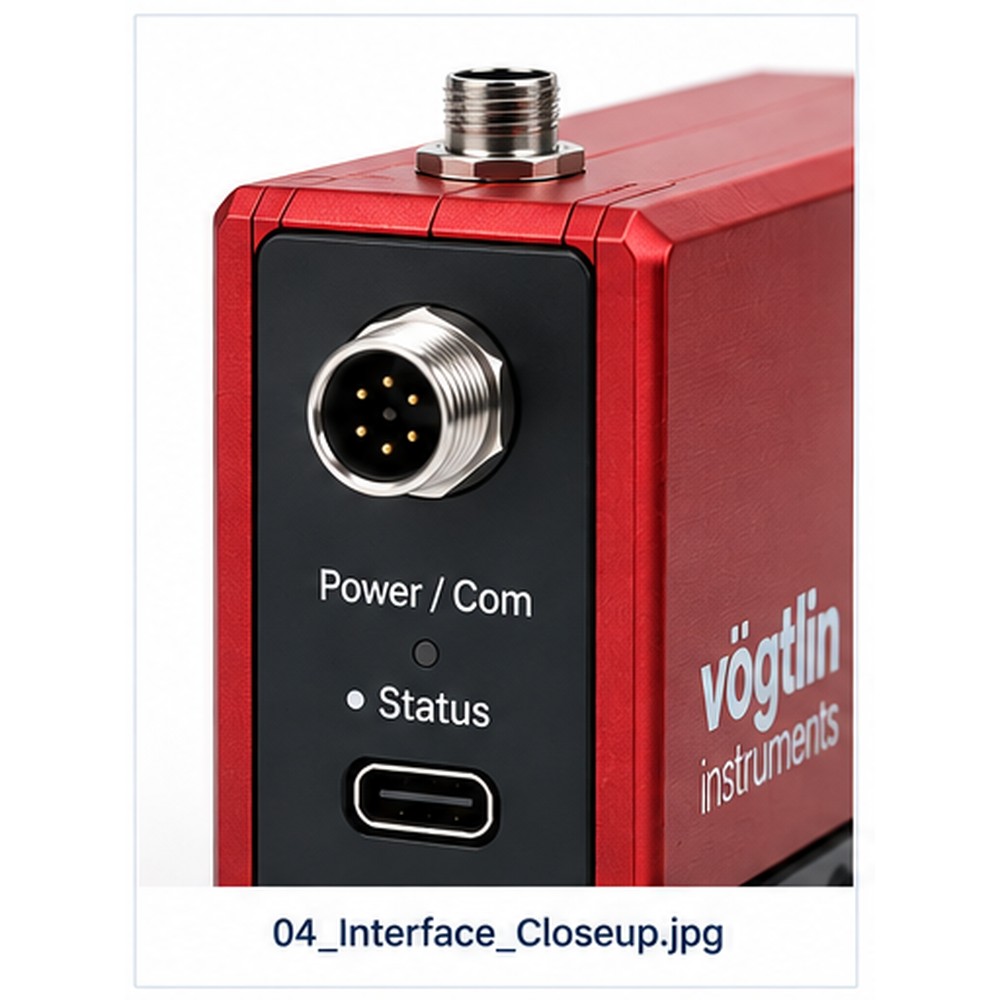

The GSC supports analog signals and RS-485 Modbus RTU as standard. Optional PROFIBUS, PROFINET RT and EtherCAT interfaces are available depending on configuration.
Please confirm the gas type, required flow range, inlet and outlet pressure, process connection, body material, output signal, communication interface and display requirements before ordering.
