Model / Part Number: GSM
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 60 ln/min with G1/4; up to 450 ln/min with G1/2 ln/min |
|---|---|
| Accuracy – Standard | ±1.0% of full scale % |
| Accuracy – Hi-Performance | ±0.3% of full scale + ±0.5% of reading % |
| Turndown Ratio | 1:50 Standard; 1:100 Hi-Performance |
| Repeatability | ±0.2% of full scale % |
| Response Time | Approx. 80 ms |
| Operating Pressure | 0.2–11 bar(a) |
| Operating Temperature | 0–50 °C |
| Power Supply | 24 VDC (18–30 VDC) VDC |
| Process Connection | G1/4 BSPP up to 60 ln/min; G1/2 BSPP up to 450 ln/min |
| نطاق القياس | حتى 60 ln/min مع G1/4؛ وحتى 450 ln/min مع G1/2 ln/min |
| الدقة – Standard | ±1.0% من النطاق الكامل % |
| الدقة – Hi-Performance | ±0.3% من النطاق الكامل + ±0.5% من القراءة % |
| نسبة المدى | 1:50 للإصدار Standard؛ و1:100 للإصدار Hi-Performance |
| قابلية التكرار | ±0.2% من النطاق الكامل % |
| زمن الاستجابة | حوالي 80 ms |
| ضغط التشغيل | 0.2–11 bar(a) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | 24 VDC (18–30 VDC) VDC |
| وصلة العملية | G1/4 BSPP حتى 60 ln/min؛ G1/2 BSPP حتى 450 ln/min |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, body material, process connection and communication configuration. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

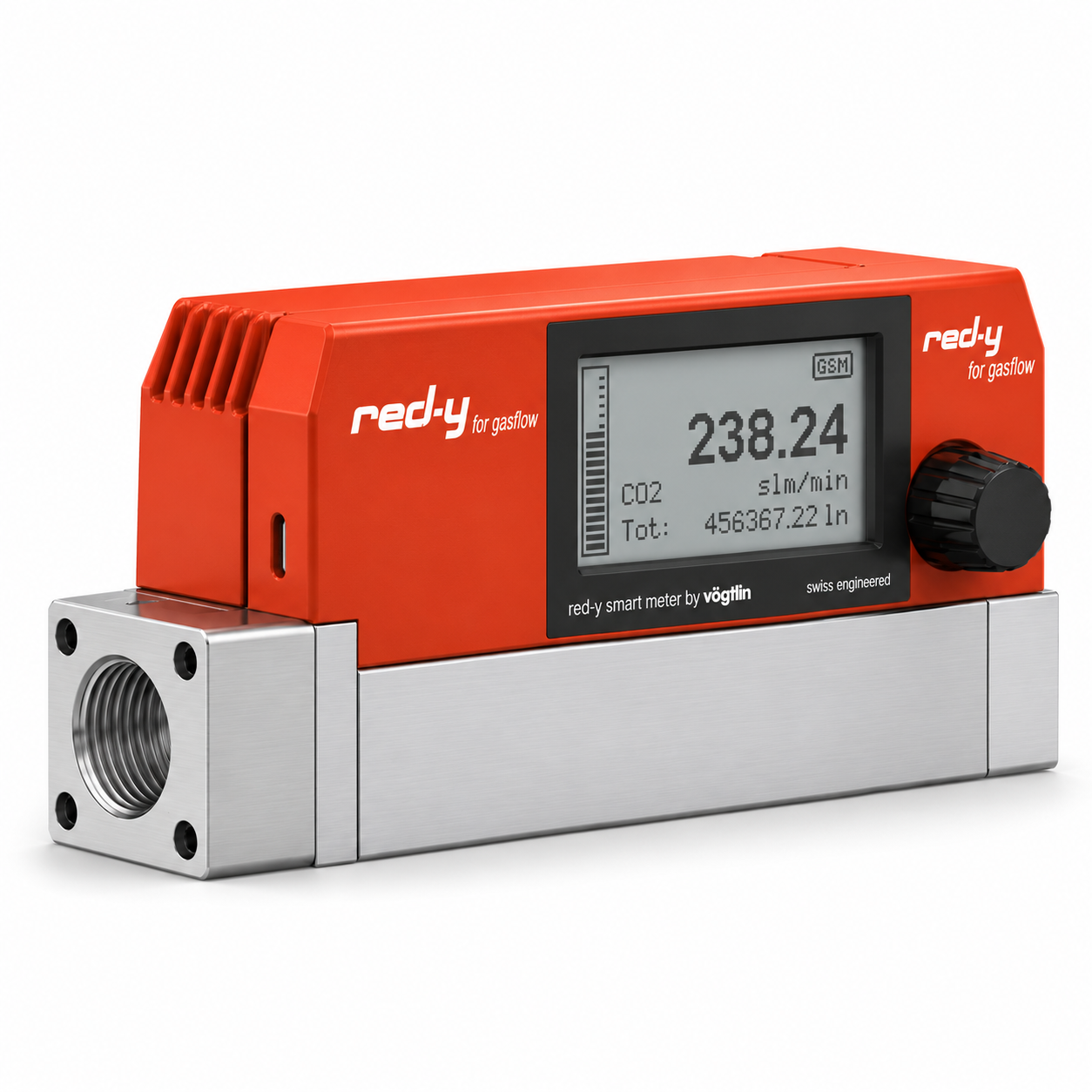

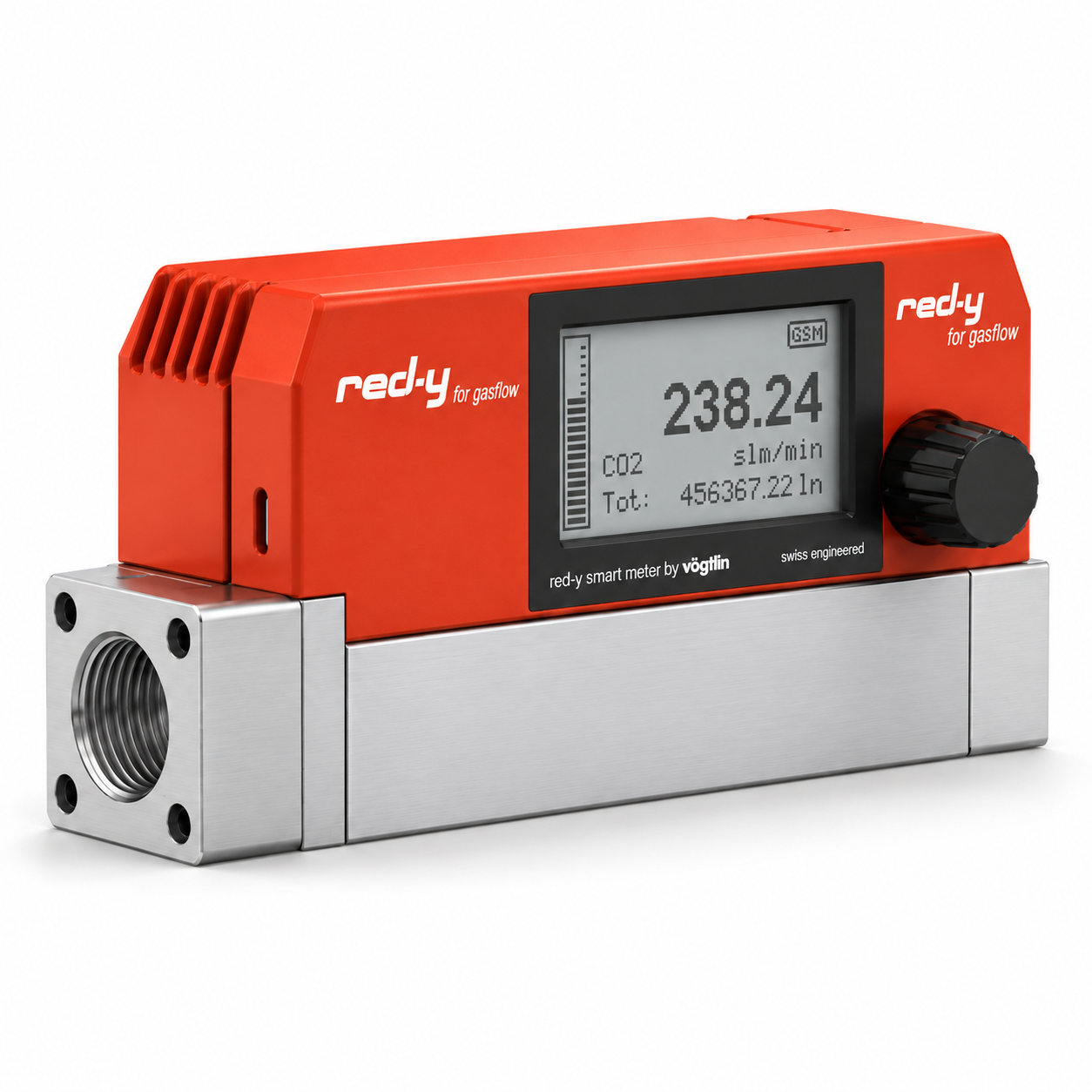

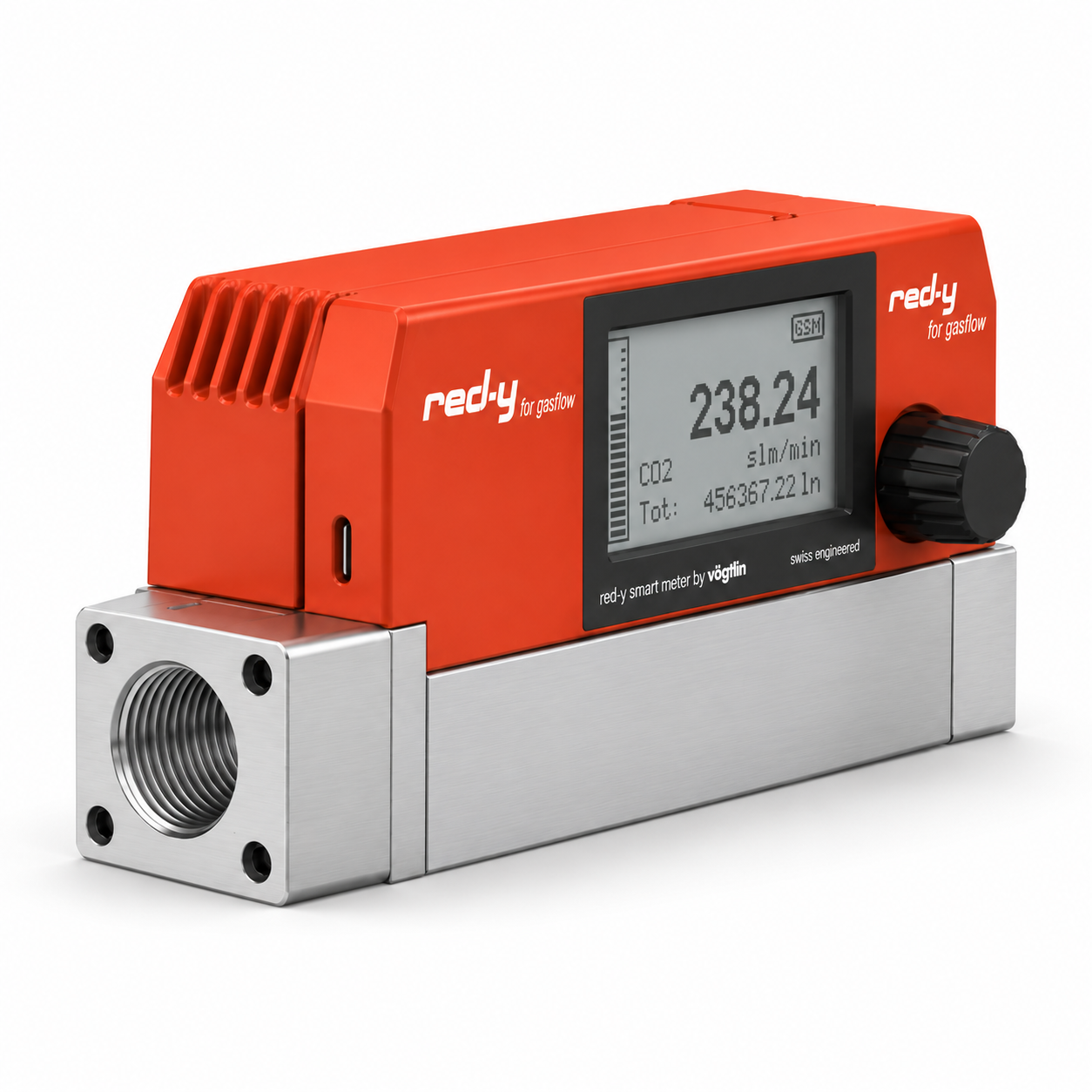

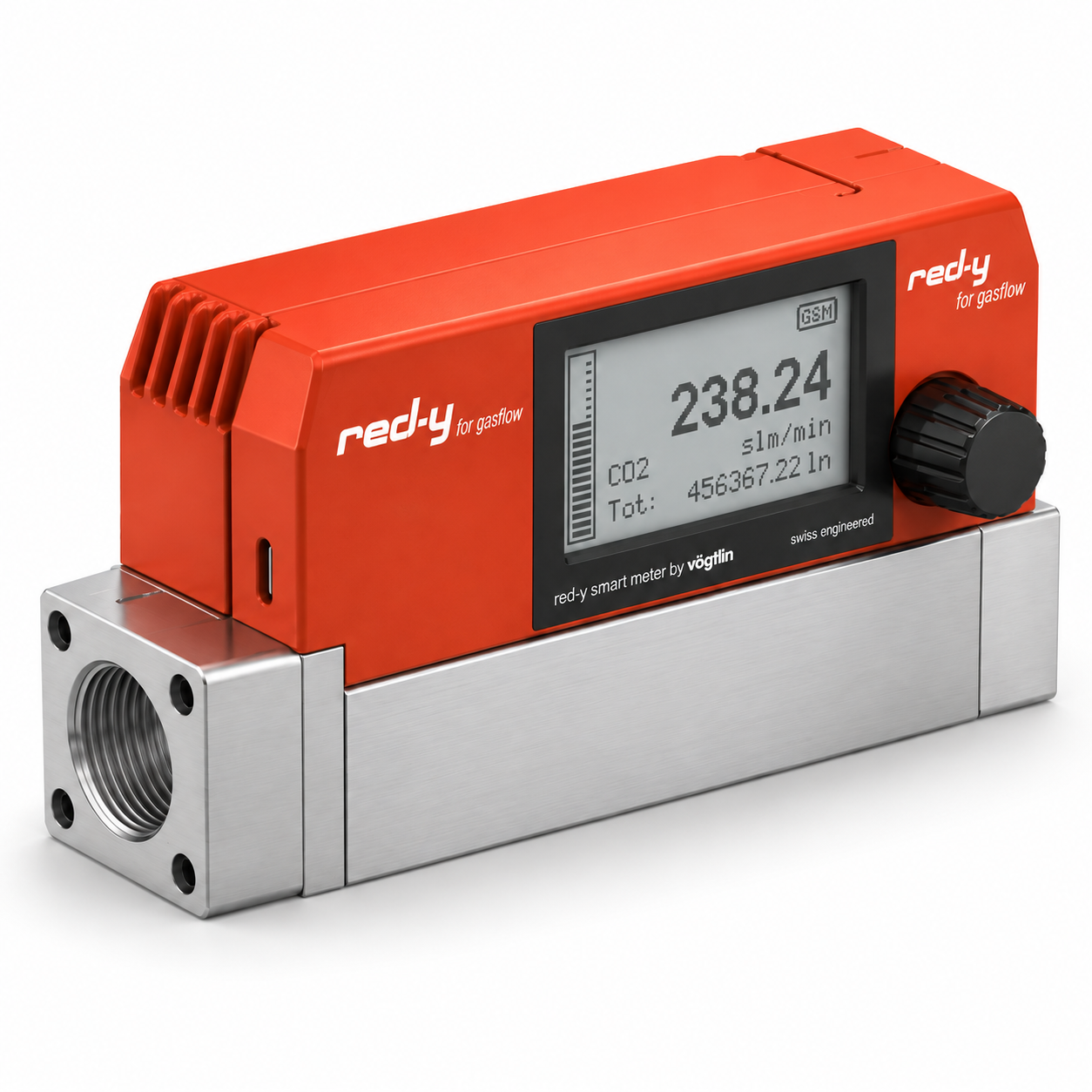

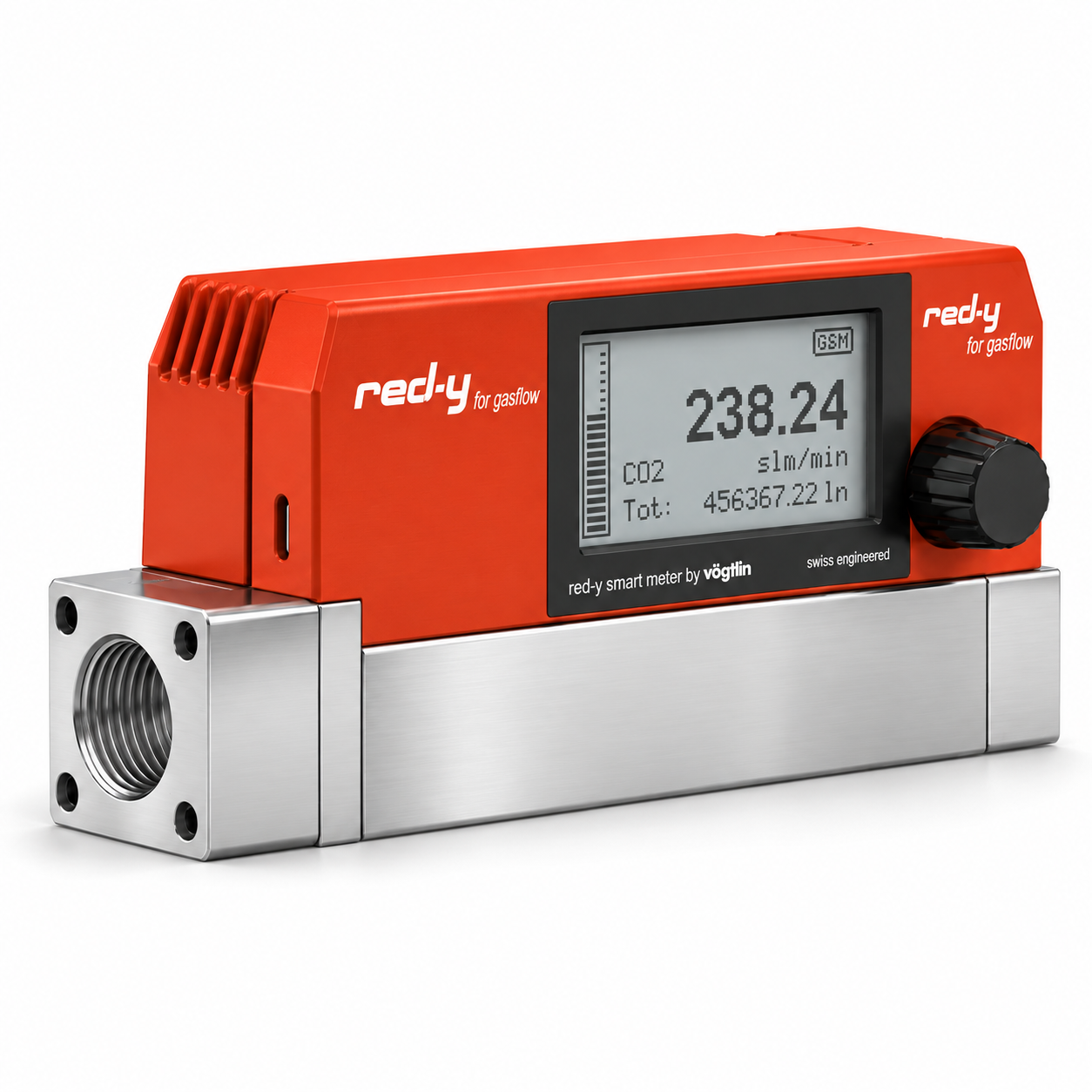

The Vögtlin red-y smart meter GSM is a high-precision thermal mass flow meter designed for accurate measurement of gas flow in laboratory, industrial and OEM applications.

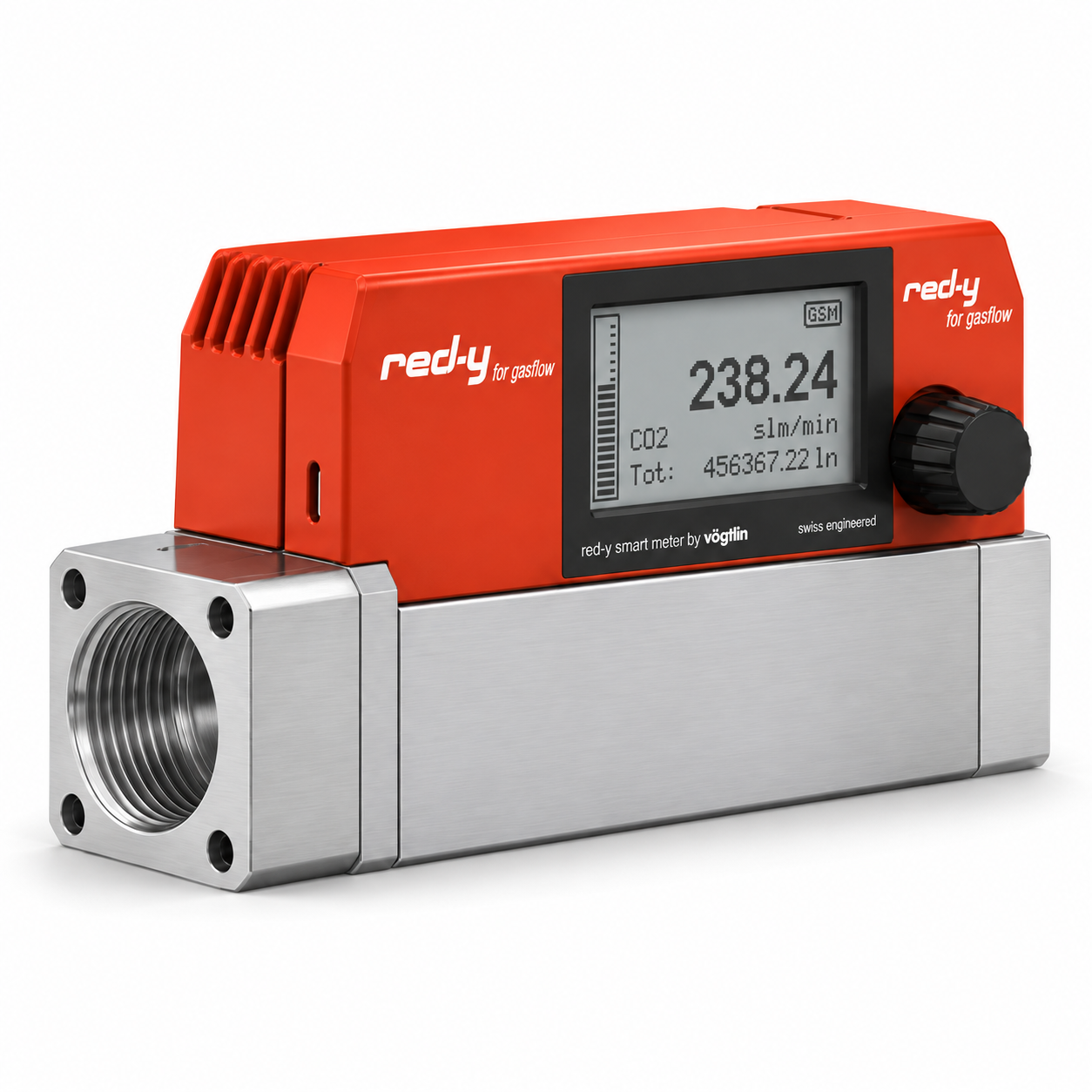

The GSM is available with flow ranges up to 60 ln/min using a G1/4 connection and up to 450 ln/min with larger G1/2 configurations.
The GSM can be configured for various gases including air, nitrogen, oxygen, argon, carbon dioxide, helium, hydrogen and other gases or gas mixtures depending on the selected configuration.
The red-y smart GSM supports analog signals and RS-485 Modbus RTU as standard. Optional communication interfaces are available for selected configurations.
Please confirm the gas type, required flow range, process connection, body material, output signal, communication interface and display requirements before ordering.
