Model / Part Number: GSP
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Pressure Control Range | 30 mbar to 10 bar (graded) |
|---|---|
| Pressure Accuracy | ±0.5% of full scale % |
| Pressure Turndown Ratio | 1:100 |
| Flow Measuring Range | Up to 60 ln/min with G1/4; up to 450 ln/min with G1/2 ln/min |
| Flow Accuracy – Standard | ±1.0% of full scale % |
| Flow Accuracy – Hi-Performance | ±0.3% of full scale + ±0.5% of reading % |
| Flow Turndown Ratio | 1:50 Standard; 1:100 Hi-Performance |
| Flow Measurement Response Time | Approx. 80 ms |
| Pressure Measurement Response Time | Approx. 150 ms |
| Repeatability | ±0.2% of full scale % |
| Operating Pressure | Vacuum up to 10 bar(g) |
| Operating Temperature | 0–50 °C |
| Power Supply | 24 VDC (18–30 VDC) VDC |

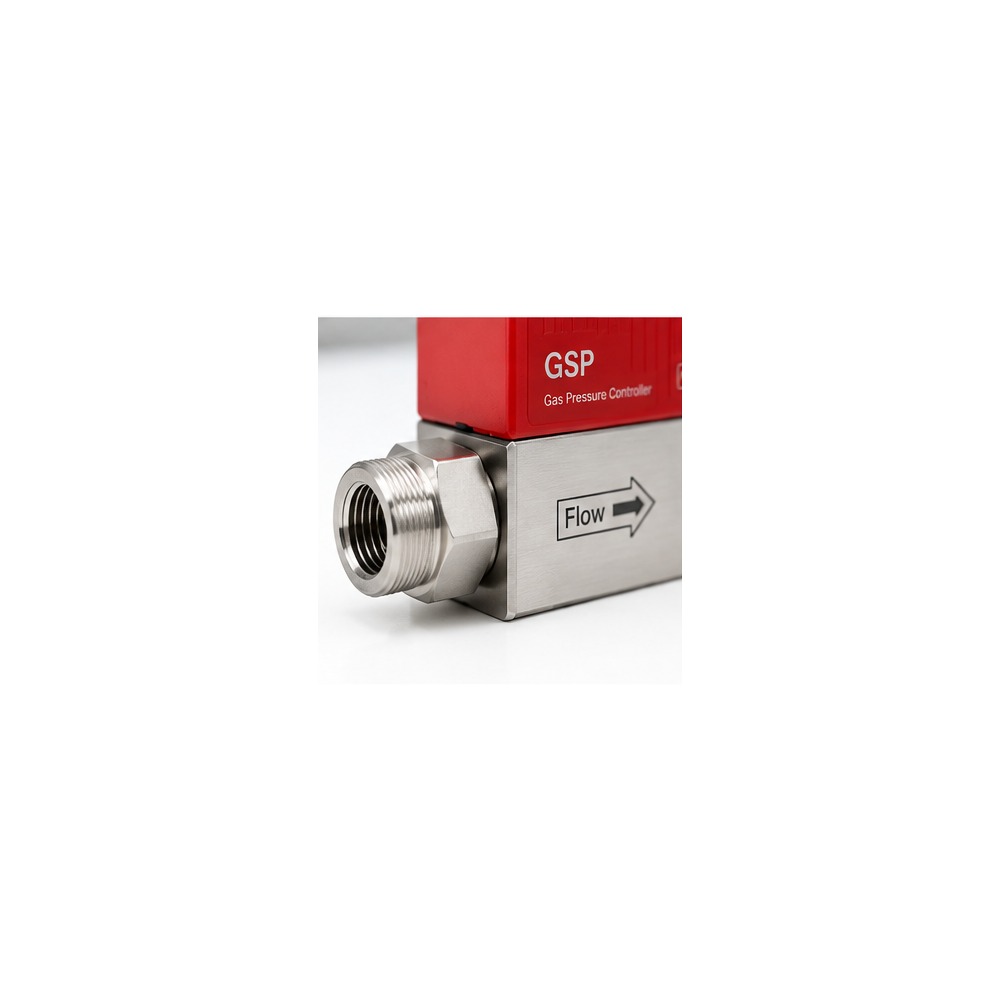

| Process Connection | G1/4 BSPP female up to 60 ln/min; G1/2 BSPP female up to 450 ln/min |

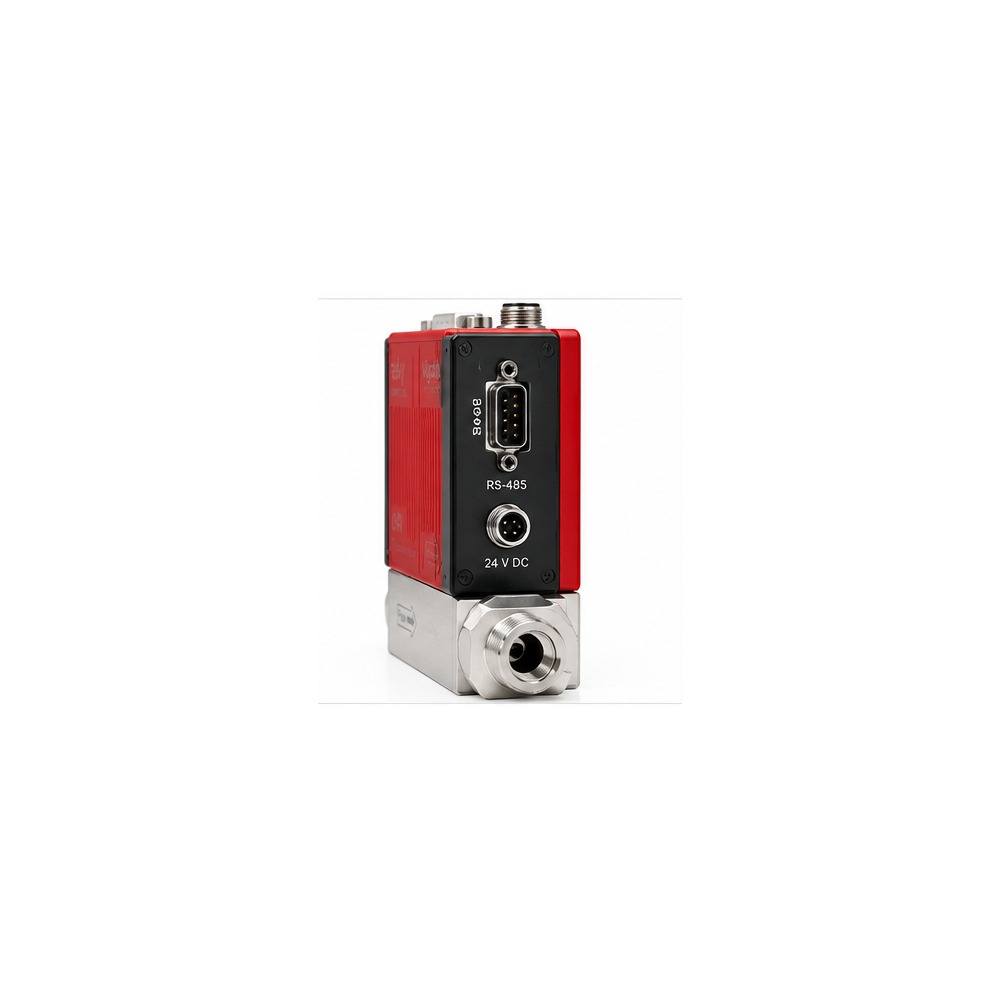

| Digital Communication | RS-485 / Modbus RTU; optional PROFIBUS, PROFINET RT or EtherCAT |
| Analog Signals | 0–20 mA, 4–20 mA, 0–5 V, 1–5 V, 0–10 V or 2–10 V |
| Body Material | Anodized aluminium; optional electropolished stainless steel |
| Seal Material | FKM, EPDM; optional FFKM |
| Ingress Protection | IP50 or IP67 |
| نطاق التحكم في الضغط | من 30 mbar إلى 10 bar (متدرج) |
| دقة الضغط | ±0.5% من النطاق الكامل % |
| نسبة مدى الضغط | 1:100 |
| نطاق قياس التدفق | حتى 60 ln/min مع G1/4؛ وحتى 450 ln/min مع G1/2 ln/min |
| دقة التدفق – Standard | ±1.0% من النطاق الكامل % |
| دقة التدفق – Hi-Performance | ±0.3% من النطاق الكامل + ±0.5% من القراءة % |
| نسبة مدى التدفق | 1:50 للإصدار Standard؛ و1:100 للإصدار Hi-Performance |
| زمن استجابة قياس التدفق | حوالي 80 ms |
| زمن استجابة قياس الضغط | حوالي 150 ms |
| قابلية التكرار | ±0.2% من النطاق الكامل % |
| ضغط التشغيل | من الفراغ حتى 10 bar(g) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | 24 VDC (18–30 VDC) VDC |
| وصلة العملية | G1/4 BSPP أنثى حتى 60 ln/min؛ G1/2 BSPP أنثى حتى 450 ln/min |
| الاتصال الرقمي | RS-485 / Modbus RTU؛ ويتوفر اختيارياً PROFIBUS وPROFINET RT وEtherCAT |
| الإشارات التناظرية | 0–20 mA أو 4–20 mA أو 0–5 V أو 1–5 V أو 0–10 V أو 2–10 V |
| مادة الجسم | ألمنيوم مؤكسد؛ ويتوفر اختيارياً فولاذ مقاوم للصدأ مصقول كهربائياً |
| مادة مانع التسرب | FKM أو EPDM؛ ويتوفر اختيارياً FFKM |
| درجة الحماية | IP50 أو IP67 |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, pressure range, flow range, process connection, valve configuration and communication interface. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

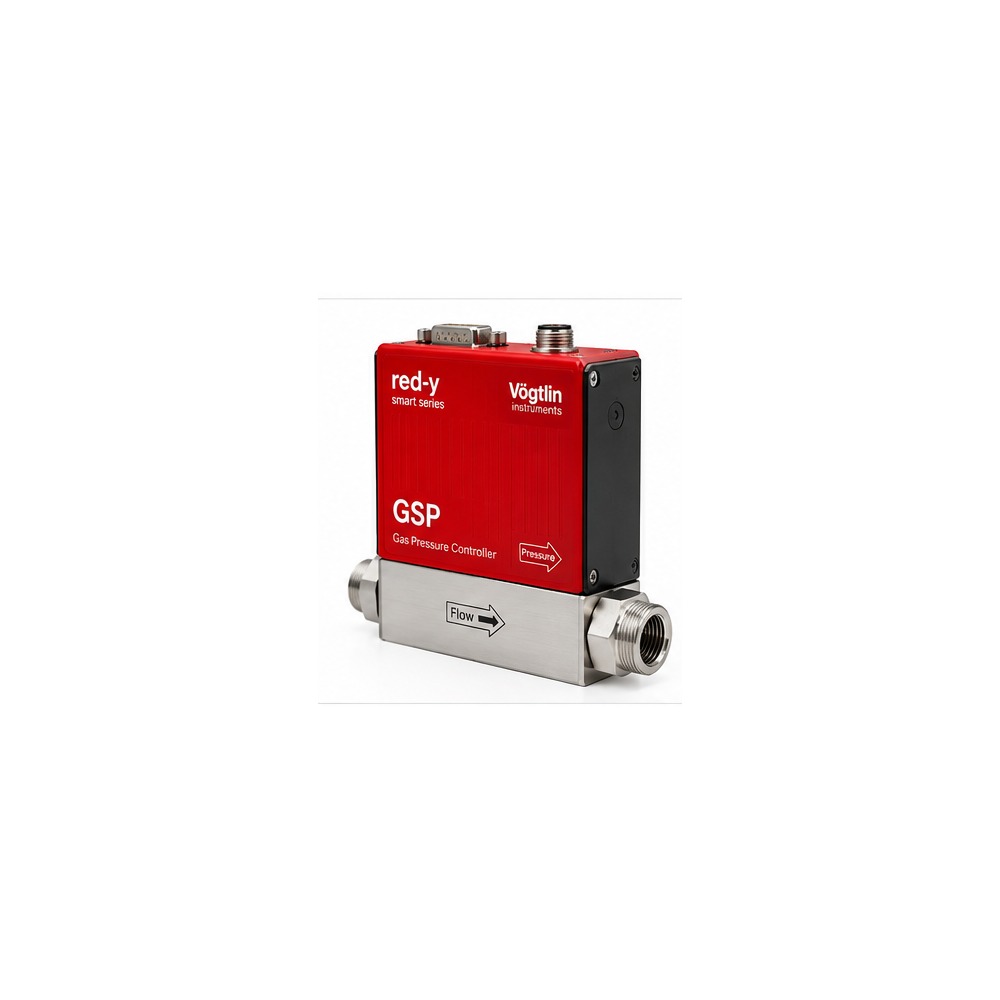

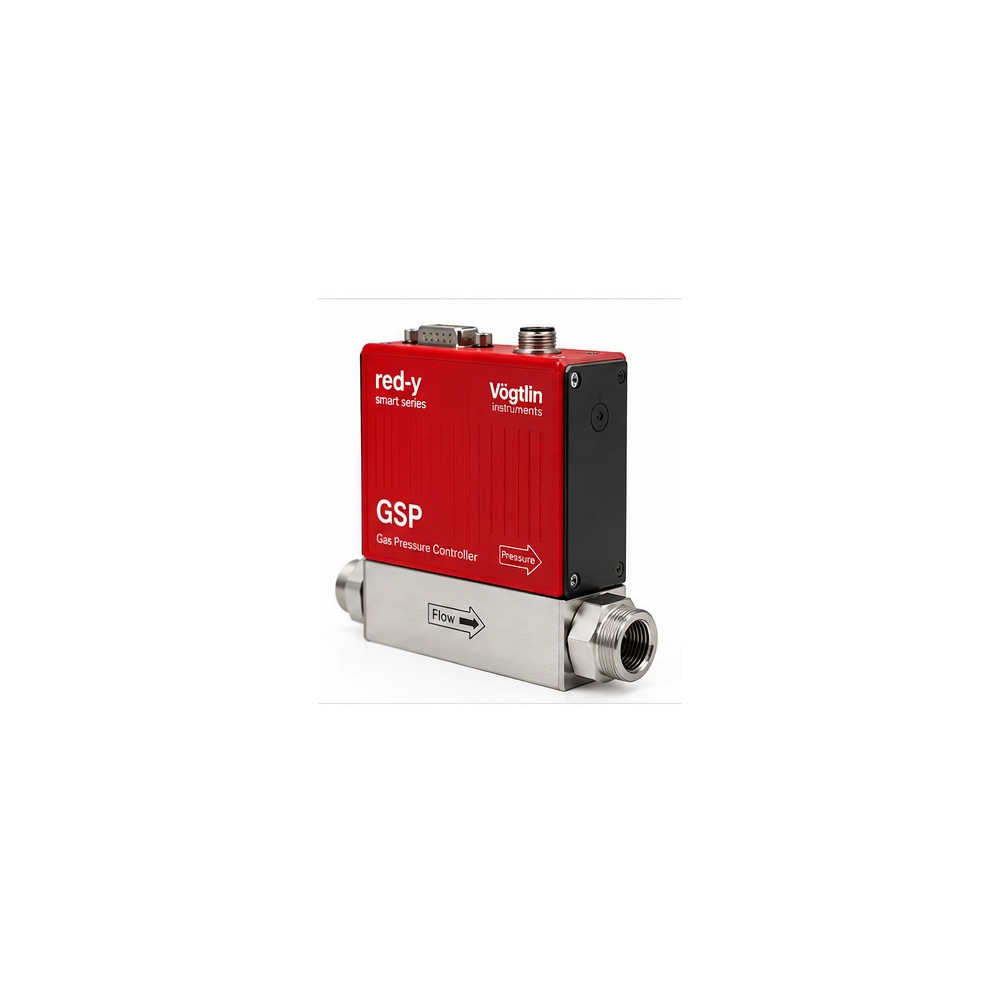

The GSP is a digital gas pressure controller that combines automatic pressure regulation with integrated gas flow measurement and limitation.
Yes. The GSP can operate as a pressure controller, a pressure controller with flow measurement or limitation, and a flow controller with pressure measurement.
Depending on configuration, the GSP supports absolute, differential and gauge pressure control with standard pressure ranges from 30 mbar up to 10 bar.
The GSP provides Modbus RTU and analog interfaces as standard, with optional PROFIBUS, PROFINET RT and EtherCAT interfaces.
Please confirm the gas type, pressure range, required flow range, inlet and outlet pressure, process connection, body material and communication interface before ordering.
