Model / Part Number: SmartTrak® 100M
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Principle | Capillary Thermal Mass Flow Measurement |
|---|---|
| Flow Range | 0–20 to 0–200 ln/min |
| Accuracy | ±0.5% of full scale % |
| Repeatability | ±0.2% of full scale % |
| Operating Pressure | Up to 34.5 barg |
| Pressure Drop | Low pressure drop design |
| Gas Compatibility | Multi-gas capability |
| Wetted Parts Material | 316L Stainless Steel |
| Response Time | Approx. 2 s |
| Power Supply | 12–30 VDC VDC |
| Communication Interface | RS-232 / RS-485 Modbus RTU |
| Display | Integrated digital display |
| Process Connection | 1/4" or customized connection |
| Gas Type | Specialty gases, clean gases and process gases |
| Application | Laboratory, process control, research and OEM systems |
| مبدأ القياس | قياس التدفق الكتلي الحراري الشعري |
| نطاق التدفق | 0–20 إلى 0–200 ln/min |
| الدقة | ±0.5% من النطاق الكامل % |
| قابلية التكرار | ±0.2% من النطاق الكامل % |
| ضغط التشغيل | حتى 34.5 barg |
| انخفاض الضغط | تصميم منخفض انخفاض الضغط |
| توافق الغازات | وظيفة دعم غازات متعددة |
| مادة الأجزاء الملامسة | فولاذ مقاوم للصدأ 316L |
| زمن الاستجابة | حوالي 2 s |
| مصدر الطاقة | 12–30 VDC VDC |
| واجهة الاتصال | RS-232 / RS-485 Modbus RTU |
| الشاشة | شاشة رقمية مدمجة |
| وصلة العملية | 1/4 بوصة أو حسب الطلب |
| نوع الغاز | الغازات المتخصصة والغازات النظيفة وغازات العمليات |
| التطبيقات | المختبرات والتحكم في العمليات والبحث وأنظمة OEM |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, pressure rating, valve configuration, process connection and communication options. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

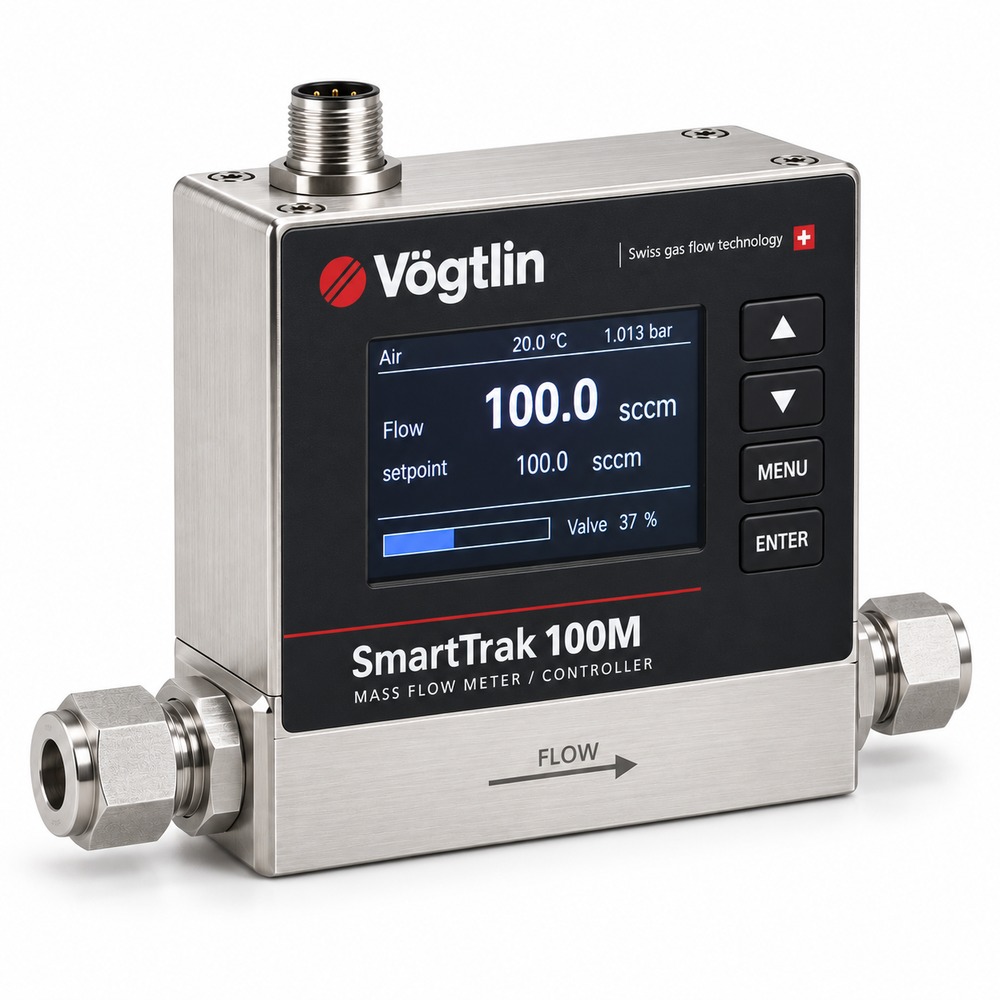

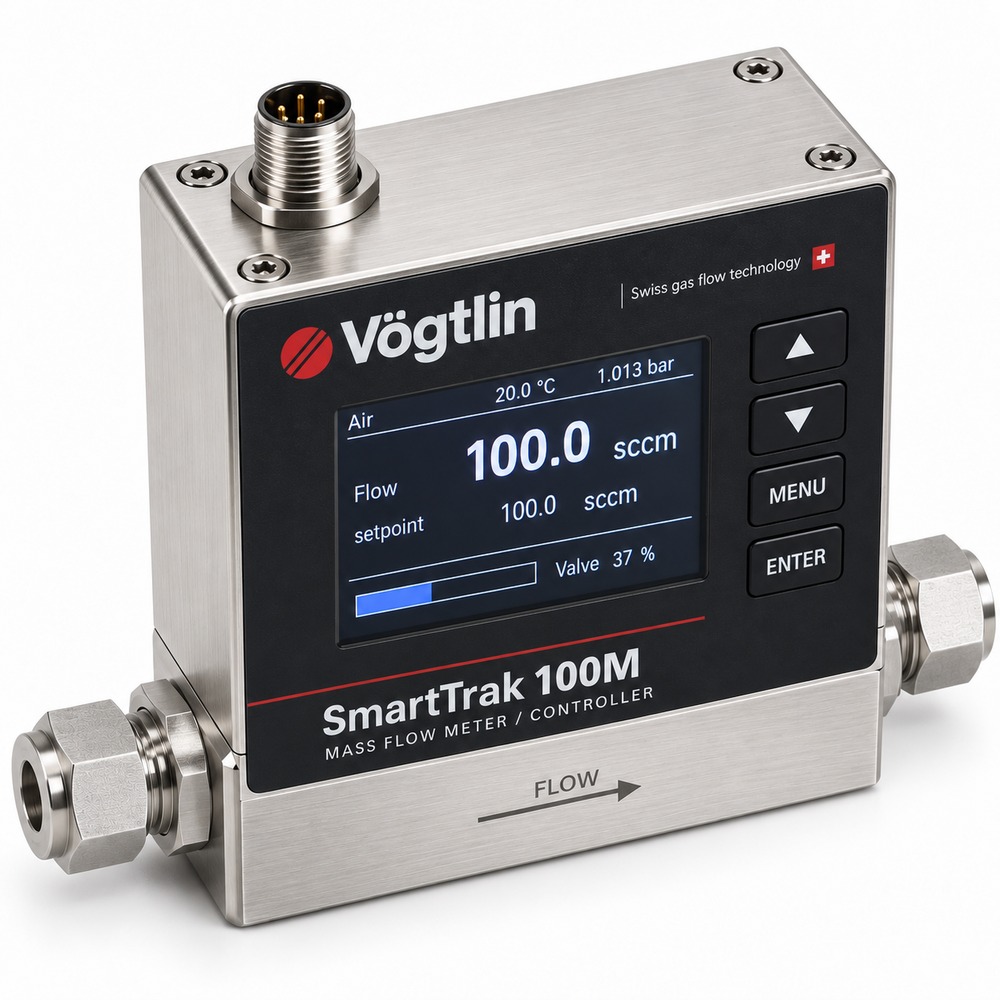

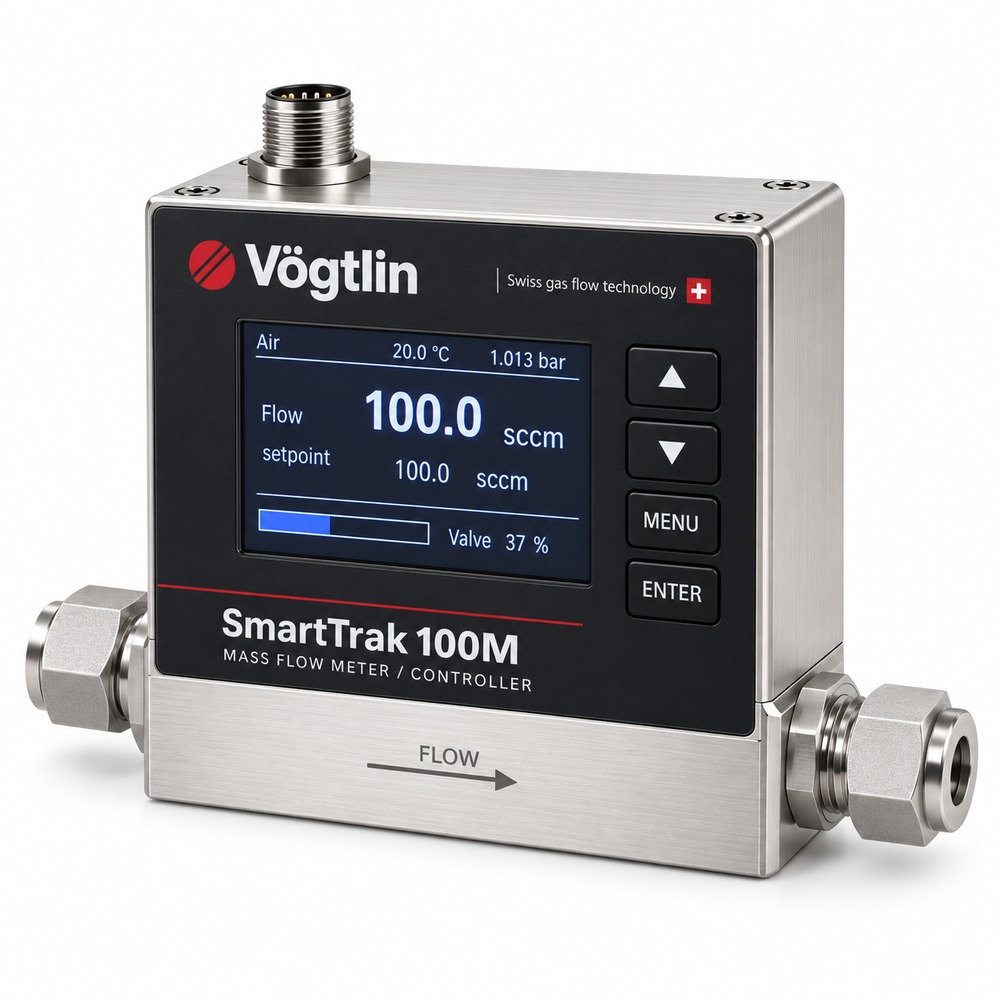

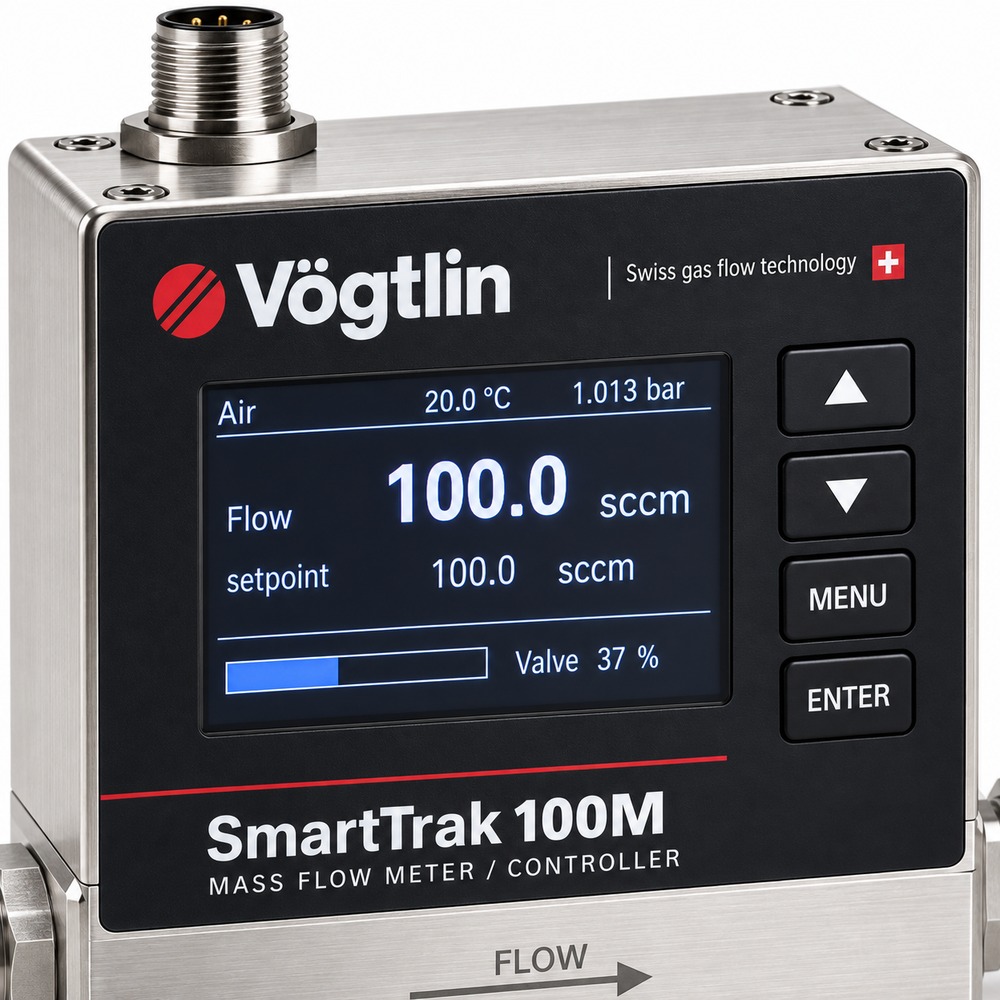

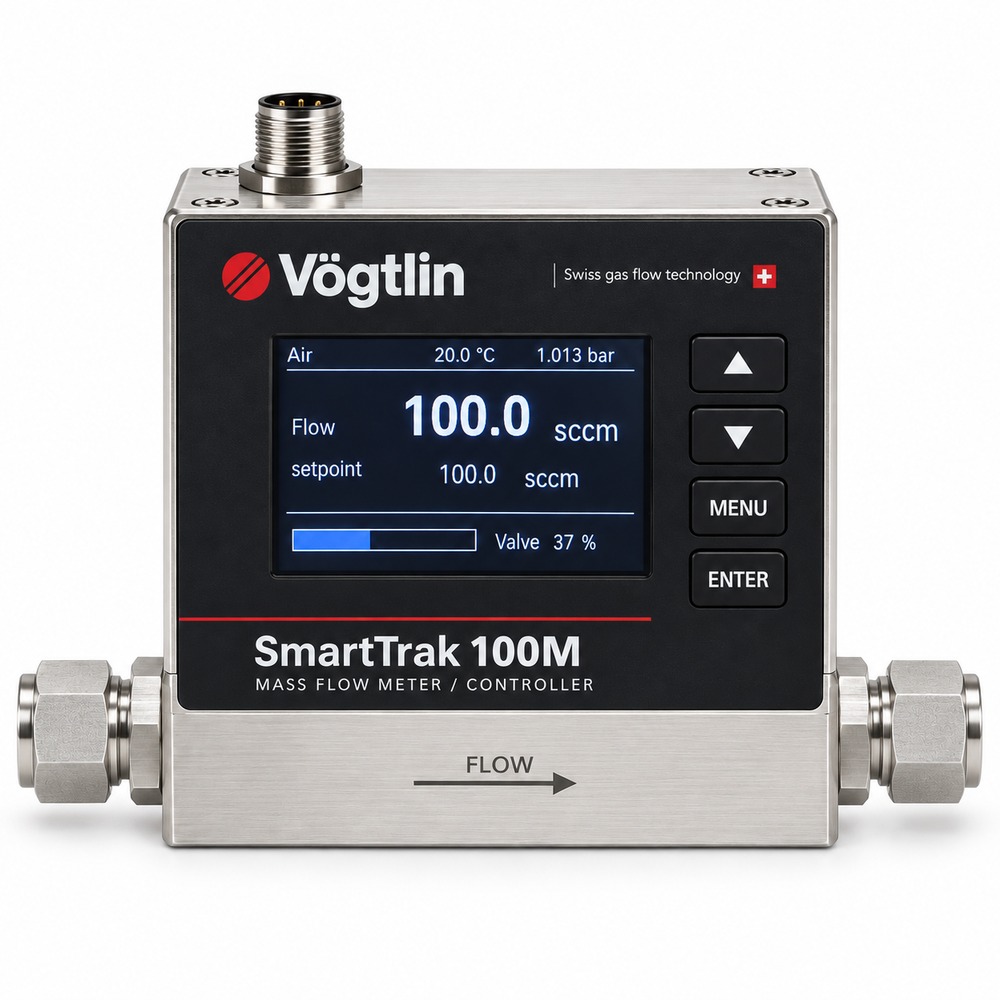

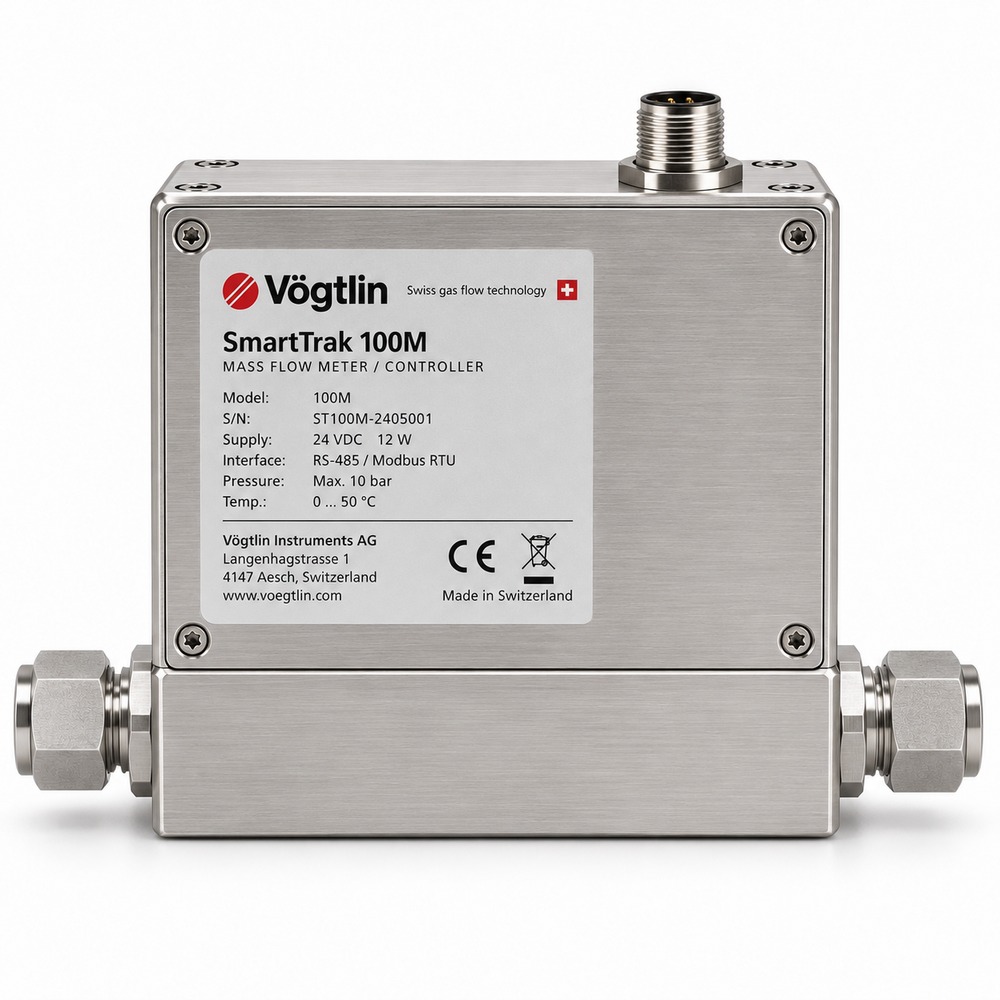

The Vögtlin SmartTrak 100M is a capillary mass flow meter and controller designed for accurate measurement and control of gas flow in medium-flow applications.
Depending on configuration, the SmartTrak 100M supports flow ranges from approximately 0–20 ln/min up to 0–200 ln/min.
The SmartTrak 100M supports multiple gas configurations and can be used for specialty gases, clean gases and various industrial gas applications.
The wetted parts are available in 316L stainless steel, providing excellent compatibility for many clean and corrosive gas applications.

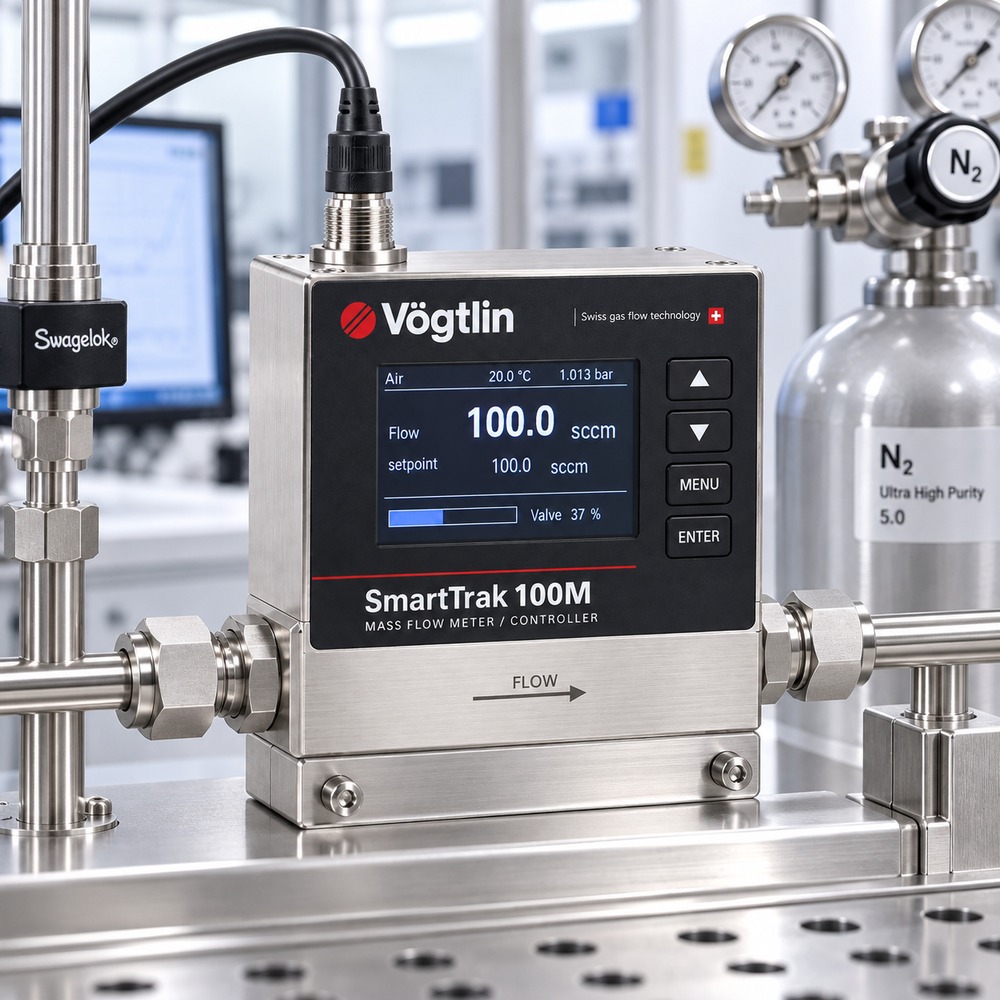

Typical applications include laboratory gas systems, process gas control, analytical equipment, research systems, specialty gas delivery and OEM machinery.
