Vögtlin Q-Flow 80 140 variable area gas flowmeter

Vögtlin Q-Flow 80 / 140 Variable Area Flowmeter for Gases

Vögtlin

Model / Part Number: Vögtlin Q-Flow 80 / 140

Availability subject to quotation and stock confirmation

Supplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.

pcsRequest a Quote
WhatsApp InquiryResponse within 1 business day
BrandVögtlin
Model / Part NumberVögtlin Q-Flow 80 / 140
Country of OriginConfirm by lot

FURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.

▣ Product Overview

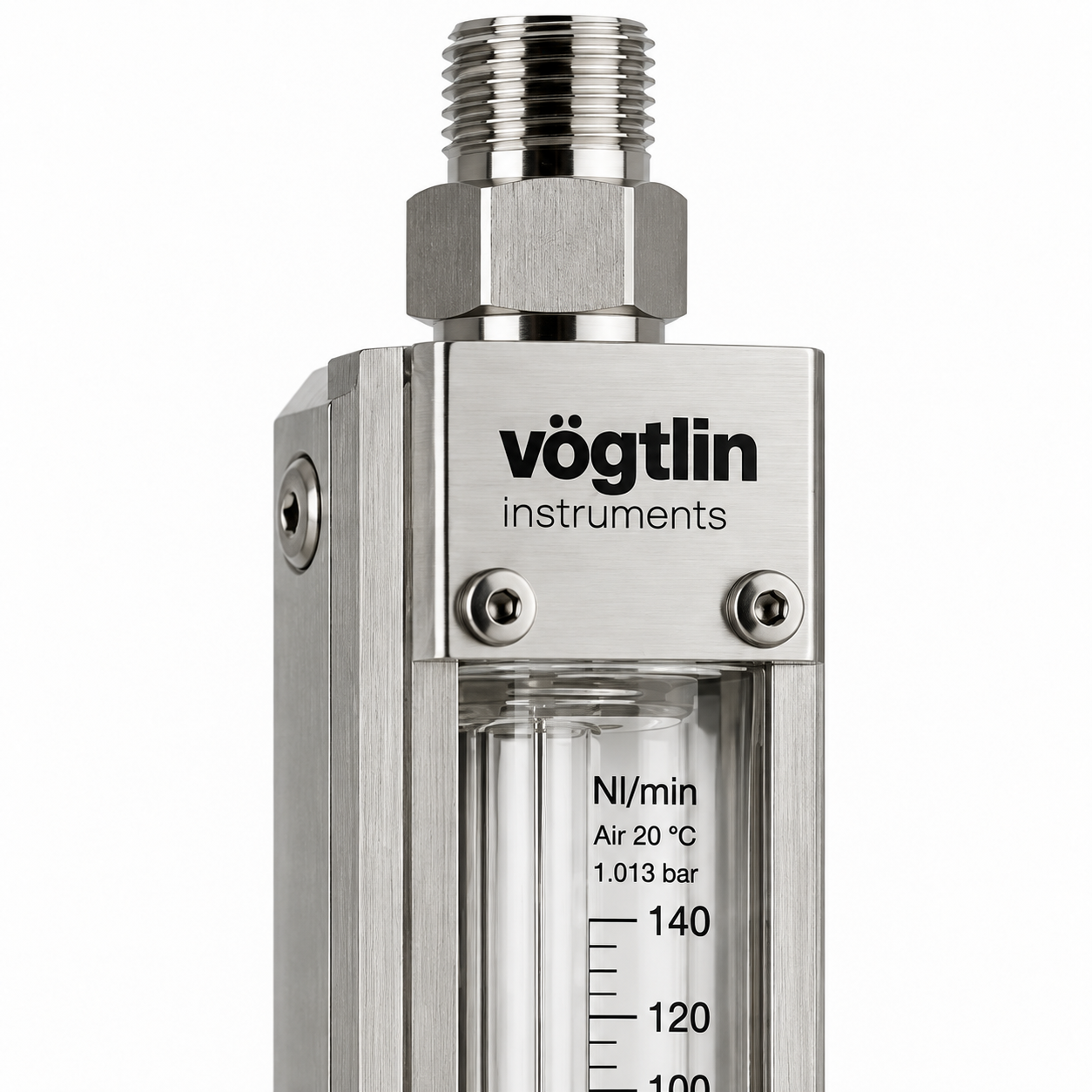

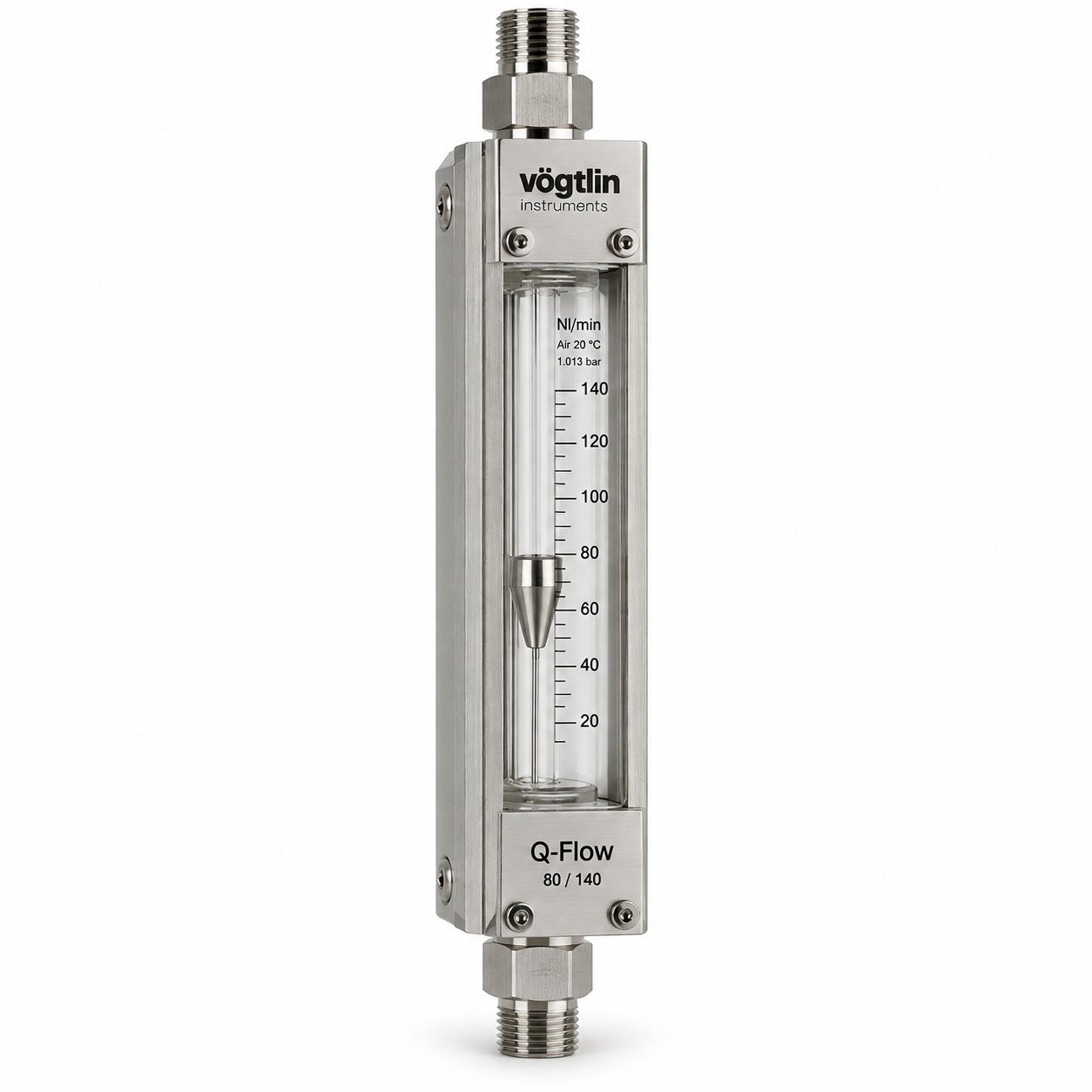

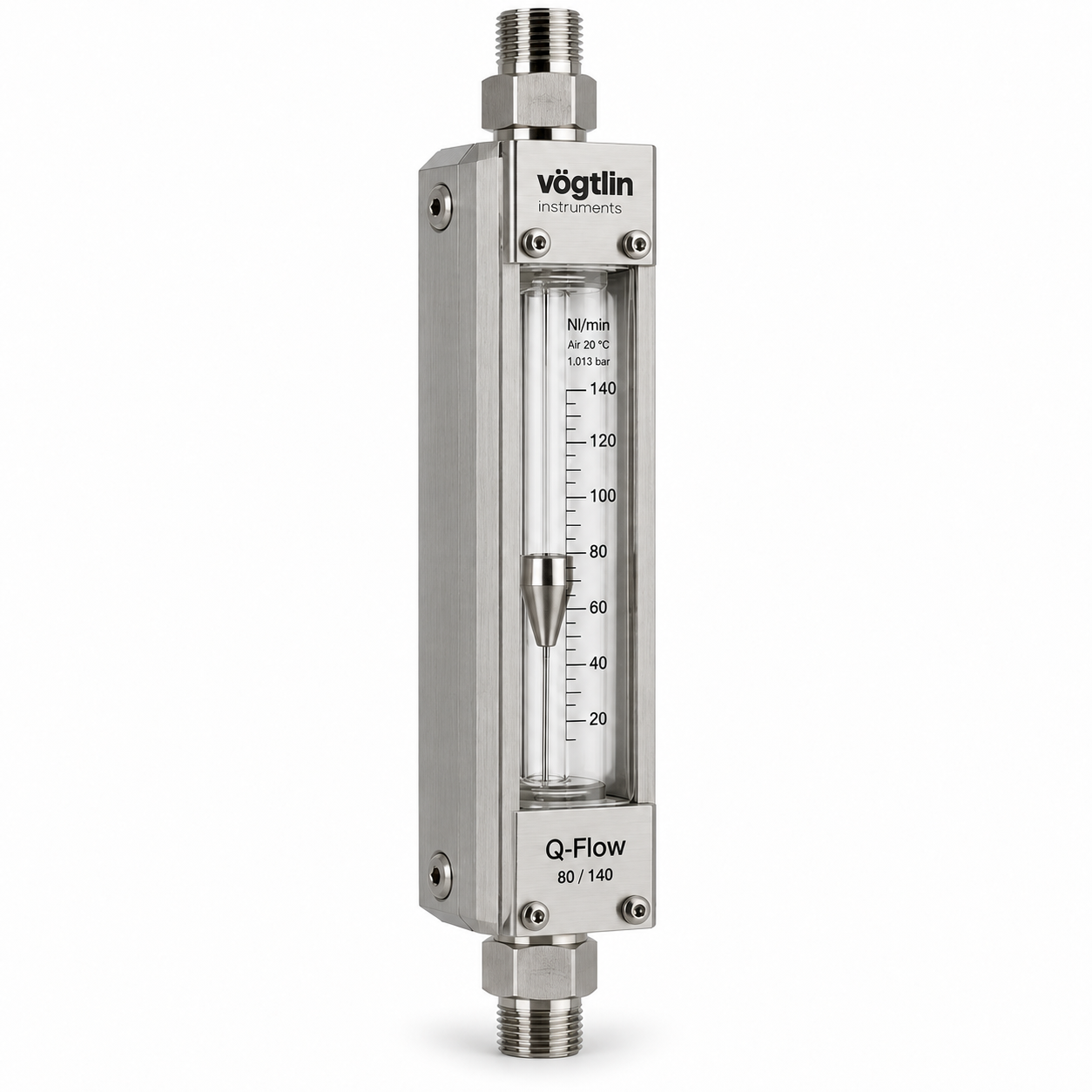

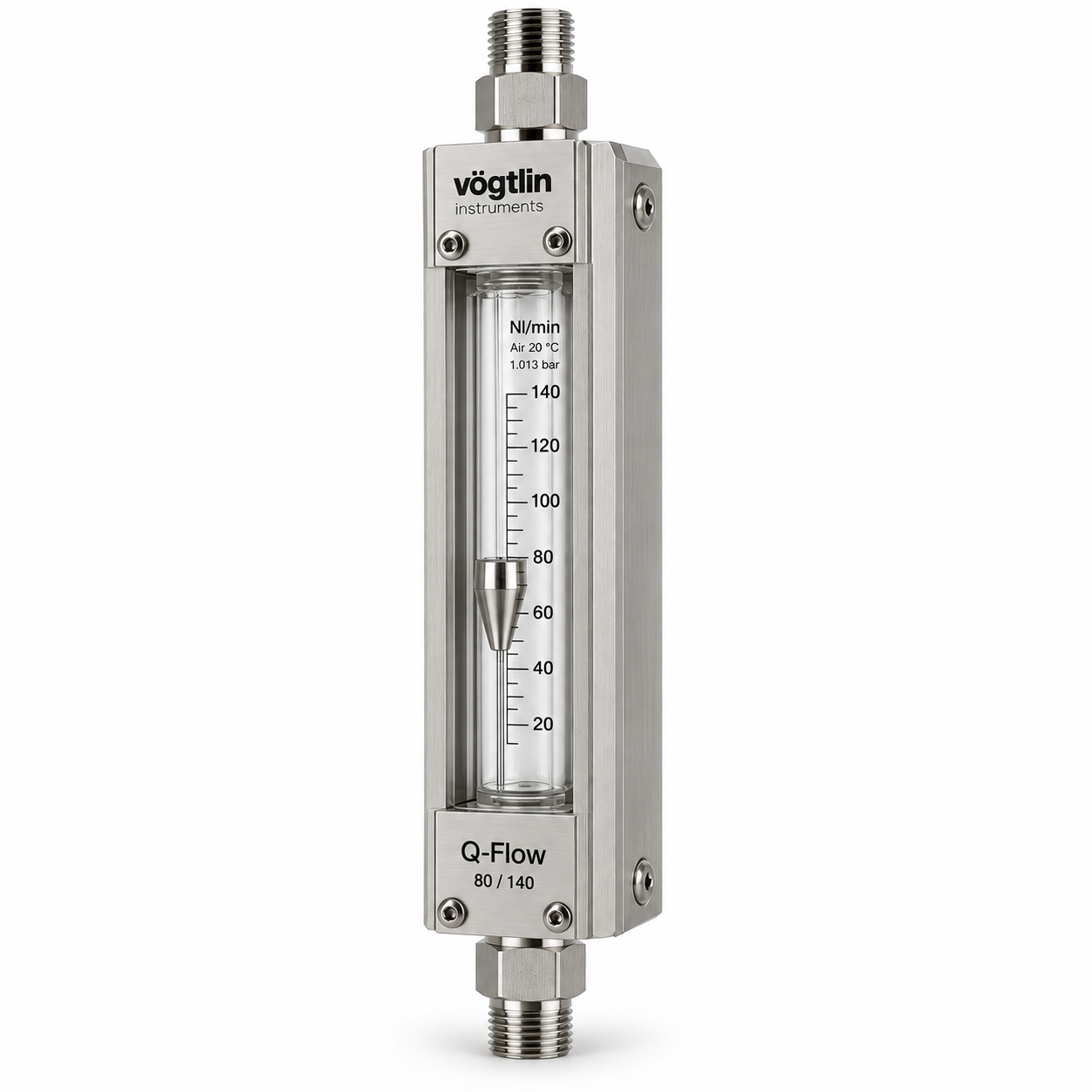

The Vögtlin Q-Flow 80 / 140 variable area flowmeter is designed for simple and reliable measurement of gas flow rates. The compact mechanical design provides excellent visibility through the glass measuring tube, allowing operators to quickly monitor flow conditions.

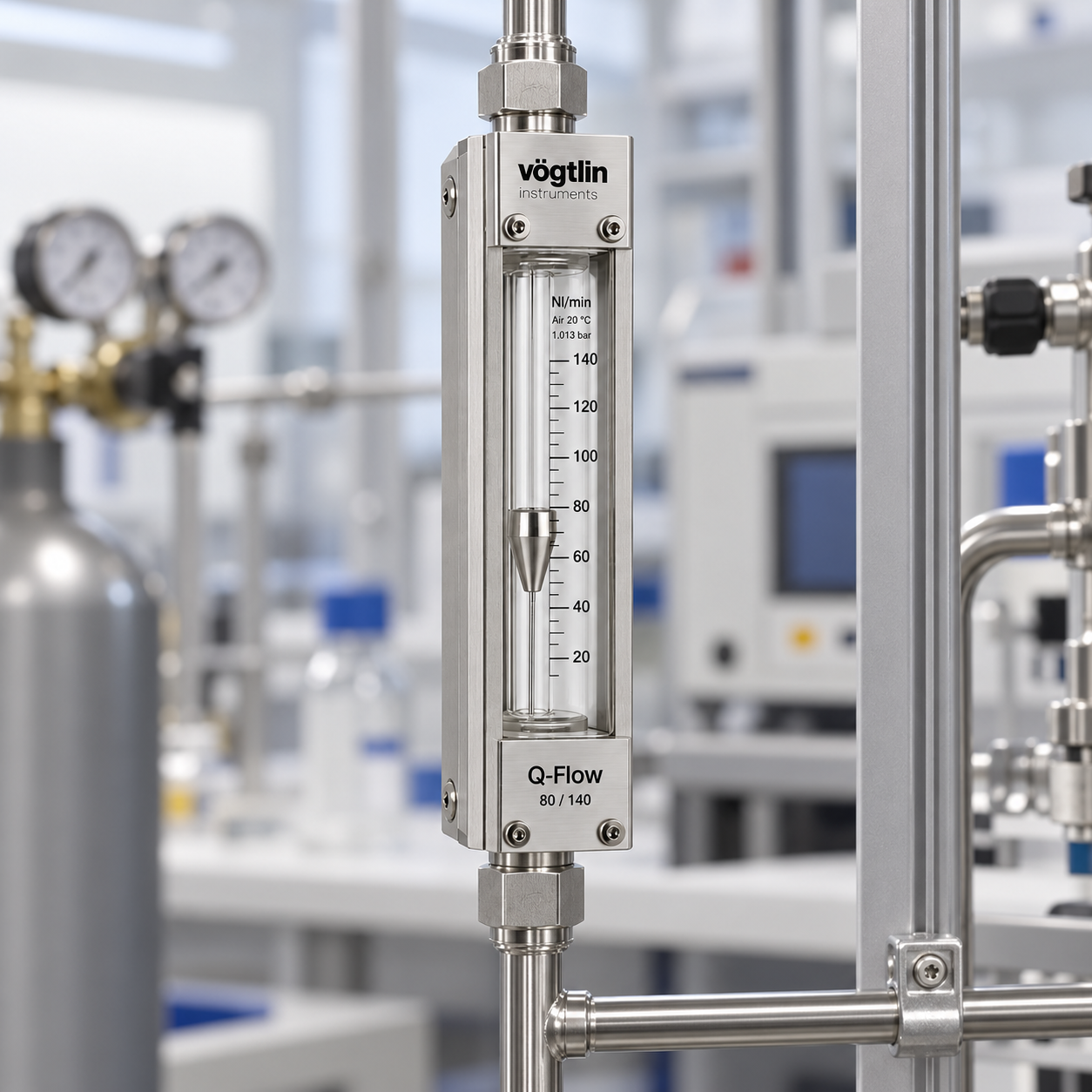

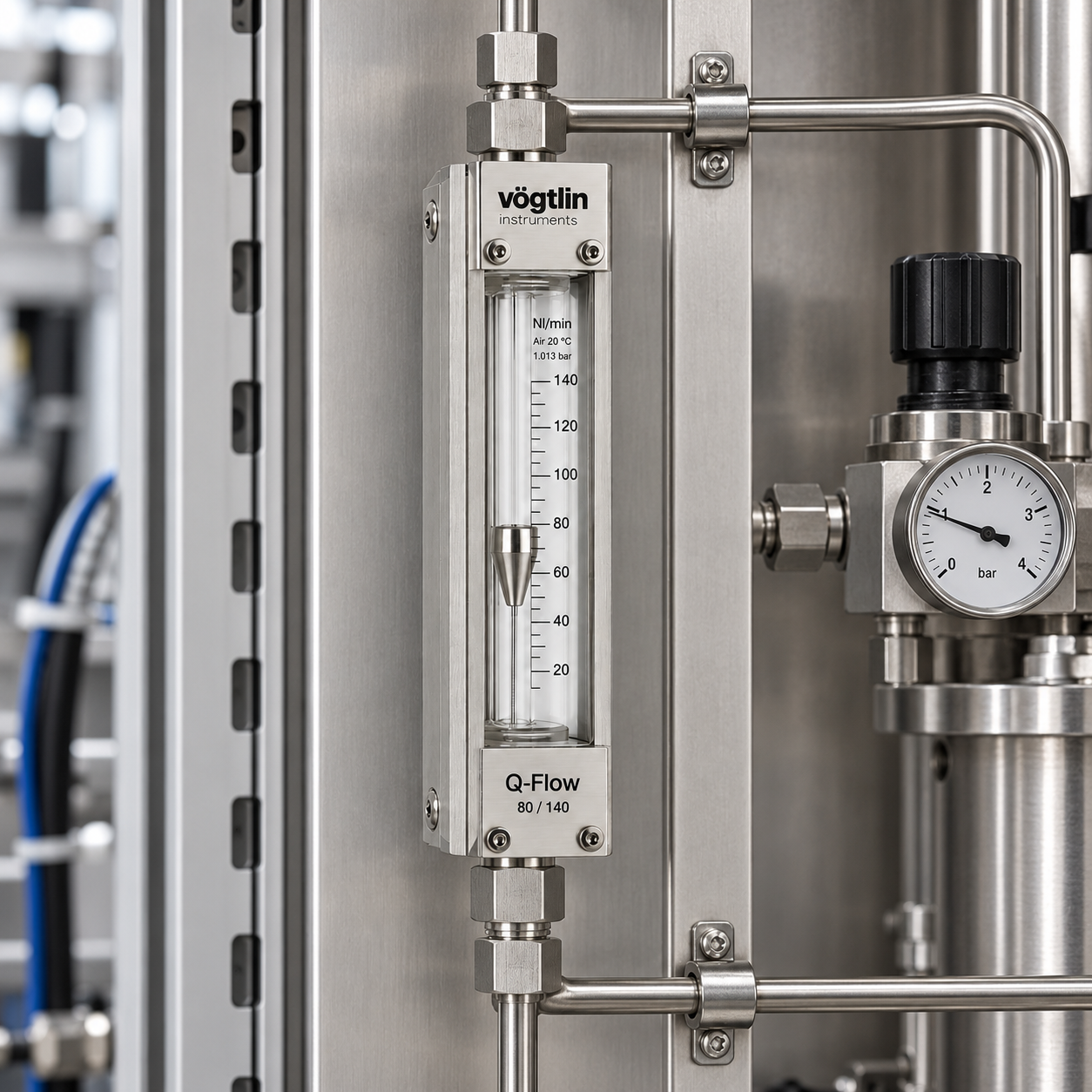

With its robust construction and precise scale indication, the Q-Flow series is suitable for laboratory systems, gas distribution equipment, process applications, and industrial machinery. The flowmeter is available for different gas measurement requirements and provides a practical solution for applications requiring direct visual flow monitoring.

⚙ Technical Specifications

Parameter NameParameter Value Unit
Flow TypeVariable Area Flowmeter
MediumGases
Flow RangeApprox. 0–50 l/min
Measuring TubeGlass Tube
Tube Size80 / 140 mm
Maximum PressureUp to 10 bar
Maximum TemperatureUp to 100 °C
Valve OptionWith or without precision 15-turn control valve
ApplicationLaboratory and industrial gas applications
اسم المعلمةالقيمة الوحدة
نوع التدفقمقياس تدفق بالمساحة المتغيرة
وسط القياسالغازات
نطاق التدفق0–50 لتر/دقيقة
أنبوب القياسأنبوب زجاجي
حجم الأنبوب80 / 140 مم
الضغط الأقصىحتى 10 بار
درجة الحرارة القصوىحتى 100 °C
خيار الصماممتوفر بصمام تحكم دقيق 15 دورة أو بدون صمام
التطبيقاتتطبيقات المختبرات والغازات الصناعية

▦ Typical Applications

  • Laboratory equipment
  • gas supply systems
  • process monitoring
  • industrial machinery

▰ Availability & Delivery

Availability & DeliveryAvailability subject to quotation and stock confirmation
Lead TimeStock availability and delivery time are subject to confirmation. Please contact us for the latest information.
Shipping OptionsAir freight, sea freight, express
PackagingSecure export packaging

? FAQ

What is the Vögtlin Q-Flow 80 / 140 used for?

The Vögtlin Q-Flow 80 / 140 is a variable area flowmeter designed for visual measurement and monitoring of gas flow in laboratory and industrial applications.

What type of media can be measured with the Q-Flow flowmeter?

The Q-Flow series is mainly designed for gas measurement applications, including air and other compatible industrial gases.

What is the measuring principle of the Q-Flow 80 / 140?

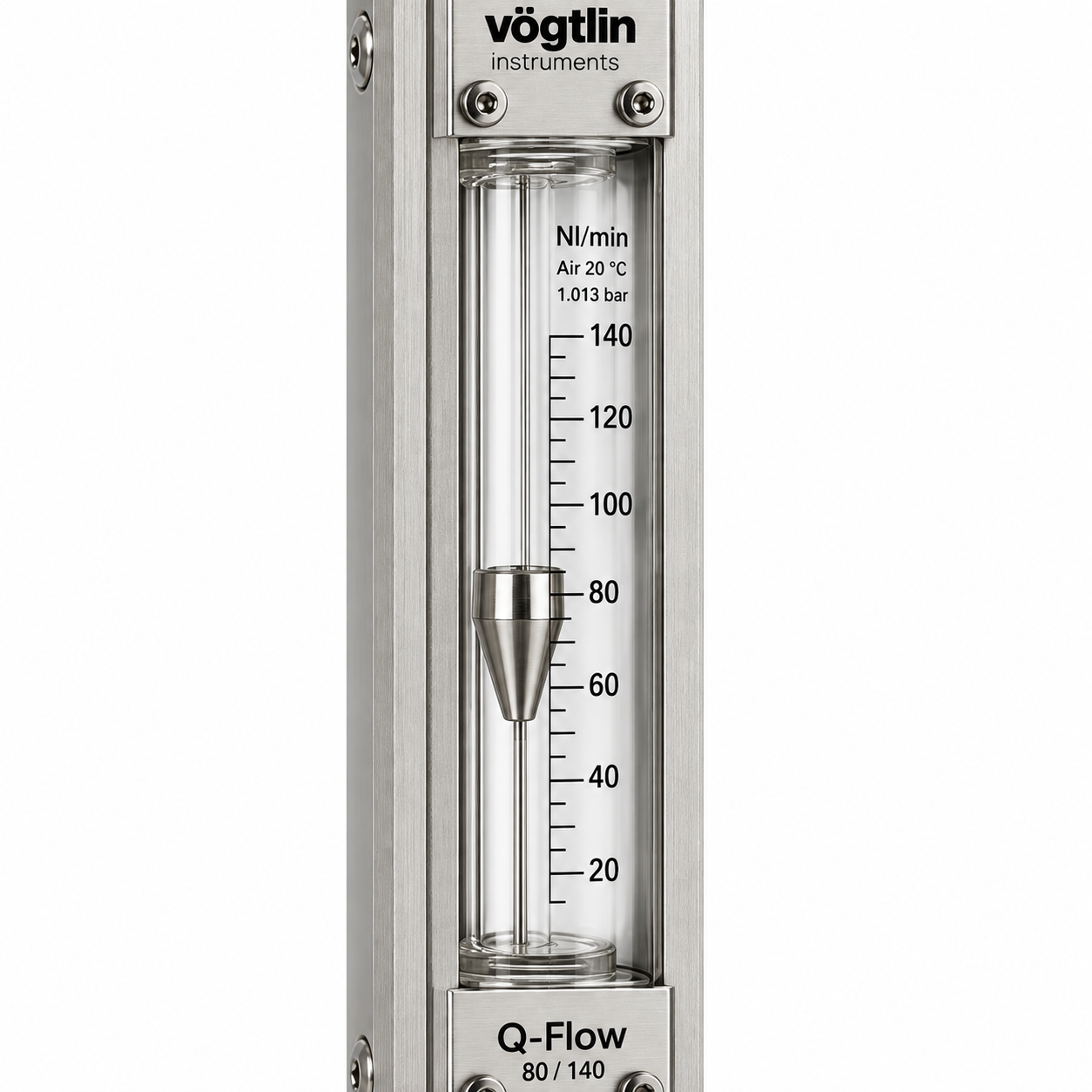

The Q-Flow uses the variable area measurement principle with a transparent measuring tube and float to provide direct visual flow indication.

Where can the Q-Flow flowmeter be installed?

The Q-Flow can be used in laboratory equipment, gas supply systems, process monitoring systems, and industrial machinery.

What information is required when requesting a quotation?

Please provide the gas type, required flow range, connection size, operating conditions, and application details when requesting a quotation.
