Model / Part Number: GCR
Availability subject to quotation and stock confirmationSupplied for maintenance, retrofit and replacement projects. Exact suffix, configuration and condition must be confirmed before ordering.
WhatsApp InquiryResponse within 1 business dayFURUYA DENKI is an independent supplier and is not affiliated with or authorized by the brands shown on this page. Brand names, trademarks and part numbers are used for identification only. Availability, specifications, condition, origin, documentation, lead time and warranty are subject to our formal quotation. Please verify all technical requirements before ordering. Images are for reference only.
| Measuring Range | Up to 450 ln/min (480 SLPM) ln/min |
|---|---|
| Accuracy | ±1.0% of full scale % |
| Repeatability | ±0.5% of full scale % |
| Turndown Ratio | Up to 1:100 |
| Response Time | Approx. 300 ms |
| Operating Pressure | 0.2–11 bar(a) |
| Operating Temperature | 0–50 °C |

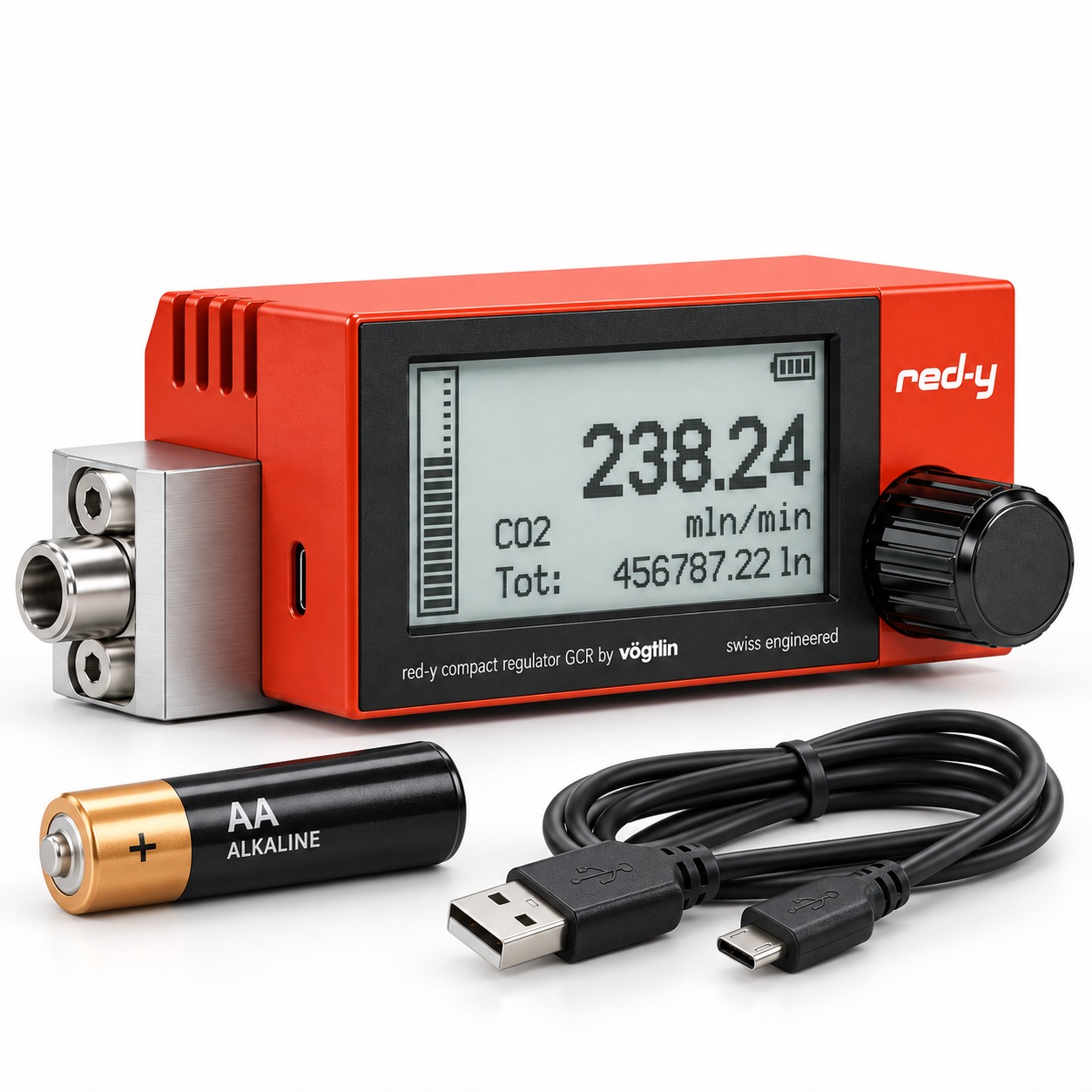

| Power Supply | AA battery / USB power / optional external power |

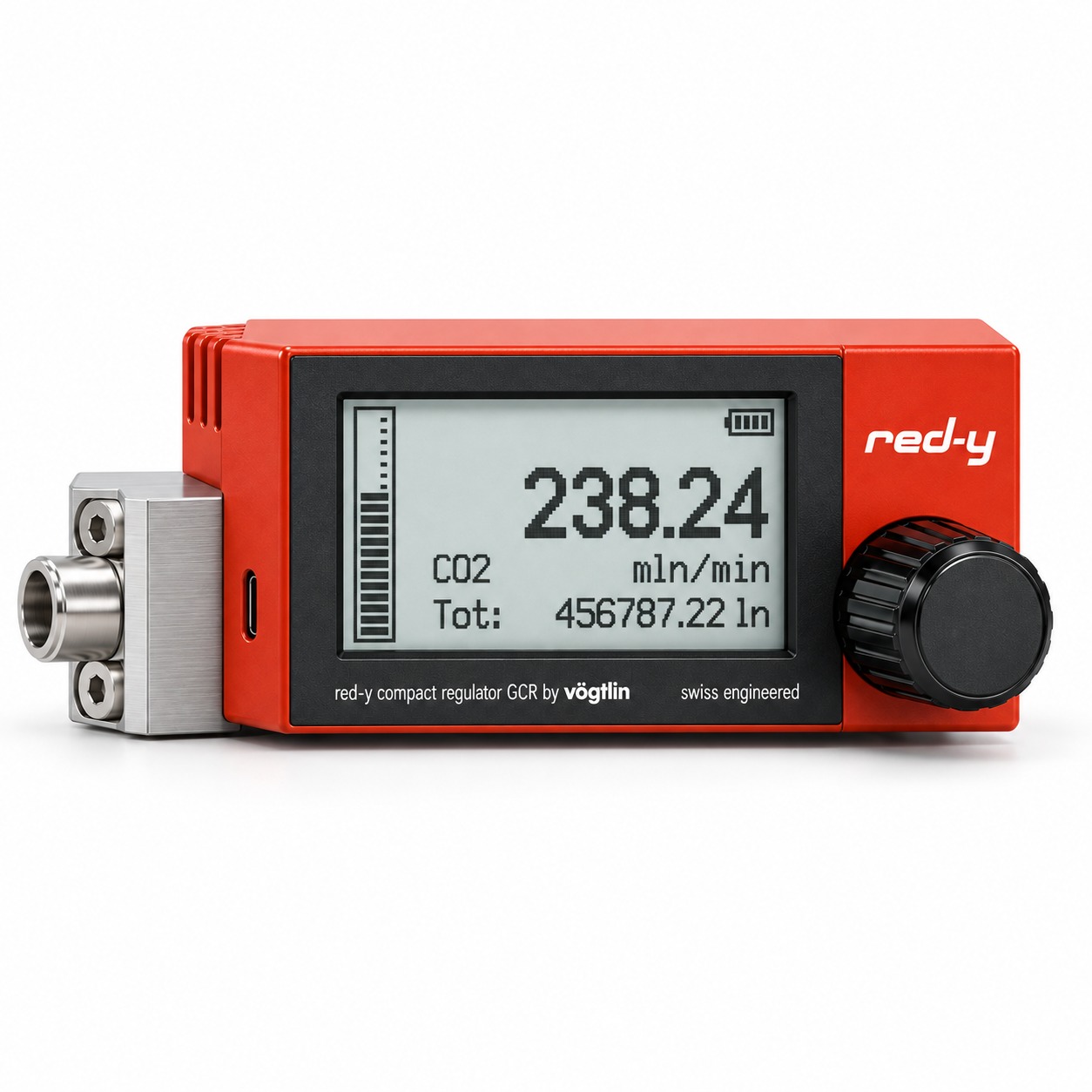

| Display | Digital display with flow value and totalizer |

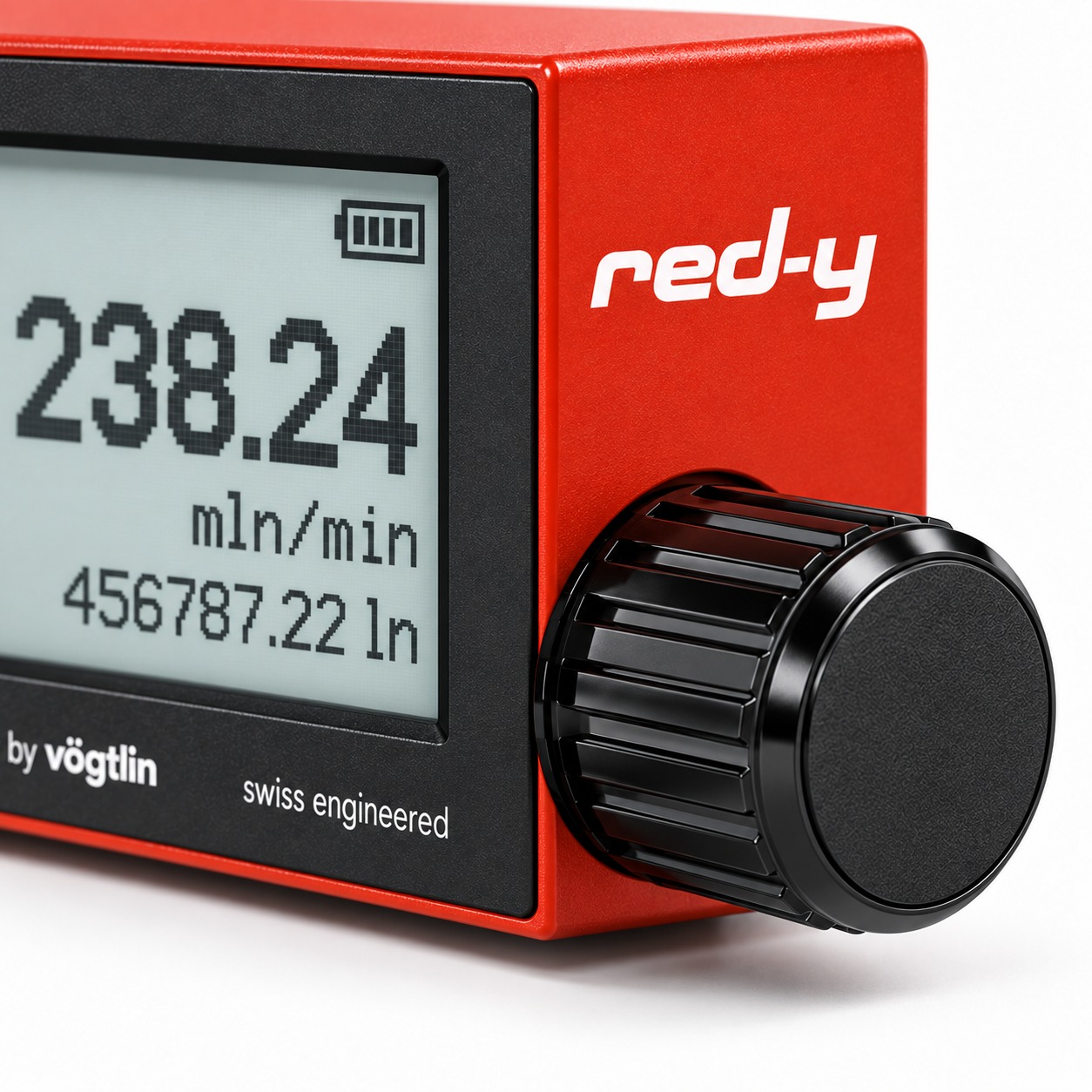

| Flow Adjustment | Integrated manual valve |

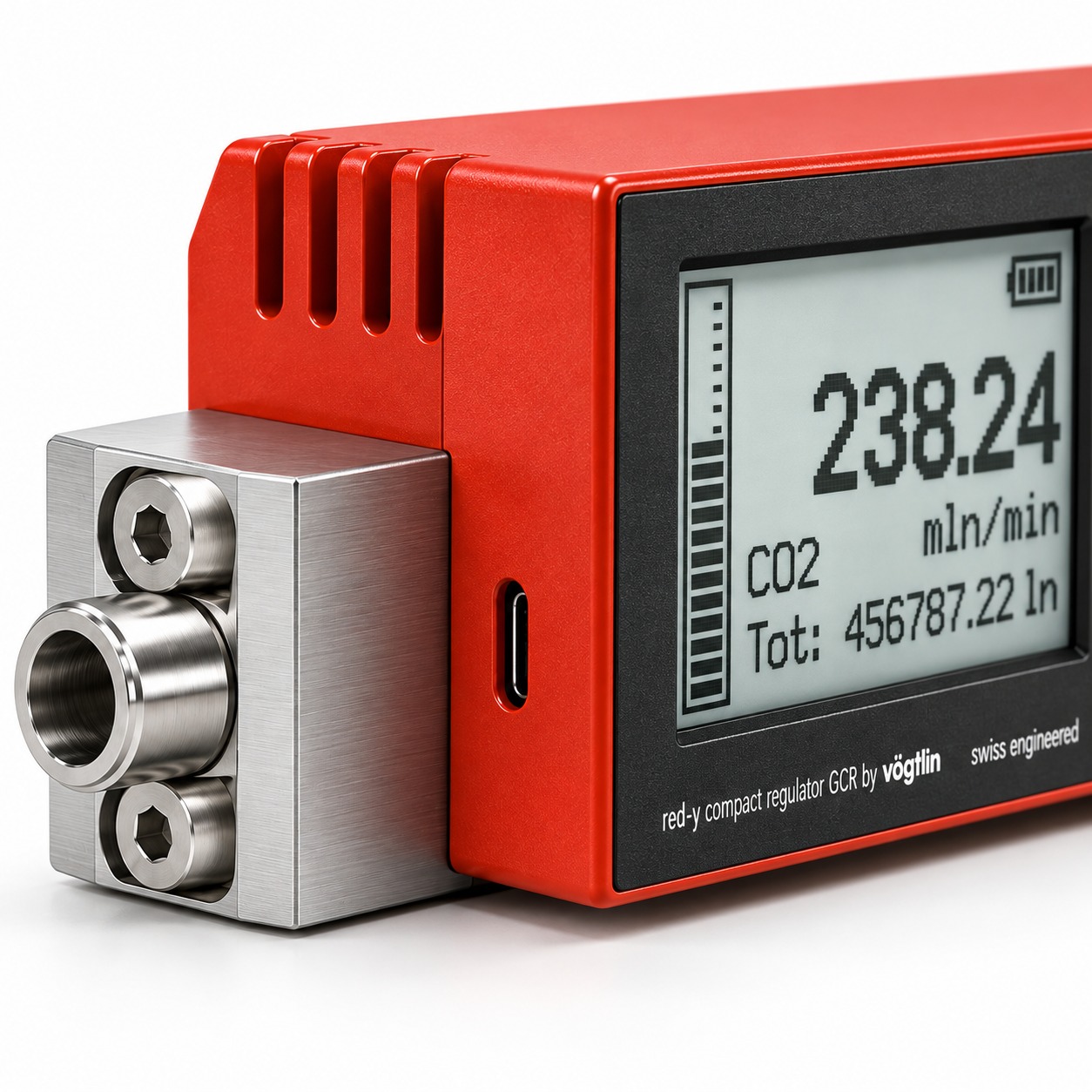

| Process Connection | G1/4 or G1/2 BSPP |
| Body Material | Anodized aluminium; optional electropolished stainless steel |
| Measurement Technology | Thermal MEMS mass flow measurement |
| Medium | Gases |
| نطاق القياس | حتى 450 ln/min (480 SLPM) ln/min |
| الدقة | ±1.0% من النطاق الكامل % |
| قابلية التكرار | ±0.5% من النطاق الكامل % |
| نسبة المدى | حتى 1:100 |
| زمن الاستجابة | حوالي 300 ms |
| ضغط التشغيل | 0.2–11 bar(a) |
| درجة حرارة التشغيل | 0–50 °C |
| مصدر الطاقة | بطارية AA / طاقة USB / مصدر خارجي اختياري |
| الشاشة | شاشة رقمية لعرض قيمة التدفق والإجمالي |
| ضبط التدفق | صمام يدوي مدمج |
| وصلة العملية | G1/4 أو G1/2 BSPP |
| مادة الجسم | ألمنيوم مؤكسد؛ فولاذ مقاوم للصدأ مصقول كهربائياً اختياري |
| تقنية القياس | قياس التدفق الكتلي الحراري MEMS |
| الوسط | الغازات |
| Availability & Delivery | Availability subject to quotation and stock confirmation |
|---|---|
| Lead Time | Stock availability and lead time depend on the selected gas, flow range, body material, process connection and module configuration. Please contact us for current availability and delivery time. |
| Shipping Options | Air freight, sea freight, express |
| Packaging | Secure export packaging |

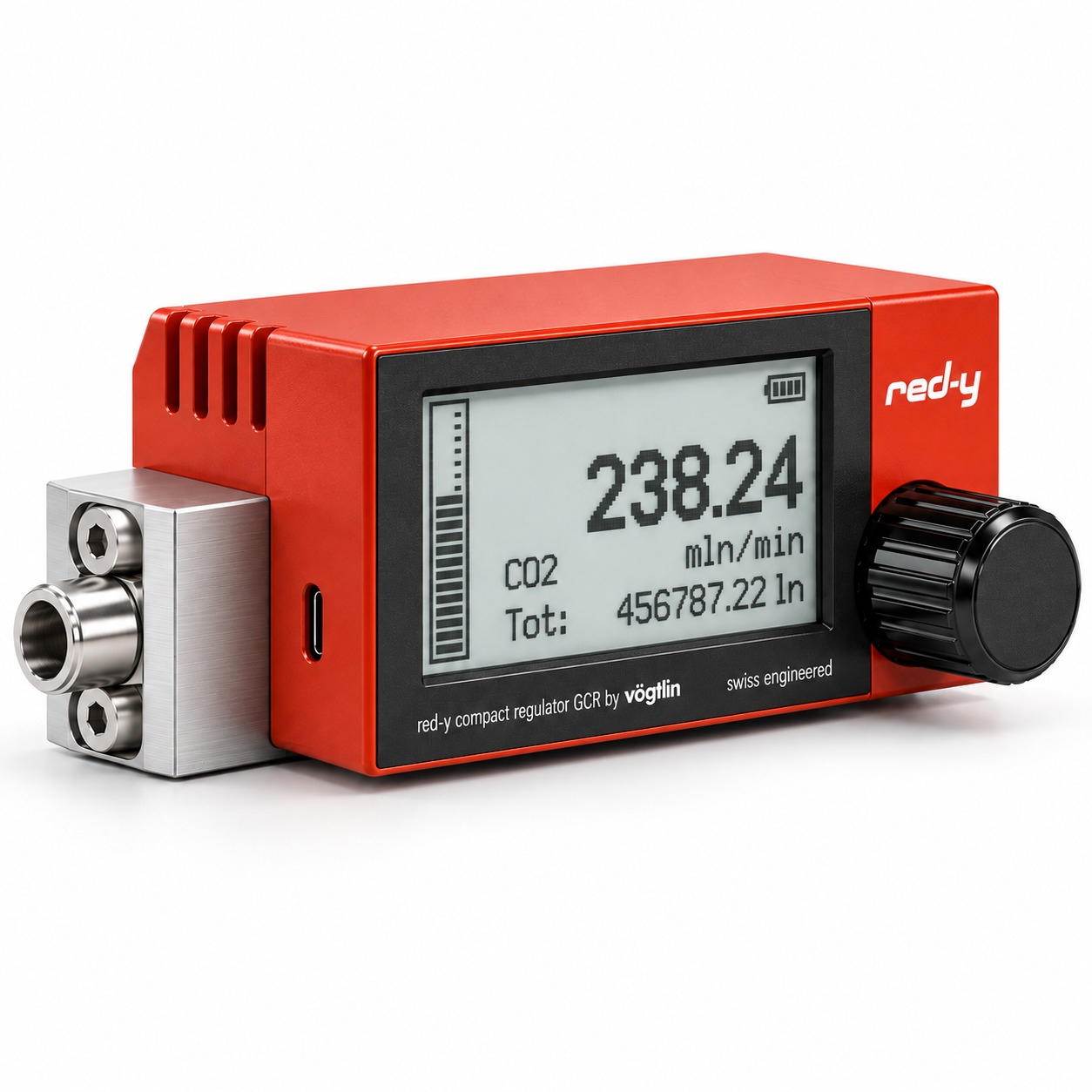

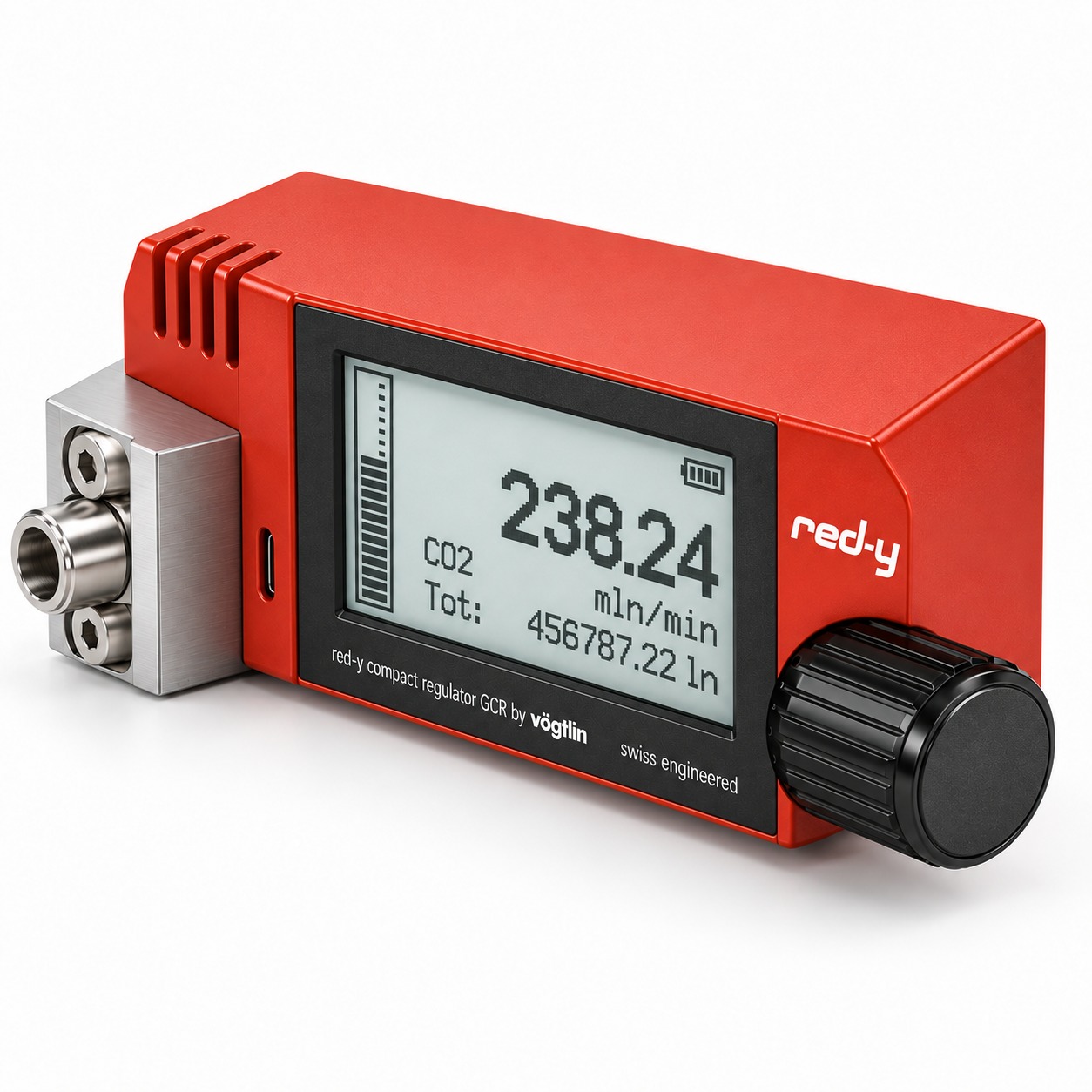

The Vögtlin red-y compact regulator GCR is a digital mass flow meter with an integrated manual valve, designed for accurate gas flow measurement and manual flow adjustment.
The GCR supports flow ranges up to 450 ln/min (480 SLPM), depending on the selected configuration.
The GCM is a portable digital mass flow meter, while the GCR adds an integrated manual valve for direct gas flow adjustment during measurement.
The GCR can be configured for various gases and gas mixtures. The suitable gas type should be confirmed before ordering.

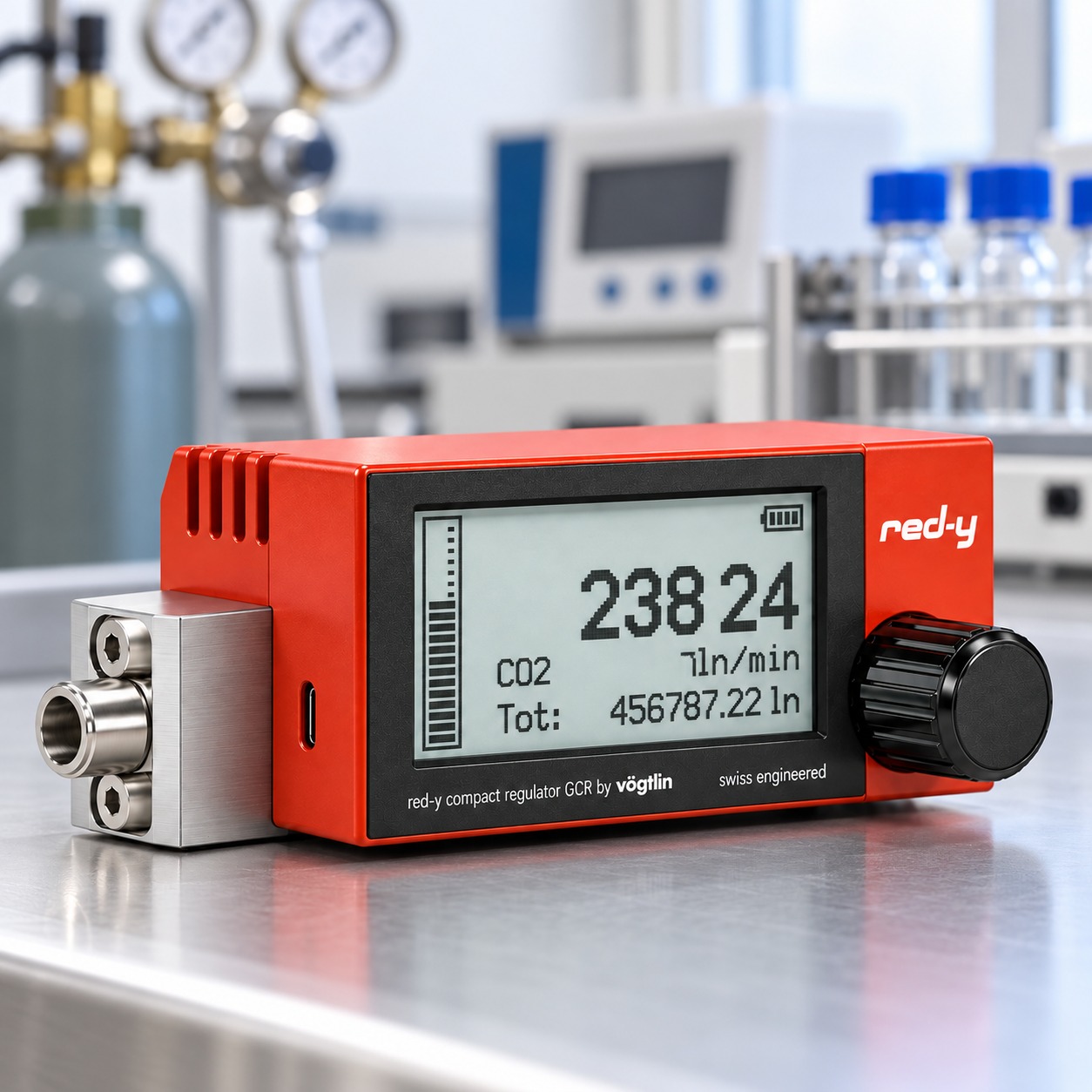

Typical applications include laboratory testing, calibration equipment, gas consumption monitoring, test benches, field service and industrial gas measurement systems.
